IBM 5B52 02YC725 02YC739 ES3B ES3C ES5C ES5D EKF3 EKF4 Enterprise 1.6 TB Gen4 NVMe SSD
The IBM 5B52 is an Enterprise 1.6 TB PCIe4 NVMe SSD Gen4 device for an IBM Power System SFF U.2 slot, has 02YC725 02YC739 part numbers and may have one of these feature codes ES3B ES3C ES5C ES5D EKF3 EKF4. The IBM 5B52 Enterprise 1.6 TB Gen4 NVMe SSD supports boot on Power10 or Power9 systems, and can be installed in any U.2 15mm NVMe slot in the system. The ES3B ES3C ES5C ES5D EKF3 EKF4 Enterprise 1.6 TB SSD PCIe4 NVMe U.2 module are all physically identical SSD, have the same 5B52 CCIN and same 02YC725 02YC739 part numbers. IBM 5B52 Enterprise 1.6 TB SSD PCIe4 NVMe U.2 storage module can have 64 namespaces per device and works with the previous generation of NVMe devices that manage the same 5B52 custom card identification number (CCIN). The IBM 5B52 is an Enterprise 1.6 TB PCIe4 NVMe SSD is rated at three Drive Writes Per Day (DWPD) calculated over a five-year period for 100% (4K bytes or larger) random write workloads. IBM Enterprise SSD have a high reliability and mean time between failures (MTBF) when used for workloads within the rating IBM designates.
Attributes provided: 1.6 TB PCIe4 NVMe SSD
Attributes required: SFF U.2 slot
OS level requirements:
Linux supported
AIX supportedB
IBM i OS400 supported through VIOS
IBM Power Models: S1012 9025-21B, S1014 9105-41B, S1024 9105-42A, S914 9009-41G, S924 9009-42G, S922 9009-22G and H924 9223-42S
Other IBM Enterprise SSD, DISK and Storage for IBM Power10 and Power9 Servers include:
IBM 5947 800 GB Enterprise SSD NVMe U.2 module PCIe4
Part Numbers: 01LU973 01LU974
Feature Codes: ES1K ELSG
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B, L1022 9786-22H, E1050 9043-MRX, L922 9008-22L, S922 9009-22A, S922 9009-22G, S914 9009-41G, S922 9009-22G, S914 9009-41A, S924 9009-42G, S924 9009-42A, H922 9223-22H, H922 9223-22S, H294 9223-42H, H294 9223-42S and 5000 ESS 5105-22E
Operating Systems: IBM i OS400
IBM 5B52 1.6 TB Enterprise SSD NVMe U.2 module PCIe4
Part Numbers: 02YC725 02YC739
Feature Codes: ES3B ES3C ELYC
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B, L1022 9786-22H and E1050 9043-MRX
Operating Systems: IBM i OS400, AIX, Linux & VIOS
IBM 59B8 1.6 TB Enterprise SSD NVMe U.2 module PCIe4
Part Numbers: 01LU967
Feature Codes: ES1F ES1E ELS3
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B, E1050 9043-MRX, L922 9008-22L, S922 9009-22A, S922 9009-22G, S914 9009-41G, S922 9009-22G, S914 9009-41A, S924 9009-42G, S924 9009-42A, H922 9223-22H, H922 9223-22S, H294 9223-42H, H294 9223-42S and 5000 ESS 5105-22E
Operating Systems: IBM i OS400, AIX, Linux & VIOS
IBM 5B51 3.2 TB Enterprise SSD NVMe U.2 module PCIe4
Part Numbers: 02YC726 02YC740
Feature Codes: ES3E ES3D ELYE
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B and E1050 9043-MRX
Operating Systems: IBM i OS400, AIX, Linux & VIOS
IBM 59B9 3.2 TB Enterprise SSD NVMe U.2 module PCIe4
Part Numbers: 01LU968
Feature Codes: ES1H ELSQ ES1G
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B, E1050 9043-MRX, L922 9008-22L, S922 9009-22A, S922 9009-22G, S914 9009-41G, S922 9009-22G, S914 9009-41A, S924 9009-42G, S924 9009-42A, H922 9223-22H, H922 9223-22S, H294 9223-42H, H294 9223-42S and 5000 ESS 5105-22E
Operating Systems: IBM i OS400, AIX, Linux & VIOS
IBM 59BA 6.4 TB Enterprise SSD NVMe U.2 module PCIe4
Part Numbers: 01LU969
Feature Codes: EC5W ELUW EC5V
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B, E1050 9043-MRX, L922 9008-22L, S922 9009-22A, S922 9009-22G, S914 9009-41G, S914 9009-41A, S924 9009-42G, S924 9009-42A, H922 9223-22H, H922 9223-22S, H294 9223-42H, H294 9223-42S and 5000 ESS 5105-22E
Operating Systems: IBM i OS400, AIX, Linux & VIOS
IBM 5B50 6.4 TB Enterprise SSD NVMe U.2 module PCIe4
Part Numbers: 02YC727 02YC741
Feature Codes: ES3G EKF7 ES3F
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B and E1050 9043-MRX
Operating Systems: IBM i OS400, AIX, Linux & VIOS
IBM 594A 1.6 TB NVMe Flash Adapter PCIe4 x8
Part Numbers: 02DE956
Feature Codes: EC7J EC7K ELVK EC7A EC7B
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B, E1050 9043-MRX, S914 9009-41G, S914 9009-41A, S924 9009-42G, S924 9009-42A, L922 9008-22L, S922 9009-22A, S922 9009-22G, H922 9223-22H, H922 9223-22S, E980 9080-M9S, H294 9223-42H, H294 9223-42S and E950 9040-MR9
Operating Systems: IBM i OS400, AIX, Linux & VIOS
IBM 58FC 1.6 TB NVMe Flash Adapter PCIe3 x8
Part Numbers: 01DH570
Feature Codes: EC6U EC6V ENS1 ENS2 ESLV EC5B EC5G
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B, E1050 9043-MRX, S914 9009-41G, S914 9009-41A, S924 9009-42G, S924 9009-42A, L922 9008-22L, S922 9009-22A, S922 9009-22G, H922 9223-22H, H922 9223-22S, E980 9080-M9S, H294 9223-42H, H294 9223-42S, E950 9040-MR9
Operating Systems: IBM i OS400, AIX, Linux & VIOS
IBM 594B 3.2 TB NVMe Flash Adapter PCIe4 x8
Part Numbers: 02DE960
Feature Codes: EC7M EC7L ELVM EC7C EC7D
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B, E1050 9043-MRX, S914 9009-41G, S914 9009-41A, S924 9009-42G, S924 9009-42A, S922 9009-22A, L922 9008-22L, S922 9009-22G, H922 9223-22H, H922 9223-22S, E980 9080-M9S, H294 9223-42H, H294 9223-42S, E950 9040-MR9
Operating Systems: IBM i OS400, AIX, Linux & VIOS
IBM 58FD 3.2 TB NVMe Flash Adapter PCIe3 x8
Part Numbers: 01LK431
Feature Codes: EC6X ESLX EC6W EC5C EC5D
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B, E1050 9043-MRX, S914 9009-41G, S914 9009-41A, S924 9009-42G, S924 9009-42A, S922 9009-22A, L922 9008-22L, S922 9009-22G, H922 9223-22H, H922 9223-22S, E980 9080-M9S, H294 9223-42H and H294 9223-42S
Operating Systems: AIX, Linux & VIOS
IBM 594C 6.4 TB NVMe Flash Adapter PCIe4 x8
Part Numbers: 02DE964
Feature Codes: EC7P ELVP EC7N EC7P EC7E EC7F
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B, E1050 9043-MRX, S914 9009-41G, S914 9009-41A, S924 9009-42G, S924 9009-42A, S922 9009-22A, L922 9008-22L, S922 9009-22G, H922 9223-22H, H922 9223-22S, E980 9080-M9S, H294 9223-42H, H294 9223-42S and E950 9040-MR9
Operating Systems: IBM i OS400, AIX, Linux & VIOS
IBM 58FE 6.4 TB NVMe Flash Adapter PCIe3 x8
Part Numbers: 01LK435
Feature Codes: EC6Z EC5E EC6Y ESLZ EC5F
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B, E1050 9043-MRX, L922 9008-22L, S922 9009-22A, S922 9009-22G, S914 9009-41G, S914 9009-41A, S924 9009-42G, S924 9009-42A, 9040-MR9, 9080-M9S, 9223-22H, 9223-22S, 9223-42H, 9223-42S and 5000 ESS 5105-22E
Operating Systems: AIX, Linux & VIOS

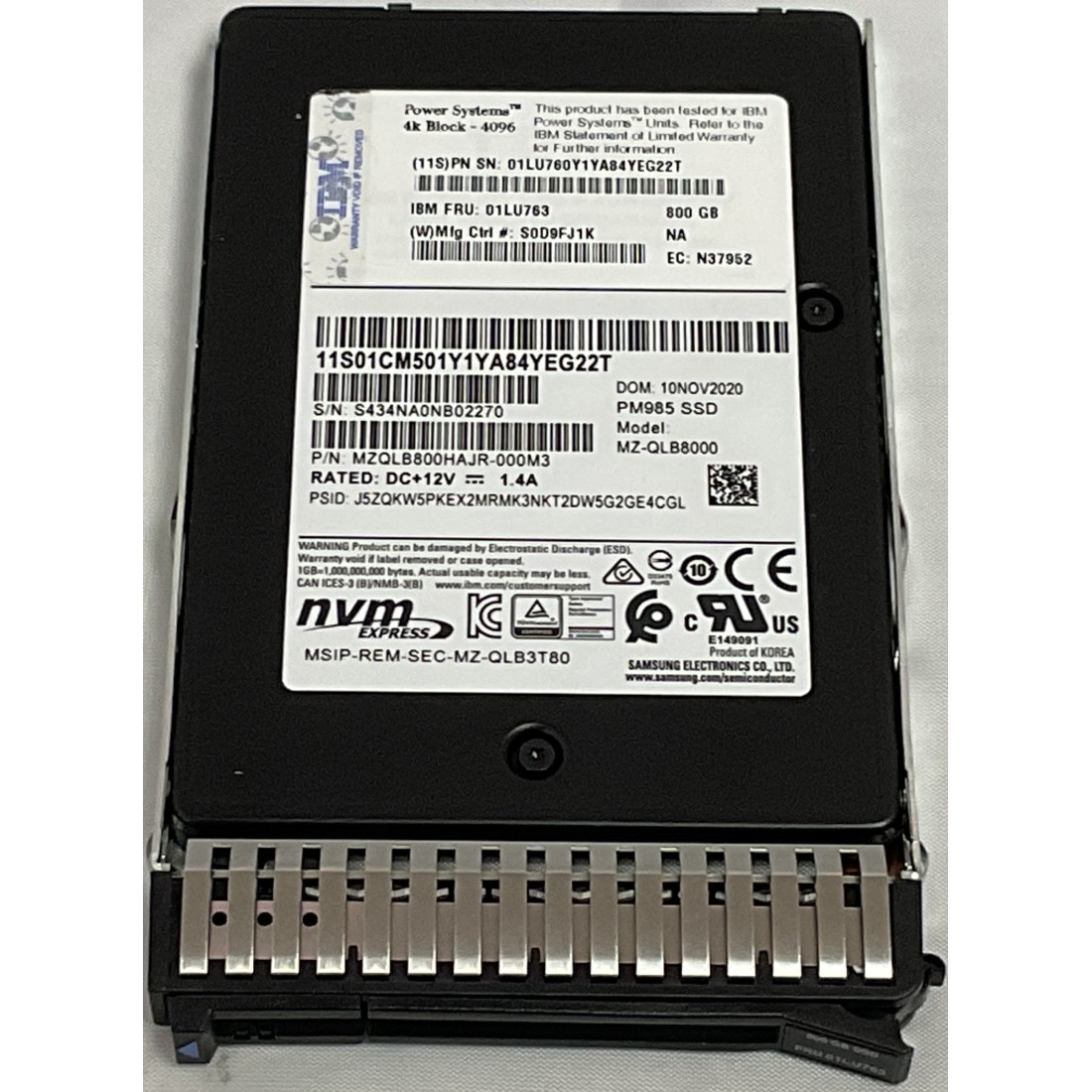

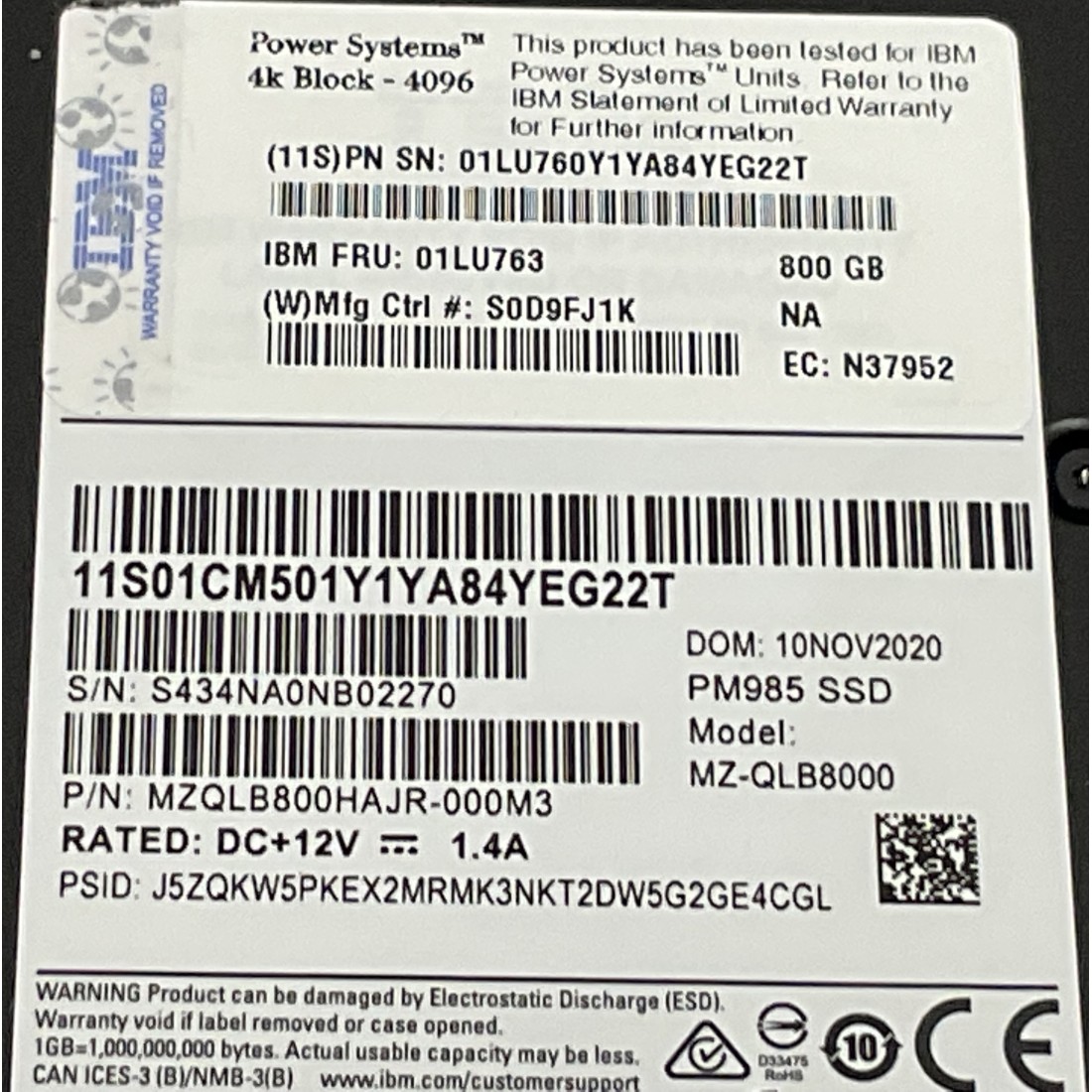

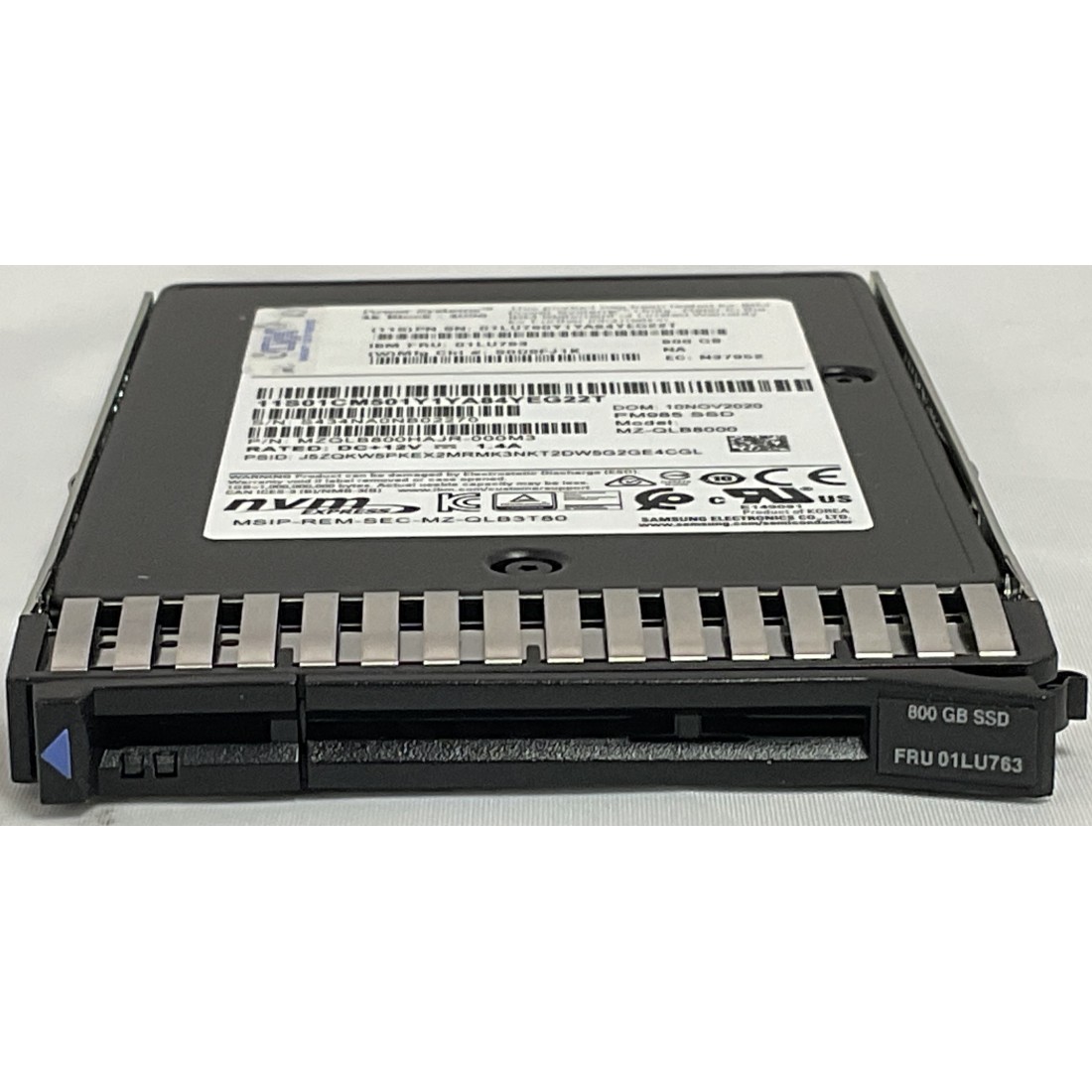

IBM 59B7 800 GB Mainstream SSD NVMe U.2 module PCIe3
Part Numbers: 02YC615
Feature Codes: EC7T EC5X for AIX Linux
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B, E1050 9043-MRX, L922 9008-22L, S922 9009-22A, S922 9009-22G, H922 9223-22H, H922 9223-22S and 5000 ESS 5105-22E
Operating Systems: IBM i OS400, AIX, Linux & VIOS
