5B2C 00LY558 00LY561 01LU818 01LU904 02YC597 02YC648 02YC707 02YC846 ESE2 ESMR ESJD ESJC ESE1 ELE1 ELMQ ESMQ

IBM 5B2C 3.72TB SSD Mainstream SAS 4k SFF-3 is a 6Gbs solid state drive for IBM Power9 or IBM Power8 system units, that have a 1 Drive Write Per Day DWPD rating. The IBM 5B2C 3.72TB SSD Mainstream can have 00LY558 00LY561 01LU818 01LU904 02YC597 02YC648 02YC707 or 02YC846 part number, and can be used with IBM i, AIX, Linux Server or VIOS workloads. The IBM configurator uses IBM ESE1 feature code for IBM i workloads, and IBM ESE2 feature code for AIX, Linux and VIOS workloads, and other feature codes such as ESMR ESJD ESJC ELE1 ELMQ and ESMQ The IBM 5B2C 3.72TB SSD Mainstream SAS 4k SFF-3 is only available in refurbished or used condition.

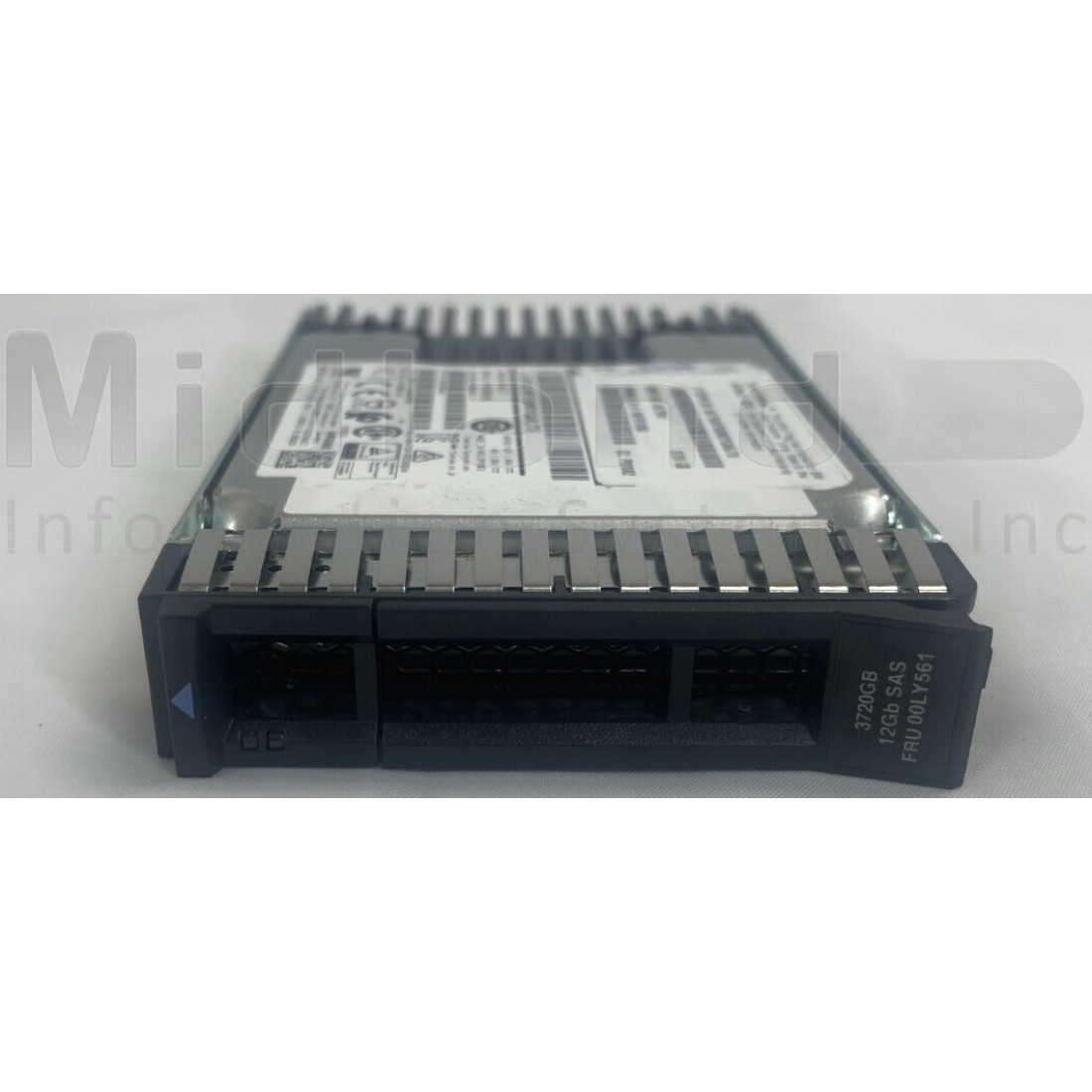

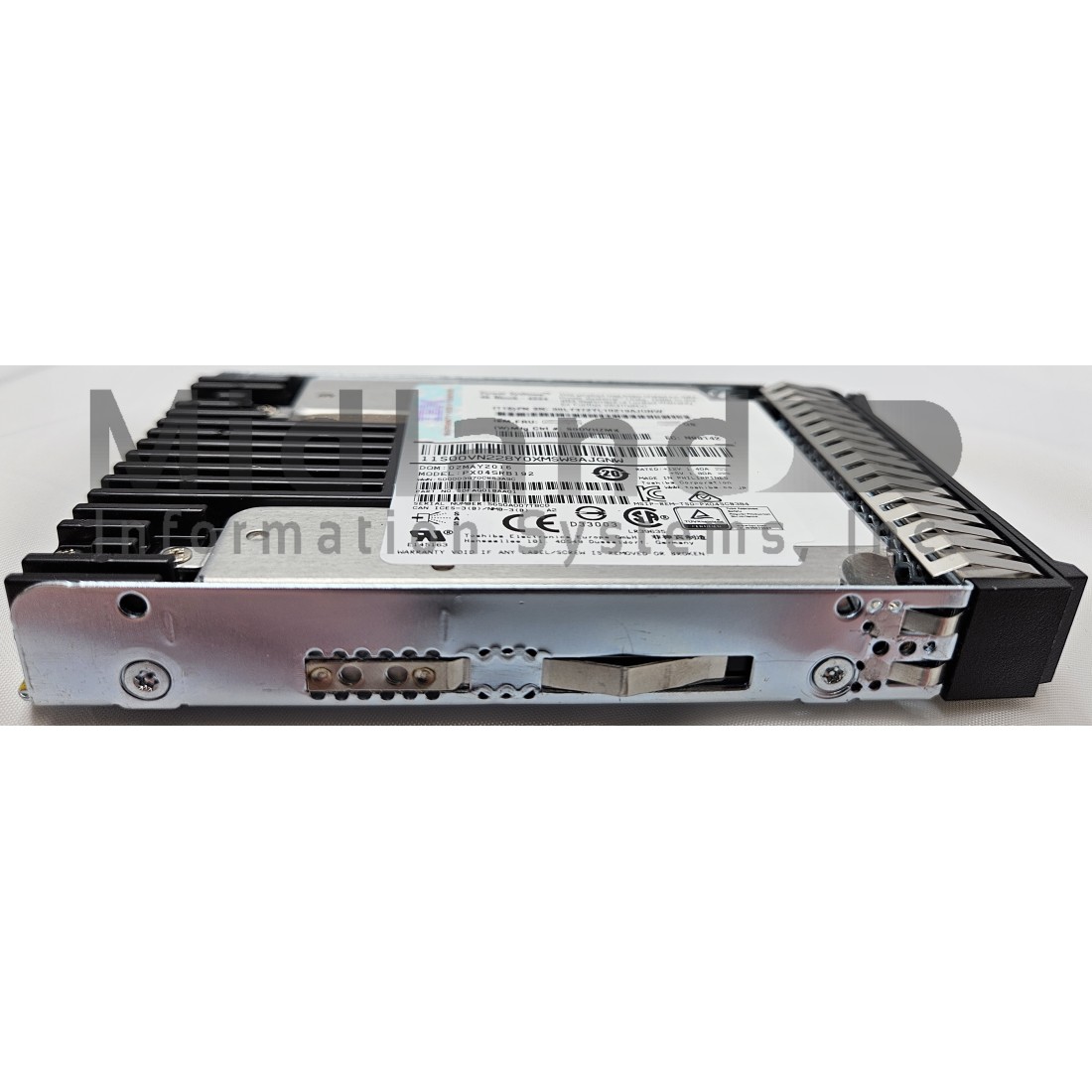

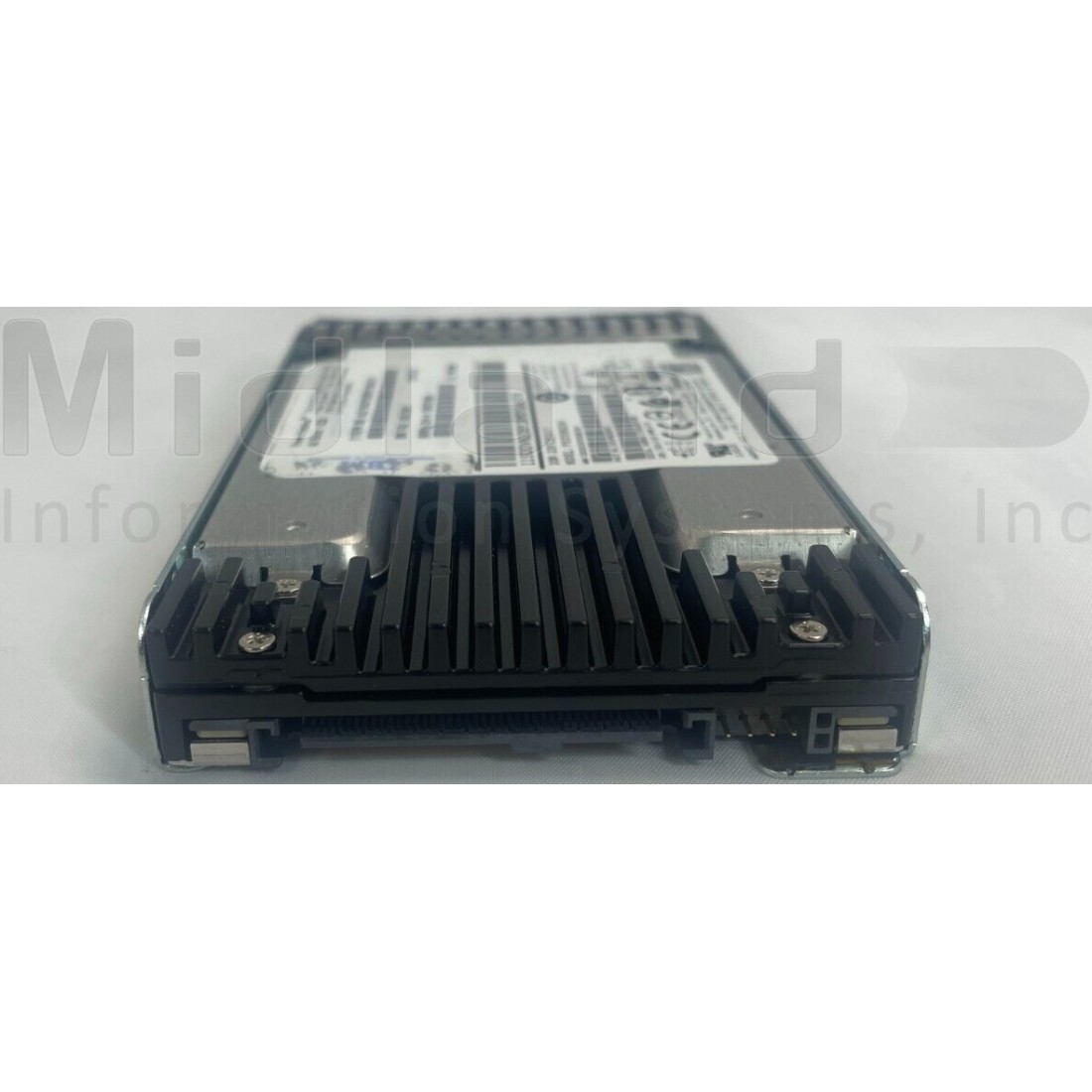

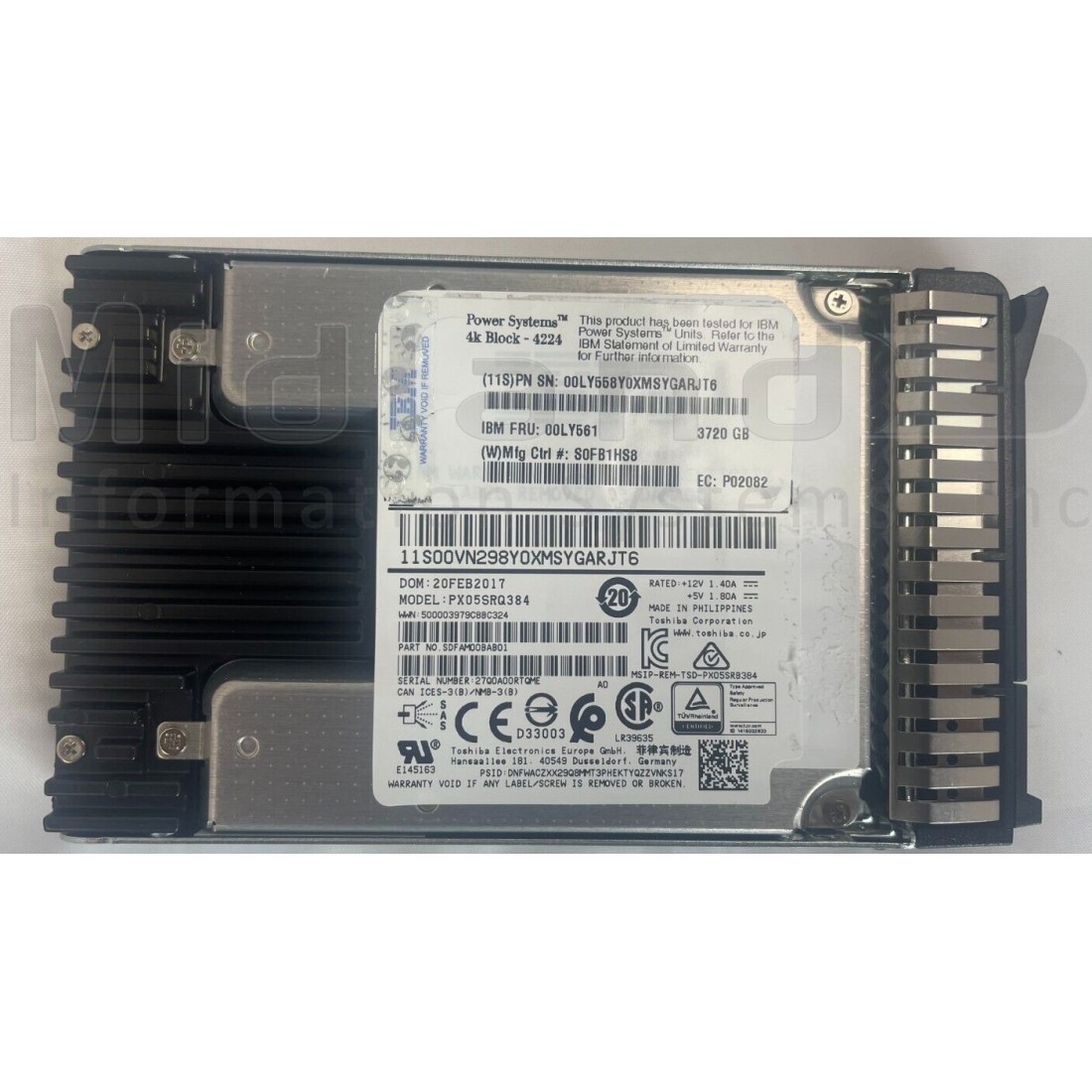

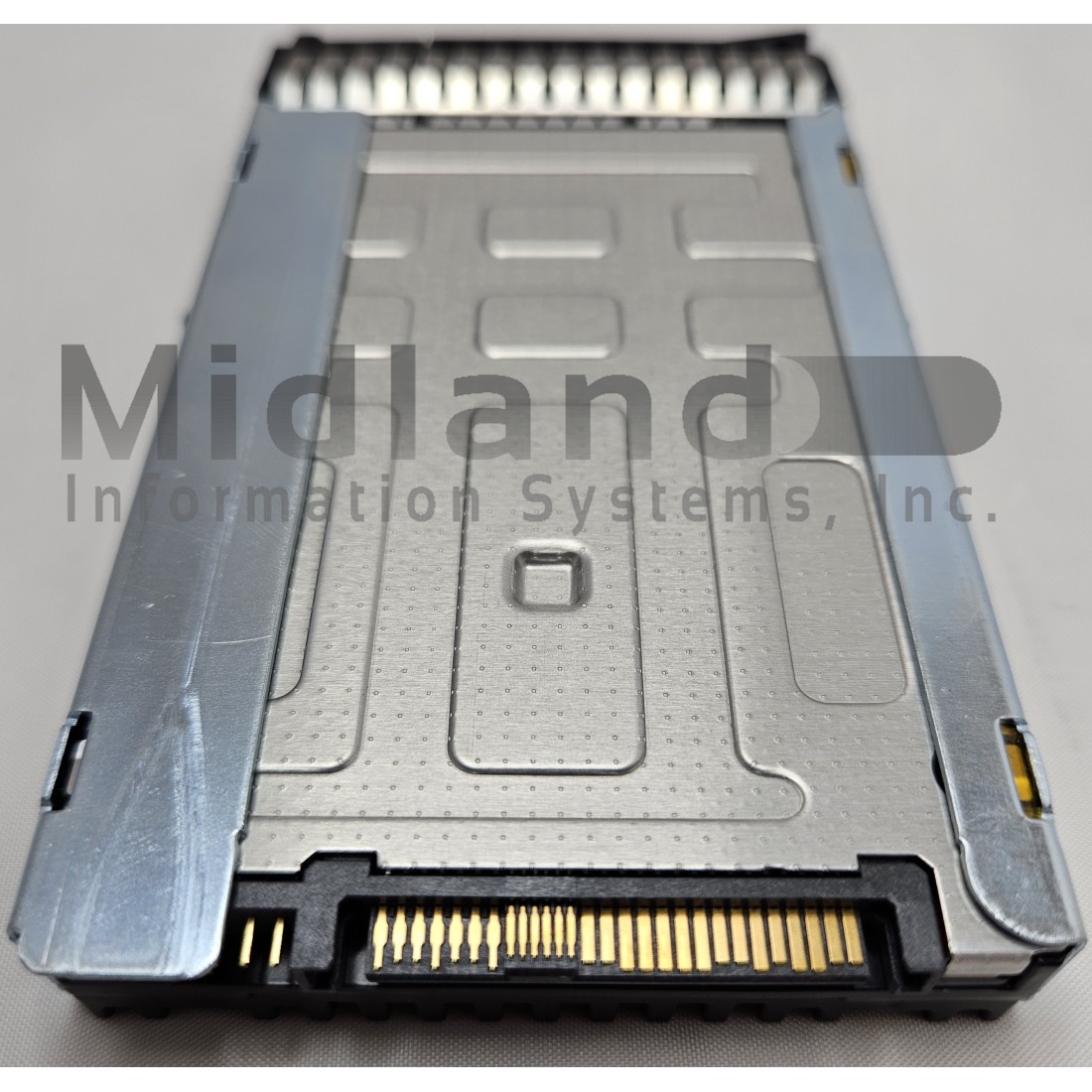

The IBM 5B2C 3.72TB SSD Mainstream SAS 4k SFF-3 is mounted on a SFF-3 carrier tray to fit into a Power9 or Power8 system unit's SFF-3 bays. The 5B2C IBM SSD does not support JBOD formatting of 4096 byte sectors and cannot be reformatted to 5xx byte sectors. Do not mix 5xx and 4k drives in the same array.

OS System Requirements:
IBM i OS400
AIX
Red Hat Enterprise Linux 7.2, little endian, or later
Red Hat Enterprise Linux 7.2, big endian, or later
SUSE Enterprise Linux 11, Service Pack 4, or later
SUSE Enterprise Linux 12, Service Pack 1, or later
Ubuntu Server 16.04, or later
