00E8671 59EA IBM 775GB SFF-3 SSD eMLC ES0P ES0N EL13

00E8671 59EA IBM 775GB SFF-3 SSD eMLC ES0P ES0N EL13

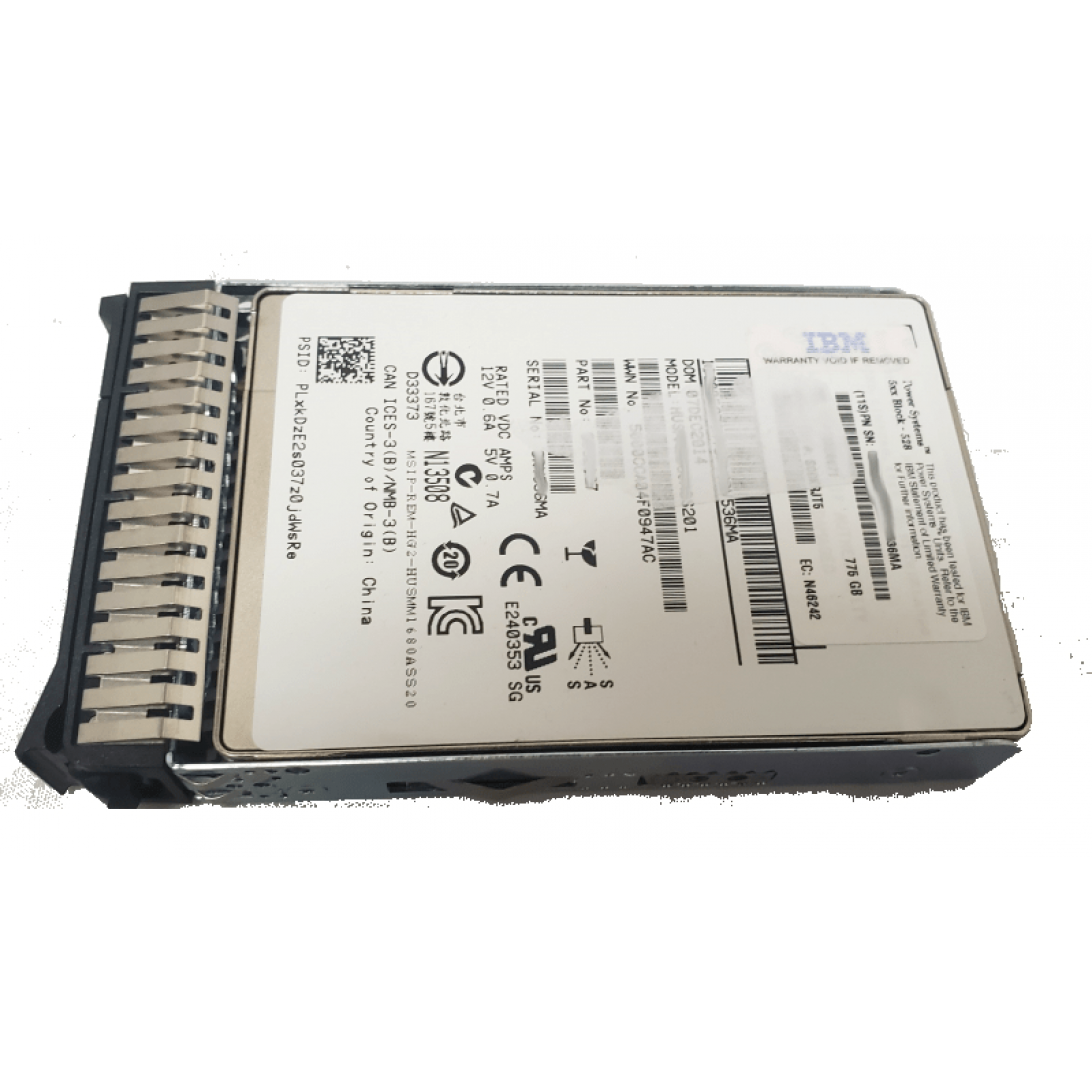

The IBM 59EA 775GB SFF-3 Enterprise SSD IBM Power systems is a 2.5-inch SAS Solid State Drive with eMLC, formatted with 528 byte sectors. The IBM 59EA SSD is supported in SFF Gen3 SAS bays (SFF-3) in IBM Power8 and Power7 system unit, has 00E8671 part number and can have ES0P, ES0N or EL13 feature code. IBM ES0N, ES0P and EL13 SSDs are physically identical solid state drives, but have different feature codes to specify which OS type the SSD is used on. ES0N indicates usage by AIX, Linux or VIOS, and ES0P indicates usage by IBM i and EL13 is for IBM Power Linux servers.



The IBM 59EA 00E8671 includes warranty, free technical support by phone or email and is guaranteed for IBM maintenance and support contracts.



Limitation: Cannot be used in 5887 EXP24S Gen2 I/O drawer due to physical difference in the tray carrier.



OS level required:
IBM i 7.1 TR8 and 7.2 or later
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
AIX 6.1 and 7.1 or later supported
Refer to Software requirements for specific O/S levels supported



CCIN: 59EA
