9080-HEX E1080: IBM POWER10 Systems and Pricing EDP2 EDP3 EDP4

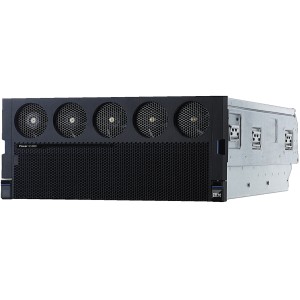

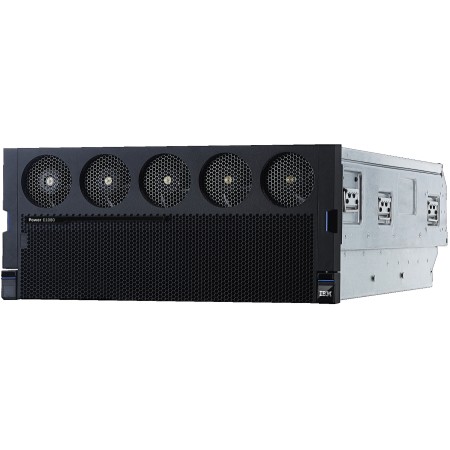

9080-HEX E1080: IBM POWER10 Systems

9080-HEX IBM Power10 E1080 Model Specifications and Pricing

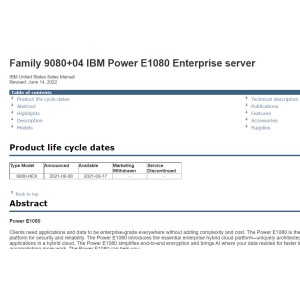

IBM Power10100w pdf iconDownload Power10 Manual 9080-HEX E1080 is an Enterprise-class system designed for any mission critical workload requiring maximum performance, security, availability and scalability. The IBM E1080 model 9080-HEX is an ideal system for enterprises that prioritize security, have high transaction volumes, and need protect data at rest and in motion, while not impeding performance. The new Power10 systems protect data end to end with AES encryption at every stage, from processor, RAM, across accelerators and all clustered nodes, protecting corporate data from core to public cloud.

The IBM Power10 E1080 model 9080-HEX can be configured with 1 to 4 processors, each Power10 processor has four single-chip modules (SCM), and have the following processor options: 40-160 core 3.65-3.9 GHz Processor (EDP2), 48-196 core 3.6-4.15 GHz Processor (EDP3) or 60-240 core 3.55-4 GHz Processor. The IBM Power10 Model 9080-HEX supports up to 16 memory features (64 DDIMM slots) per node, for a maximum of 16 TB per node or 64 TB maximum. IBM Power10 E1080 systems support IBM i, AIX, Linux server operating systems as well as IBM VIOS configurations.

Other IBM Power10 Models by specification maximums:
IBM S1014 9105-41B: 1 socket, 8 Cores, 1 TB Memory, 102.4 TB NVMe flash storage (16 bays), 4U
IBM S1022 9105-22A: 2 socket, 40 Cores, 4 TB Memory, 51.2 TB NVMe flash storage (8 bays), 2U
IBM S1022s 9105-22B: 2 socket, 16 Cores, 2 TB Memory, 51.2 TB NVMe flash storage (8 bays), 2U

IBM S1024 9105-42A: 2 socket, 48 Cores, 8 TB Memory, 102.4 TB of NVMe flash storage (16 bays), 4U
IBM E1050 9043-MRX: 4 socket, 96 Cores, 16 TB Memory, 64 TB of NVMe flash storage (10 bays), 4U
IBM E1080 9080-HEX: 16 socket, 240 Cores, 34 TB Memory, 102.4 TB NVMe flash storage (16 bays), 6U

IBM E1080 Processor Specifications by CPW and rPerf SMT8
9080-HEX EDP2 3.9 GHz Processor 40 Core: 922,000 | 1,366.8
9080-HEX EDP3 4.15 GHz Processor 48 Core: 1,129,000 | 1,680.6
9080-HEX EDP4 4.0 GHz Processor 60 Core: 1,320,000 | 1,999.7
9080-HEX EDP2 3.9 GHz Processor 80 Core: 1,834,000 | 2,733.6
9080-HEX EDP3 4.15 GHz Processor 96 Core: 2,246,000 | 3,361.2
9080-HEX EDP2 3.9 GHz Processor 120 Core: 2,756,000 | 4,100.4
9080-HEX EDP4 4.0 GHz Processor 120 Core: 2,626,000 | 3,999.3
9080-HEX EDP3 4.15 GHz Processor 144 Core: 3,375,000 | 5,041.8
9080-HEX EDP2 3.9 GHz Processor 160 Core: 3,678,000 | 5,467.1
9080-HEX EDP4 4.0 GHz Processor 180 Core: 3,946,000 | 5,999.0

9080-HEX EDP3 4.15 GHz Processor 192 Core: 4,504,000 | 6,722.3
9080-HEX EDP4 4.0 GHz Processor 240 Core: 5,266,000 | 7,998.6

9080-HEX Datasheet | Power10 CPW Performance Benchmarks | Power10 rPerf Performance BenchmarksIDC IBM Power10 White Paper
