IBM 1787 177GB SSD Solid State Drive SFF-1 SAS SSD iSeries Power7
Brand:
IBM AS400 iSeries
Model Number:
1787

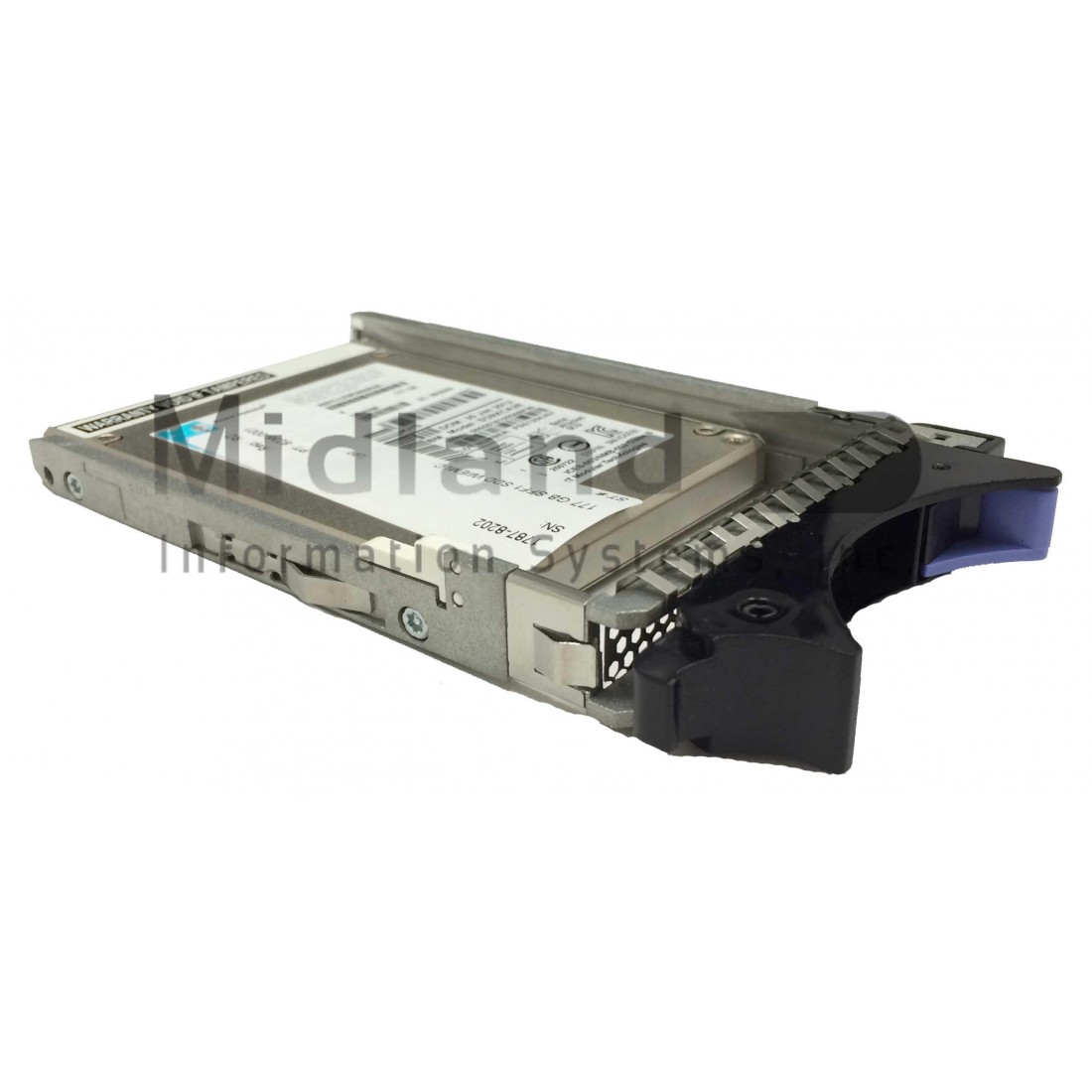

IBM 1787 177GB Solid State Drive SFF-1 SAS SSD IBM i Power iSeries Power7
The IBM 1787 177GB SSD SFF-1 SAS for iSeries Power7 8202-E4C reports as 58B3 CCIN and has part number 74Y5294. The 1787 SSD drive can be used by IBM iSeries, and AIX and Linux systems using 1775 feature code. The 1775 and 1787 are identical drives. The 1787 SSD drive is supported in SFF SAS bays in the 5802 and 5803 I/O drawers or Power7 system unit SAS bays. The 1787 must be installed in Gen1 SAS bay carrier.
The IBM 1787 177GB SSD SFF-1 SAS for iSeries Power7 8202-E4C reports as 58B3 CCIN and has part number 74Y5294. The 1787 SSD drive can be used by IBM iSeries, and AIX and Linux systems using 1775 feature code. The 1775 and 1787 are identical drives. The 1787 SSD drive is supported in SFF SAS bays in the 5802 and 5803 I/O drawers or Power7 system unit SAS bays. The 1787 must be installed in Gen1 SAS bay carrier.
The IBM 1787 is also supported on the following IBM Power Systems: 8202-E4B, 8202-E4C, 8202-E4D, 8205-E6B, 8205-E6C, 8205-E6D, 8231-E1C, 8231-E1D, 8231-E2B, 8231-E2C, 8231-E2D, 8233-E8B, 8408-E8D, 9109-RMD, 9117-MMB, 9117-MMC, 9117-MMD, 9119-FHB, 9179-MHB, 9179-MHC, 9179-MHD
SAS-bay based SSDs (1775, 1787, 1793, 1794, 3586, 3587) support restrictions for Power7 systems:
- SFF features 1775, 1787, 1793, and 1794, are supported in the Power 720 CEC.
- 3.5-inch features 3586 and 3587 are not supported in the Power 720 CEC.
- SSDs and HDDs are not allowed to mirror each other.
- SSDs are not supported by features 5278, 5900, 5901, 5902, and 5912.
- When an SSD is placed in feature EJ01, no feature 5886 or 5887 DASD drawer is allowed to connect to the system's external SAS port.
- When an SSD is placed in a feature 5886 or 5887 DASD drawer, the drawer is not allowed to connect to the system's external SAS port.
- A maximum of eight per feature 5886 drawer is allowed. No mixing of SSDs and HDDs is allowed in a feature 5886. A maximum of one feature 5886 EXP12S drawer containing SSDs attached to a single controller or pair of controllers is allowed. A feature 5886 containing SSD drives cannot be connected to other feature 5886's. A feature 5886 containing SSD drives cannot be attached to the CEC external SAS port on the Power 720.
- In a Power 720 with a split backplane, SSDs and HDDs may be placed in either "split," but no mixing of SSDs and HDDs within a split is allowed. IBM i does not support split backplane.
- In a Power 720 without a split backplane, SSDs and HDDs may be mixed in any combination. However, they cannot be in the same RAID array.
Limitation: can not be used in 5887 EXP24S Gen2 I/O drawer due to physical difference in Gen1 and Gen2 carriers.
System Requirements
IBM i V6R1 with 6.1.1 machine code RS610-10 OS & RS611-D LIC and fix level C1102610
IBM i V7R1 with i 7.1.0 machine code: RS710-10 OS & RS710-C LIC or Technology Refresh 2 (PTF Group SF99707 Level 2) and fix level C1116710
PowerVM Virtual I/O Server VIOS 2.2.0.12 FP24 - SP02 VIOS level needed with any IBM i 6.1.1 or IBM i 7.1 if hosted by VIOS
Only available in used and refurbished condition as of August 23, 2013.
