1996-8202 IBM 177GB Solid State Drive SSD Module with eMLC for iSeries 8202-E4B

1996-8202 IBM 177GB Solid State Drive SSD Module with eMLC for iSeries 8202-E4B

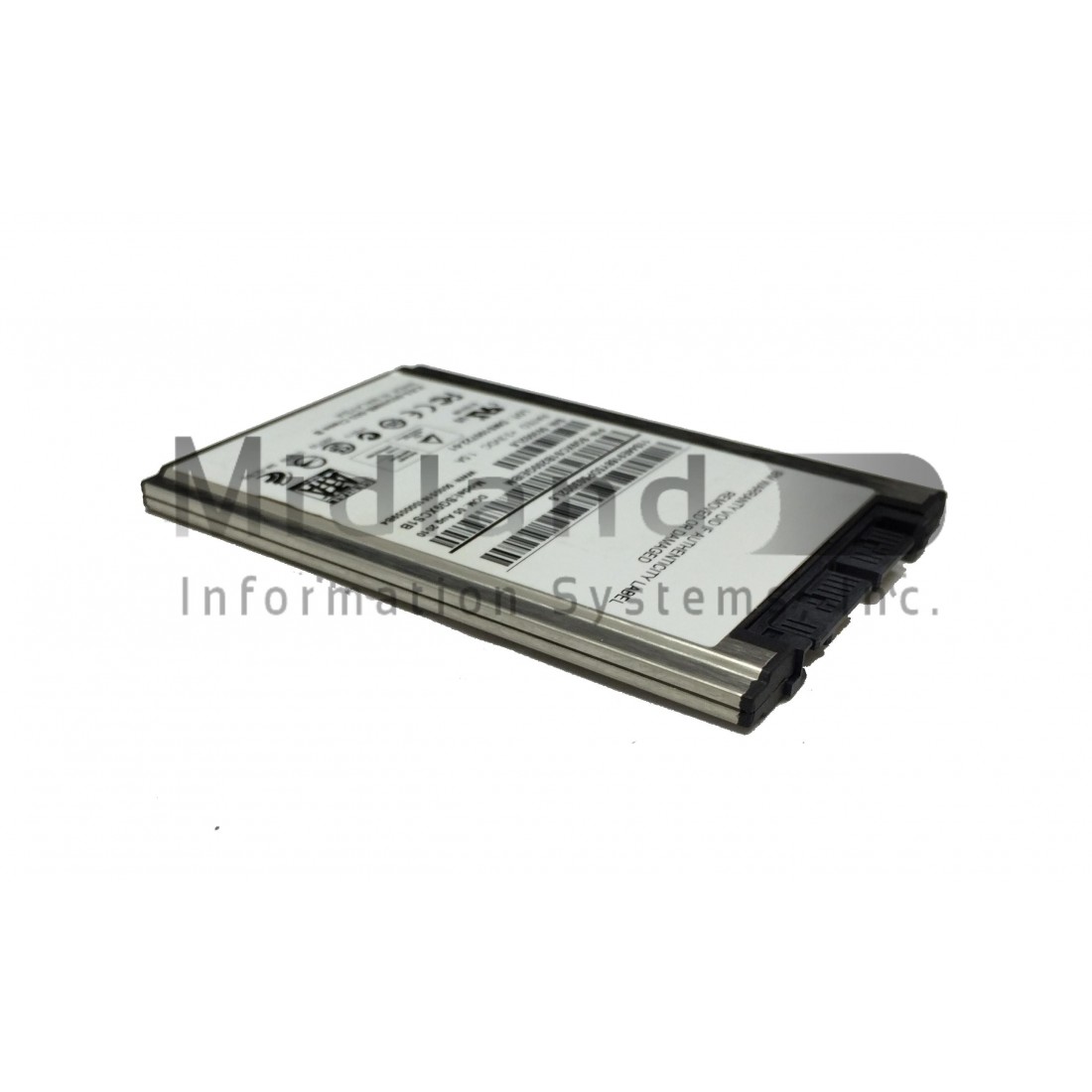

The 1996-8202 IBM 177GB Solid State Drive (SSD) 1.8" Module with eMLC for Power7 iSeries 8202-E4B is a tiny storage device that's placed in a #2053, #2054 or #2055 PCIe RAID & SAS Adapater. The maximum 1995-8202 Solid State Disk drives allowed in a IBM 8202-E4B is 48. It ships with RAID to provide 177GB Solid State Storage capacity for IBM 8202-E4B Power7 iSeries, AIX and Linux systems. IBM 1995 and 1996 Solid State Drive (SSD) modules are identical with CCIN = 58B2. #1995 indicates AIX/ Linux usage. The 1996 & 1995 use Enterprise Multi-Level Cell (eMLC) technology, to provide extremely reliable, cost effective, dense SSD storage. The 1.8" SSD module contains a NAND flash controller that provides a 3Gbit/sec SATA interface. Parallel access to 16 flash sites allows overlapped, multi-block access to complete data transfer requests rapidly. An embedded super capacitor ensures data integrity during power fail scenarios.

The IBM 1996 177GB Solid State Drive (SSD) 1.8" Module with eMLC is also supported in the following IBM Power7 and Power6 models: 8202-E4B, 8202-E4C, 8202-E4D, 8205-E6B, 8205-E6C, 8205-E6D, 8231-E1C, 8231-E1D, 8231-E2B, 8231-E2C, 8231-E2D, 8233-E8B, 8286-41A, 8286-42A, 8408-E8D, 9109-RMD, 9117-MMB, 9117-MMC, 9117-MMD, 9179-MHB, 9179-MHC, 9179-MHD

1996-8205 requirements: Available socket on the following controllers #2053, #2054 or #2055 PCIe RAID & SAS Adapter. Limit is 1, 2, 3 or 4 on each controller. Requires available socket on a #2053, #2054 or #2055. Max 4 per PCIe RAID & SSD SAS Adapter Minimum of 1, 2 or 4 is required. Supports VIOS attachment version 2.2 or later.

OS level: IBM iSeries V6R1 and V7R1 (Refer to IBM for additional requirements)
