ES8R 775GB SFF-3 Enterprise SSD 4k eMLC4 IBM i Power iSeries
Brand:
IBM AS400 iSeries
Model Number:
ES8R

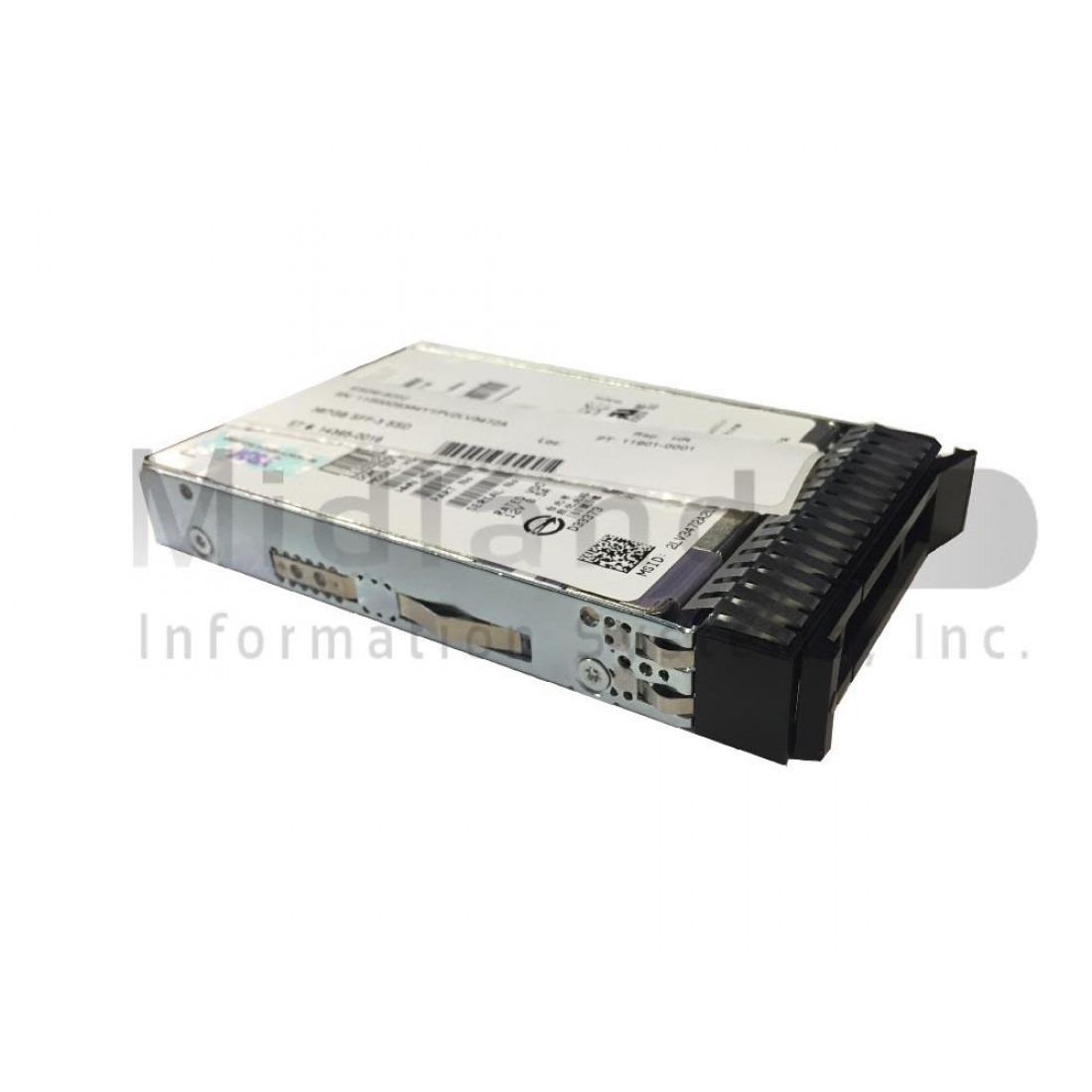

ES8R 775GB SFF-3 IBM Enterprise SSD 4k eMLC4 for IBM i Power Systems
IBM ES8R 775GB SFF-3 IBM SSD 4k eMLC4 for IBM i is a 2.5-inch SAS IBM Enterprise SSD formatted with 4k byte sectors. The IBM ES8Q and ES8R are physically identical solid state drives and have the same 5B14 CCIN and part number 00LY334, but have different feature codes to specify how the SSD is used. ES8Q indicates usage by IBM Power AIX, Linux or VIOS and ES8R indicates usage by IBM i Power systems.
The IBM ES8Q and ES8R SSD are supported in IBM Power9 and Power8 system unit SFF-3 SAS bays for the following models: 9009-41A, 9009-42A, 9009-22A, 9008-22L, 9223-22H, 9223-42H 8286-41A, 8286-42A, 8284-21A, 8284-22A, 8408-44E and 8408-E8E or in EXP24S SAS bays (SFF-2) attached to a Power8 or the following Power7 system models: 8231-E1C, 8231-E1D, 8268-E1D, 8202-E4D, 8231-E2C, 8231-E2D, 8205-E6C, 8205-E6D, 8408-E8D, 9109-RMD, 9117-MMC, 9117-MMD, 9179-MHC, 9179-MHD, 9119-FHB
As with earlier IBM eMLC SSDs, these enterprise solid state drives are designed to deliver great endurance and reliability. These 4th generation enterperise class eMLC SSDs were tested to provide 24x7x365 usage running write-intensive levels for about five years. Actual customer writes will be much lower, and thus the SSD life span will be much longer. Similar to the eMLC3 SSDs, the new SSDs provide a Drive Write Per Day (DWPD) rating of approximately "10", which estimates the number of times the SSD's capacity could be written per day over the projected life of the drive.
All IBM eMLC4 SSDs are run by the integrated SAS controllers in the IBM Power system unit or by a PCIe3 or PCIe2 SAS adapter. The PCIe3/2 adapters are:
IBM Enterprise SSDs with eMLC4 require a integrated SAS controller in the IBM Power system unit or one of the following PCIe3 or PCIe2 SAS adapters:
IBM EJ14 57B1 - PCIe3 12GB Cache RAID PLUS SAS Adapter Quad-port 6GB x8
IBM EJ0L 57CE - PCIe3 12 GB Cache RAID SAS Adapter Quad-port 6Gb x8
IBM EJ0J 57B4 - PCIe3 RAID SAS Adapter Quad-port 6Gb x8
IBM EJ0M 57B4 - PCIe3 LP RAID SAS Adapter Quad-port 6Gb x8
IBM ESA3 57BB - PCIe2 1.8GB Cache RAID SAS Adapter Tri-port 6Gb CR
IBM 5913 57B5 - PCIe2 1.8GB Cache RAID SAS Adapter Tri-port 6Gb
IBM EL59 57B4 - PCIe3 RAID SAS Adapter Quad-port 6Gb x8
IBM EL65 57B4 - PCIe3 RAID SAS Adapter Quad-port 6Gb x8
IBM EL3B 57B4 - PCIe3 LP RAID SAS Adapter Quad-port 6Gb x8
IBM EJ0L 57CE - PCIe3 12 GB Cache RAID SAS Adapter Quad-port 6Gb x8
IBM EJ0J 57B4 - PCIe3 RAID SAS Adapter Quad-port 6Gb x8
IBM EJ0M 57B4 - PCIe3 LP RAID SAS Adapter Quad-port 6Gb x8
IBM ESA3 57BB - PCIe2 1.8GB Cache RAID SAS Adapter Tri-port 6Gb CR
IBM 5913 57B5 - PCIe2 1.8GB Cache RAID SAS Adapter Tri-port 6Gb
IBM EL59 57B4 - PCIe3 RAID SAS Adapter Quad-port 6Gb x8
IBM EL65 57B4 - PCIe3 RAID SAS Adapter Quad-port 6Gb x8
IBM EL3B 57B4 - PCIe3 LP RAID SAS Adapter Quad-port 6Gb x8
IBM System and OS requirements:
- IBM i 7.1 TR11, or later; IBM i 7.2 TR4, or later; IBM i 7.3, or later
- AIX for 4k drives: AIX 7.2 TL0, or later; AIX 7.1 TL3 SP3, or later; or AIX 7.1 TL4, or later; AIX 6.1 TL 9 SP 3, or later.
- AIX for 5xx drives: All AIX levels that are supported on that server.
- PowerVM VIOS for 4k drives: PowerVM VIOS V2.2.3.3, or later; PowerVM VIOS V2.2.4.0, or later. 387 GB and 775 GB capacity points are supported across all these software levels.
- PowerVM VIOS for 5xx drives: All VIOS levels that are supported on that server.
- PowerVM VIOS for 4k drives: VIOS 2.2.3.3 or later, VIOS 2.2.4.0 or later.
- SLES 11 SP4, or later; SLES 12, or later.
- RHEL 6.7, or later; RHEL 7.2, or later; Ubuntu 16.04, or later; Ubuntu 14.04.4, or later.
Limitation: Due to physical differences in the carrier/tray on which the drive is mounted, the SSD only fits in Power system unit SAS bays (SFF-3). It does not fit in EXP24S drawers (SFF-2) or in 5802 and 5803 I/O drawers (SFF-1) or in POWER7 system units (SFF-1) SAS bays. Also the drive was not tested with 4096 byte sectors and thus JBOD mode for AIX/Linux is not supported. Note 4k and 5xx byte sector drives cannot be mixed in the same array.
The fourth-generation IBM SSD with eMLC4 are available for Power Systems servers with v and Power7 technology. These SAS SSDs are 2.5-inch SFF drives that can be installed either in the Power8 system unit SAS bays (SFF-3) or in EXP24S SAS bays (SFF-2) attached to a Power8 or Power7 server. The new eMLC4 SAS SSDs provide significantly improved price/performance compared to previous eMLC3 SSDs. eMLC4 SSD performance is improved over previous generations of Power eMLC SSDs. Compared to the eMLC3 SSDs, the new eMLC4 drives offer improved input/output operations per second (IOPS), throughput, and latency. For example, measurements show:
Up to 50% higher maximum IOPS value for random mixed read/write workloads
Up to 750 MBps while reading from the drive or up to 470 MBps while writing to the drive
Up to 20% better latency running a random mixed read/write workload (down to a 0.12 ms latency)
Up to 750 MBps while reading from the drive or up to 470 MBps while writing to the drive
Up to 20% better latency running a random mixed read/write workload (down to a 0.12 ms latency)
Power eMLC flash memory provides enterprise-class performance and reliability characteristics. The new fourth-generation eMLC SSDs build upon a heritage of performance and endurance to provide a better value proposition to users of Power8 and Power7 servers. They provide SAS 6 Gbps capability, but are designed to be 12 Gbps compliant if future SAS adapters support 12 Gbps capability.
As with IBM's earlier eMLC SSDs, the new drives are designed to deliver great endurance and reliability. For example, the new eMLC SSD modules are designed to provide 24x7x365 usage running write-intensive levels for about five years. Typical client usage is expected to be much lower, especially regarding the average percentage of writes, and thus drive lifespan can be much longer. Similar to the eMLC3 SSDs, the new SSDs provide a Drive Write Per Day (DWPD) rating of approximately "10." This rating estimates the number of times the SSD's capacity could be written per day over the projected life of the drive.
The Power8 servers that support the new SAS SSDs in their system unit are the S812L (8247-21L), S814 (8286-41A), S822 (8284-22A), S822L (8247-22L), S824 (8286-42A), S824L (8247-42L), and E850 (8408-E8E). The SFF-3 SAS bay in these servers uses an SFF-3 carrier/tray, on which the SAS drive is mounted. Other model Power8 servers do not have SAS bays in their system units and therefore can not support eMLC4 SFF-3 SSDs. Earlier Power servers do not use the SFF-3 SAS bay. When attached to a Power8 or Power7 server, the EXP24S I/O drawers (#5887 or #EL1S) can hold up to 24 of the new SAS SSDs. The EXP24S SAS bays use an SFF-2 carrier/tray, on which the SAS drive is mounted. For Power8 servers, the Power S814 (6-core and 8-core), S822, S824, E850, E870, and E880 support the #5887 EXP24S. The S812L, S822L, and S824L support the #EL1S EXP24S. For Power7 and Power7+™ servers, the new SSDs are supported on: 8231-E1C, 8231-E1D, 8268-E1D, 8202-E4D, 8231-E2C, 8231-E2D, 8205-E6C, 8205-E6D, 8408-E8D, 9109-RMD, 9117-MMC, 9117-MMD, 9179-MHC, 9179-MHD, 9119-FHB.
The eMLC4 SSDs refresh the previously available 387 GB and 775 GB capacity points for Power7 and Power8 servers. The eMLC4 SSDs add a new 1550 GB (1.55 TB) capacity point for Power8 servers. These are 400 GB, 800 GB, and 1600 GB SSDs that are always formatted either to 4224 (4k) byte sectors or to 528 (5xx) byte sectors for additional protection, resulting in 387 GB, 775 GB, and 1550 GB capacities. The 4096 or 512 byte sectors or JBOD are not supported. 4k drives are supported only on Power8 servers.
