00LY337 00LY622 IBM 5B11 775GB IBM Enterprise SSD 4k SFF-2 ES8D ESNB ESGL ESBH ESNA ES8C EL8C ESBG ESGK ELGK
Brand:
IBM AS400 iSeries
Model Number:
00LY337-5B11-00LY622
00LY337 00LY622 IBM 5B11 775GB IBM Enterprise SSD 4k SFF-2 ES8D ESNB ESGL ESBH ESNA ES8C EL8C ESBG ESGK ELGK

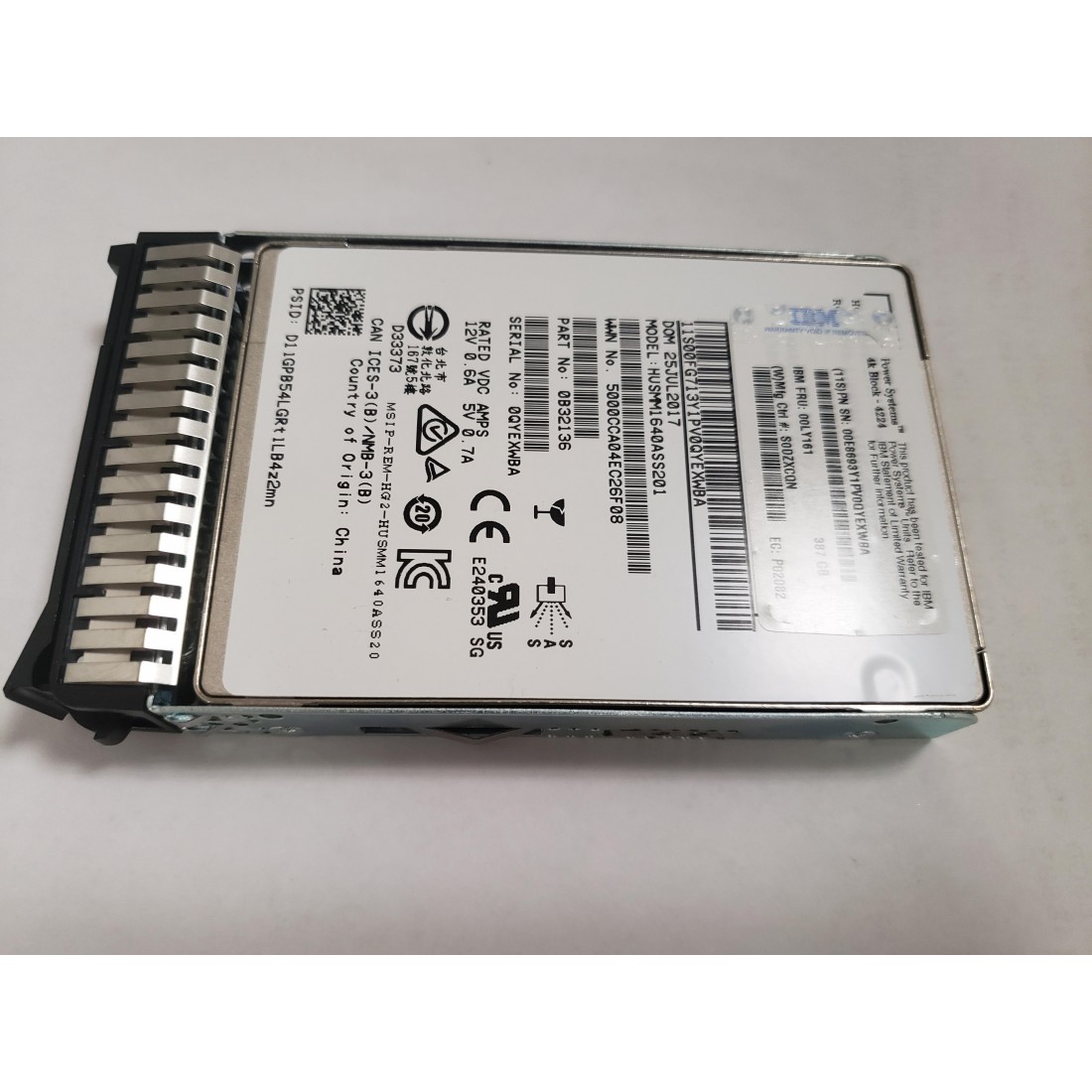

The IBM 5B11 775GB SFF-2 SSDis a fourth generation sold state drive with eMLC4 technology, formatted with 4K byte sectors, has 00LY337 00LY622 part numbers and supported on IBM i, AIX and Linux Server Power Systems in SFF-2 SAS bays of a IBM EXP24S(5887 or EL1S) or EXP24SX (ESLS) I/O drawer, which can contain up to 24 SSDs, providing up to 37.2 TB of flash memory technology storage. The IBM 5B11 775GB Enterprise SSD can have ES8D ESNB ESGL ESBH ESNA ES8C EL8C ESBG ESGK ELGK feature codes, andt are identical SSDs with the same 00LY337 00LY622 part numbers. The different feature codes are used by IBM configuration tools to specify which OS type, drive format and carrier tray is needed for the installation of the solid state drive.
The 2.5-inch fourth generation IBM SSDs with eMLC4 require the correct carrier tray for installation. IBM eMLC4 solid state drives can be installed in SFF-3 SAS bays of a IBM Power System CEC or SFF-2 SAS bays in IBM EXP24S (5887 or EL1S) or EXP24SX (ESLS) I/O drawer, providing up to 24 SSDs for 37.2 TB of flash memory technology storage. Other fourth generation IBM SSDs with eMLC4 technology are below:
IBM Enterprise SSD eMLC4 (fourth generation) for IBM i, AIX, Linux or VIOS, IBM Power9 or Power8 CEC:
IBM Enterprise SSD eMLC4 (fourth generation) for IBM i, AIX, Linux or VIOS, IBM EXP24S (5887 or EL1S) or EXP24SX (ESLS) I/O drawer:
IBM Enterprise SSDs with eMLC4 require a integrated SAS controller in the IBM Power system unit or one of the following PCIe3 or PCIe2 SAS adapters:
IBM 57B1 PCIe3 12 GB Cache RAID+ SAS Adapter Quad-port 6 Gb (01DH742 EJ14)
IBM 57B4 PCIe3 RAID SAS Adapter Quad-port 6 Gb x8 (00FX846 EJ10 EJ11 EJ0J EJ0M)
IBM 57CE PCIe3 12 GB Cache RAID SAS Adapter Quad-port 6 Gb x8 (00FX840 EJ0L)
IBM 57D8 PCIe3 x8 Cache SAS RAID Adapter 6 Gb (00MA025 EJ0P)
IBM 57D7 PCIe3 x8 SAS RAID Adapter 6 Gb (00MH906 00MH908 EJ0N EJ0S EL3V)
IBM 57B4 PCIe3 RAID SAS Adapter Quad-port 6Gb x8 (00FX846 EL65 EL3B EL59)
IBM 57BB PCIe2 1.8GB Cache RAID SAS Adapter Tri-port 6Gb CR (74Y7131 ESA3)
IBM 57B5 PCIe2 1.8GB Cache RAID SAS Adapter Tri-port 6Gb (00J0596 5913)
IBM 57B4 PCIe3 RAID SAS Adapter Quad-port 6 Gb x8 (00FX846 EJ10 EJ11 EJ0J EJ0M)
IBM 57CE PCIe3 12 GB Cache RAID SAS Adapter Quad-port 6 Gb x8 (00FX840 EJ0L)
IBM 57D8 PCIe3 x8 Cache SAS RAID Adapter 6 Gb (00MA025 EJ0P)
IBM 57D7 PCIe3 x8 SAS RAID Adapter 6 Gb (00MH906 00MH908 EJ0N EJ0S EL3V)
IBM 57B4 PCIe3 RAID SAS Adapter Quad-port 6Gb x8 (00FX846 EL65 EL3B EL59)
IBM 57BB PCIe2 1.8GB Cache RAID SAS Adapter Tri-port 6Gb CR (74Y7131 ESA3)
IBM 57B5 PCIe2 1.8GB Cache RAID SAS Adapter Tri-port 6Gb (00J0596 5913)
IBM System and Software requirements
IBM i V7R1 TR11, or later; IBM i V7R2 TR4, or later; IBM i V7R3, or later
AIX for 4k drives: AIX 7.2 TL0, or later; AIX 7.1 TL3 SP3, or later; or AIX 7.1 TL4, or later; AIX 6.1 TL 9 SP 3, or later.
AIX for 5xx drives: All AIX levels that are supported on that server.
PowerVM VIOS for 4k drives: PowerVM VIOS V2.2.3.3, or later; PowerVM VIOS V2.2.4.0, or later. 387 GB and 775 GB capacity points are supported across all these software levels.
PowerVM VIOS for 5xx drives: All VIOS levels that are supported on that server.
PowerVM VIOS for 4k drives: VIOS 2.2.3.3 or later, VIOS 2.2.4.0 or later.
SLES 11 SP4, or later; SLES 12, or later.
RHEL 6.7, or later; RHEL 7.2, or later; Ubuntu 16.04, or later; Ubuntu 14.04.4, or later.
As with earlier IBM enterprise SSDs, these solid state drives are designed to deliver great endurance and reliability. These 4th generation enterprise class eMLC SSDs were tested to provide 24x7x365 usage running write-intensive levels for about five years. Actual customer writes will be much lower, and thus the SSD life span will be much longer. Similar to the eMLC3 SSDs, the new SSDs provide a Drive Write Per Day (DWPD) rating of approximately "10", which estimates the number of times the SSD's capacity could be written per day over the projected life of the drive. The new eMLC4 SAS SSDs provide significantly improved price/performance compared to previous eMLC3 SSDs. eMLC4 SSD performance is improved over previous generations of Power eMLC SSDs. Compared to the eMLC3 SSDs, the new eMLC4 drives offer improved input/output operations per second (IOPS), throughput, and latency. For example, measurements show:
Up to 50% higher maximum IOPS value for random mixed read/write workloads
Up to 750 MBps while reading from the drive or up to 470 MBps while writing to the drive
Up to 20% better latency running a random mixed read/write workload (down to a 0.12 ms latency)
Up to 750 MBps while reading from the drive or up to 470 MBps while writing to the drive
Up to 20% better latency running a random mixed read/write workload (down to a 0.12 ms latency)
IBM Power eMLC flash memory provides enterprise-class performance and reliability characteristics. The new fourth-generation eMLC SSDs build upon a heritage of performance and endurance to provide a better value proposition to users of Power8 and Power7 servers. They provide SAS 6 Gbps capability, but are designed to be 12 Gbps compliant if future SAS adapters support 12 Gbps capability.
Note: IBM 4k drives cannot be reformatted to 5xx drives (or vice versa). IBM is transitioning away from manufacturing SAS Hard Disk Drives (HDD) and Solid State Drives (SSD) formatted with 512 and 528-byte sector (5xx), and instead will only be providing 4K byte sector drives. Although most AIX and Linux applications will not experience issues since data access to the SAS drives is via a file system, companies should confirm with their application provider to ensure compatibility with using SSD or HDD with 4K byte sectors. AIX and Linux applications that require direct access to the raw data on the SSD or HDD, may require 512 and 528-byte sector (5xx) sectors drives.
