00LY162 00E8694 59EB IBM ES0X 775GB SFF-3 4k Enterprise SSD
Brand:
IBM AS400 iSeries
Model Number:
ES0X-59EB-00LY162
Custom Field 1 (UPC):
59EB
Custom Field 4 (MPN): 00LY162
Custom Field 4 (MPN): 00LY162
00LY162 IBM 59EB ES0X 775GB SFF-3 4k Enterprise SSD ES0W EL4W

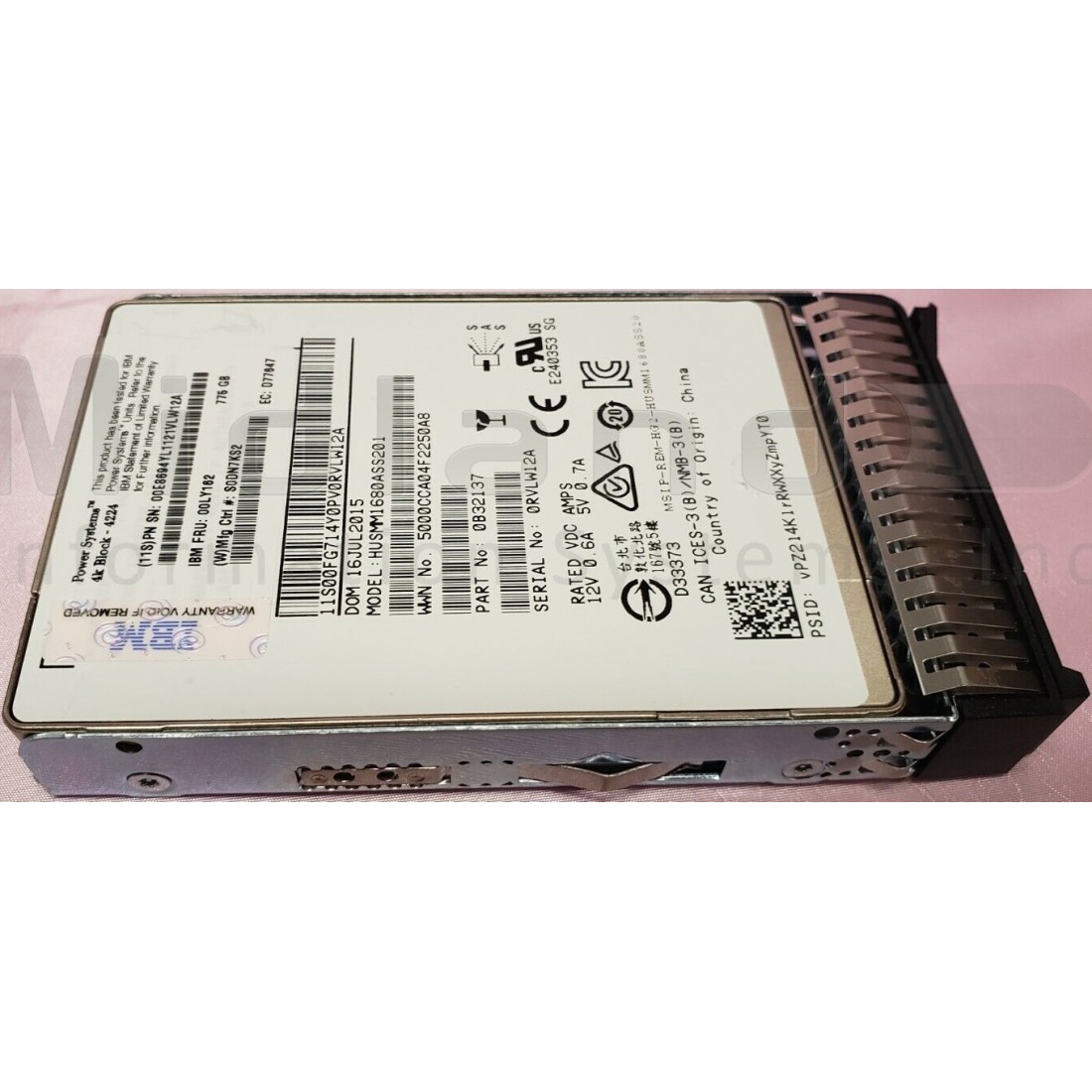

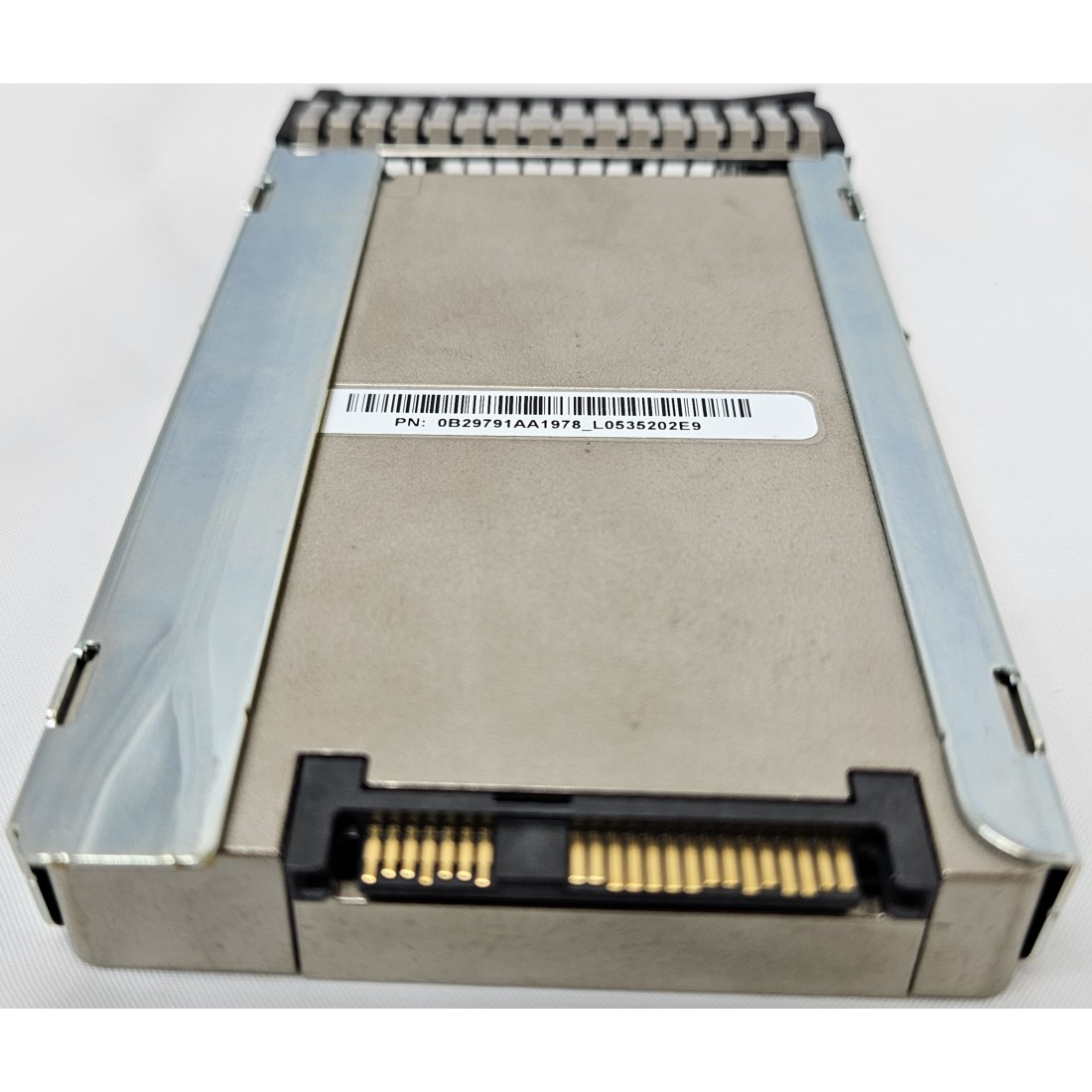

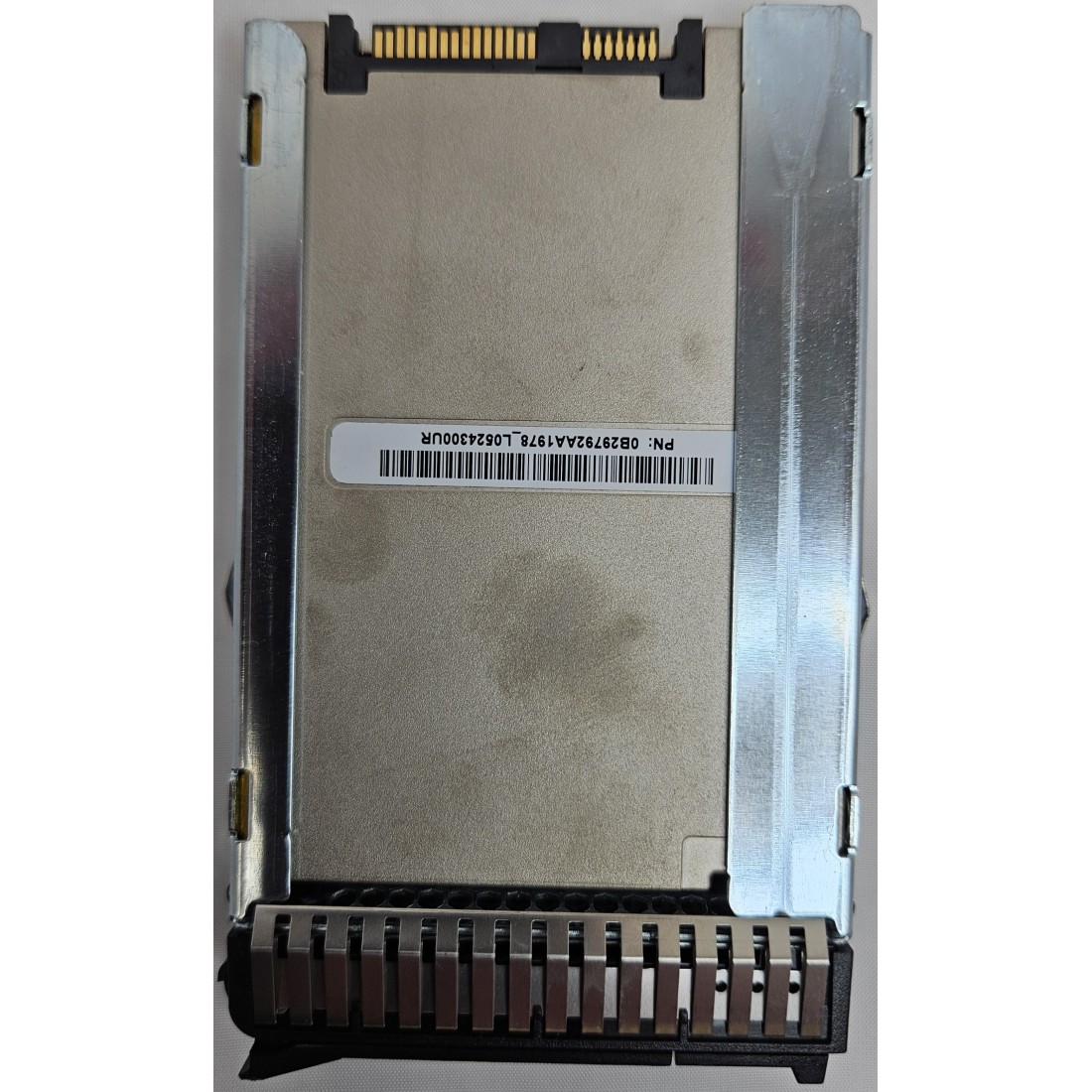

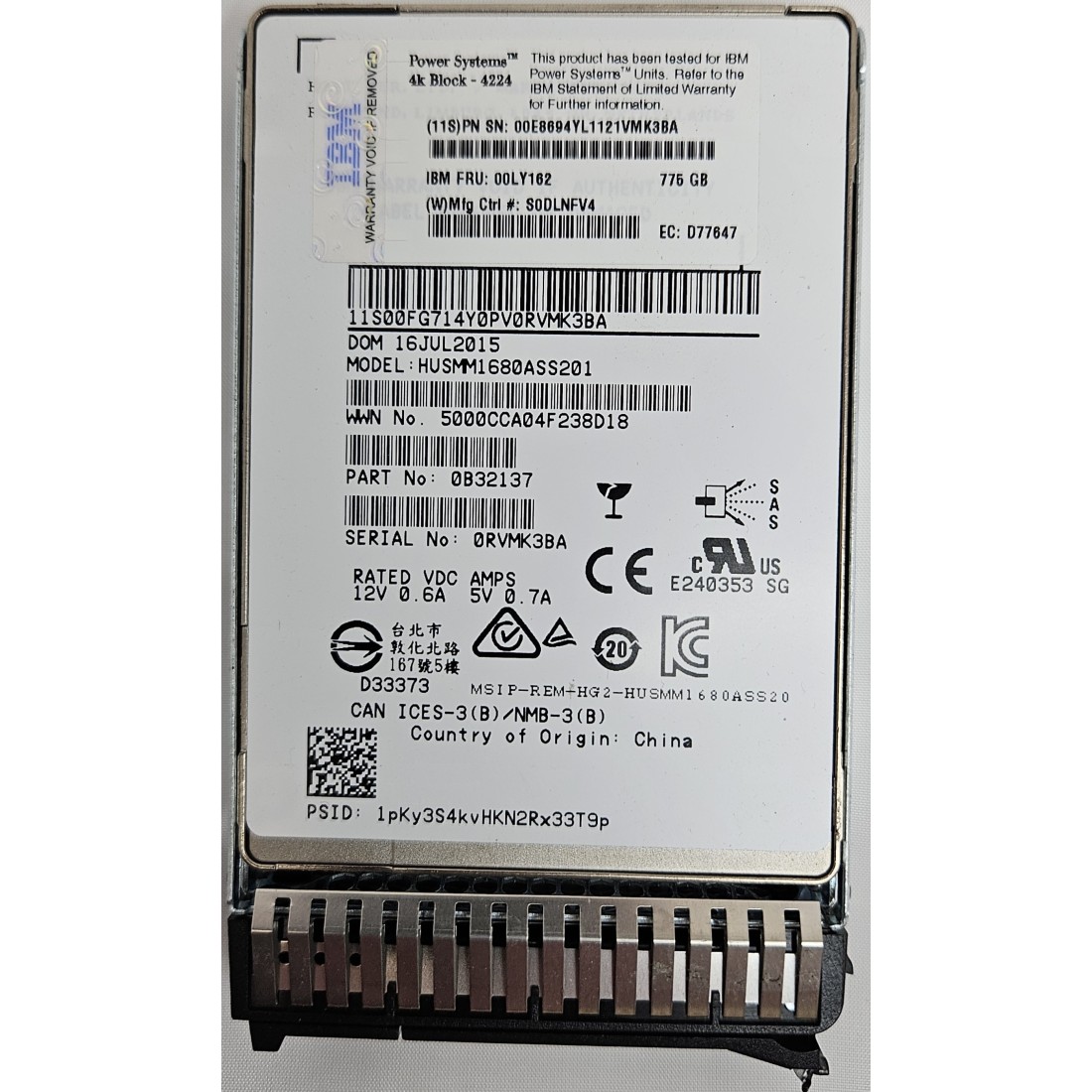

IBM ES0X 775GB SFF-3 4k IBM Enterprise SSD for IBM i is a 2.5-inch SAS Solid State Drive with 755GB capacity formatted with 4K byte sectors and is supported in Gen3 SAS bays in a Power8 system unit. The ES0W, ES0X and EL4W SSD are identical solid state drives and have the same 59EB CCIN and part numbers 00LY162 and 00E8694, but use different feature numbers to specify the OS type. The ES0X feature code is for IBM i and ES0W and EL4W are for IBM Power AIX, Linux and VIOS systems.
The IBM ES0X 775GB SFF-3 4k IBM Enterprise SSD is supported in the following iSeries IBM i Power System models: 8286-41A, 8286-42A
The IBM ES0W 775GB SFF-3 4k IBM Enterprise SSD is supported in the following AIX, Linux and VIOS Power System models: 8284-21A, 8284-22A, 8286-41A, 8286-42A, 8408-44E and 8408-E8E.
IBM Power System S814 8286-41A and S824 8286-42A servers support two new SSD features in the EL1S EXP24S SFF Gen2-bay Drawer: ES0R 387 GB SFF-2 4k SSD for IBM i and ES0T 775 GB SFF-2 4k SSD for IBM i. Also available are SSDs mounted in a Gen2 carrier as ES0V 387 GB SSF-3 4k SSD for IBM i and ES0X 775 GB SFF-3 4k SSD for IBM i for use in the CEC Gen3 bays. A new 528 byte, single-sided format disk, the ESDE 571 GB 15k RPM SAS SFF-3 Disk Drive is available for use on S814 and S824 servers. This disk is available on POWER7 and POWER7+ servers as ESDJ 571 GB 15K RPM SAS SFF-1 and as ESDN 571 GB 15K RPM SAS SFF-2. Additionally, increased storage capacity is available in RDX removable, disk technology with the EU2T 2.0 TB Removable Disk Drive Cartridge, which is supported on POWER6 and POWER7/POWER7+.
Limitations: This drive can not be placed in the same array with a drive formatted with 528 byte sectors. Also JBOD mode (4096 byte sectors) is not supported.
Attributes provided: 4K byte formatted 775GB SFF Gen3 SSD eMLC
Attributes required: Available SAS Gen3 bay in POWER8 system unit
Attributes required: Available SAS Gen3 bay in POWER8 system unit
ES0X OS Requirements:
IBM i V7R2: RS720-00 OS & TR PTF Group SF99717 Level 1, C4276720 + HIPER PTF Group and requires PTF MF59828 to be permanently applied.
IBM i V7R1: RS710-10 OS & TR9 (TR PTF Group SF99707 Level 9), C4283710 + HIPER PTF Group
IBM i V7R2: RS720-00 OS & TR PTF Group SF99717 Level 1, C4276720 + HIPER PTF Group and requires PTF MF59828 to be permanently applied.
IBM i V7R1: RS710-10 OS & TR9 (TR PTF Group SF99707 Level 9), C4283710 + HIPER PTF Group
ES0W OS Requirements:
IBM i V7R2 as a client of VIOS: RS720-00 OS & TR1 (TR PTF Group SF99717 Level 1) with VIOS 2.2.3.4 and C4276720 + HIPER PTF Group
IBM i V7R1 as a client of VIOS: RS710-10 OS & TR9 (TR PTF Group SF99707 Level 9) with VIOS 2.2.3.4 and C4283710 + HIPER PTF Group
AIX 6.1 and 7.1 or later supported
Linux
IBM i V7R2 as a client of VIOS: RS720-00 OS & TR1 (TR PTF Group SF99717 Level 1) with VIOS 2.2.3.4 and C4276720 + HIPER PTF Group
IBM i V7R1 as a client of VIOS: RS710-10 OS & TR9 (TR PTF Group SF99707 Level 9) with VIOS 2.2.3.4 and C4283710 + HIPER PTF Group
AIX 6.1 and 7.1 or later supported
Linux
