1995-8202 - IBM Power7 E4B, 177GB SSD Module with eMLC (AIX/Linu

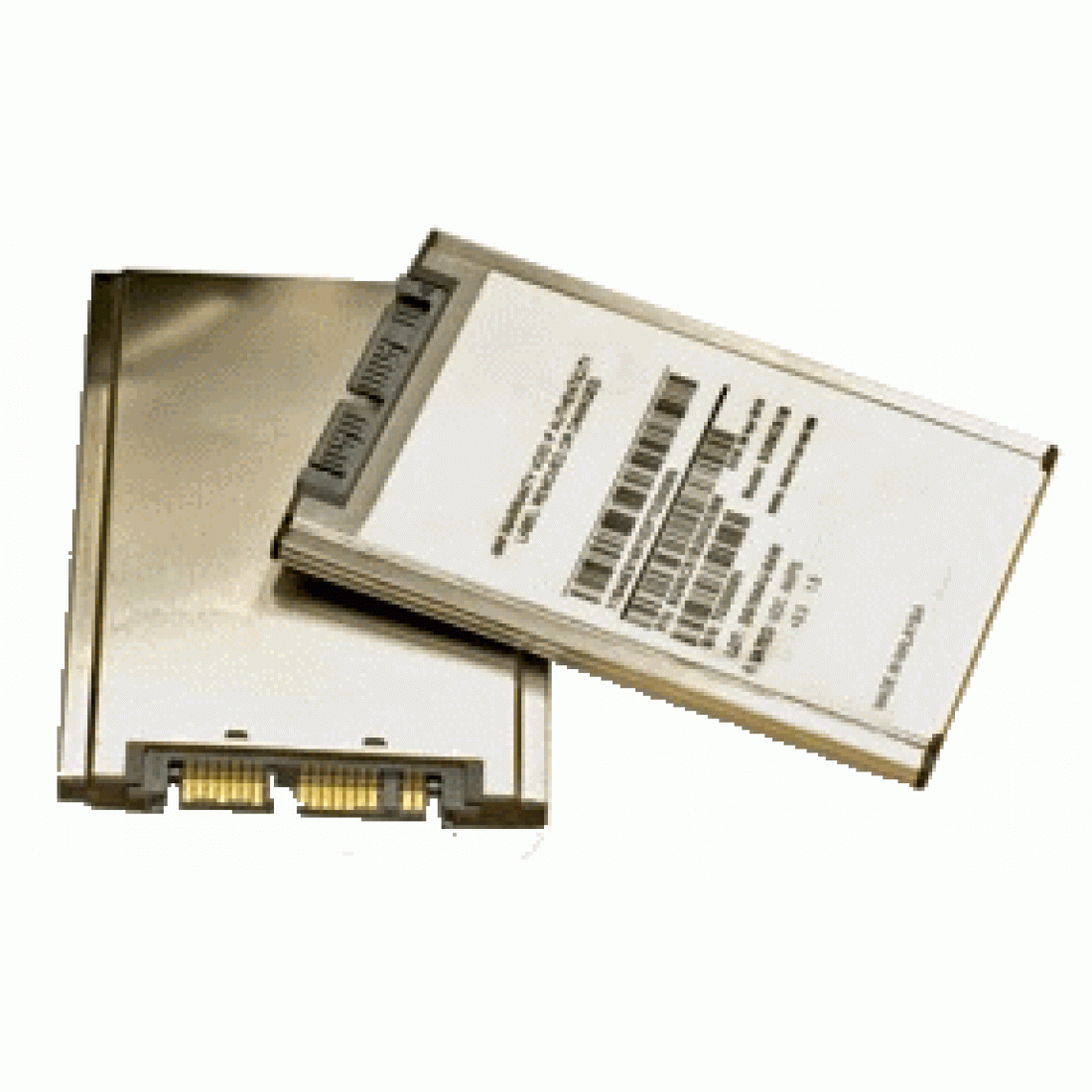

The Solid State Drive (SSD) Module is a compact storage device about the size of a fat credit card which is placed in a socket of the #2053, #2054 or #2055 PCIe RAID & SAS Adapater. It is shipped from IBM with RAID formatting to provide 177 GB capacity for AIX/IBM i/Linux. Reformatted as JBOD under AIX/Linux provides 200 GB capacity but drops the extra protection RAID formatting provides.

Feature #1995 and #1996 are physically identical with CCIN = 58B2, but two features are used to allow IBM configurator tools to understand usage by either AIX/Linux or IBM i. #1995 indicates AIX/ Linux usage.

The #1995/1996 uses Enterprise Multi-Level Cell (eMLC) technology, to provide extremely reliable, cost effective, dense SSD storage. The 1.8" SSD module contains a NAND flash controller that provides a 3Gbit/sec SATA interface. Parallel access to 16 flash sites allows overlapped, multi-block access to complete data transfer requests rapidly. An embedded super capacitor ensures data integrity during power fail scenarios.

Attributes provided: 177GB (RAID) or 200GB(JBOD) formatted SSD Module

Attributes required: Available socket on the following controllers #2053, #2054 or #2055 PCIe RAID & SAS Adapter. Limit is 1, 2, 3 or 4 on each controller.

For 8202-E4B: (#1995)

Minimum required: 0

Maximum allowed: 48 (Initial order maximum: 48)

OS level required:

AIX Version 5.3 supported

AIX Version 6.1 supported

AIX Version 7.1 supported

IBM i not supported use #1996

SUSE Linux supported

Red Hat Linux supported

Refer to Software Requirements for specific O/S levels supported

Initial Order/MES/Both/Supported: Both

CSU: No

Return parts MES: No

Note:

Requires available socket on a #2053, #2054 or #2055.

Max 4 per PCIe RAID & SSD SAS Adapter

Minimum of 1, 2 or 4 is required

Supports VIOS attachment version 2.2 or later
