IBM 5B20 1.9TB Mainstream SSD 00LY374 00LY560 01LU806 01LU903 02YC596 02YC647 02YC706 02YC845 ES8K ES8J ESHU ESJA ESJB ESHV EL8J ES80 ES92 ES93 ES96 ES97 ES81 ES8K ESHB
Brand:
IBM AS400 iSeries
Model Number:
5B20-00LY374-00LY560
Custom Field 1 (UPC):
5B20
Custom Field 4 (MPN): 00LY374
Custom Field 4 (MPN): 00LY374
IBM 5B20 1.9TB Mainstream SSD 4k eMLC4 00LY374 00LY560 01LU806 01LU903 02YC596 02YC647 02YC706 02YC845 ES8K ES8J ESHU ESJA ESJB ESHV EL8J ES80 ES92 ES93 ES96 ES97 ES81 ES8K ESHB

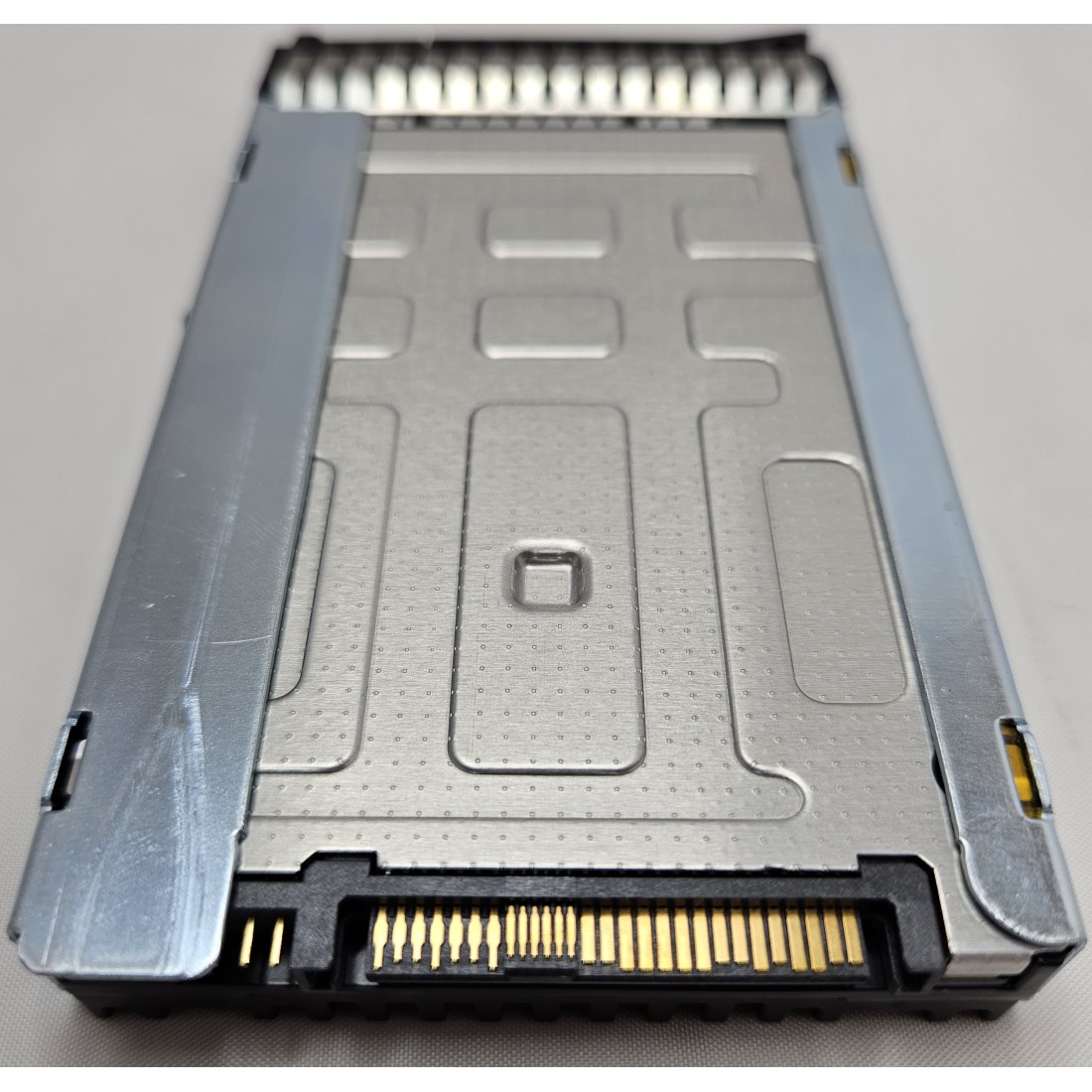

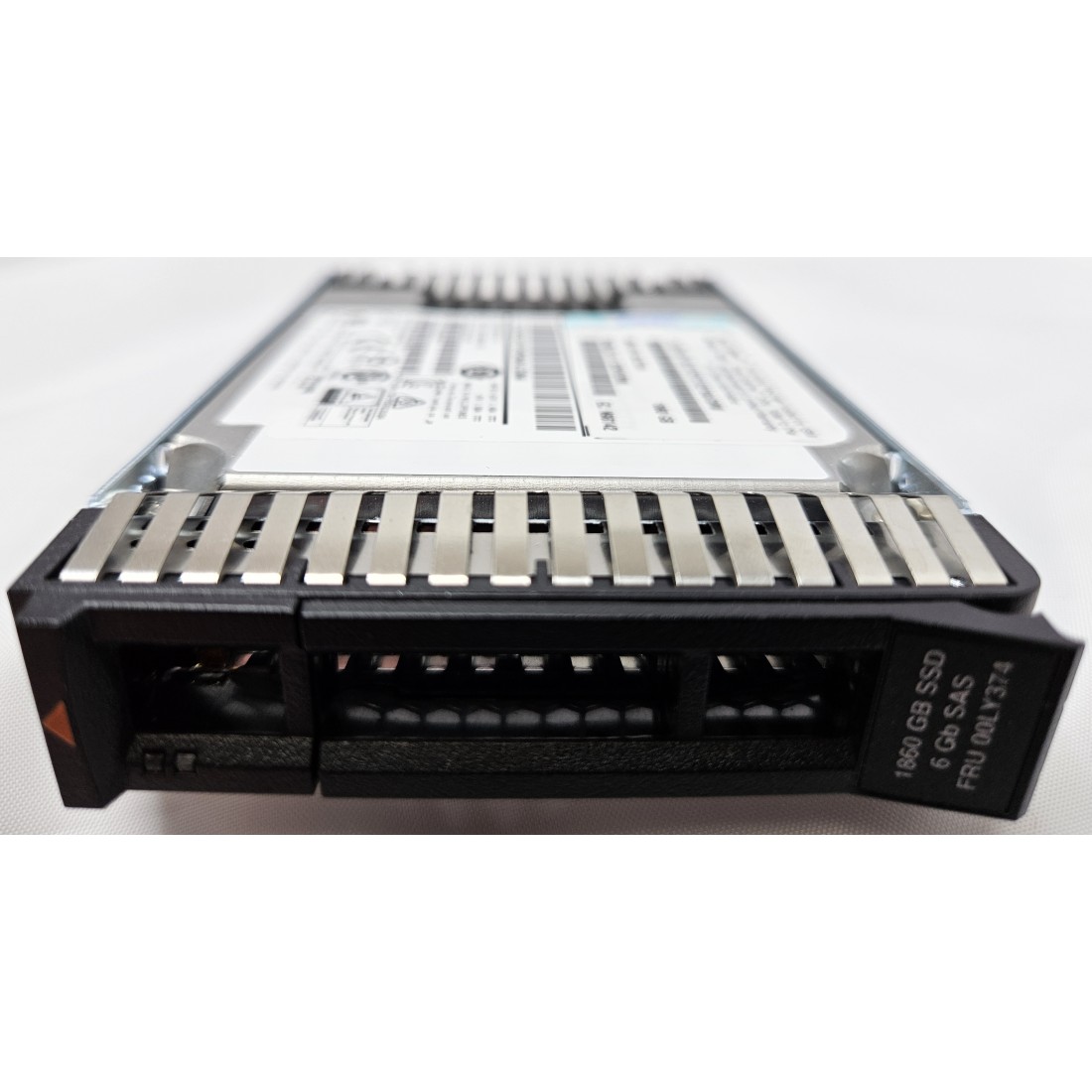

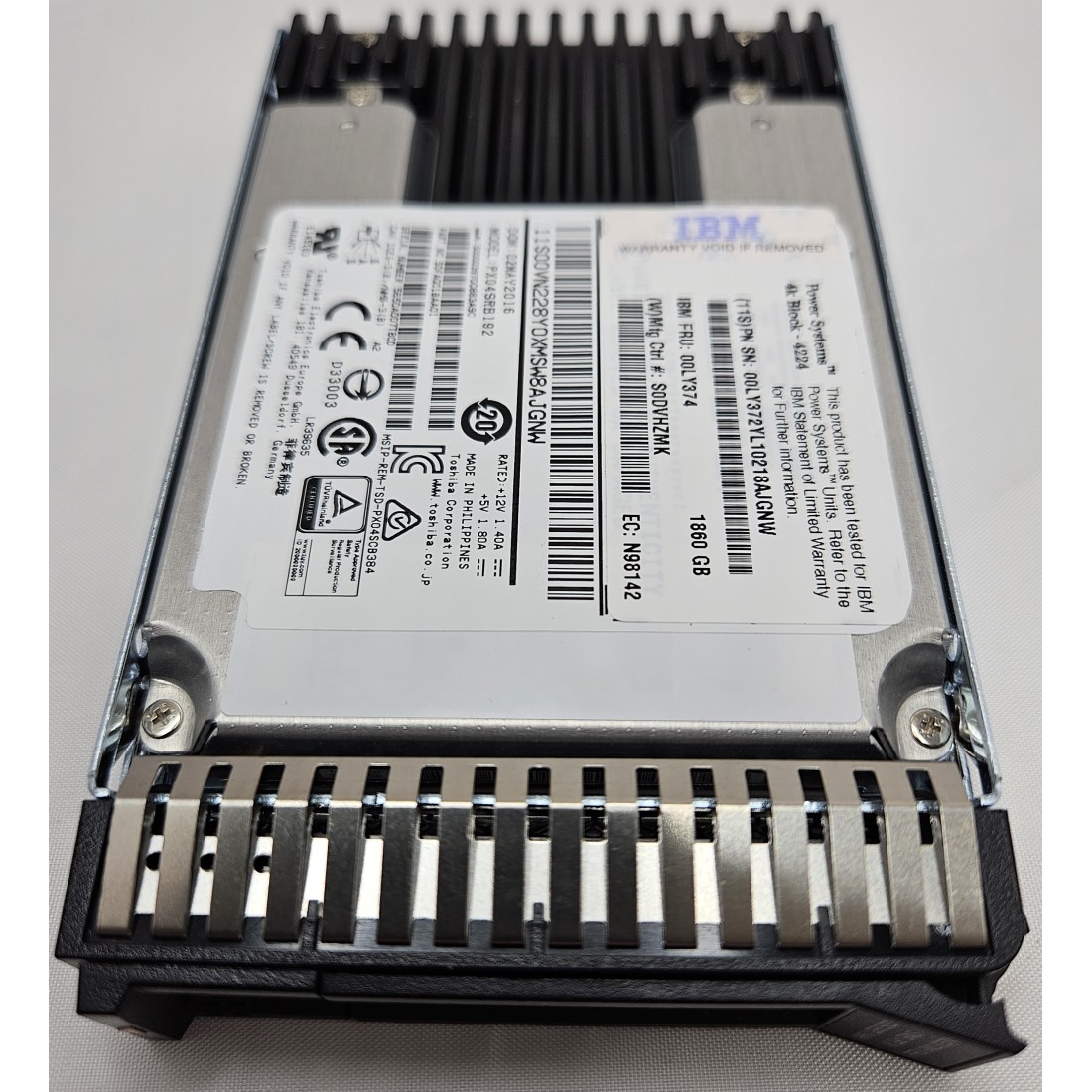

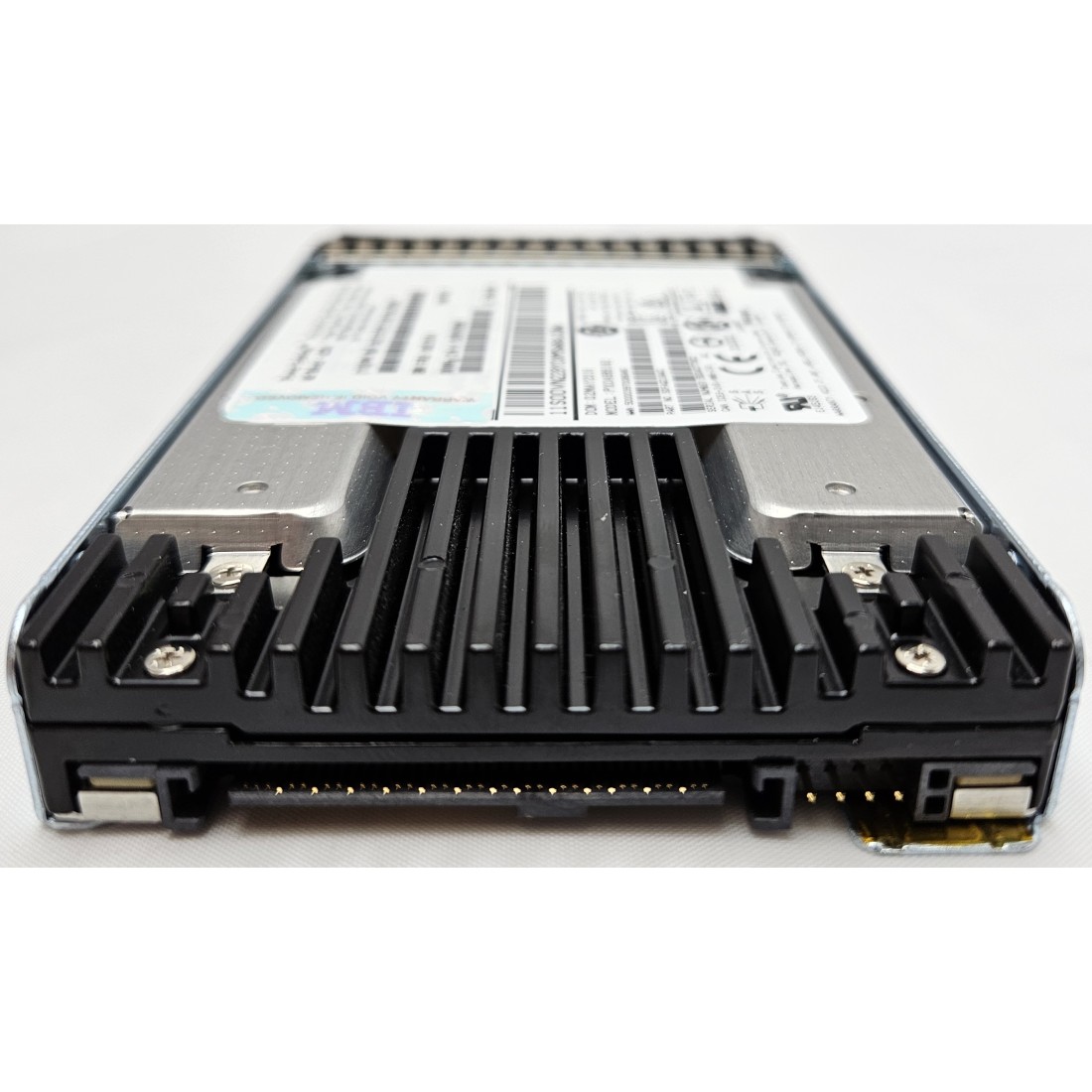

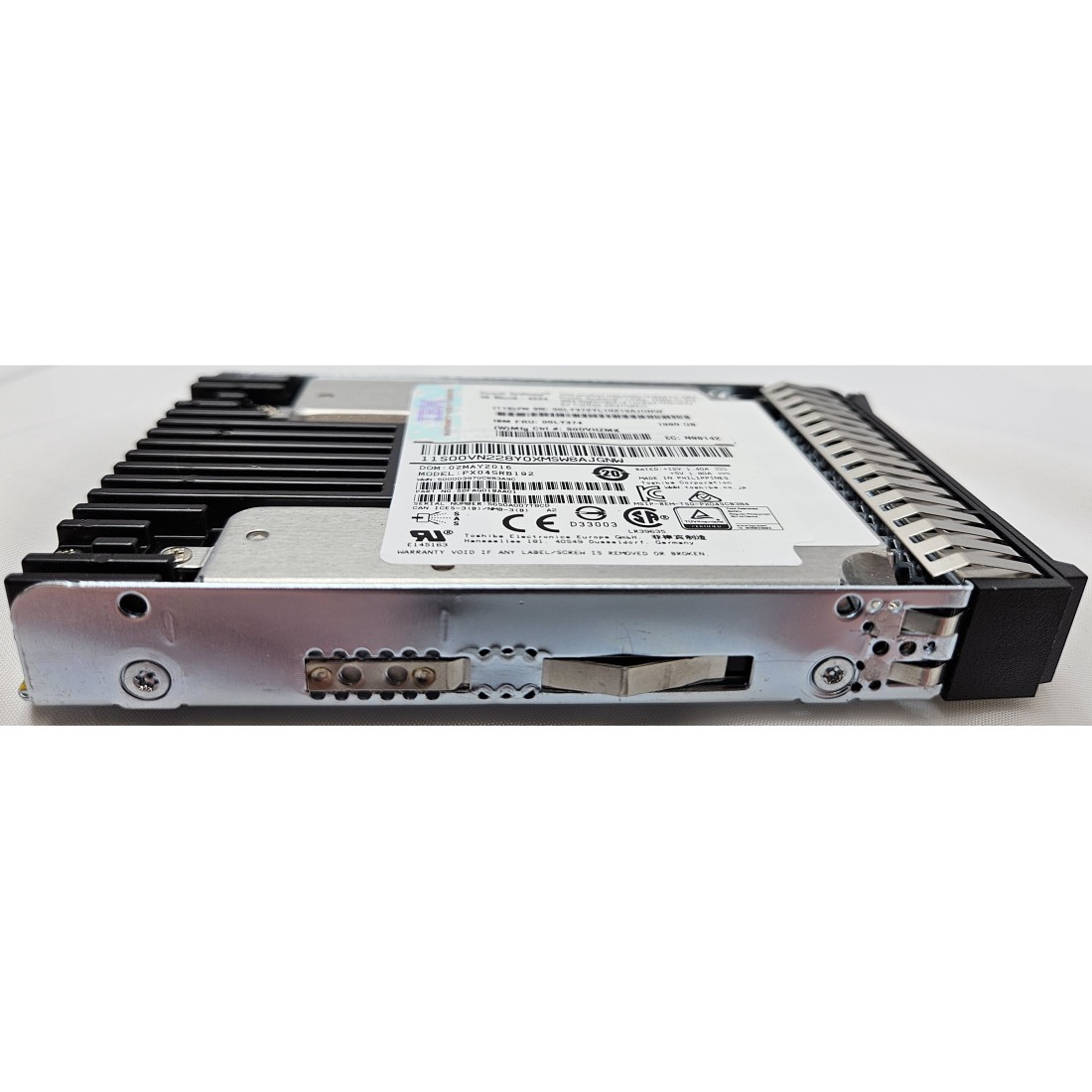

The IBM 5B20 1.9TB Mainstream SSD is a fourth generation (eMLC4) solid state drive for read only workloads, is formatted in 4k byte sectors and mounted on a 2.5-inch SFF-3 carrier tray for IBM POWER systems. The IBM 5B20 SSD may have 00LY374 00LY560 01LU806 01LU903 02YC596 02YC647 02YC706 02YC845 as a part number and may have one the following feature codes ES8K ES8J ESHU ESJA ESJB ESHV EL8J ES80 ES92 ES93 ES96 ES97 ES81 ES8K ESHB, which are physically identical solid state drives, but IBM configurator tools designate different codes for various reasons. The IBM 5B20 solid state drive is rated at 6Gb/s, but actual performance will vary based on many factors for including customer workloads. IBM 5B20 1.9TB Mainstream SSD 4k eMLC4 is supported on IBM i, AIX, Linux Servers and VIOS. These 00LY374 eMCL4 SSDs are only available in used or refurbished condition as of January 18, 2019.
Note: The 5B20 1.9TB Mainstream SSD is mounted on a SFF-3 carrier tray, and does not physically fit into an expansion unit such as the EXP24S's SFF-2 bays. JBOD formatting of 4096 byte sectors is not tested or supported, and cannot be reformatted to 5xx byte sectors. 5xx and 4k drives cannot be mixed in the same array.
The IBM ES94 and ES95 387GB Enterprise SSD requires one of the following PCIe3 or PCIe2 SAS controllers:
IBM 57B1 PCIe3 12 GB Cache RAID+ SAS Adapter Quad-port 6 Gb (01DH742 EJ14)
IBM 57B4 PCIe3 RAID SAS Adapter Quad-port 6 Gb x8 (00FX846 EJ10 EJ11 EJ0J EJ0M)
IBM 57CE PCIe3 12 GB Cache RAID SAS Adapter Quad-port 6 Gb x8 (00FX840 EJ0L)
IBM 57D8 PCIe3 x8 Cache SAS RAID Adapter 6 Gb (00MA025 EJ0P)
IBM 57D7 PCIe3 x8 SAS RAID Adapter 6 Gb (00MH906 00MH908 EJ0N EJ0S EL3V)
IBM 57B4 PCIe3 RAID SAS Adapter Quad-port 6Gb x8 (00FX846 EL65 EL3B EL59)
IBM 57BB PCIe2 1.8GB Cache RAID SAS Adapter Tri-port 6Gb CR (74Y7131 ESA3)
IBM 57B5 PCIe2 1.8GB Cache RAID SAS Adapter Tri-port 6Gb (00J0596 5913)
IBM 57B4 PCIe3 RAID SAS Adapter Quad-port 6 Gb x8 (00FX846 EJ10 EJ11 EJ0J EJ0M)
IBM 57CE PCIe3 12 GB Cache RAID SAS Adapter Quad-port 6 Gb x8 (00FX840 EJ0L)
IBM 57D8 PCIe3 x8 Cache SAS RAID Adapter 6 Gb (00MA025 EJ0P)
IBM 57D7 PCIe3 x8 SAS RAID Adapter 6 Gb (00MH906 00MH908 EJ0N EJ0S EL3V)
IBM 57B4 PCIe3 RAID SAS Adapter Quad-port 6Gb x8 (00FX846 EL65 EL3B EL59)
IBM 57BB PCIe2 1.8GB Cache RAID SAS Adapter Tri-port 6Gb CR (74Y7131 ESA3)
IBM 57B5 PCIe2 1.8GB Cache RAID SAS Adapter Tri-port 6Gb (00J0596 5913)
IBM System and Software requirements
- IBM i 7.1 TR11, or later; IBM i 7.2 TR4, or later; IBM i 7.3, or later
- AIX for 4k drives: AIX 7.2 TL0, or later; AIX 7.1 TL3 SP3, or later; or AIX 7.1 TL4, or later; AIX 6.1 TL 9 SP 3, or later.
- AIX for 5xx drives: All AIX levels that are supported on that server.
- PowerVM VIOS for 4k drives: PowerVM VIOS V2.2.3.3, or later; PowerVM VIOS V2.2.4.0, or later. 387 GB and 775 GB capacity points are supported across all these software levels.
- PowerVM VIOS for 5xx drives: All VIOS levels that are supported on that server.
- PowerVM VIOS for 4k drives: VIOS 2.2.3.3 or later, VIOS 2.2.4.0 or later.
- SLES 11 SP4, or later; SLES 12, or later.
- RHEL 6.7, or later; RHEL 7.2, or later; Ubuntu 16.04, or later; Ubuntu 14.04.4, or later.
Limitation: Due to physical differences in the carrier/tray on which the drive is mounted, the SSD only fits in POWER8 system unit SAS bays (SFF-3). It does not fit in EXP24S drawers (SFF-2) or in 5802 and 5803 I/O drawers (SFF-1) or in POWER7 system units (SFF-1) SAS bays. Also the drive was not tested with 4096 byte sectors and thus JBOD mode for AIX/Linux is not supported. Note 4k and 5xx byte sector drives cannot be mixed in the same array.
The fourth-generation IBM SSD with eMLC4 are available for Power Systems servers with v and Power7 technology. These SAS SSDs are 2.5-inch SFF drives that can be installed either in the Power8 system unit SAS bays (SFF-3) or in EXP24S SAS bays (SFF-2) attached to a Power8 or Power7 server. The new eMLC4 SAS SSDs provide significantly improved price/performance compared to previous eMLC3 SSDs. eMLC4 SSD performance is improved over previous generations of Power eMLC SSDs. Compared to the eMLC3 SSDs, the new eMLC4 drives offer improved input/output operations per second (IOPS), throughput, and latency. For example, measurements show:
Up to 50% higher maximum IOPS value for random mixed read/write workloads
Up to 750 MBps while reading from the drive or up to 470 MBps while writing to the drive
Up to 20% better latency running a random mixed read/write workload (down to a 0.12 ms latency)
Up to 750 MBps while reading from the drive or up to 470 MBps while writing to the drive
Up to 20% better latency running a random mixed read/write workload (down to a 0.12 ms latency)
Power eMLC flash memory provides enterprise-class performance and reliability characteristics. The new fourth-generation eMLC SSDs build upon a heritage of performance and endurance to provide a better value proposition to users of Power8 and Power7 servers. They provide SAS 6 Gbps capability, but are designed to be 12 Gbps compliant if future SAS adapters support 12 Gbps capability.
As with IBM's earlier eMLC SSDs, the new drives are designed to deliver great endurance and reliability. For example, the new eMLC SSD modules are designed to provide 24x7x365 usage running write-intensive levels for about five years. Typical client usage is expected to be much lower, especially regarding the average percentage of writes, and thus drive lifespan can be much longer. Similar to the eMLC3 SSDs, the new SSDs provide a Drive Write Per Day (DWPD) rating of approximately "10." This rating estimates the number of times the SSD's capacity could be written per day over the projected life of the drive.
The Power8 servers that support the new SAS SSDs in their system unit are the S812L (8247-21L), S814 (8286-41A), S822 (8284-22A), S822L (8247-22L), S824 (8286-42A), S824L (8247-42L), and E850 (8408-E8E). The SFF-3 SAS bay in these servers uses an SFF-3 carrier/tray, on which the SAS drive is mounted. Other model Power8 servers do not have SAS bays in their system units and therefore can not support eMLC4 SFF-3 SSDs. Earlier Power servers do not use the SFF-3 SAS bay. When attached to a Power8 or Power7 server, the EXP24S I/O drawers (#5887 or #EL1S) can hold up to 24 of the new SAS SSDs. The EXP24S SAS bays use an SFF-2 carrier/tray, on which the SAS drive is mounted. For Power8 servers, the Power S814 (6-core and 8-core), S822, S824, E850, E870, and E880 support the #5887 EXP24S. The S812L, S822L, and S824L support the #EL1S EXP24S. For Power7 and Power7+™ servers, the new SSDs are supported on: 8231-E1C, 8231-E1D, 8268-E1D, 8202-E4D, 8231-E2C, 8231-E2D, 8205-E6C, 8205-E6D, 8408-E8D, 9109-RMD, 9117-MMC, 9117-MMD, 9179-MHC, 9179-MHD, 9119-FHB.
The eMLC4 SSDs refresh the previously available 387 GB and 775 GB capacity points for Power7 and Power8 servers. The eMLC4 SSDs add a new 1550 GB (1.55 TB) capacity point for Power8 servers. These are 400 GB, 800 GB, and 1600 GB SSDs that are always formatted either to 4224 (4k) byte sectors or to 528 (5xx) byte sectors for additional protection, resulting in 387 GB, 775 GB, and 1550 GB capacities. The 4096 or 512 byte sectors or JBOD are not supported. 4k drives are supported only on Power8 servers.
