IBM 58FD 01LK431 EC6X ESLX EC5C EC5D EC6W 3.2 TB SSD NVMe Flash NVMe PCIe3 x8 Gen3 Adapter

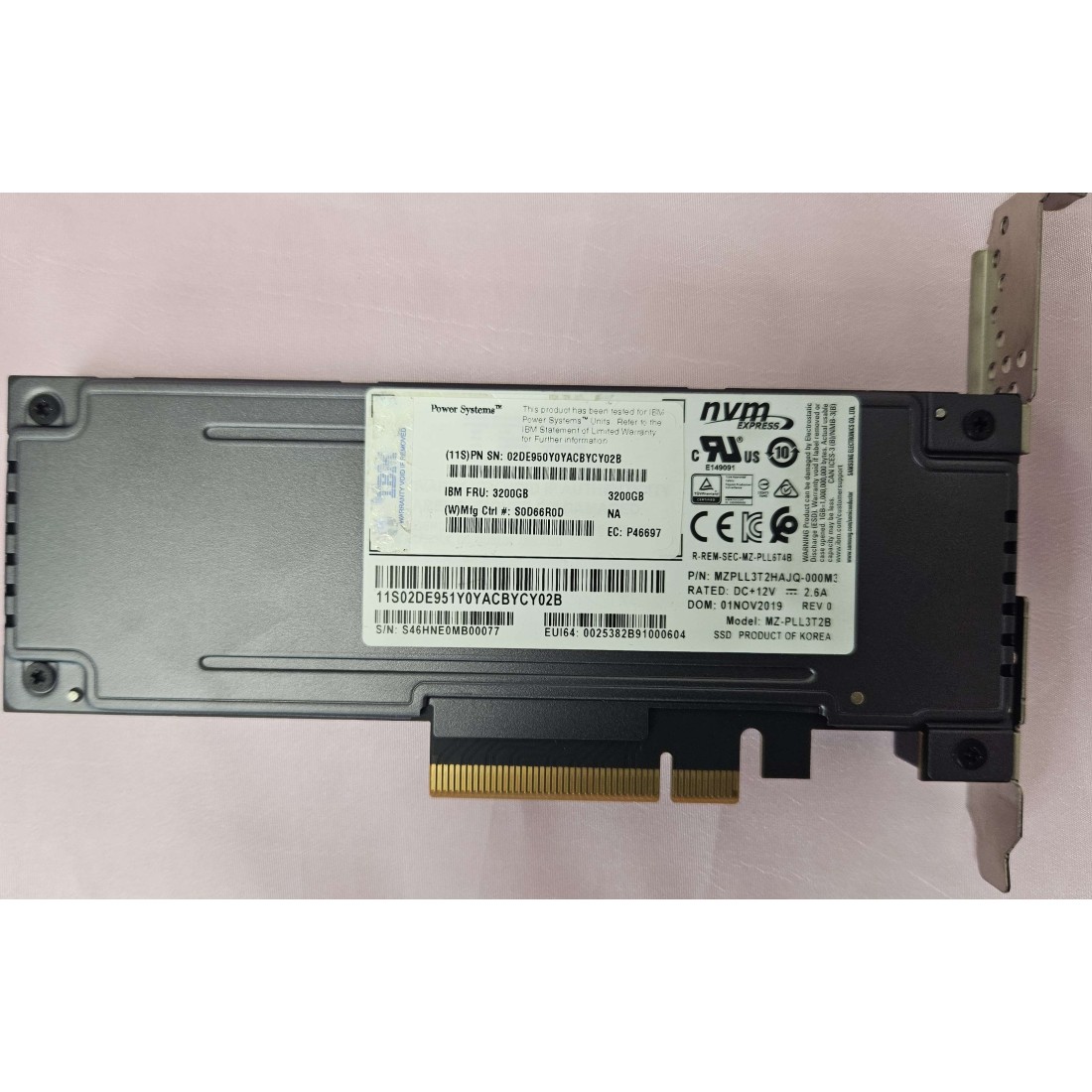

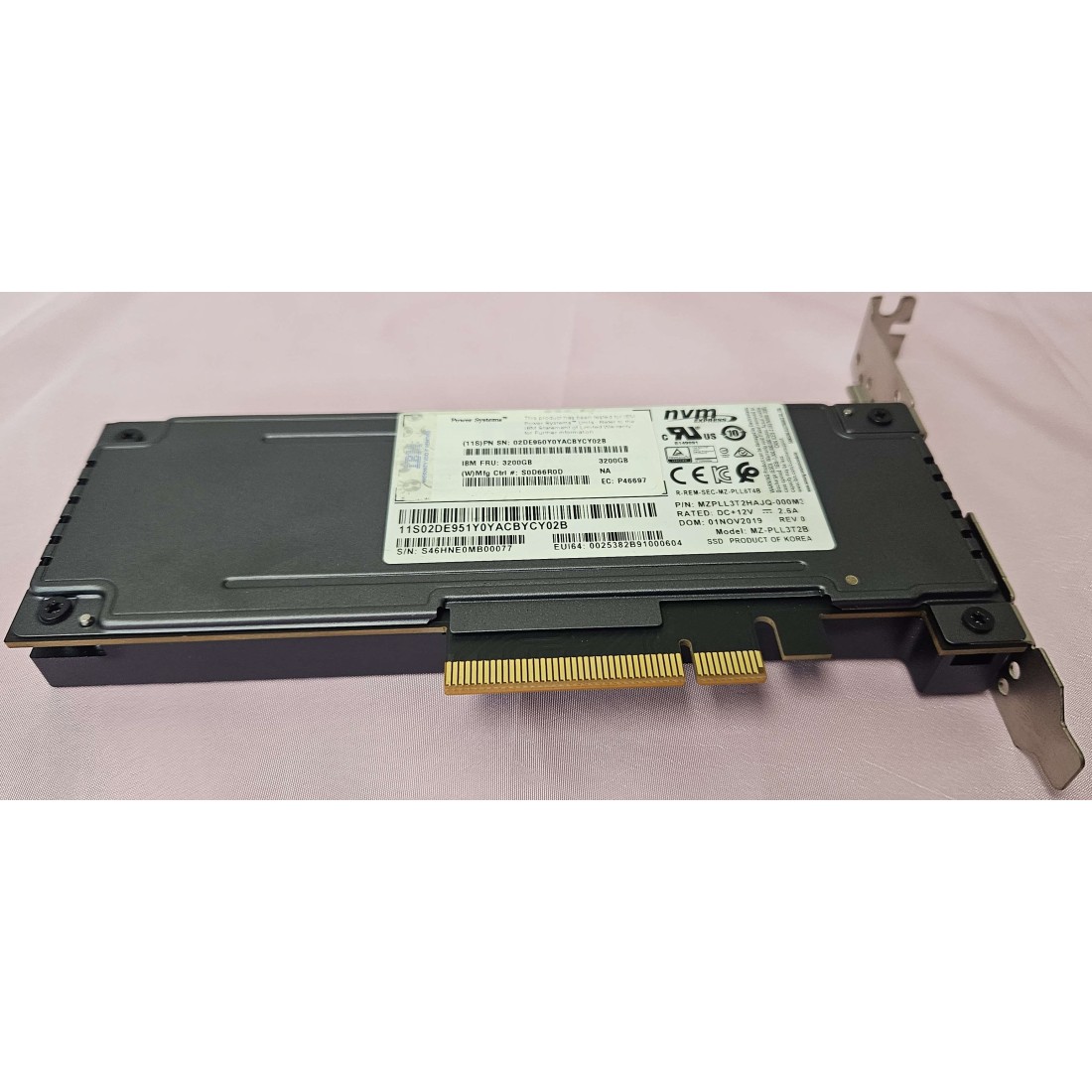

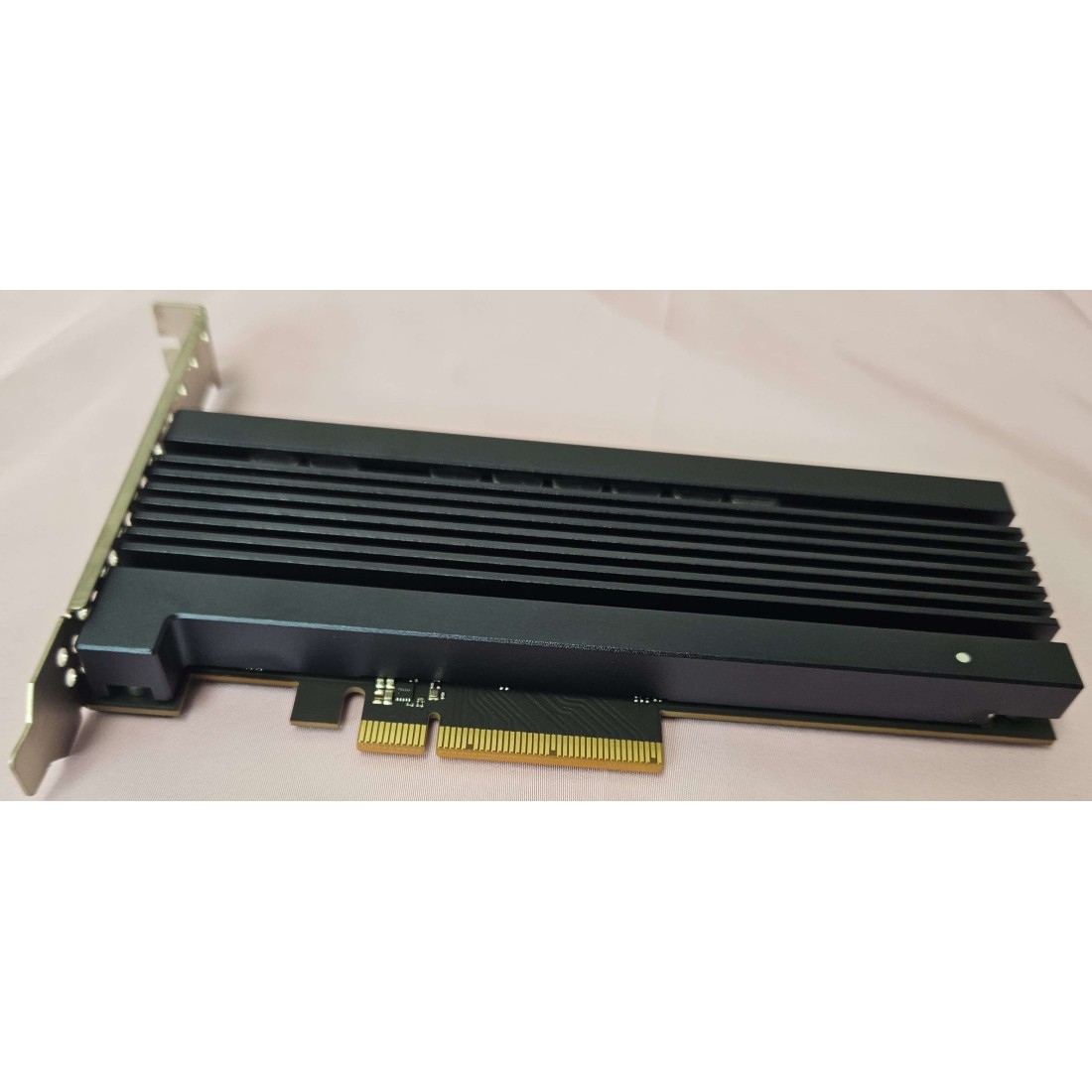

The IBM 58FD 3.2 TB SSD NVMe Flash NVMe PCIe3 x8 Gen3 Adapter has 01LK431 part number and EC6X ESLX EC5C EC5D EC6W feature codes. The IBM 58FD 3.2 TB SSD NVMe Flash Adapter feature codes EC5C and EC6W are low-profile adapters and the EC5D and EC6X are full-height adapters. The IBM EC6W and EC6X 3.2 TB SSD NVMe Flash Adapters are supported on the IBM i operating system and the IBM EC5C and EC5D are supported on AIX or Linux Server operating systems of a IBM Power System.
The IBM 58FD 3.2 TB SSD NVMe Flash Adapter PCIe3 x8 NVMe 1.6 TB SSD NVMe adapter is a Peripheral Component Interconnect Express PCIe Gen3 x8 adapter. The IBM 58FD 3.2 TB SSD NVMe Flash Adapter can be used in either a x8 or x16 PCIe Gen3 slot in the IBM Power10 or Power9 systems and uses Non-Volatile Memory Express NVMe. NVMe is a high-performance software interface that can read or write flash memory. Compared to a Serial-attached SCSI SAS or Serial Advanced Technology Attachment SATA solid-state drive SSD, the NVMe Flash adapter provides more read or write, input or output operations per second IOPS and larger throughput GB/sec. The type of workload has a great impact on the maximum write capacity. If a high percentage of more sequentially oriented write operations are performed instead of random write operations, the maximum write capacity will be large. To extend the life of the NVMe device, the application that is using the NVMe device must convert small random write operations to larger sequential write operations. The write operations that exceed the maximum write capacity of the adapter continues to operate for some time but the performance will be slow. The life of the device is not affected depending on whether the application uses sequential oriented write operations or random read operations from the device. A Predictive Failure Analysis message is displayed when the adapter that is enabled by the system administrator must be replaced. To monitor the percentage usage of the adapter, see Checking the amount of remaining life in NVMe devices. If the adapter exceeds the maximum write capability, the adapter's replacement is not covered under IBM warranty or maintenance. This adapter has protection against single Flash channel failures. To prevent the entire adapter from failing, software RAID should be used. For high-value applications where the content in the adapter must be protected, additional NVMe Flash adapters with OS mirroring or software Redundant Array of Independent Disks (RAID) are recommended. This adapter is not supported in the PCIe Gen3 I/O drawer.
Other IBM Enterprise SSD, DISK and Storage for IBM Power10 and Power9 Servers include:
IBM 5947 800 GB Enterprise SSD NVMe U.2 module PCIe4
Part Numbers: 01LU973 01LU974
Feature Codes: ES1K ELSG
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B, L1022 9786-22H, E1050 9043-MRX, L922 9008-22L, S922 9009-22A, S922 9009-22G, S914 9009-41G, S922 9009-22G, S914 9009-41A, S924 9009-42G, S924 9009-42A, H922 9223-22H, H922 9223-22S, H294 9223-42H, H294 9223-42S and 5000 ESS 5105-22E
Operating Systems: IBM i OS400
IBM 5B52 1.6 TB Enterprise SSD NVMe U.2 module PCIe4
Part Numbers: 02YC725 02YC739
Feature Codes: ES3B ES3C ELYC
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B, L1022 9786-22H and E1050 9043-MRX
Operating Systems: IBM i OS400, AIX, Linux & VIOS
IBM 59B8 1.6 TB Enterprise SSD NVMe U.2 module PCIe4
Part Numbers: 01LU967
Feature Codes: ES1F ES1E ELS3
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B, E1050 9043-MRX, L922 9008-22L, S922 9009-22A, S922 9009-22G, S914 9009-41G, S922 9009-22G, S914 9009-41A, S924 9009-42G, S924 9009-42A, H922 9223-22H, H922 9223-22S, H294 9223-42H, H294 9223-42S and 5000 ESS 5105-22E
Operating Systems: IBM i OS400, AIX, Linux & VIOS
IBM 5B51 3.2 TB Enterprise SSD NVMe U.2 module PCIe4
Part Numbers: 02YC726 02YC740
Feature Codes: ES3E ES3D ELYE
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B and E1050 9043-MRX
Operating Systems: IBM i OS400, AIX, Linux & VIOS
IBM 59B9 3.2 TB Enterprise SSD NVMe U.2 module PCIe4
Part Numbers: 01LU968
Feature Codes: ES1H ELSQ ES1G
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B, E1050 9043-MRX, L922 9008-22L, S922 9009-22A, S922 9009-22G, S914 9009-41G, S922 9009-22G, S914 9009-41A, S924 9009-42G, S924 9009-42A, H922 9223-22H, H922 9223-22S, H294 9223-42H, H294 9223-42S and 5000 ESS 5105-22E
Operating Systems: IBM i OS400, AIX, Linux & VIOS
IBM 59BA 6.4 TB Enterprise SSD NVMe U.2 module PCIe4
Part Numbers: 01LU969
Feature Codes: EC5W ELUW EC5V
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B, E1050 9043-MRX, L922 9008-22L, S922 9009-22A, S922 9009-22G, S914 9009-41G, S914 9009-41A, S924 9009-42G, S924 9009-42A, H922 9223-22H, H922 9223-22S, H294 9223-42H, H294 9223-42S and 5000 ESS 5105-22E
Operating Systems: IBM i OS400, AIX, Linux & VIOS
IBM 5B50 6.4 TB Enterprise SSD NVMe U.2 module PCIe4
Part Numbers: 02YC727 02YC741
Feature Codes: ES3G EKF7 ES3F
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B and E1050 9043-MRX
Operating Systems: IBM i OS400, AIX, Linux & VIOS
IBM 594A 1.6 TB NVMe Flash Adapter PCIe4 x8
Part Numbers: 02DE956
Feature Codes: EC7J EC7K ELVK EC7A EC7B
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B, E1050 9043-MRX, S914 9009-41G, S914 9009-41A, S924 9009-42G, S924 9009-42A, L922 9008-22L, S922 9009-22A, S922 9009-22G, H922 9223-22H, H922 9223-22S, E980 9080-M9S, H294 9223-42H, H294 9223-42S and E950 9040-MR9
Operating Systems: IBM i OS400, AIX, Linux & VIOS
IBM 58FC 1.6 TB NVMe Flash Adapter PCIe3 x8
Part Numbers: 01DH570
Feature Codes: EC6U EC6V ENS1 ENS2 ESLV EC5B EC5G
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B, E1050 9043-MRX, S914 9009-41G, S914 9009-41A, S924 9009-42G, S924 9009-42A, L922 9008-22L, S922 9009-22A, S922 9009-22G, H922 9223-22H, H922 9223-22S, E980 9080-M9S, H294 9223-42H, H294 9223-42S, E950 9040-MR9
Operating Systems: IBM i OS400, AIX, Linux & VIOS
IBM 594B 3.2 TB NVMe Flash Adapter PCIe4 x8
Part Numbers: 02DE960
Feature Codes: EC7M EC7L ELVM EC7C EC7D
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B, E1050 9043-MRX, S914 9009-41G, S914 9009-41A, S924 9009-42G, S924 9009-42A, S922 9009-22A, L922 9008-22L, S922 9009-22G, H922 9223-22H, H922 9223-22S, E980 9080-M9S, H294 9223-42H, H294 9223-42S, E950 9040-MR9
Operating Systems: IBM i OS400, AIX, Linux & VIOS
IBM 58FD 3.2 TB NVMe Flash Adapter PCIe3 x8
Part Numbers: 01LK431
Feature Codes: EC6X ESLX EC6W EC5C EC5D
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B, E1050 9043-MRX, S914 9009-41G, S914 9009-41A, S924 9009-42G, S924 9009-42A, S922 9009-22A, L922 9008-22L, S922 9009-22G, H922 9223-22H, H922 9223-22S, E980 9080-M9S, H294 9223-42H and H294 9223-42S
Operating Systems: AIX, Linux & VIOS
IBM 594C 6.4 TB NVMe Flash Adapter PCIe4 x8
Part Numbers: 02DE964
Feature Codes: EC7P ELVP EC7N EC7P EC7E EC7F
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B, E1050 9043-MRX, S914 9009-41G, S914 9009-41A, S924 9009-42G, S924 9009-42A, S922 9009-22A, L922 9008-22L, S922 9009-22G, H922 9223-22H, H922 9223-22S, E980 9080-M9S, H294 9223-42H, H294 9223-42S and E950 9040-MR9
Operating Systems: IBM i OS400, AIX, Linux & VIOS
IBM 58FE 6.4 TB NVMe Flash Adapter PCIe3 x8
Part Numbers: 01LK435
Feature Codes: EC6Z EC5E EC6Y ESLZ EC5F
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B, E1050 9043-MRX, L922 9008-22L, S922 9009-22A, S922 9009-22G, S914 9009-41G, S914 9009-41A, S924 9009-42G, S924 9009-42A, 9040-MR9, 9080-M9S, 9223-22H, 9223-22S, 9223-42H, 9223-42S and 5000 ESS 5105-22E
Operating Systems: AIX, Linux & VIOS
IBM 59B7 800 GB Mainstream SSD NVMe U.2 module PCIe3
Part Numbers: 02YC615
Feature Codes: EC7T EC5X for AIX Linux
IBM Power Models: S1014 9105-41B, S1024 9105-42A, S1022 9105-22A, S1022s 9105-22B, E1050 9043-MRX, L922 9008-22L, S922 9009-22A, S922 9009-22G, H922 9223-22H, H922 9223-22S and 5000 ESS 5105-22E
Operating Systems: IBM i OS400, AIX, Linux & VIOS
