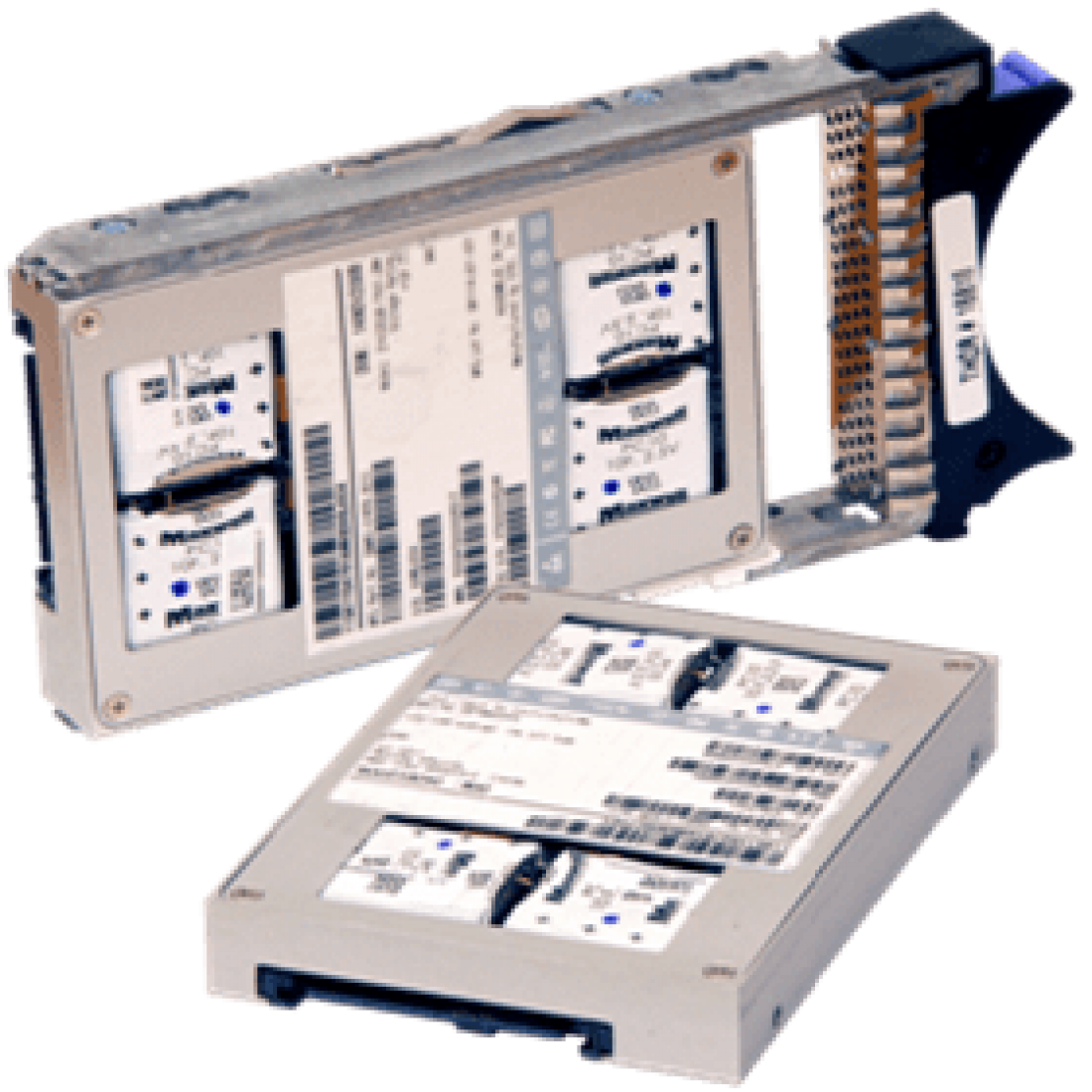

1890-8202 IBM SSD 69GB SFF SAS Power7 Solid State Drive E4B

IBM Power7 8202-E4B (#1890) - 69GB SFF SAS Solid State Drive

The IBM 1890 69GB SFF SAS Solid State Drive (SSD) provides 69.7 GB of high performance storage (3Gb/sec or 300MB/sec), much faster than spinning hard disk drives due to positioning the disk arm and waiting for the spinning disk to rotate under the arm. IBM 1890 69GB SFF SSD SAS Solid State Drives provide lower power utilization than spinning or hard disk drives (HDD). The drive is formatted to 69.7 GB and can be used by AIX, Linux (#1890) and IBM iSeries (#1909). Both are identical drives, but have different feature codes to help the IBM configuration tools understand how the SSD is used.

IBM 1890 69GB SFF SAS Solid State Drive (SSD) are only available in used or refurbished condition as of July 29, 2011.

The IBM 1890 SSD feature is supported on the following IBM Power7, Power6 & Power5 systems: 8202-E4B, 8205-E6B, 8231-E2B, 8233-E8B, 8236-E8C, 9117-MMB, 9117-MMC, 9119-FHB, 9179-MHB, 9179-MHC

Attributes required: One SFF SAS drive bay in the 8203-E4A or 8204-E8A CEC or available SFF SAS bay in 12X I/O Drawer PCIe, SFF disk. SAS Disk and SSD on same backplane is not supported.

For 8202-E4B, the IBM 1890 69GB SFF SAS Solid State Drive maximum allowed is 44.

OS level required: AIX Version 5.3, 6.1 & 7.1, Linux SUSE & Red Hat Linux (Refer to IBM Software Requirements for specific O/S levels supported)

Note:
6 is the combined SFF SAS disk maximum in the CEC with #5618.
8 is the combined SFF SAS disk maximum in the CEC with #5630.
Up to 18 SFF SAS disks per #5802
