00E8713 00E8699 IBM 59C3 775GB 4K SFF-2 SAS Enterprise SSD
Brand:
IBM AS400 iSeries
Model Number:
00E8713-59C3
Custom Field 1 (UPC):
59E9
Custom Field 4 (MPN): 00LY161
Custom Field 4 (MPN): 00LY161
00E8713 IBM 59C3 775GB 4K SFF-2 SAS Enterprise SSD ES0T ES0S EL4S

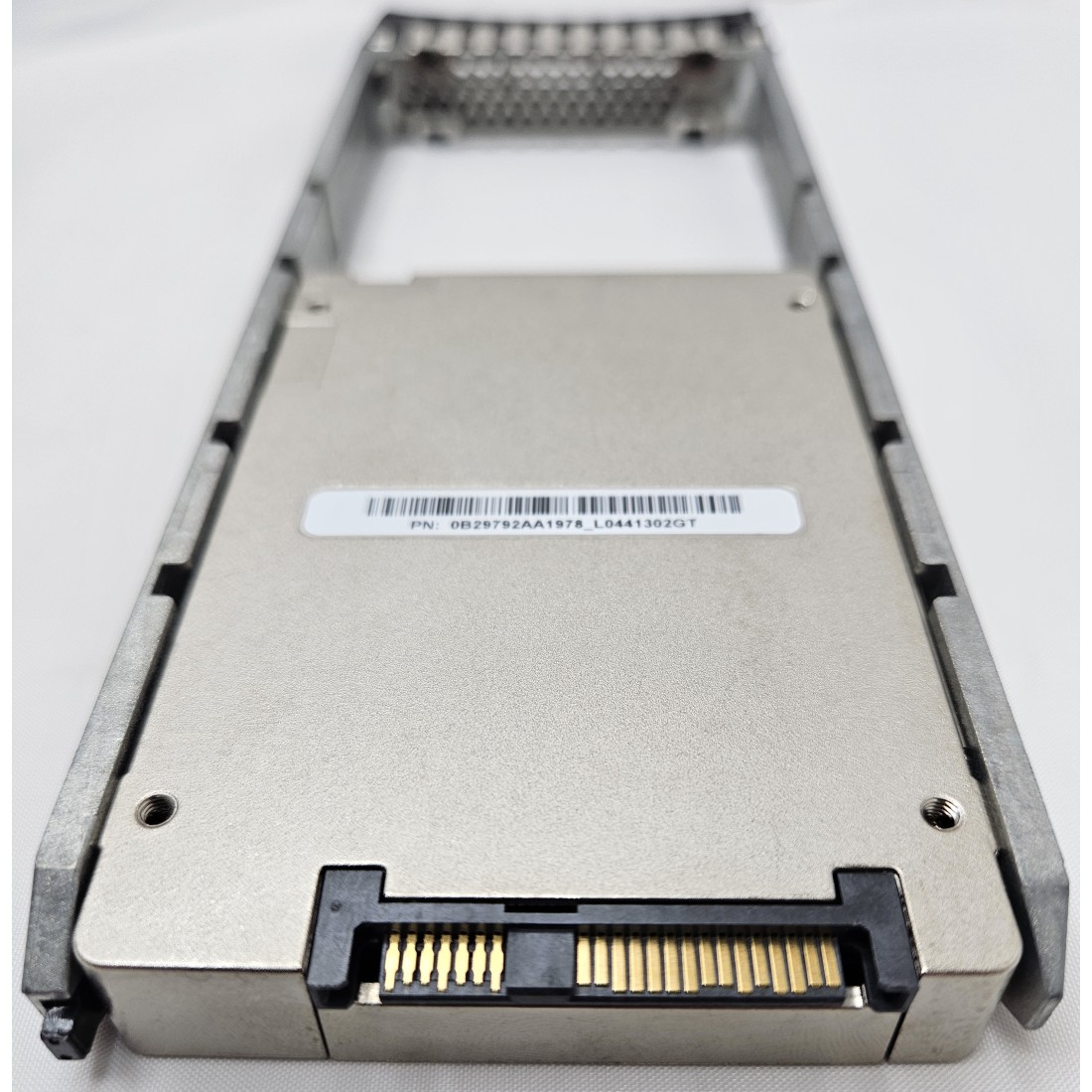

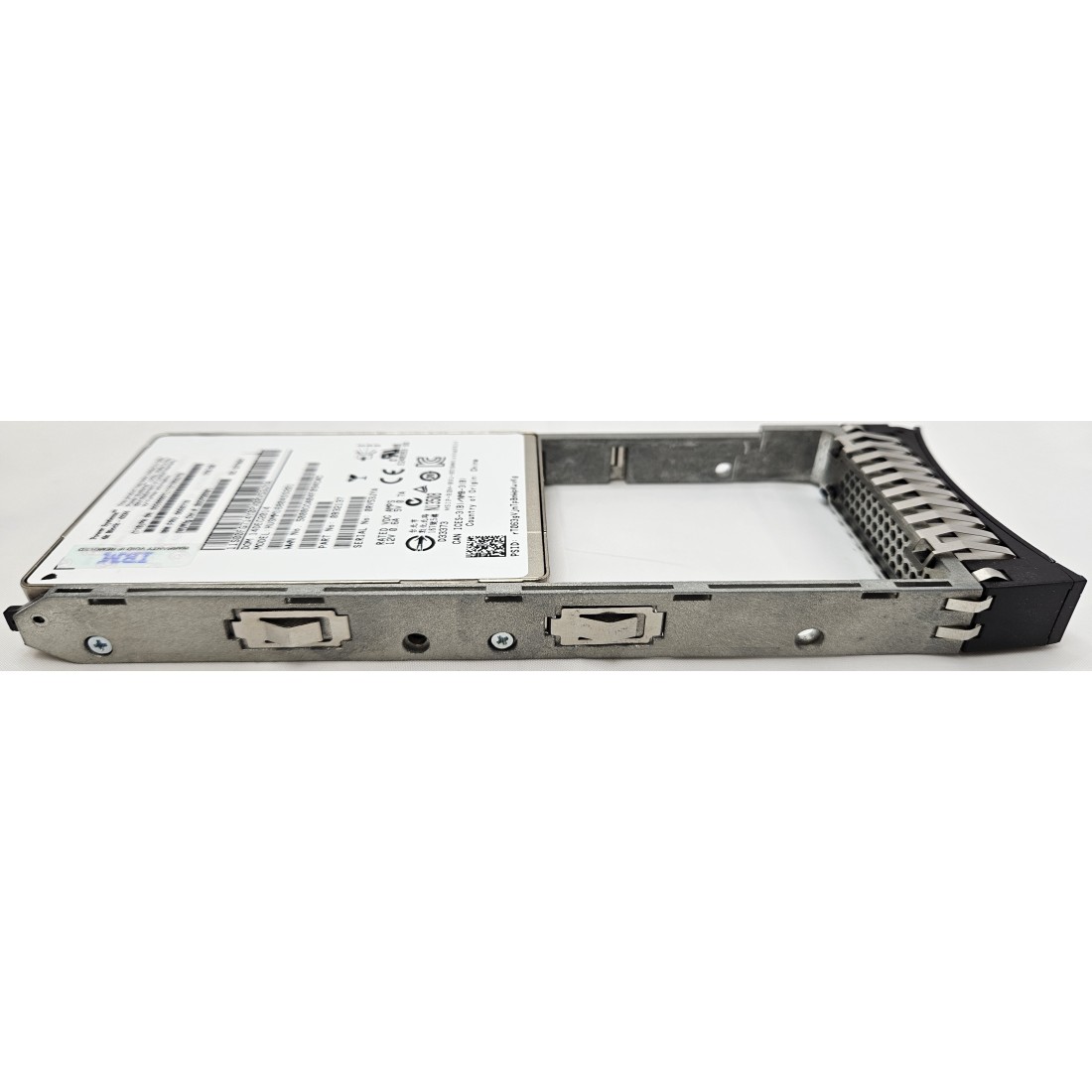

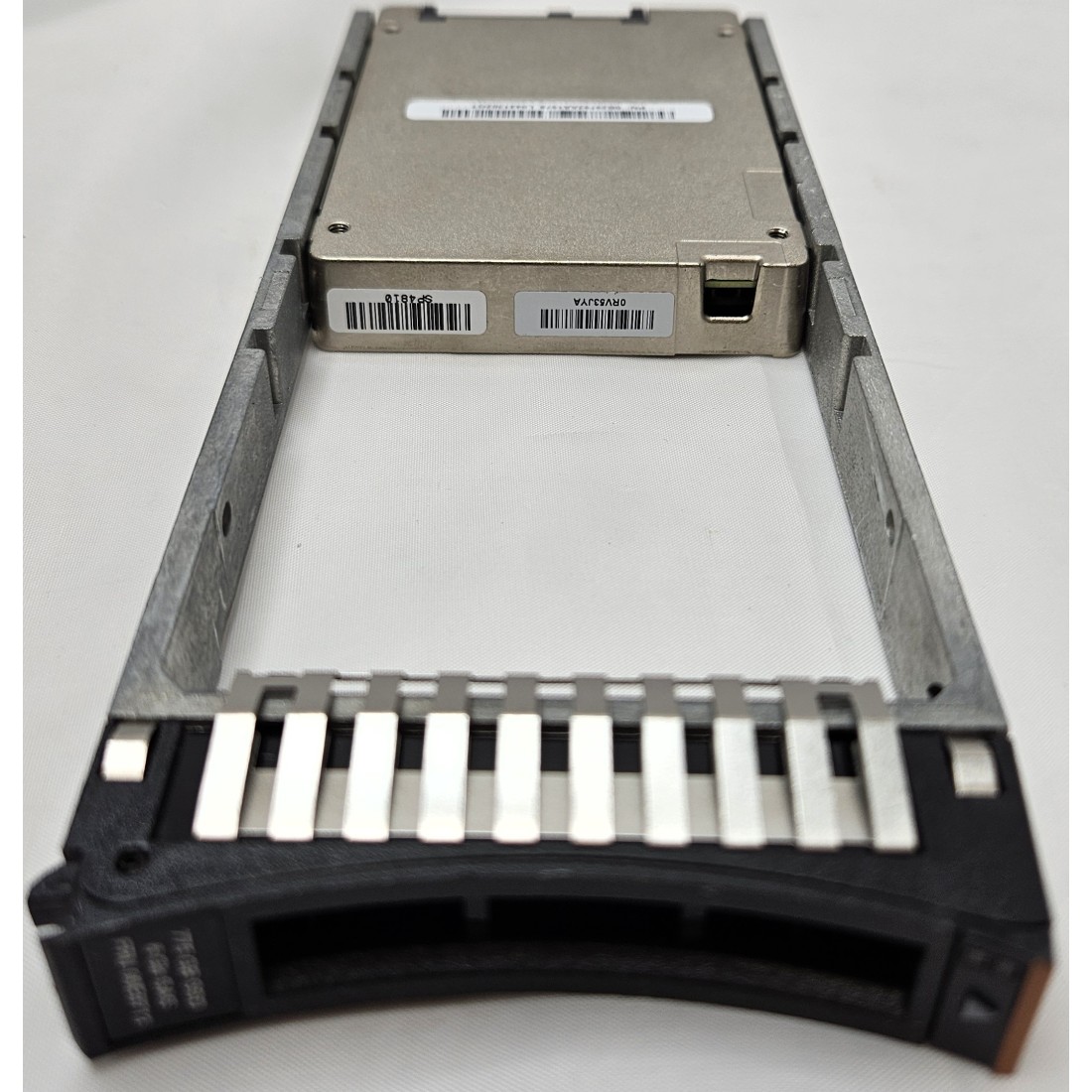

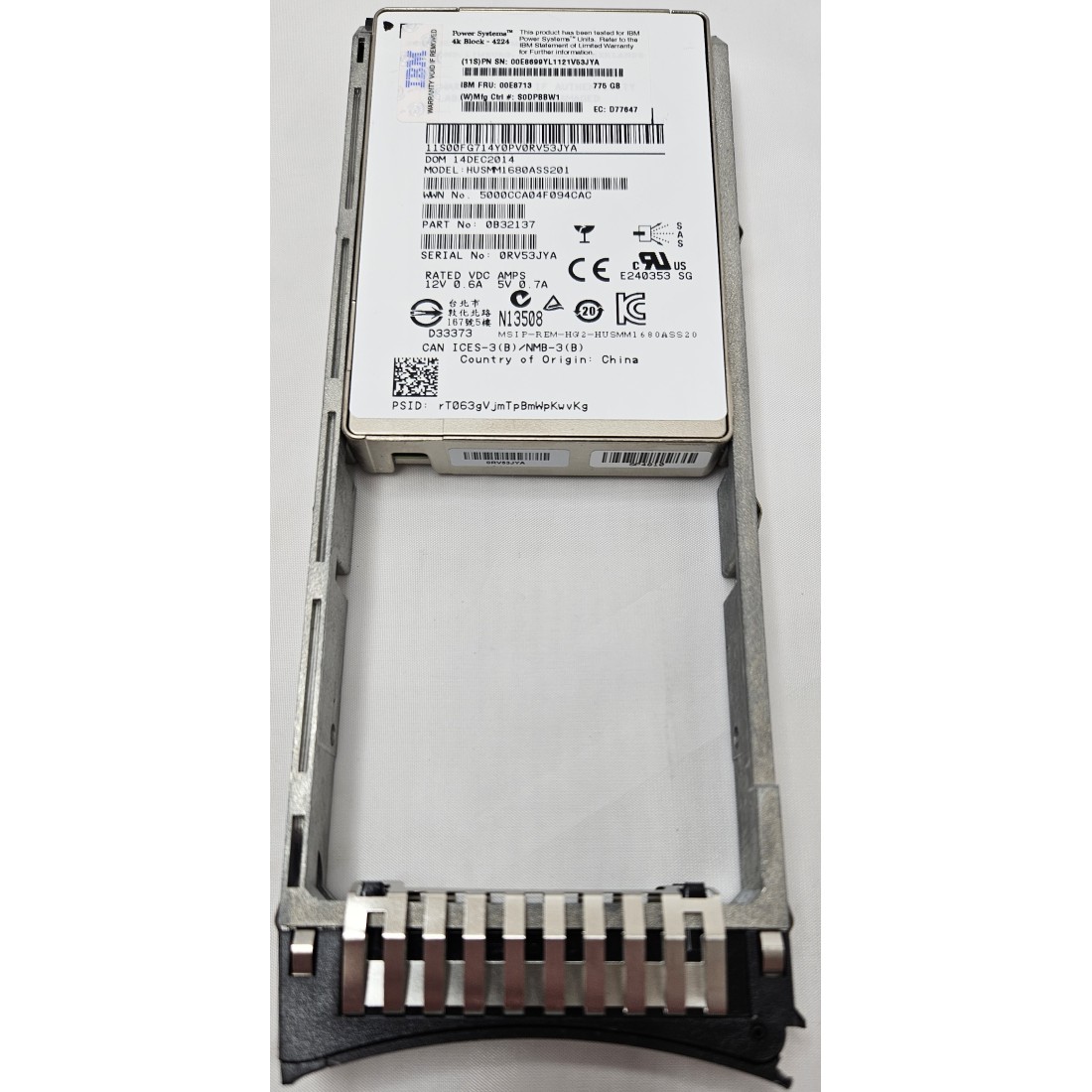

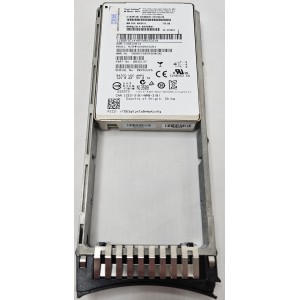

00E8713 - IBM 59C3 775GB 4K SFF-2 SAS Enterprise SSD is a 2.5-inch solid state drive formatted to 4K byte sectors for SFF-2 SAS bays of IBM EXP24S 5887 expansion drawer attached to IBM i, Power AIX, Linux Servers and VIOS Power8 system units. The IBM 59C3 00E8713 SSD can have ES0T, ES0S and EL4S feature codes, and are identical solid state drives that report with same 59C3 CCIN and have the same 00E8713 part number. The different feature codes are used by IBM configuration tools to specify which OS type, drive format and carrier tray needed for ordering.
IBM i eMLC3 SSD:
ES0T 775 GB SFF SFF-2 4k SSD 59C3 00E8713 00E8699
IBM Power AIX and Linux eMLC3 SSD:
ES0Y 177 GB 1.8-inch 4k SSD Read Intensive AIX 59BB 00LY175
ES0Z 177 GB 1.8-inch 528 byte SSD Read Intensive Linux 59BC 00LY181
ES0Q 387 GB SFF-2 4K SSD AIX 59E8 00E8710 00E8696
EL4Q387 GB SFF-2 4K SSD Linux 59E8 00E8710 00E8696
ES0U 387 GB SFF-3 4k SSD AIX Linux 59E9 00LY161
EL4U387 GB SFF-3 4k SSD Linux 59E9 00LY161 00E8693
ES0S 775 GB SFF-2 4k SSD AIX 59C3 00E8713 00E8699
EL4S775 GB SFF-2 4k SSD Linux 59C3 00E8713 00E8699
ES0W 775 GB SFF-3 4k SSD AIX 59EB 00LY162 00E8694
EL4W775 GB SFF-3 4k SSD Linux 59EB 00LY162 00E8694
ESDK 600 GB 15K RPM SAS SFF-1 Disk Drive 5xx Block AIX 59CE 00E8653
ELDK 600 GB 15K RPM SAS SFF-1 Disk Drive 5xx Block Linux 59CE 00E8653
ESDP 600 GB 15K RPM SAS SFF-2 Disk Drive 5xx Block AIX 59CF 00E8665
ELDP 600 GB 15K RPM SAS SFF-2 Disk Drive 5xx Block Linux 59CE 00E8653
ESDE 600 GB 15k RPM SAS SFF-3 Disk Drive 5xx Block AIX 59CE 00E8653
ELDF 600 GB 15k RPM SAS SFF-3 Disk Drive 5xx Block Linux 59E4 00E9908
EU2T 2 TB Removable Disk Drive Cartridge (RDX)
00E8713 IBM 59C3 Specifications:
This 00LY161 SSD cannot be placed in the same array with a drive formatted with 528 byte sectors. Also JBOD mode (4096 byte sectors) is not supported.
This 00LY161 SSD cannot be placed in the same array with a drive formatted with 528 byte sectors. Also JBOD mode (4096 byte sectors) is not supported.
Attributes provided: 4K byte formatted 387GB SFF Gen3 SSD eMLC
Attributes required: Available SAS Gen3 bay in Power8 system unit
Attributes required: Available SAS Gen3 bay in Power8 system unit
00LY161 IBM 59E9 OS Requirements:
IBM V7R1 or higher
IBM i V7R2 & TR PTF Group SF99717 Level 1 C4276720 + HIPER PTF Group
IBM i V7R1 & TR9 (TR PTF Group SF99707 Level 9) C4283710 + HIPER PTF Group
IBM i V7R2 as a client of VIOS and TR1 (TR PTF Group SF99717 Level 1) with VIOS 2.2.3.4, C4276720 + HIPER PTF Group
IBM i V7R1 as a client of VIOS and TR9 (TR PTF Group SF99707 Level 9) with VIOS 2.2.3.4, C4283710 + HIPER PTF Group
AIX 6.1 and 7.1 or later
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
IBM i V7R1 & TR9 (TR PTF Group SF99707 Level 9) C4283710 + HIPER PTF Group
IBM i V7R2 as a client of VIOS and TR1 (TR PTF Group SF99717 Level 1) with VIOS 2.2.3.4, C4276720 + HIPER PTF Group
IBM i V7R1 as a client of VIOS and TR9 (TR PTF Group SF99707 Level 9) with VIOS 2.2.3.4, C4283710 + HIPER PTF Group
AIX 6.1 and 7.1 or later
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
Note: IBM 4k drives cannot be reformatted to 5xx drives (or vice versa). IBM is transitioning away from manufacturing SAS Hard Disk Drives (HDD) and Solid State Drives (SSD) formatted with 512 and 528 byte sector (5xx), and instead will only be providing 4K byte sector drives. Although most AIX and Linux applications will not experience issues since data access to the SAS drives is via a file system, companies should confirm with their application provider to ensure compatibility with using SSD or HDD with 4K byte sectors. AIX and Linux applications that require direct access to the raw data on the SSD or HDD, may require 512 and 528 byte sector (5xx) sectors drives.
