00E8648 IBM 59CE 571GB 15K RPM SAS SFF-2 Disk Drive
IBM 58B9 387GB SFF-2 Power7 SSD
IBM AS400 iSeries 00E8653 IBM 59CE 600GB 15K RPM SAS SFF-3 Disk Drive  .. Product #: 00E8653-59CE-00E8648

00E8653 IBM 59CE 600GB 15K RPM SAS SFF-3 Disk Drive 00E8648

Brand: IBM AS400 iSeries
Model Number: 00E8653-59CE-00E8648
Tags: 00e8653 , 59ce , 00e8648
Custom Field 1 (UPC): 59E6
Custom Field 4 (MPN): 00E8670

00E8653 IBM 59CE 600GB 15K RPM SAS SFF-3 Disk Drive 00E8648 AIX Linux

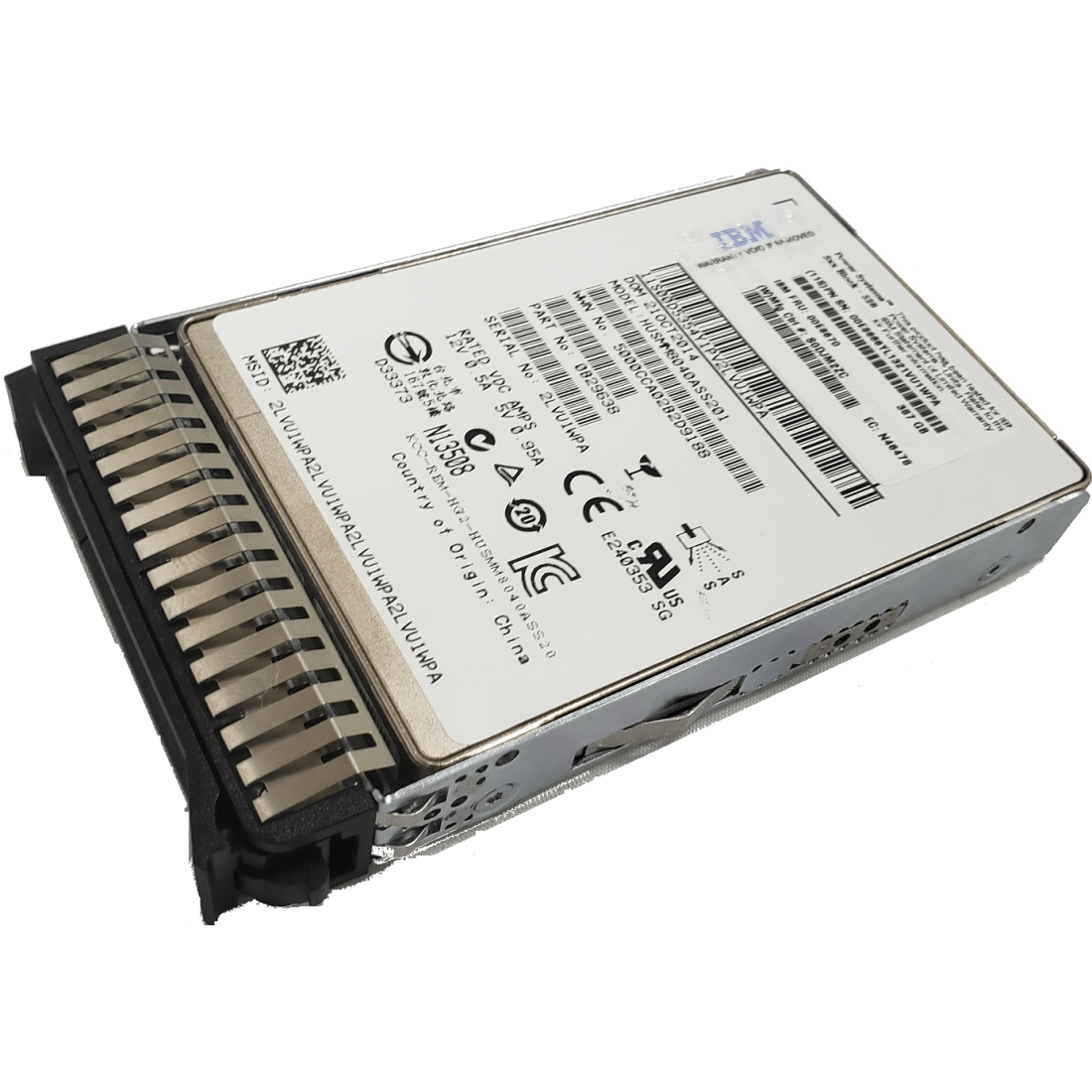

IBM 59CE 600GB 15K RPM SAS SFF-3 Disk Drive is a 2.5-inch HDD with a Gen-2 carrier tray for SFF-3 SAS bays of IBM Power8 and Power7 Systems, has 00E8653 and 00E8648 part numbers and can be formatted with 512 byte sectors for 600GB JBOD capacity or 528 byte sectors for 571GB capacity. The IBM 59CE 600GB 15K RPM SAS SFF-2 Disk Drive can have a ESDJ, ESDK, or ELDK feature code, and are physically identical drives reporting with the same 59CE CCIN, but use different part numbers by IBM configuration tools. iSeries Power systems will use 528 byte sectors and typically will have 00E8648 part number, where as IBM Power AIX and Linux Servers will use 512 byte sectors and usually have 00E8653 part number. The IBM 59CE 571GB 15K RPM SAS SFF-2 iSeries Disk Drive has additional data integrity when formatted with 528 byte sectors (RAID). The IBM 59CE 15K RPM SAS SFF-2 Disk Drive will be formatted before shipping based on the OS type.

The IBM Power8 S814 8286-41A and S824 8286-42A servers support two new SSD features in the IBM EXP24S EL1S SFF Gen2-bay Drawer: 387 GB SFF-2 4k SSD for IBM i (59E8 00E8710 ES0R) and 775 GB SFF-2 4k SSD for IBM i (59C3 00E8713 ES0T). Also available are SSDs mounted in a Gen2 carrier as 387 GB SSF-3 4k SSD for IBM i (59E9 00LY161 ES0V) and 775 GB SFF-3 4k SSD for IBM i (59EB 00LY162 ES0X) for use in the CEC Gen3 bays. A new 528 byte, single-sided format disk, the 571 GB 15k RPM SAS SFF-3 Disk Drive (59CE 00E8653 ESDE), is available for use on S814 and S824 servers. The 00LY161 IBM 59E9 disk drive is also supported on Power7 servers as 571 GB 15K RPM SAS SFF-1 (59CE 00E8648 ESDJ) and as 571 GB 15K RPM SAS SFF-2 (59CF 00E8660 ESDN).

IBM Power8 and Power7 eMLC3 SSD and iSeries Disk Drives:
387 GB SFF SFF-2 4k SSD 59E8 00E8710
387 GB SFF SFF-3 4k SSD 59E9 00LY161
775 GB SFF SFF-2 4k SSD 59C3 00E8713
775 GB SFF SFF-3 4k SSD 59EB 00LY162
571 GB 15K RPM SAS SFF-1 Disk Drive 59CE 00E8648
571 GB 15K RPM SAS SFF-2 Disk Drive 59CF 00E8660
571 GB 15K RPM SAS SFF-3 Disk Drive 59CE 00E8653

IBM Power8 and Power7 AIX and Linux eMLC3 SSD and Disk Drives:
177 GB 1.8-inch 4k SSD Read Intensive AIX 59BB 00LY175
177 GB 1.8-inch 528 byte SSD Read Intensive Linux 59BC 00LY181
387 GB SFF-2 4K SSD AIX 59E8 00E8710
387 GB SFF-2 4K SSD Linux 59E8 00E8710
387 GB SFF-3 4k SSD AIX Linux 59E9 00LY161
387 GB SFF-3 4k SSD Linux 59E9 00LY161
775 GB SFF-2 4k SSD AIX 59C3 00E8713
775 GB SFF-2 4k SSD Linux 59C3 00E8713
775 GB SFF-3 4k SSD AIX 59EB 00LY162
775 GB SFF-3 4k SSD Linux 59EB 00LY162
600 GB 15K RPM SAS SFF-1 Disk Drive 5xx Block AIX 59CE 00E8653
600 GB 15K RPM SAS SFF-1 Disk Drive 5xx Block Linux 59CE 00E8653
600 GB 15K RPM SAS SFF-2 Disk Drive 5xx Block AIX 59CF 00E8665
600 GB 15K RPM SAS SFF-2 Disk Drive 5xx Block Linux 59CE 00E8653
600 GB 15k RPM SAS SFF-3 Disk Drive 5xx Block AIX 59CE 00E8653
600 GB 15k RPM SAS SFF-3 Disk Drive 5xx Block Linux 59E4 00E9908
2 TB Removable Disk Drive Cartridge (RDX)

Below are fourth generation IBM SSDs with eMLC4 technology:

IBM SSD Enterprise eMLC4 (fourth generation) for IBM i, AIX, Linux or VIOS, IBM Power9 or Power8 CEC:
5B13 387 GB SFF-3 4K SSD - 00LY333 00LY603
5B19 387 GB SFF-3 5xx SSD - 00LY324 00LY577
5B14 775 GB SFF-3 4k SSD - 00LY334 00LY604
5B1A 775 GB SFF-3 5xx SSD - 00LY325 00LY578
5B15 1.55 TB SFF-3 4k SSD - 00LY335 00LY605

IBM SSD Enterprise eMLC4 (fourth generation) for IBM i, AIX, Linux or VIOS, IBM EXP24S (5887 or EL1S) or EXP24SX (ESLS) I/O drawer:
5B10 387 GB SFF-2 4K SSD - 00LY336 00LY621
5B16 387 GB SFF-2 5xx SSD - 00LY327 00LY589
5B11 775 GB SFF-2 4K SSD - 00LY337 00LY622
5B17 775 GB SFF-2 5xx SSD - 00LY328 01LU623
5B12 1.55 TB SFF-2 4k SSD - 00LY338 00LY623

IBM Enterprise SSDs with eMLC4 require a integrated SAS controller in the IBM Power system unit or one of the following PCIe3 or PCIe2 SAS adapters:
IBM 57B1 PCIe3 12 GB Cache RAID+ SAS Adapter Quad-port 6 Gb (01DH742 EJ14)
IBM 57B4 PCIe3 RAID SAS Adapter Quad-port 6 Gb x8 (00FX846 EJ10 EJ11 EJ0J EJ0M)
IBM 57CE PCIe3 12 GB Cache RAID SAS Adapter Quad-port 6 Gb x8 (00FX840 EJ0L)
IBM 57D8 PCIe3 x8 Cache SAS RAID Adapter 6 Gb (00MA025 EJ0P)
IBM 57D7 PCIe3 x8 SAS RAID Adapter 6 Gb (00MH906 00MH908 EJ0N EJ0S EL3V)
IBM 57B4 PCIe3 RAID SAS Adapter Quad-port 6Gb x8 (00FX846 EL65 EL3B EL59)
IBM 57BB PCIe2 1.8GB Cache RAID SAS Adapter Tri-port 6Gb CR (74Y7131 ESA3)
IBM 57B5 PCIe2 1.8GB Cache RAID SAS Adapter Tri-port 6Gb (00J0596 5913)

IBM 59E6 00E8670 eMLC SSD OS Requirements:
IBM i V7R1 TR11, or later; IBM i V7R2 TR4, or later; IBM i V7R3, or later
AIX for 4k drives: AIX 7.2 TL0, or later; AIX 7.1 TL3 SP3, or later; or AIX 7.1 TL4, or later; AIX 6.1 TL 9 SP 3, or later.
AIX for 5xx drives: All AIX levels that are supported on that server.
PowerVM VIOS for 4k drives: PowerVM VIOS V2.2.3.3, or later; PowerVM VIOS V2.2.4.0, or later. 387 GB and 775 GB capacity points are supported across all these software levels.
PowerVM VIOS for 5xx drives: All VIOS levels that are supported on that server.
PowerVM VIOS for 4k drives: VIOS 2.2.3.3 or later, VIOS 2.2.4.0 or later.
Linux Servers
SLES 11 SP4, or later; SLES 12, or later.
IBM Red Hat Enterprise Linux RHEL 6.7, or later; RHEL 7.2, or later; Ubuntu 16.04, or later; Ubuntu 14.04.4, or later.

As with earlier IBM Enterprise SSDs, these solid state drives are designed to deliver great endurance and reliability. The 4th generation enterprise class eMLC SSDs were tested to provide 24x7x365 usage running write-intensive levels for about five years. Actual customer writes will be much lower, and thus the SSD life span will be much longer. Similar to the eMLC3 SSDs, the new SSDs provide a Drive Write Per Day (DWPD) rating of approximately "10", which estimates the number of times the SSD's capacity could be written per day over the projected life of the drive. The new eMLC4 SAS SSDs provide significantly improved price/performance compared to previous eMLC3 SSDs. eMLC4 SSD performance is improved over previous generations of Power eMLC SSDs. Compared to the eMLC3 SSDs, the new eMLC4 drives offer improved input/output operations per second (IOPS), throughput, and latency. For example, measurements show:

Up to 50% higher maximum IOPS value for random mixed read/write workloads
Up to 750 MBps while reading from the drive or up to 470 MBps while writing to the drive
Up to 20% better latency running a random mixed read/write workload (down to a 0.12 ms latency)

IBM Power eMLC flash memory provides enterprise-class performance and reliability characteristics. The new fourth-generation eMLC SSDs build upon a heritage of performance and endurance to provide a better value proposition to users of Power8 and Power7 servers. They provide SAS 6 Gbps capability, but are designed to be 12 Gbps compliant if future SAS adapters support 12 Gbps capability.

Note: IBM 4k drives cannot be reformatted to 5xx drives (or vice versa). IBM is transitioning away from manufacturing SAS Hard Disk Drives (HDD) and Solid State Drives (SSD) formatted with 512 and 528-byte sector (5xx), and instead will only be providing 4K byte sector drives. Although most AIX and Linux applications will not experience issues since data access to the SAS drives is via a file system, companies should confirm with their application provider to ensure compatibility with using SSD or HDD with 4K byte sectors. AIX and Linux applications that require direct access to the raw data on the SSD or HDD, may require 512 and 528-byte sector (5xx) sectors drives.

Support of the new Enterprise SSDs by earlier SAS adapters prior to PCIe3 is not planned. The SSD configuration rules, maximums, limitations, and capabilities of these PCIe3 SAS adapters and integrated POWER8 SAS controllers are unchanged, whether new Enterprise SSDs are used or earlier SSDs are used. You can mix Enterprise SSDs and earlier SSDs under the same controller or adapter, as well as mix them in the same array. This allows existing SSD investments to be leveraged and can provide more flexible growth.

Previous IBM Power SSD rules are unchanged and include:
  • Do not mix different size capacities such as 387 GB and 775 GB in the same array or mix 775 GB and 1.55 TB in the same array.
  • Do not mix 4k and 5xx drives in the same array.
  • Do not mix SSDs and HDDs in the same array unless it is an Easy Tier array.
  • 4k drives are not supported on servers older than POWER8.
