IBM AGKN LTO8 6 Gb SAS TS4300 Tape Drive HH

00GH812 IBM AGKM LTO8 Fiber Channel TS4300 Tape Drive Half-High

IBM AGKP LTO8 Two-Port Fiber Channel TS4300 Tape Drive FH

Brand: IBM AS400 iSeries

Model Number: IBM-AGKN-00GH810

Tags: 00GH810 , lto8 , ts4300 , AGKN

Call for Price: (888) 682-5335

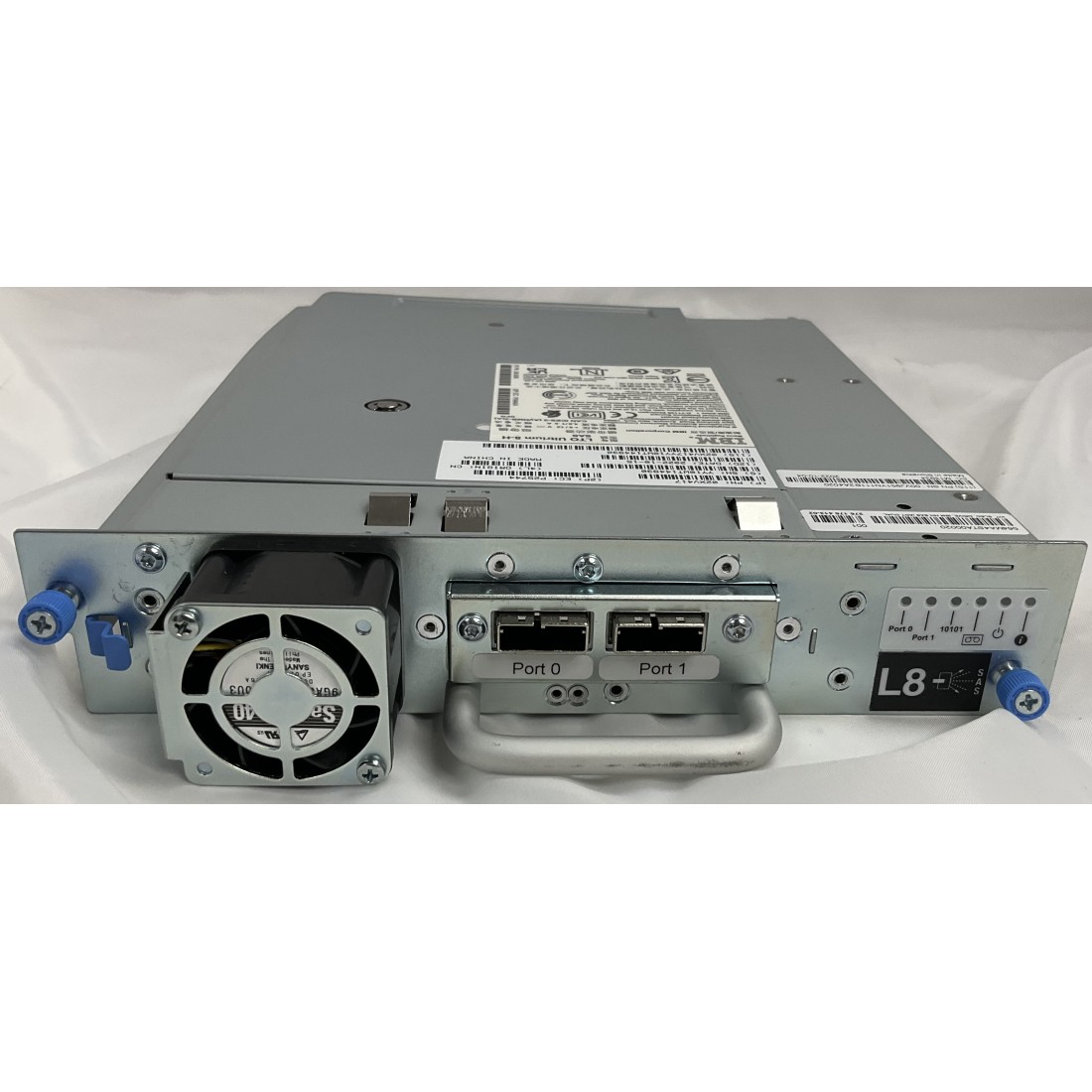

IBM AGKN is a LTO8 6Gb SAS Half-High Tape Drive that has a single 6Gb interface port, has 00GH810 part number and has a maximum native data transfer rate of 300 MB per second and can be installed in an IBM TS4300 Tape Library Model 3555. The IBM AGKN LTO8 6Gb SAS HH Tape Drive cables are not included and must be ordered separately and are required to attach the TS4300 IBM LTO Tape Library to a host.

The IBM TS4300 LTO8 Tape Drive is a high-performance, high-capacity tape storage backup and restore device for IBM i, AIX, Linux Power Servers and other open system platforms. IBM Ultrium 8 or LTO8 tape cartridge can store up to 6 TB of uncompressed data or up to 15 TB of compressed data assuming a 2.5 to 1 compression ratio.

Other LTO8 tape drives supported on the IBM TS4300 Tape Library Model 3555 include: IBM AGKM 00GH812 LTO8 half-high tape drives can connect with a 8Gb Fibre Channel interface and has a maximum 300 MB per second native data transfer rate and will auto-negotiate to lower speeds. The IBM AGKM LTO8 Fibre Channel Half-High Tape Drive with 00GH812 part number can also be purchased in a full height format as IBM AGKP LTO8 Fibre Channel Full-High Tape Drive with 00GH814 part number, but has two 8Gb ports and a 360 MB per second maximum native transfer rate. The IBM AGKN LTO8 SAS Tape Drive Half-High with part number 00GH810 has a 300 MB per second maximum transfer rate.

IBM LTO Tape Drive Options for IBM TS4300 3555-L3A LTO Tape Library 00VJ943

IBM LTO8 Tape Drive FH 8Gb Fiber Channel - AGKP 00GH814 01KP954

One FH Drive (AGKH AGKL AGKP) and One HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN)
or
Three HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN) in any combination in a Model L3A and E3A

IBM LTO8 Tape Drive HH 8Gb Fiber Channel - AGKM 00GH812 01KP952
One FH Drive (AGKH AGKL AGKP) and One HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN)
or
Three HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN) in any combination in a Model L3A and E3A

IBM LTO8 Tape Drive HH 6Gb SAS - AGKN 00GH810 01KP953
One FH Drive (AGKH AGKL AGKP) and One HH Drives (AGKF, AGKG, AGKJ, AGKK, AGKM, AGKN)
or
Three HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN) in any combination in a Model L3A and E3A

IBM LTO7 Tape Drive FH 8Gb Fiber Channel - AGKL 00GH768 01KP938
One FH Drive (AGKH AGKL AGKP) and One HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN)
or
Three HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN) in any combination in a Model L3A and E3A

IBM LTO7 Tape Drive HH 8Gb Fiber Channel - AGKJ 00GH766 01KP936
One FH Drive (AGKH AGKL) and One HH Drives (AGKF AGKG AGKJ AGKK)
or
Three HH Drives (AGKF AGKG AGKJ AGKK) in any combination in a Model L3A and E3A

IBM LTO7 Tape Drive HH 6 Gb SAS - AGKK 00GH764 01KP937
One FH Drive (AGKH AGKL) and One HH Drives (AGKF AGKG AGKJ AGKK)
or
Three HH Drives (AGKF AGKG AGKJ AGKK) in any combination in a Model L3A and E3A.

IBM LTO6 Tape Drive FH 8Gb Fiber Channel - AGKH 00GH763 01KP935
One FH Drive (AGKH AGKL AGKP) and One HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN)
or
Three HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN) in any combination in a Model L3A and E3A

IBM LTO6 Tape Drive HH 8Gb Fiber Channel - AGKF 00GH761 01KP933
One FH Drive (AGKH AGKL) and One HH Drives (AGKF AGKG AGKJ AGKK)
or
Three HH Drives (AGKF AGKG AGKJ AGKK) in any combination in a Model L3A and E3A

IBM LTO6 Tape Drive HH 6Gb SAS - AGKG 00GH759 01KP934
One FH Drive (AGKH AGKL) and One HH Drives (AGKF AGKG AGKJ AGKK)
or
Three HH Drives (AGKF AGKG AGKJ AGKK) in any combination in a Model L3A and E3A

Note: The full-high 00GH814 LTO8 tape drives provide faster data transfer rates than half-high LTO8 tape drives. For instance, 360 MB/s is the maximum native data transfer rate of a FH LTO8, whereas 300 MB/s is the maximum for HH LTO8. Both the HH and FH Ultrium 7 LTO7 tape drives have 300 MB/s maximum transfer rate, and both the HH and FH Ultrium 6 LTO6 tape drives have a 160 MB/s maximum transfer rate.

The actual capacity varies depending on the application, the type of data, and the tape cartridge. 6 TB is typical and 15 TB is possible when the Data Compression setting is activated. The default setting of Data Compression is controlled by the host system. The user and the application software can control the activation or deactivation of the data compression setting. The drive can typically achieve a 2.5:1 compression ratio.

IBM LTO Tape Drive and Ultrium Tape Media Cartridge Compatibility Chart

	LTO Ultrium Tape Media Cartridge
Generation	LTO9	LTO8	LTO7	LTO6	LTO5	LTO4	LTO3	LTO2
LTO9	R/W	R/W
LTO8		R/W	R/W
LTO7			R/W	R/W	R
LTO6				R/W	R/W	R
LTO5					R/W	R/W	R
LTO4						R/W	R/W	R
LTO3							R/W	R/W
LTO2								R/W

IBM LTO Tape Drive Options for IBM TS4300 3555-L3A LTO Tape Library 00VJ943

IBM LTO8 Tape Drive FH 8Gb Fiber Channel - AGKP 00GH814 01KP954

One FH Drive (AGKH, AGKL, AGKP), and One HH Drives (AGKF, AGKG, AGKJ, AGKK, AGKM, AGKN)
or
Three HH Drives (AGKF, AGKG, AGKJ, AGKK, AGKM, AGKN) in any combination in a Model L3A and E3A

IBM LTO8 Tape Drive HH 8Gb Fiber Channel - AGKM 00GH812 01KP952
One FH Drive (AGKH, AGKL, AGKP), and One HH Drives (AGKF, AGKG, AGKJ, AGKK, AGKM, AGKN)
or
Three HH Drives (AGKF, AGKG, AGKJ, AGKK, AGKM, AGKN) in any combination in a Model L3A and E3A

IBM LTO8 Tape Drive HH 6Gb SAS - AGKN 00GH810 01KP953
One FH Drive (AGKH, AGKL, AGKP), and One HH Drives (AGKF, AGKG, AGKJ, AGKK, AGKM, AGKN)
or
Three HH Drives (AGKF, AGKG, AGKJ, AGKK, AGKM, AGKN) in any combination in a Model L3A and E3A

IBM LTO7 Tape Drive FH 8Gb Fiber Channel - AGKL 00GH768 01KP938
One FH Drive (AGKH, AGKL, AGKP), and One HH Drives (AGKF, AGKG, AGKJ, AGKK, AGKM, AGKN)
or
Three HH Drives (AGKF, AGKG, AGKJ, AGKK, AGKM, AGKN) in any combination in a Model L3A and E3A

IBM LTO7 Tape Drive HH 8Gb Fiber Channel - AGKJ 00GH766 01KP936
One FH Drive (AGKH, AGKL), and One HH Drives (AGKF, AGKG, AGKJ, AGKK)
or
Three HH Drives (AGKF, AGKG, AGKJ, AGKK) in any combination in a Model L3A and E3A

IBM LTO7 Tape Drive HH 6 Gb SAS - AGKK 00GH764 01KP937
One FH Drive (AGKH, AGKL), and One HH Drives (AGKF, AGKG, AGKJ, AGKK)
or
Three HH Drives (AGKF, AGKG, AGKJ, AGKK) in any combination in a Model L3A and E3A.

IBM LTO6 Tape Drive FH 8Gb Fiber Channel - AGKH 00GH763 01KP935
One FH Drive (AGKH, AGKL, AGKP), and One HH Drives (AGKF, AGKG, AGKJ, AGKK, AGKM, AGKN)
or
Three HH Drives (AGKF, AGKG, AGKJ, AGKK, AGKM, AGKN) in any combination in a Model L3A and E3A

IBM LTO6 Tape Drive HH 8Gb Fiber Channel - AGKF 00GH761 01KP933
One FH Drive (AGKH, AGKL), and One HH Drives (AGKF, AGKG, AGKJ, AGKK)
or
Three HH Drives (AGKF, AGKG, AGKJ, AGKK) in any combination in a Model L3A and E3A

IBM LTO6 Tape Drive HH 6Gb SAS - AGKG 00GH759 01KP934
One FH Drive (AGKH, AGKL), and One HH Drives (AGKF, AGKG, AGKJ, AGKK)
or
Three HH Drives (AGKF, AGKG, AGKJ, AGKK) in any combination in a Model L3A and E3A

IBM LTO Ultrium drive maximum data transfer rates and capacity:

LTO8: 360 MB/sec native Full-High 8 Gb Fiber | 30 TB with 2.5:1 compression
LTO8: 300 MB/sec native Half-High | 30 TB with 2.5:1 compression
LTO7 Type M: 300 MB/sec native | 22.5 TB with 2.5:1 compression
LTO7: 300 MB/sec native | 15 TB with 2.5:1 compression
LTO6: 160 MB/sec native | 6.25 TB with 2.5:1 compression

Backup Software Compatibility:

IBM i iSeries AS400 BRMS, native OS400 Commands and other ISV vendor backup software solutions

Arcserve Backup
ASG Time Navigator
Barracuda Yosemite Backup
CommVault Simpana
Dell NetVault Backup
EMC NetWorker
HP OpenView Storage Data Protector
IBM Spectrum Protect
Microsoft System Center Data Protection Manager
Symantec Backup Exec
Symantec NetBackup

The IBM TS4300 Tape Library is supported on the following operating systems at the minimum levels indicated:

IBM i iSeries AS400
IBM BladeCenter
IBM Flex System
IBM Power Systems (p6 or later)
IBM System p (p5 or older)
IBM System z and S/390
Advanced Micro Devices (AMD)
Hewlett Packard
Intel (x86 and x86_64)
Sun

IBM TS4300 LTO Library Upgrade Features and Parts
00GH763 IBM AGKH LTO6 Full Height Fiber Channel Drive Assembly
00GH761 IBM AGKF LTO6 Half Height Fiber Channel Drive Assembly
00GH759 IBM AGKG LTO6 Half Height SAS Drive Assembly
00GH768 IBM AGKL LTO7 Full Height Fiber Channel Drive Assembly
00GH766 IBM AGKJ LTO7 Half Height Fiber Channel Drive Assembly
00GH764 IBM AGKK LTO7 Half Height SAS Drive Assembly
00GH814 IBM AGKP LTO8 Full Height Fiber Channel Drive Assembly
00GH812 IBM AGKM LTO8 Half Height Fiber Channel Drive Assembly
00GH810 IBM AGKN LTO8 Half Height SAS Drive Assembly
02XX411 IBM AGLB LTO9 Half Height SAS Drive Assembly
02XX413 IBM AGLA LTO9 Half Height Fiber Channel Drive Assembly
02XX415 IBM AGLC LTO9 Full Height SAS Drive Assembly
02XX417 IBM AGLD LTO9 Full Height Fiber Channel Drive Assembly
03UW740 IBM LTO10 Full Height Fiber Channel Drive Assembly
03UW438 5544 Base Chassis Includes operator panel, accessor, spooling mechanism
03UW444 5544 Expansion Chassis
02XY033 3555 48U Base Chassis includes operator panel, accessor, spooling mechanism
02XV566 3555 Expansion Chassis
02XY977 48U Accessor Includes Spooling Mechanism
02XY978 48U Spooling Mechanism
02XY976 48U Base Controller
00VJ962 Expansion Controller
00GH772 Expansion Cable
00GH724 Left Magazine Asm
00GH726 Right Magazine Asm
00VJ940 Power supply
12R9314 Fibre Channel Wrap Tool
95P6566 SAS Wrap Tool
00VJ139 2 Meter MiniSASMiniSAS 1x Cable
15R8848 Fiber Cable HBW LCLC 25 M
41V2120 Fiber Cable HBW LCLC 10 M
46C2900 4 Meter AE1 MINISAS TO MINISAS
46C2902 3 Meter Y MINISAS HD TO MINISAS
46X9904 SAS 1X to 4X INTERPOSER
39M5068 Power Cable 10 AMP 250 VAC 2.8M
39M5081 Power Cable 10 AMP 125 VAC 2.8M
39M5095 Power Cable 10 AMP 250 VAC 2.8M
39M5102 Power Cable 10 AMP 250 VAC 2.8M
39M5123 Power Cable 10 AMP 250 VAC 2.8M
39M5130 Power Cable 10 AMP 250 VAC 2.8M
39M5144 Power Cable 10 AMP 250 VAC 2.8M
39M5151 Power Cable 10 AMP 250 VAC 2.8M
39M5158 Power Cable 10 AMP 250 VAC 2.8M
39M5165 Power Cable 10 AMP 250 VAC 2.8M
39M5172 Power Cable 10 AMP 250 VAC 2.8M
39M5199 Power Cable 10 AMP 250 VAC 2.8M
39M5206 Power Cable 10 AMP 250 VAC 2.8M
39M5219 Power Cable 10 AMP 250 VAC 2.8M
39M5226 Power Cable 10 AMP 250 VAC 2.8M
39M5240 Power Cable 10 AMP 250 VAC 2.8M
39M5247 Power Cable 10 AMP 250 VAC 2.8M
39M5254 Power Cable 10 AMP 250 VAC 2.8M
39M5378 Power Cable 10 AMP 250 VAC 4.3M
00VJ943 3555 Base Chassis, 32 slot Includes operator panel, accessor, spooling mechanism
02JE7201 3555 Base Chassis, 40 slot Includes operator panel, accessor, spooling mechanism
00VJ955 3555 Accessor, 32 slot Includes Spooling Mechanism
02JE7222 3555 Accessor, 40 slot Includes Spooling Mechanism
00VJ956 3555 Spooling Mechanism
02XV7633 3555 32 slot Base Controller
