IBM AGKK LTO7 6Gb SAS Tape Drive Half-High 00GH764
00GH812 IBM AGKM LTO8 Fibre Channel Tape Drive Half-High
IBM AS400 iSeries IBM AGKL LTO7 Fibre Channel Tape Drive FH 00GH768 IBM AGKL has 00GH768 part number and is an LTO7 Fibre Channel Full-High Tape Drive that has a two 8 .. Product #: IBM-AGKL-00GH768

IBM AGKL 00GH768 LTO7 Fibre Channel Tape Drive Full-High

Brand: IBM AS400 iSeries
Model Number: IBM-AGKL-00GH768
Tags: lto7 , 00GH768 , IBM AGKL , ts4300

IBM AGKL has 00GH768 part number and is an LTO7 Fibre Channel Full-High Tape Drive that has a two 8 Gbps interface ports, has a maximum data transfer rate of 800 MB per second and can be installed in an IBM TS4300 Tape Library Model 3555. The IBM AGKL LTO7 Fibre Channel Tape Drive Full-Height Cables are not included and must be ordered separately and are required to attach the TS4300 IBM LTO Tape Library to a host Fibre Channel adapter. The IBM LTO7 Tape Drive is a high-performance, high-capacity tape storage backup and restore device for IBM i, AIX, Linux Power Servers and other open system platforms. IBM Ultrium 7 or LTO7 tape cartridge can store up to 6 TB of uncompressed data or up to 15 TB of compressed data assuming a 2.5 to 1 compression ratio.

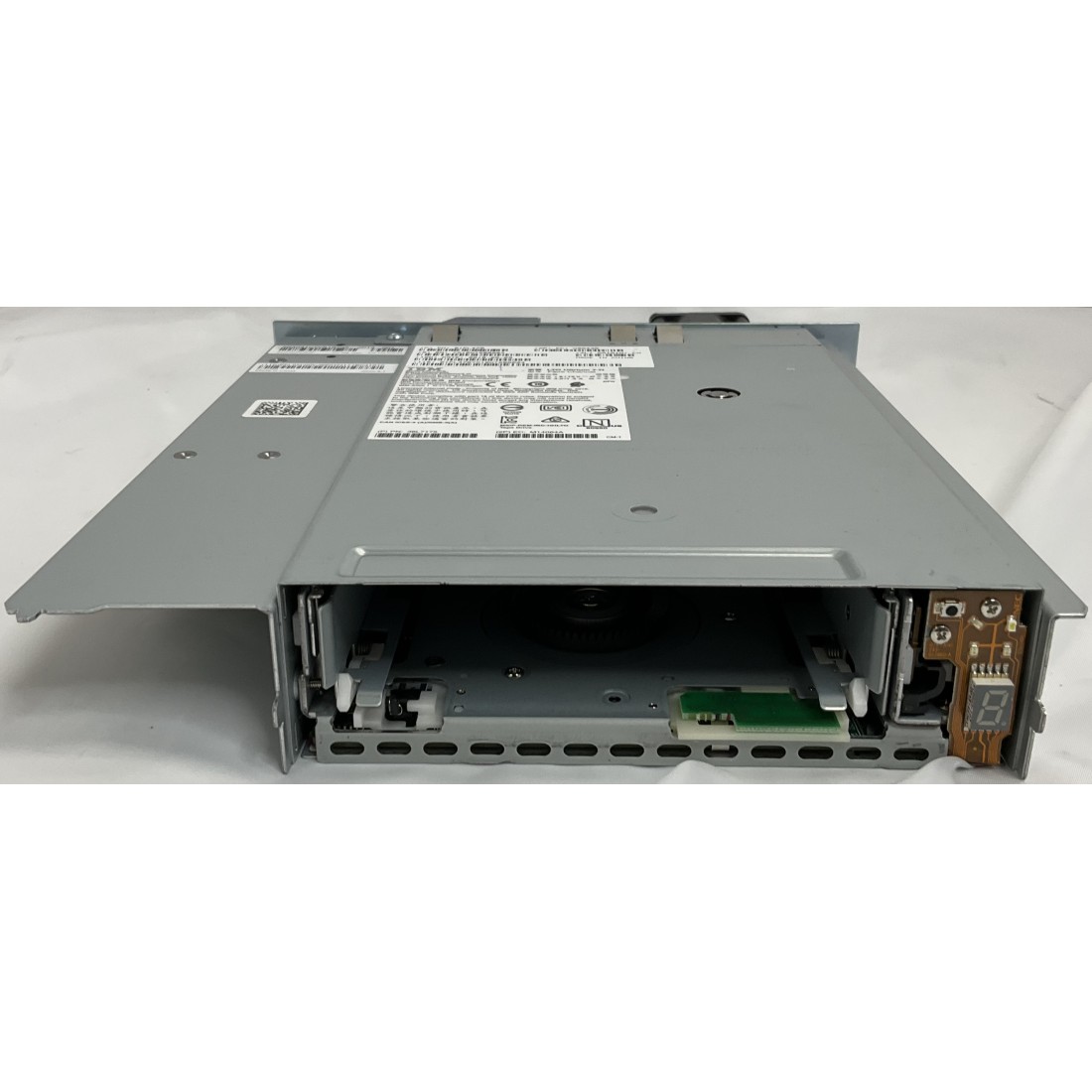

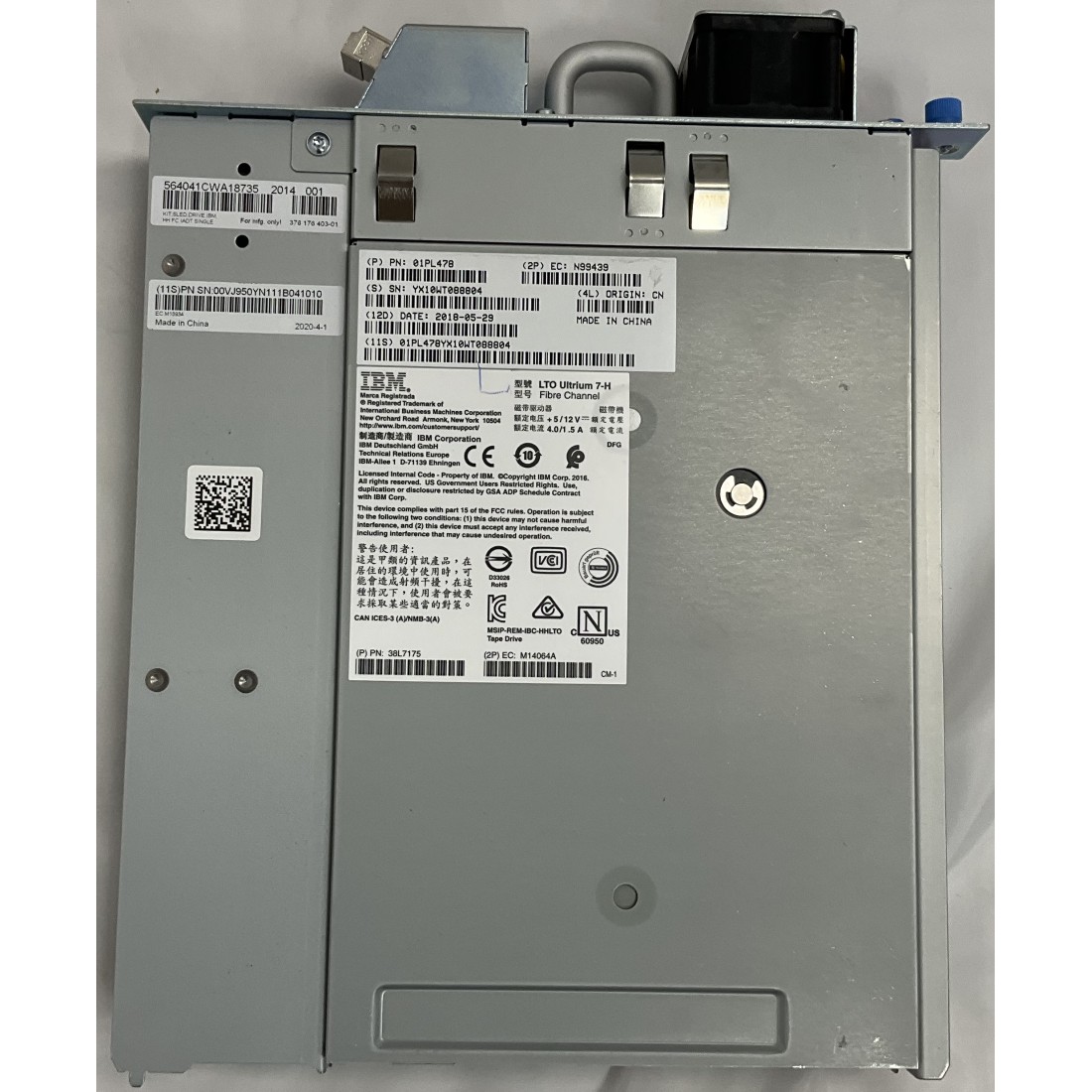

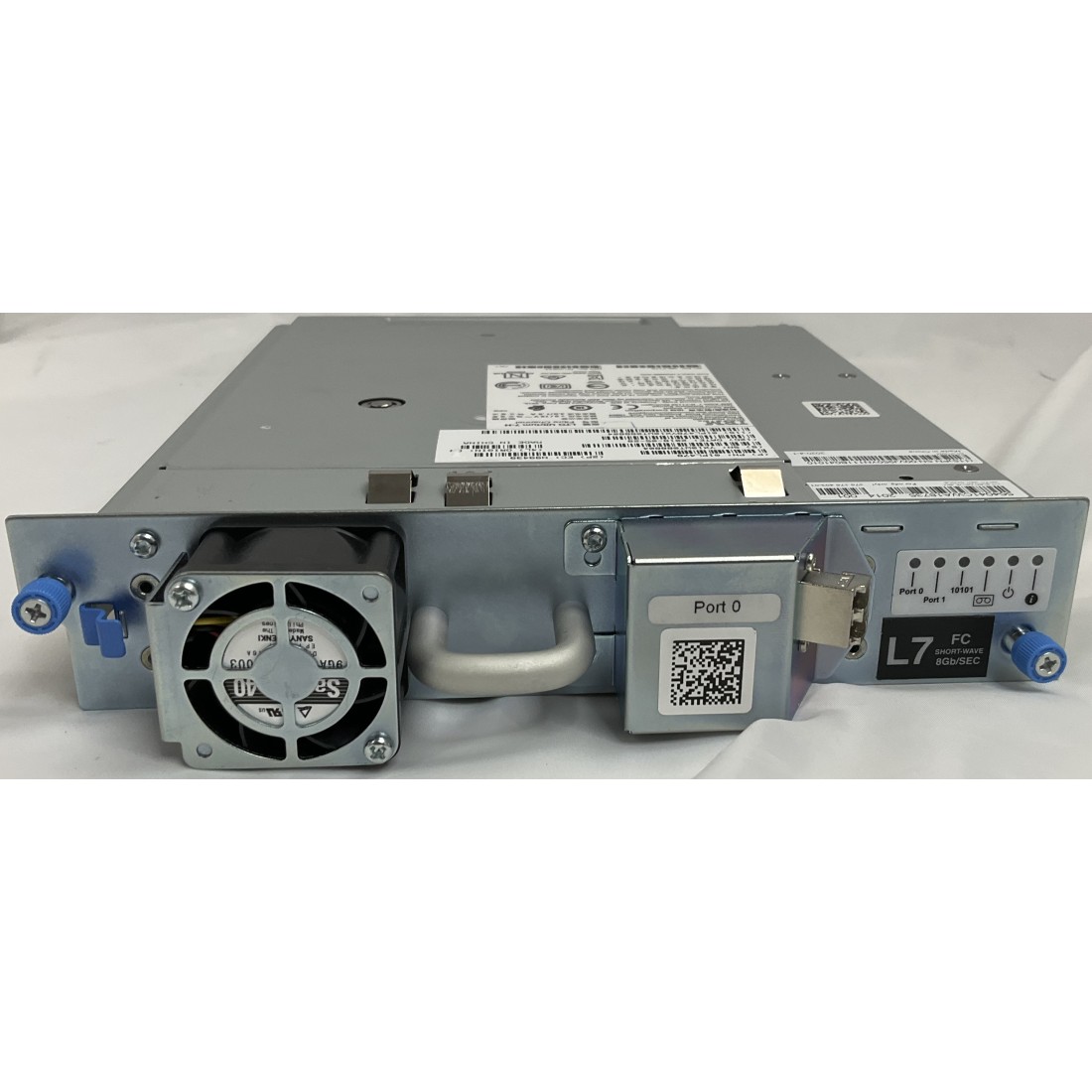

IBM LTO7 full height tape drives can connect with two 8 Gb Fibre Channel interfaces and have a maximum 800 MB per second transfer rate and will auto-negotiate to lower speeds. The IBM AGKL LTO7 Fibre Channel Full-High Tape Drive with 00GH768 part number can also be purchased in a half-high format as IBM AGKJ LTO7 Fibre Channel Full-High Tape Drive with 00GH766 part number and also has a 800 MB per second maximum transfer rate. The IBM AGKK LTO7 SAS Tape Drive Half-High with part number 00GH764 has a 600 MB per second maximum transfer rate.

IBM LTO Tape Drive Options for IBM TS4300 3555-L3A LTO Tape Library 00VJ943

IBM LTO8 Tape Drive FH 8Gb Fiber Channel - AGKP 00GH814 01KP954
One FH Drive (AGKH AGKL AGKP) and One HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN)
or
Three HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN) in any combination in a Model L3A and E3A
IBM LTO8 Tape Drive HH 8Gb Fiber Channel - AGKM 00GH812 01KP952
One FH Drive (AGKH AGKL AGKP) and One HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN)
or
Three HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN) in any combination in a Model L3A and E3A
IBM LTO8 Tape Drive HH 6Gb SAS - AGKN 00GH810 01KP953
One FH Drive (AGKH AGKL AGKP) and One HH Drives (AGKF, AGKG, AGKJ, AGKK, AGKM, AGKN)
or
Three HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN) in any combination in a Model L3A and E3A
IBM LTO7 Tape Drive FH 8Gb Fiber Channel - AGKL 00GH768 01KP938
One FH Drive (AGKH AGKL AGKP) and One HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN)
or
Three HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN) in any combination in a Model L3A and E3A
IBM LTO7 Tape Drive HH 8Gb Fiber Channel - AGKJ 00GH766 01KP936
One FH Drive (AGKH AGKL) and One HH Drives (AGKF AGKG AGKJ AGKK)
or
Three HH Drives (AGKF AGKG AGKJ AGKK) in any combination in a Model L3A and E3A
IBM LTO7 Tape Drive HH 6 Gb SAS - AGKK 00GH764 01KP937
One FH Drive (AGKH AGKL) and One HH Drives (AGKF AGKG AGKJ AGKK)
or
Three HH Drives (AGKF AGKG AGKJ AGKK) in any combination in a Model L3A and E3A.
IBM LTO6 Tape Drive FH 8Gb Fiber Channel - AGKH 00GH763 01KP935
One FH Drive (AGKH AGKL AGKP) and One HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN)
or
Three HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN) in any combination in a Model L3A and E3A
IBM LTO6 Tape Drive HH 8Gb Fiber Channel - AGKF 00GH761 01KP933
One FH Drive (AGKH AGKL) and One HH Drives (AGKF AGKG AGKJ AGKK)
or
Three HH Drives (AGKF AGKG AGKJ AGKK) in any combination in a Model L3A and E3A
IBM LTO6 Tape Drive HH 6Gb SAS - AGKG 00GH759 01KP934
One FH Drive (AGKH AGKL) and One HH Drives (AGKF AGKG AGKJ AGKK)
or
Three HH Drives (AGKF AGKG AGKJ AGKK) in any combination in a Model L3A and E3A

Note: The full-high 00GH814 LTO8 tape drives provide faster data transfer rates than half-high LTO8 tape drives. For instance, 360 MB/s is the maximum native data transfer rate of a FH LTO8, whereas 300 MB/s is the maximum for HH LTO8. Both the HH and FH Ultrium 7 LTO7 tape drives have 300 MB/s maximum transfer rate, and both the HH and FH Ultrium 6 LTO6 tape drives have a 160 MB/s maximum transfer rate.

Note: The actual capacity varies depending on the application, the type of data, and the tape cartridge. 6 TB is typical and 15 TB is possible when the Data Compression setting is activated. The default setting of Data Compression is controlled by the host system. The user and the application software can control the activation or deactivation of the data compression setting. The drive can typically achieve a 2.5:1 compression ratio.

IBM LTO Tape Drive and Ultrium Tape Media Cartridge Compatibility Chart

  LTO Ultrium Tape Media Cartridge

Generation

 LTO9 LTO8 LTO7 LTO6 LTO5 LTO4 LTO3 LTO2
LTO9 R/W
 R/W
LTO8   R/W R/W
LTO7   R/W R/W  R
LTO6   R/W R/W  R
LTO5   R/W  R/W  R
LTO4   R/W R/W  R
LTO3     R/W R/W
LTO2   R/W

IBM LTO Ultrium drive maximum data transfer rates and capacity:
LTO8: 360 MB/sec native Full-High 8 Gb Fiber | 30 TB with 2.5:1 compression
LTO8: 300 MB/sec native Half-High | 30 TB with 2.5:1 compression
LTO7 Type M: 300 MB/sec native | 22.5 TB with 2.5:1 compression
LTO7: 300 MB/sec native | 15 TB with 2.5:1 compression
LTO6: 160 MB/sec native | 6.25 TB with 2.5:1 compression
Backup Software Compatibility:
IBM i iSeries AS400 BRMS, native OS400 Commands and other ISV vendor backup software solutions
Arcserve Backup
ASG Time Navigator
Barracuda Yosemite Backup
CommVault Simpana
Dell NetVault Backup
EMC NetWorker
HP OpenView Storage Data Protector
IBM Spectrum Protect
Microsoft System Center Data Protection Manager
Symantec Backup Exec
Symantec NetBackup

The IBM TS4300 Tape Library is supported on the following operating systems at the minimum levels indicated:

IBM i iSeries AS400
IBM BladeCenter
IBM Flex System
IBM Power Systems (p6 or later)
IBM System p (p5 or older)
IBM System z and S/390
Advanced Micro Devices (AMD)
Hewlett Packard
Intel (x86 and x86_64)
Sun
