IBM AGKM LTO8 Fiber Channel Tape Drive Half-High 00GH812
00GH768 IBM AGKL LTO7 Fiber Channel Tape Drive FH
IBM AS400 iSeries 00GH810 IBM AGKN LTO8 Tape Drive HH 6Gb SAS 00GH810 is the part number for a IBM AGKN LTO8 6Gb SAS Half-High Tape Drive that has a single 6Gb in.. Product #: 00GH810-IBM-AGKN

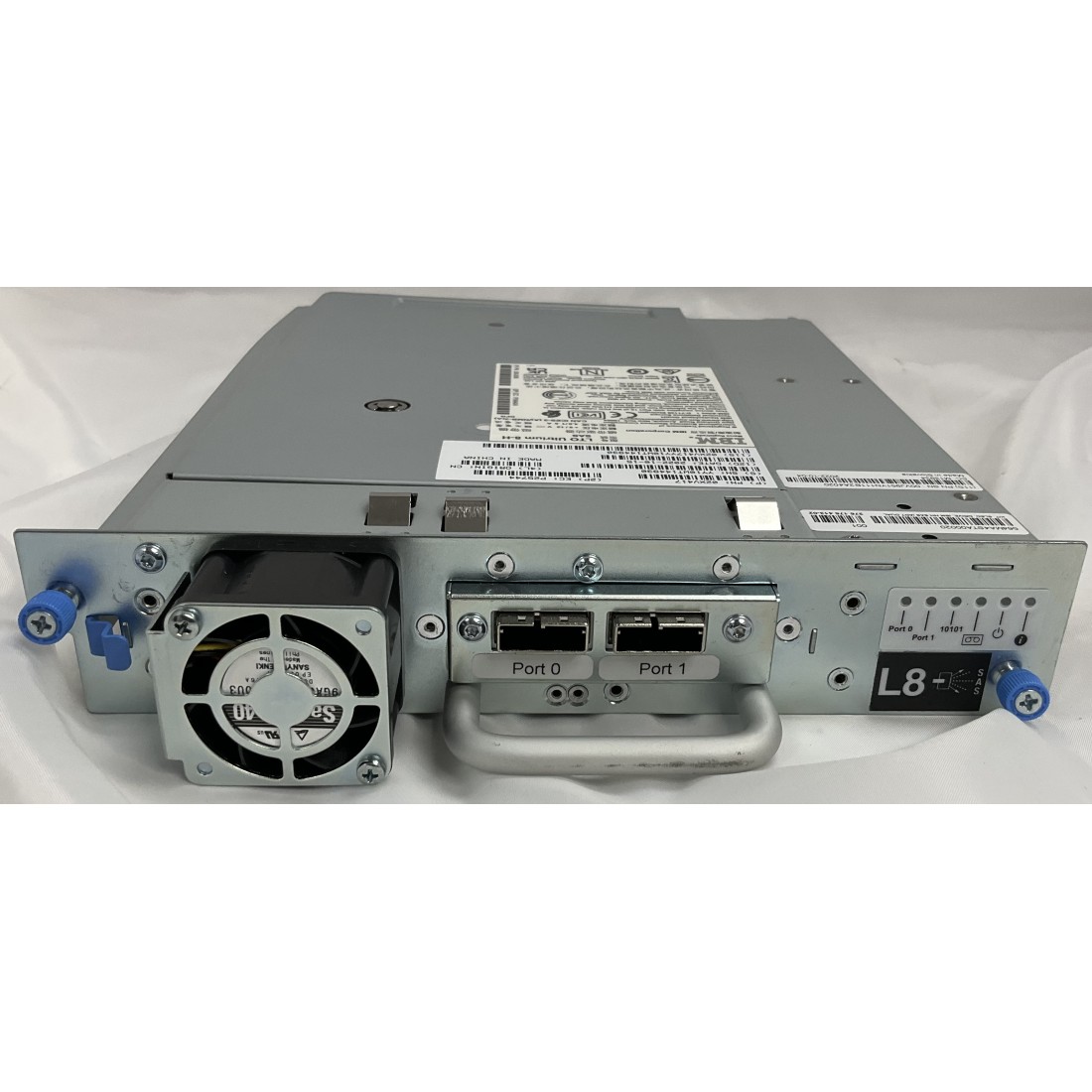

00GH810 IBM AGKN LTO8 6Gb SAS Tape Drive HH

Brand: IBM AS400 iSeries
Model Number: 00GH810-IBM-AGKN
Tags: 00GH810 , IBM AGKN , lto8 , ts4300

00GH810 is the part number for a IBM AGKN LTO8 6Gb SAS Half-High Tape Drive that has a single 6Gb interface port, has 00GH810 part number and has a maximum native data transfer rate of 300 MB per second and can be installed in an IBM TS4300 Tape Library Model 3555. The IBM AGKN LTO8 6Gb SAS HH Tape Drive cables are not included and must be ordered separately and are required to attach the TS4300 IBM LTO Tape Library to a host.

The IBM LTO8 Tape Drive is a high-performance, high-capacity tape storage backup and restore device for IBM i, AIX, Linux Power Servers and other open system platforms. IBM Ultrium 8 or LTO8 tape cartridge can store up to 6 TB of uncompressed data or up to 15 TB of compressed data assuming a 2.5 to 1 compression ratio.

Other LTO8 tape drives supported on the IBM TS4300 Tape Library Model 3555 include: IBM AGKM 00GH812 LTO8 half-high tape drives can connect with a 8Gb Fibre Channel interface and has a maximum 300 MB per second native data transfer rate and will auto-negotiate to lower speeds. The IBM AGKM LTO8 Fibre Channel Half-High Tape Drive with 00GH812 part number can also be purchased in a full height format as IBM AGKP LTO8 Fibre Channel Full-High Tape Drive with 00GH814 part number, but has two 8Gb ports and a 360 MB per second maximum native transfer rate. The IBM AGKN LTO8 SAS Tape Drive Half-High with part number 00GH810 has a 300 MB per second maximum transfer rate.

Note: The actual capacity varies depending on the application, the type of data, and the tape cartridge. 6 TB is typical and 15 TB is possible when the Data Compression setting is activated. The default setting of Data Compression is controlled by the host system. The user and the application software can control the activation or deactivation of the data compression setting. The drive can typically achieve a 2.5:1 compression ratio.

IBM LTO Tape Drive Options for IBM TS4300 3555-L3A LTO Tape Library 00VJ943

IBM LTO8 Tape Drive FH 8Gb Fiber Channel - AGKP 00GH814 01KP954
One FH Drive (AGKH AGKL AGKP) and One HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN)
or
Three HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN) in any combination in a Model L3A and E3A
IBM LTO8 Tape Drive HH 8Gb Fiber Channel - AGKM 00GH812 01KP952
One FH Drive (AGKH AGKL AGKP) and One HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN)
or
Three HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN) in any combination in a Model L3A and E3A
IBM LTO8 Tape Drive HH 6Gb SAS - AGKN 00GH810 01KP953
One FH Drive (AGKH AGKL AGKP) and One HH Drives (AGKF, AGKG, AGKJ, AGKK, AGKM, AGKN)
or
Three HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN) in any combination in a Model L3A and E3A
IBM LTO7 Tape Drive FH 8Gb Fiber Channel - AGKL 00GH768 01KP938
One FH Drive (AGKH AGKL AGKP) and One HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN)
or
Three HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN) in any combination in a Model L3A and E3A
IBM LTO7 Tape Drive HH 8Gb Fiber Channel - AGKJ 00GH766 01KP936
One FH Drive (AGKH AGKL) and One HH Drives (AGKF AGKG AGKJ AGKK)
or
Three HH Drives (AGKF AGKG AGKJ AGKK) in any combination in a Model L3A and E3A
IBM LTO7 Tape Drive HH 6 Gb SAS - AGKK 00GH764 01KP937
One FH Drive (AGKH AGKL) and One HH Drives (AGKF AGKG AGKJ AGKK)
or
Three HH Drives (AGKF AGKG AGKJ AGKK) in any combination in a Model L3A and E3A.
IBM LTO6 Tape Drive FH 8Gb Fiber Channel - AGKH 00GH763 01KP935
One FH Drive (AGKH AGKL AGKP) and One HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN)
or
Three HH Drives (AGKF AGKG AGKJ AGKK AGKM AGKN) in any combination in a Model L3A and E3A
IBM LTO6 Tape Drive HH 8Gb Fiber Channel - AGKF 00GH761 01KP933
One FH Drive (AGKH AGKL) and One HH Drives (AGKF AGKG AGKJ AGKK)
or
Three HH Drives (AGKF AGKG AGKJ AGKK) in any combination in a Model L3A and E3A
IBM LTO6 Tape Drive HH 6Gb SAS - AGKG 00GH759 01KP934
One FH Drive (AGKH AGKL) and One HH Drives (AGKF AGKG AGKJ AGKK)
or
Three HH Drives (AGKF AGKG AGKJ AGKK) in any combination in a Model L3A and E3A

Note: The full-high 00GH814 LTO8 tape drives provide faster data transfer rates than half-high LTO8 tape drives. For instance, 360 MB/s is the maximum native data transfer rate of a FH LTO8, whereas 300 MB/s is the maximum for HH LTO8. Both the HH and FH Ultrium 7 LTO7 tape drives have 300 MB/s maximum transfer rate, and both the HH and FH Ultrium 6 LTO6 tape drives have a 160 MB/s maximum transfer rate.

IBM LTO Tape Drive and Ultrium Tape Media Cartridge Compatibility Chart

  LTO Ultrium Tape Media Cartridge

Generation

 LTO9 LTO8 LTO7 LTO6 LTO5 LTO4 LTO3 LTO2
LTO9 R/W
 R/W
LTO8   R/W R/W
LTO7   R/W R/W  R
LTO6   R/W R/W  R
LTO5   R/W  R/W  R
LTO4   R/W R/W  R
LTO3     R/W R/W
LTO2   R/W


IBM LTO Ultrium drive maximum data transfer rates and capacity:
LTO8: 360 MB/sec native Full-High 8 Gb Fiber | 30 TB with 2.5:1 compression
LTO8: 300 MB/sec native Half-High | 30 TB with 2.5:1 compression
LTO7 Type M: 300 MB/sec native | 22.5 TB with 2.5:1 compression
LTO7: 300 MB/sec native | 15 TB with 2.5:1 compression
LTO6: 160 MB/sec native | 6.25 TB with 2.5:1 compression
Backup Software Compatibility:
IBM i iSeries AS400 BRMS, native OS400 Commands and other ISV vendor backup software solutions
Arcserve Backup
ASG Time Navigator
Barracuda Yosemite Backup
CommVault Simpana
Dell NetVault Backup
EMC NetWorker
HP OpenView Storage Data Protector
IBM Spectrum Protect
Microsoft System Center Data Protection Manager
Symantec Backup Exec
Symantec NetBackup

The IBM TS4300 Tape Library is supported on the following operating systems at the minimum levels indicated:

IBM i iSeries AS400
IBM BladeCenter
IBM Flex System
IBM Power Systems (p6 or later)
IBM System p (p5 or older)
IBM System z and S/390
Advanced Micro Devices (AMD)
Hewlett Packard
Intel (x86 and x86_64)
Sun
