3580-H7S IBM TS2260 LTO7 SAS Tape Drive Half High

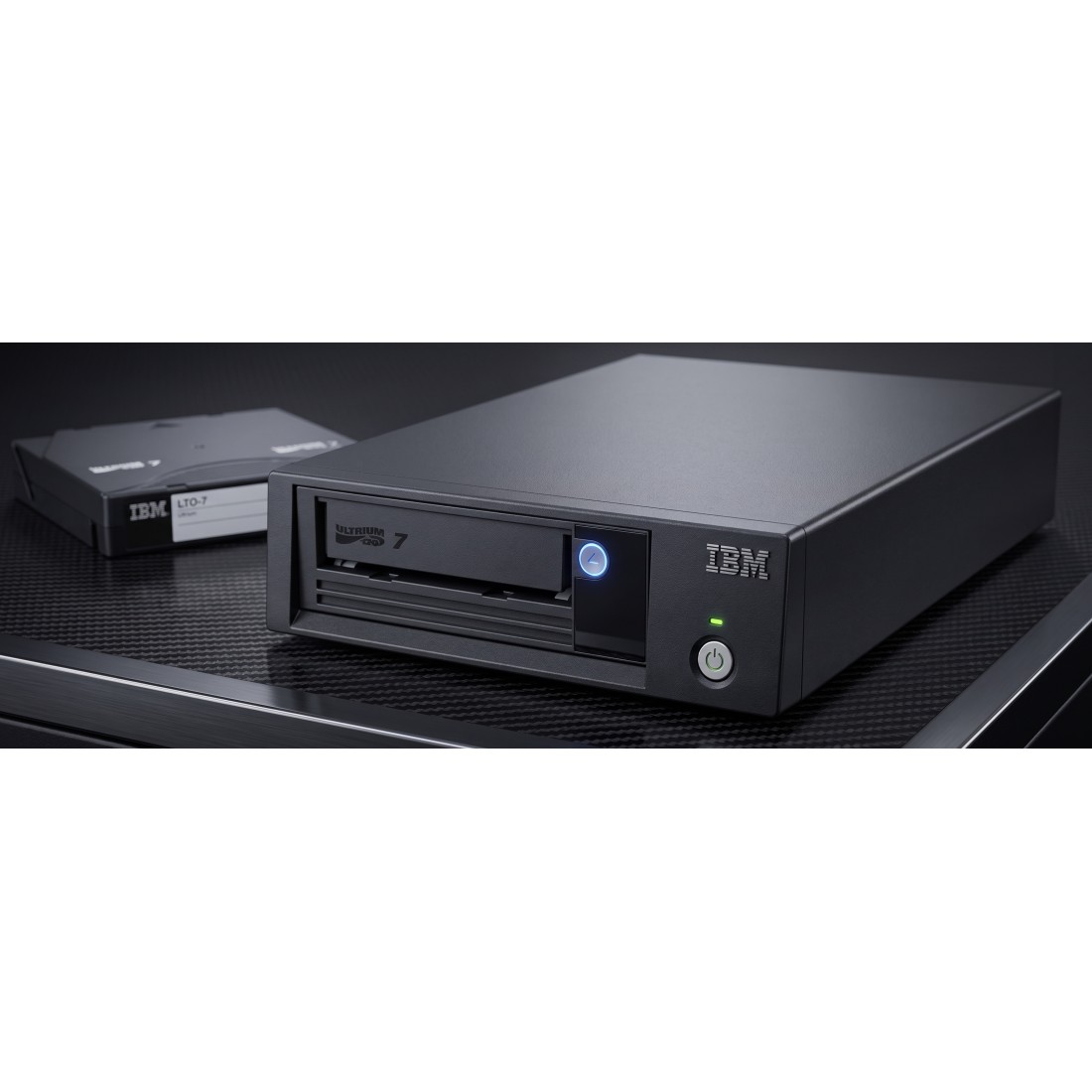

IBM TS2270 3580-H7S is an external LTO7 Half-High SAS Tape Drive that delivers up to 300 MB/sec native transfer rates, supports backups of up to 15 TB compressed capacity with 2.5 to 1 compression or up to 6 TB native capacity and supports encrypting backups. The IBM TS2270 3580-H7S LTO7 Half-High SAS Tape Drive has a 6 Gbps dual-port SAS interface that can be used with IBM i, AIX, Linux, Sun Solaris, Unix and Windows servers. The IBM TS2270 3580-H7S LTO7 Half-High SAS Tape Drive can read and write to LTO7 Ultrium 7 and LTO6 Ultrium 6 cartridges, and can read LTO5 Ultrium 5 data cartridges. The IBM TS2270 3580-H7S LTO7 Half-High SAS Tape Drive is available as a stand-alone or rack mountable unit. The IBM TS2270 3580-H7S LTO7 Half-High SAS Tape Drive enclosure width enables two TS2270 tape units to be mounted side by side in a 19-inch IBM server rack mount shelf kit that requires 2U of rack space.

IBM TS2270 3580-H7S Performance Benchmarks and Capabilities
Read and Write: Ultrium 7 with 6,000 GB native capacity or 15,000 compressed, and Ultrium 6 with 2,500 GB native capacity or 6,250 GB compressed, both supporting WORM and Encryption
Read only: Ultrium 5 with 1,500 GB native or 3,000 compressed.
Native Data Rate: 300 MB/s using Ultrium 7 Media
Maximum Sustained Data Rate: 600 MB/s using Ultrium 7 Media
Burst Data Rate: 600 MB/s using Ultrium 7 Media

Note: Actual performance capabilities and limitations are subject to the environment the IBM i tape drive is used, and the maximum achieved is always subject to the slowest bottleneck in the chain. Stated maximums cannot be achieved in environment where the maximum of another component involved in the backup is slower than the tape drive capabilities, such as the SAS bus, SAS media adapter, SAS cable, host processor, disk data rate, block size, compression, backup software and other variables. If the SAS media adapter is 3 Gb, the maximum transfer rate that can be achieved is 3 Gbps. To achieve faster IBM i backup and restore speeds where there bottleneck variables are not present, consider using an IBM i VTL. An IBM i VTL can achieve up to 10 GB/s and backup up to 36 TB per hour, while also supporting much faster host connection types such as 32 Gb Fiber Channel, 12 Gb SAS, and up to 40 GbE.

Note: All new and refurbished IBM tape library and tape drive purchases include warranty and support. If you are purchasing an IBM Tape Library or Tape Drive for a Server other than an IBM i with OS400 operating system, be sure to inform your representative of the Server and OS type to ensure the IBM Tape Library ships with the correct firmware.

IBM TS2270 3580-H7S Data Sheet

IBM TS2270 3580-H7S Physical specifications
Width: 8.4 inch (213 mm)
Depth: 13.1 inch (332 mm)
Height: 2.3 inch (58 mm)
Weight: 9.4 lbs (4.3 kg)

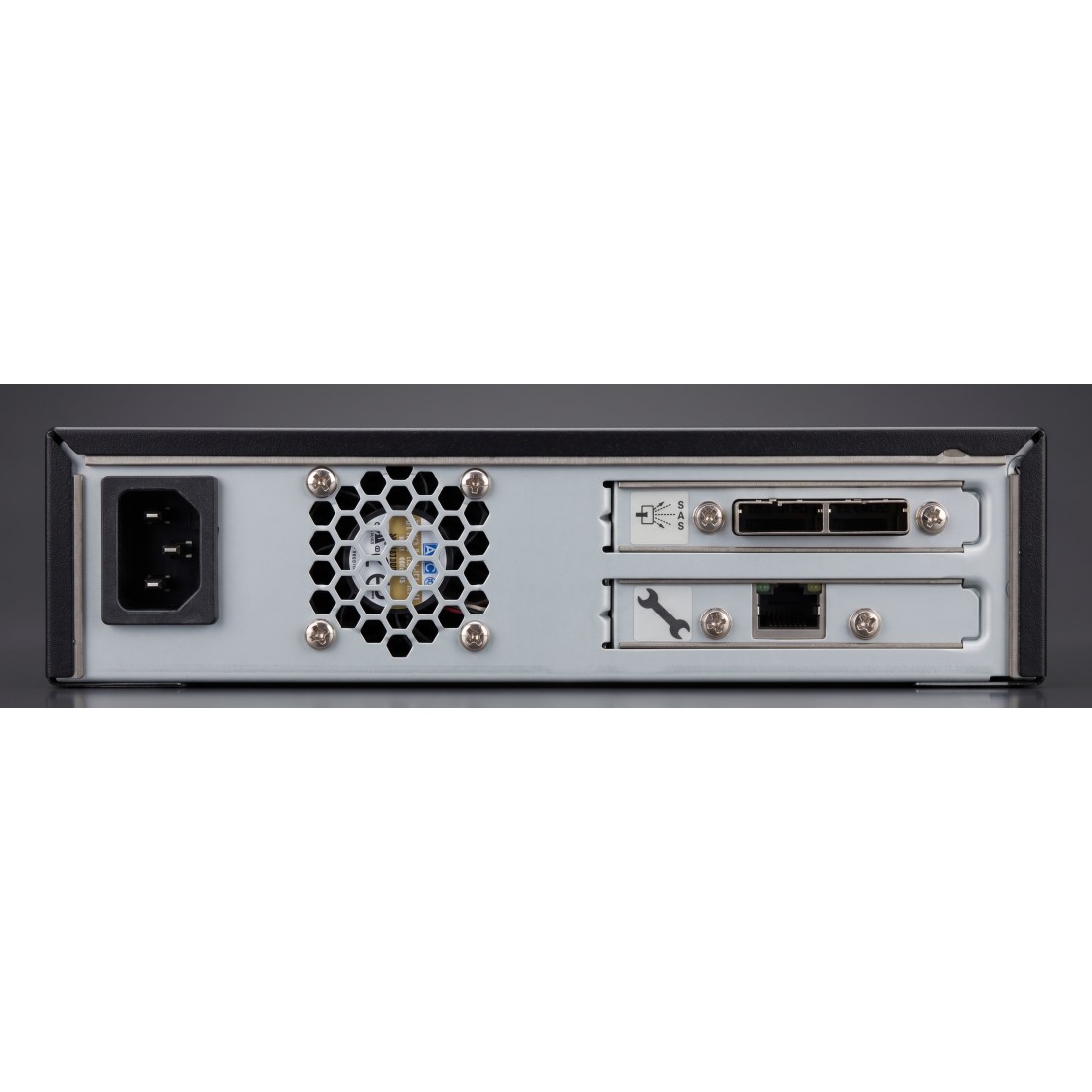

In order to attach an IBM TS2270 3580-H7S external tape drive to a host system SAS adapter, at least one of the following SAS cable is required.

SAS/Mini-SAS cables using feature 5402 and 5406 provide attachment from a SAS HBA on the host system with SFF-8470 to the Ultrium SAS drive with SFF-8088
Mini-SAS/Mini-SAS cables using feature 5501, 5502 and 5506 provide attachment from a SAS HBA on the host system with SFF-8088 SAS/Mini-SAS external cable to the Ultrium SAS drive with SFF-8088
Mini-SAS HD/Mini-SAS cables using feature 5507 and 5509 provide attachment from a SAS-HD HBA on the host system with Mini-SAS HD/Mini-SAS external cable to the Ultrium SAS drive with SFF-8088

The following cable options are available for attachment:

Feature 5402 - 2.0M SAS/Mini-SAS 1x Cable (from HBA with SFF-8470 to drive with SFF-8088)
Feature 5501 - 1.0M Mini-SAS/Mini-SAS 1x Cable (from HBA with SFF-8088 to drive with SFF-8088)
Feature 5502 - 2.0M Mini-SAS/Mini-SAS 1x Cable (from HBA with SFF-8088 to drive with SFF-8088)
Feature 5507 - 4.0M Mini-SAS HD/Mini-SAS 1x Cable (from HD HBA with SFF-8644 to drive with FF-8088)
Feature 5509 - 3.0M Mini-SAS HD/Mini-SAS 2x Cable (from HD HBA with SFF-8644 to drive with SFF-8088)
