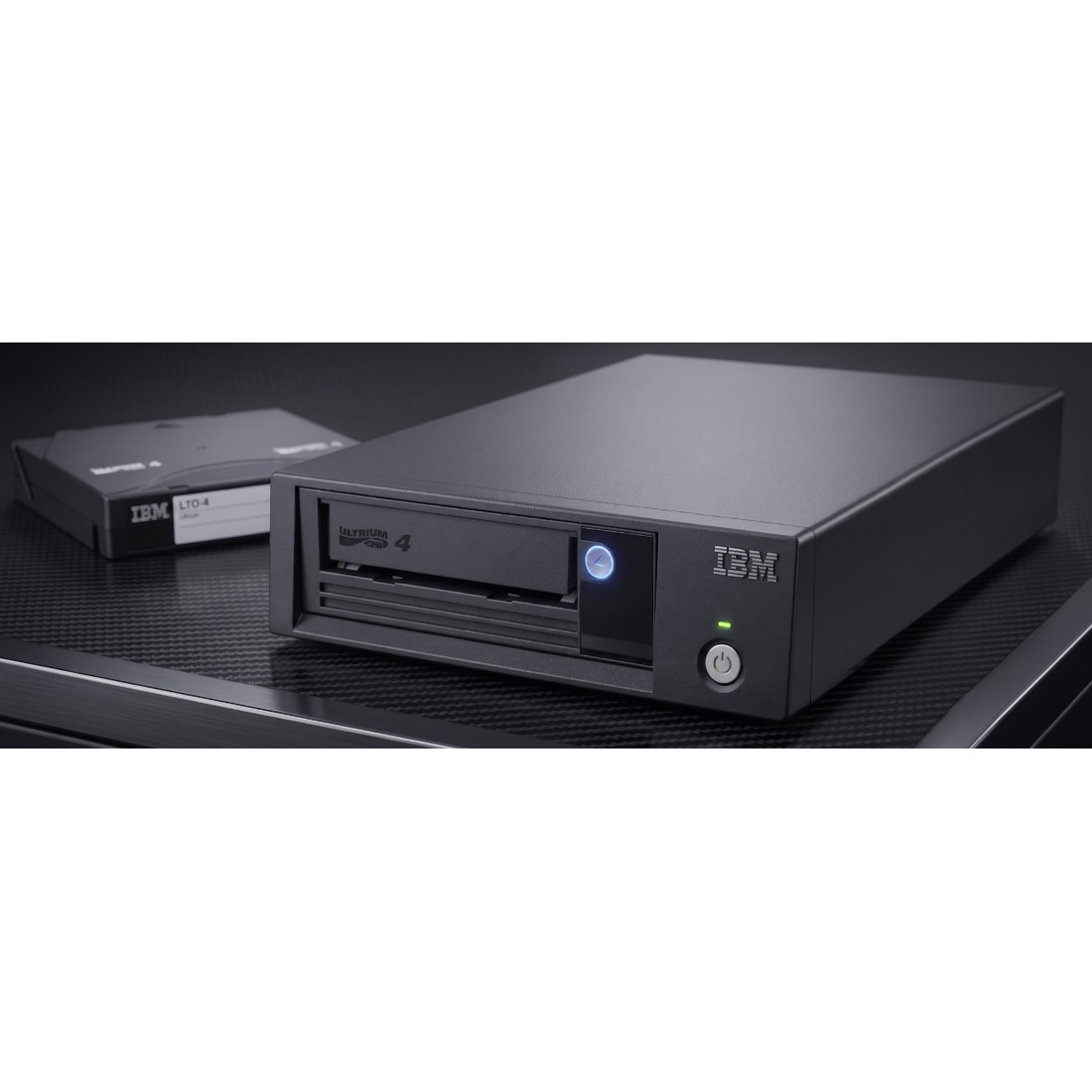

IBM 3580 S43 TS2340 Ultrium 4 Single External SAS Tape Drive
IBM AS400 iSeries IBM 3580 L43 TS2430 LTO4 Single External LVD SCSI Tape Drive The IBM 3580-L43 TS2340 LTO4 Tape Drive includes one LTO4 SCSI Tape Drive in an external enclos.. Product #: 3580 L43

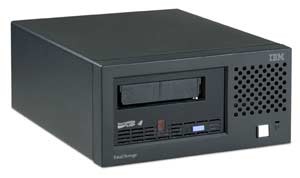

IBM 3580 L43 TS2430 LTO4 Single External LVD SCSI Tape Drive

Brand: IBM AS400 iSeries
Model Number: 3580 L43

The IBM 3580-L43 TS2340 LTO4 Tape Drive includes one LTO4 SCSI Tape Drive in an external enclosure with a Ultra160 SCSI Interface, providing 800GB Native capacity or 1.6TB with 2:1 compression when using LTO4 media. The IBM 3580-L43 TS2340 LTO4 Tape Drive delivers up to 120 MB/sec native data transfer rate and 140MB/Sec when using 2:1 compression. The IBM TS2340 can read and write LTO Ultrium 3 Data Cartridges at Ultrium 3 capacities and rates, and can read LTO Ultrium 2 Data Cartridges at Ultrium 2 capacities with improved rates. The 3580-L43 TS2340 LTO4 Tape Drive uses an Ultra160 SCSI Low Voltage Differential (LVD) interface and can be attached to the IBM iSeries, IBM AIX Power System, HP-UX, Sun Solaris, and non-IBM servers that support Ultra160 SCSI Low Voltage Differential (LVD) interface specifications.

3580-L43 TS2340 Data Sheet     3580-L43 TS2340 Operator Manual     3580-L43 TS2340 Firmware Support
Additional options for this model are;

  • Feature 7003 Rack Mount Shelf for 3580
  • LTO4 800GB/1.6TB Data Cartridges
  • LTO Cleaning Cartridges
  • VHDCI-HD68 LVD SCSI Cables in  4.5m, 10.0m, & 25.0m Lengths

The TS2340 Tape Drive is supported on the following operating systems at the minimum levels indicated:

  • OS/400 V5R3 or later.
  • AIX 5L V5.1, V5.2, or V5.3 or later
  • Sun Solaris 8, 9, 10.
  • Microsoft Windows 2003 (build 3790, or later).
  • 64-bit HP-UX 11iv1 and 11iv2.
  • Linux distributions: Red Hat Enterprise Linux version 3, SUSE LINUX Enterprise Server 9 (SLES 9), SUSE Linux Enterprise Server 10 (SLES 10), Asianux 2.0.

Weight & Dimensions

  • Width: 9.85 in.
  • Depth: 11.5 in.
  • Height: 4.75 in.
  • Maximum Weight: 14.2 lbs.

Units ship with 2.5m VHDCI-HD68 SCSI Cable, LVD/SE Terminator, and Power Cord.
