IBM AGKF LTO6 Fibre Channel Tape Drive 00GH761
IBM AGKJ LTO7 Fibre Channel Tape Drive Half-High 00GH766
IBM AS400 iSeries IBM AGKG LTO6 Fibre Channel Tape Drive 00GH759 IBM AGKG is an LTO6 SAS Half-High Tape Drive that can be installed in an IBM TS4300Tape Library Mode.. Product #: IBM-AGKG-00GH759

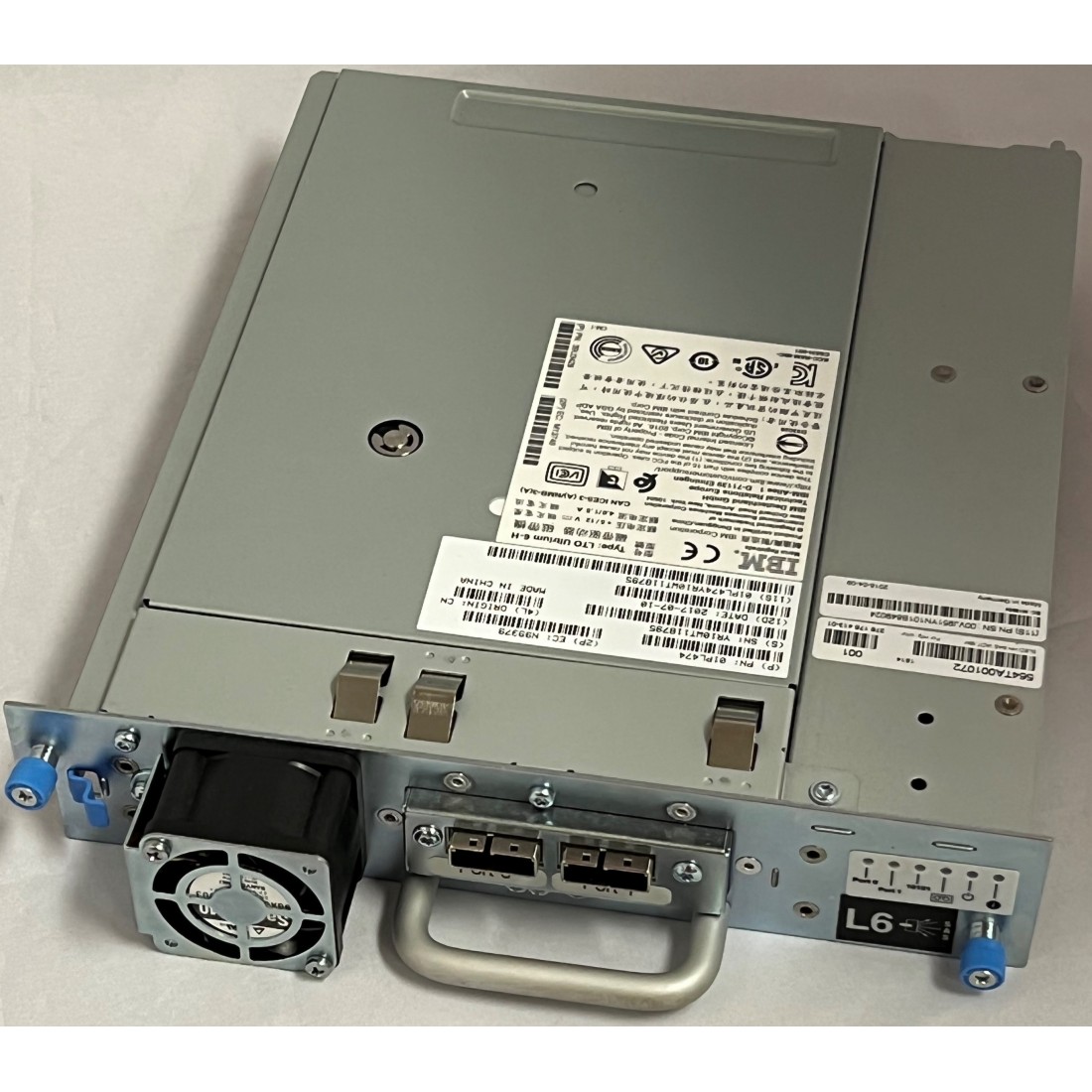

IBM AGKG 00GH759 LTO6 SAS Half High Tape Drive

Brand: IBM AS400 iSeries
Model Number: IBM-AGKG-00GH759
Tags: IBM AGKG , 00GH759 , lto6 , ts4300

IBM AGKG is an LTO6 SAS Half-High Tape Drive that can be installed in an IBM TS4300Tape Library Model 3555, has 00GH759 part number, and has a maximum native data transfer rate of 160 MB per second. The IBM AGKG LTO6 SAS Tape Drive cables are not included and must be ordered separately and are required to attach the TS4300 Tape Library to a host. The IBM LTO6 Tape Drive is a high-performance, high-capacity tape storage backup and restore device for IBM i, AIX, Linux Power Servers and other open system platforms. IBM Ultrium 6 or LTO6 tape cartridge can store up to 2.5 TB of uncompressed data or up to 6.25 TB of compressed data assuming a 2.5 to 1 compression ratio.

IBM LTO Tape Drive Options for TS4300 3555-L3A LTO Tape Library

IBM LTO 8 Tape Drive FH 8 Gb Fiber Channel - AGKP 00GH814 01KP954
     One FH Drive (AGKH, AGKL, AGKP), and One HH Drives (AGKF, AGKG, AGKJ, AGKK, AGKM, AGKN)
     or
     Three HH Drives (AGKF, AGKG, AGKJ, AGKK, AGKM, AGKN) in any combination in a Model L3A and E3A
IBM LTO 8 Tape Drive HH 8 Gb Fiber Channel - AGKM 00GH812 01KP952
     One FH Drive (AGKH, AGKL, AGKP), and One HH Drives (AGKF, AGKG, AGKJ, AGKK, AGKM, AGKN)
     or
     Three HH Drives (AGKF, AGKG, AGKJ, AGKK, AGKM, AGKN) in any combination in a Model L3A and E3A
IBM LTO 8 Tape Drive HH 6 Gb SAS - AGKN 00GH810 01KP953
     One FH Drive (AGKH, AGKL, AGKP), and One HH Drives (AGKF, AGKG, AGKJ, AGKK, AGKM, AGKN)
     or
     Three HH Drives (AGKF, AGKG, AGKJ, AGKK, AGKM, AGKN) in any combination in a Model L3A and E3A
IBM LTO 7 Tape Drive FH 8 Gb Fiber Channel - AGKL 00GH768 01KP938
     One FH Drive (AGKH, AGKL, AGKP), and One HH Drives (AGKF, AGKG, AGKJ, AGKK, AGKM, AGKN)
     or
     Three HH Drives (AGKF, AGKG, AGKJ, AGKK, AGKM, AGKN) in any combination in a Model L3A and E3A
IBM LTO 7 Tape Drive HH 8 Gb Fiber Channel - AGKJ 00GH766 01KP936
     One FH Drive (AGKH, AGKL), and One HH Drive (AGKF, AGKG, AGKJ, AGKK)
     or
     Three HH Drives (AGKF, AGKG, AGKJ, AGKK) in any combination in a Model L3A and E3A
IBM LTO 7 Tape Drive HH 6 Gb SAS - AGKK 00GH764 01KP937
     One FH Drive (AGKH, AGKL), and One HH Drives (AGKF, AGKG, AGKJ, AGKK)
     or
     Three HH Drives (AGKF, AGKG, AGKJ, AGKK) in any combination in a Model L3A and E3A.
IBM LTO 6 Tape Drive FH 8 Gb Fiber Channel - AGKH 00GH763 01KP935
     One FH Drive (AGKH, AGKL, AGKP), and One HH Drives (AGKF, AGKG, AGKJ, AGKK, AGKM, AGKN)
     or
     Three HH Drives (AGKF, AGKG, AGKJ, AGKK, AGKM, AGKN) in any combination in a Model L3A and E3A
IBM LTO 6 Tape Drive HH 8 Gb Fiber Channel - AGKF 00GH761 01KP933
     One FH Drive (AGKH, AGKL), and One HH Drives (AGKF, AGKG, AGKJ, AGKK)
     or
     Three HH Drives (AGKF, AGKG, AGKJ, AGKK) in any combination in a Model L3A and E3A
IBM LTO 6 Tape Drive HH 6 Gb SAS - AGKG 00GH759 01KP934
     One FH Drive (AGKH, AGKL), and One HH Drives (AGKF, AGKG, AGKJ, AGKK)
     or
     Three HH Drives (AGKF, AGKG, AGKJ, AGKK) in any combination in a Model L3A and E3A

Note: The full-high FH 00GH814 LTO 8 tape drives provide faster data transfer rates than half-high HH LTO 8 tape drives. For instance, 360 MB/s is the maximum native data transfer rate of a FH LTO 8, whereas 300 MB/s is the maximum for HH LTO 8. Both the HH and FH Ultrium 7 LTO tape drives have 300 MB/s maximum transfer rate, and both the HH and FH Ultrium 6 LTO tape drives have a 160 MB/s maximum transfer rate.

The actual capacity varies depending on the application, the type of data, and the tape cartridge. 2.5 TB is typical and 6.25 TB is possible when the Data Compression setting is activated. LTO data transfer rates are also greatly improved when using compression. The default setting of Data Compression is controlled by the host system. The user and the application software can control the activation or deactivation of the data compression setting. The drive can typically achieve a 2.5:1 compression ratio.

IBM LTO Tape Drive and Ultrium Tape Media Cartridge Compatibility Chart

  LTO Ultrium Tape Media Cartridge

Generation

 LTO9 LTO8 LTO7 LTO6 LTO5 LTO4 LTO3 LTO2
LTO9 R/W
 R/W
LTO8   R/W R/W
LTO7   R/W R/W  R
LTO6   R/W R/W  R
LTO5   R/W  R/W  R
LTO4   R/W R/W  R
LTO3     R/W R/W
LTO2   R/W

IBM LTO Ultrium drive maximum data transfer rates and capacity:
LTO8: 360 MB/sec native Full-High 8 Gb Fiber | 30 TB with 2.5:1 compression
LTO8: 300 MB/sec native Half-High | 30 TB with 2.5:1 compression
LTO7 Type M: 300 MB/sec native | 22.5 TB with 2.5:1 compression
LTO7: 300 MB/sec native | 15 TB with 2.5:1 compression
LTO6: 160 MB/sec native | 6.25 TB with 2.5:1 compression
Backup Software Compatibility:
IBM i iSeries AS400 BRMS, native OS400 Commands and other ISV vendor backup software solutions
Arcserve Backup
ASG Time Navigator
Barracuda Yosemite Backup
CommVault Simpana
Dell NetVault Backup
EMC NetWorker
HP OpenView Storage Data Protector
IBM Spectrum Protect
Microsoft System Center Data Protection Manager
Symantec Backup Exec
Symantec NetBackup

The IBM TS4300 Tape Library is supported on the following operating systems at the minimum levels indicated:

IBM i iSeries AS400
IBM BladeCenter
IBM Flex System
IBM Power Systems (p6 or later)
IBM System p (p5 or older)
IBM System z and S/390
Advanced Micro Devices (AMD)
Hewlett Packard
Intel (x86 and x86_64)
Sun
