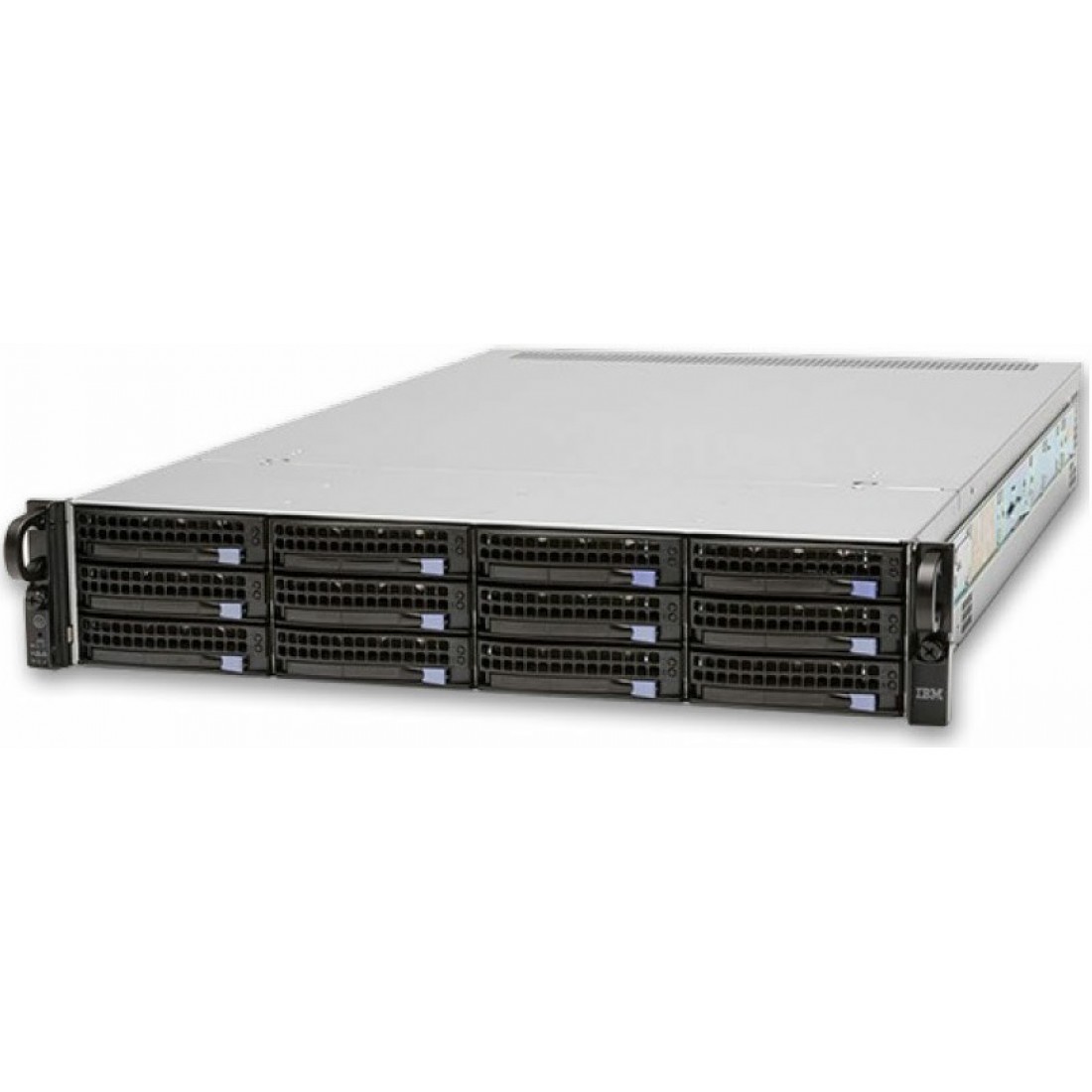

Linux Server Hardware IBM POWER9 9006-22P LC922
Brand:
IBM Power9 Systems
Model Number:
9006-22P-EKPD
The 9006-22P EKPD 2.9 GHz 16-core LC922 IBM POWER9 Linux server hardware was designed for critical workloads, can have one or two processor sockets for 32 cores, supports up to 1TB of DDR4 memory, 120 TB of HDD or 45.6 TB of SSD storage, has six PCIe slots (three CAPI 2.0), TPM2.0 Nuvoton for secure boot and trusted boot, two SATA DOM connectors on system board for local, captive flash devices for OS boot, Integrated MicroSemi SAS/SATA 16-port Internal Storage Controller PCIe3.0 x8, Integrated Intel XL710 Quad Port 10GBase-T PCIe3.0 x8 UIO built-in LAN, two redundant hot swappable power supplies and many other enterprise class features.
Other 9006-22P LC922 Processor Models include:
9006-22P EKPD 16-core 2.9 GHz
9006-22P EKPC 20-core 2.7 GHz
9006-22P EKPE 22-core 2.6 GHz
9006-22P EKPD 32-core 2.9 GHz Two Socket
9006-22P EKPC 40-core 2.7 GHz Two Socket
9006-22P EKPE 44-core 2.6 GHz Two Socket
9006-22P EKPC 20-core 2.7 GHz
9006-22P EKPE 22-core 2.6 GHz
9006-22P EKPD 32-core 2.9 GHz Two Socket
9006-22P EKPC 40-core 2.7 GHz Two Socket
9006-22P EKPE 44-core 2.6 GHz Two Socket
9006-22P-EKPD 16-core LC922 IBM POWER9 Linux server hardware specifications:
Processor Feature: EKPD 16-core 2.9 GHz – Single Socket
Memory: 1 TB Maximum in 16 Main Storage Slots
IBM EKMF 16 GB DDR4 1Rx4 2666 MHz DIMM
IBM EKMG 32 GB DDR4 2Rx4 2666 MHz DIMM
IBM EKMD 64 GB DDR4 4Rx4 2666 MHz DIMM
IBM EKMG 32 GB DDR4 2Rx4 2666 MHz DIMM
IBM EKMD 64 GB DDR4 4Rx4 2666 MHz DIMM
IBM POWER9 Memory must be installed in pairs. 8x DIMMs in 2-socket or 4x DIMMs in 1-socket. Mixing of POWER9 memory features is not allowed. 170 GB/s peak memory BW per system in 2S system with 8x 2R RDIMMs single drop and running at 2667 Mb/s, 136 GB/s peak memory BW with all 16x RDIMMs populated, running 2133 Mb/s.
Cache: 512 KB per core Level 2 L2 Cache and 120 MB per chip Level 3 L3 Cache
Internal Storage Bays for SSD and HDD: 12x LFF/SFF bays for SAS/SATA HDDs or SSDs and 4x available for NVMe gen3 in front (Optional) 2x SFF SAS/SATA drive bays in rear.
Solid State Drives (SSD) and Hard Disk Drive (HDD) options: 120 TB of HDD maximum or 45.6 TB of SSD maximum
SFF SATA Disk Solid State Drives (SSD)
EKS1 240GB 2.5-inch SATA SSD 0.78-DWPD SED
EKS3 960GB 2.5-inch SATA SSD 0.6-DWPD NONSED
EKSG 1.92TB 2.5-inch SATA SSD 3.5-DWPD SED
EKS1 240GB 2.5-inch SATA SSD 0.78-DWPD SED
EKS3 960GB 2.5-inch SATA SSD 0.6-DWPD NONSED
EKSG 1.92TB 2.5-inch SATA SSD 3.5-DWPD SED
SFF SAS Solid State Drives (SSD)
EKS6 3.8TB 2.5-inch SAS SSD 1-DWPD NONSED
EKSB 3.8TB 2.5-inch SAS SSD 1-DWPD SED
EKS6 3.8TB 2.5-inch SAS SSD 1-DWPD NONSED
EKSB 3.8TB 2.5-inch SAS SSD 1-DWPD SED
LFF SATA HDD
EKDA 2TB 3.5-inch 7200 RPM SATA 6Gb/s HDD 512e NONSED Write Cache
EKDB 4TB 3.5-inch 7200 RPM SATA 6Gb/s HDD 512e NONSED Write Cache
EKDD 8TB 3.5-inch 7200 RPM SATA 6Gb/s HDD 512e NONSED Write Cache
EKDG 10TB 3.5-inch 7200 RPM SATA 6Gb/s HDD 512e NONSED Write Cache
EKDA 2TB 3.5-inch 7200 RPM SATA 6Gb/s HDD 512e NONSED Write Cache
EKDB 4TB 3.5-inch 7200 RPM SATA 6Gb/s HDD 512e NONSED Write Cache
EKDD 8TB 3.5-inch 7200 RPM SATA 6Gb/s HDD 512e NONSED Write Cache
EKDG 10TB 3.5-inch 7200 RPM SATA 6Gb/s HDD 512e NONSED Write Cache
LFF SAS HDD
EKD12 TB 3.5-inch 7200 RPM SAS 12Gb/s HDD 512e NONSED Write Cache
EKD24 TB 3.5-inch 7200 RPM SAS 12Gb/s HDD 512e NONSED Write Cache
EKD4 8TB 3.5-inch 7200 RPM SAS 12Gb/s HDD 512e NONSED Write Cache
EKD5 4TB 3.5-inch 7200 RPM SAS 12Gb/s HDD 512e SED Write Cache
EKD6 8TB 3.5-inch 7200 RPM SAS 12Gb/s HDD 512e SED Write Cache
EKD8 10TB 3.5-inch 7200 RPM SAS 12Gb/s HDD 512e NONSED Write Cache
EKD12 TB 3.5-inch 7200 RPM SAS 12Gb/s HDD 512e NONSED Write Cache
EKD24 TB 3.5-inch 7200 RPM SAS 12Gb/s HDD 512e NONSED Write Cache
EKD4 8TB 3.5-inch 7200 RPM SAS 12Gb/s HDD 512e NONSED Write Cache
EKD5 4TB 3.5-inch 7200 RPM SAS 12Gb/s HDD 512e SED Write Cache
EKD6 8TB 3.5-inch 7200 RPM SAS 12Gb/s HDD 512e SED Write Cache
EKD8 10TB 3.5-inch 7200 RPM SAS 12Gb/s HDD 512e NONSED Write Cache
SFF SAS HDD
EKDQ 1.2TB 2.5-inch 10000 RPM SAS 12Gb/s HDD 512e NONSED Write Cache
EKDR 1.8TB 2.5-inch 10000 RPM SAS 12Gb/s HDD 512e NONSED Write Cache
EKDQ 1.2TB 2.5-inch 10000 RPM SAS 12Gb/s HDD 512e NONSED Write Cache
EKDR 1.8TB 2.5-inch 10000 RPM SAS 12Gb/s HDD 512e NONSED Write Cache
NVMe Gen3: Requires EKEG SMC quad-port NVMe Host Bus Adapter (PEX9733) PCIe3.0 x8 LP with cables)
EKNR 960GB SSD; NVMe; 2.5-inch; PCIe3.0 x4; 0.8-DWPD
EKNL 1600GB SSD; NVMe; 2.5-inch; PCIe3.0 x4; 5-DWPD
3200 GB SSD; NVMe; 2.5-inch; PCIe3.0 x4; 5-DWPD (#EKNN)
EKNR 960GB SSD; NVMe; 2.5-inch; PCIe3.0 x4; 0.8-DWPD
EKNL 1600GB SSD; NVMe; 2.5-inch; PCIe3.0 x4; 5-DWPD
3200 GB SSD; NVMe; 2.5-inch; PCIe3.0 x4; 5-DWPD (#EKNN)
Note: Utilizing SED feature, the SED drive requires one LSI MegaRAID HBA feature to be ordered-- #EKEA, or #EKEH--along with either #EKWB (the SW license) or #EKWC (the LSI HW key) to unlock LSI SafeStore feature. The SED feature cannot be utilized with LSI HBA feature #EKEB, or with no adapter.
PCIe I/O Adapter Slots:
Two PCIe G4 x16 FHFL slots, CAPI 2.0 enabled (Support GPU cards)
Three PCIe G4 x8 FHFL slots, one CAPI 2.0 enabled (all physically x16)
One PCIe G4 x8 LP slot
Two PCIe G4 x16 FHFL slots, CAPI 2.0 enabled (Support GPU cards)
Three PCIe G4 x8 FHFL slots, one CAPI 2.0 enabled (all physically x16)
One PCIe G4 x8 LP slot
Note: Only LP adapters can be placed in LP slots. A x8 adapter can be placed in an x16 slot and a x16 adapter can be put into any of the x8 slots which are physically x16, but the PCIe BW will be reduced.
I/O Ports:
2x rear USB 3.0 ports
Integrated Intel XL710 Quad Port 10GBase-T, PCIe3.0 x8 UIO built-in LAN (one shared management
port)
Dedicated 1G IPMI port
Rear VGA port
2x rear USB 3.0 ports
Integrated Intel XL710 Quad Port 10GBase-T, PCIe3.0 x8 UIO built-in LAN (one shared management
port)
Dedicated 1G IPMI port
Rear VGA port
RAS Features: Concurrent Maintenance disks and Redundant Hot plug Power
Other Features:
TPM2.0 Nuvoton NPCT650ABAWX via I2C (for secure boot and trusted boot
Integrated MicroSemi PM8069 SAS/SATA 16-port Internal Storage Controller PCIe3.0 x8 with RAID 0, 1, 5, and 10 support (no write cache)
Integrated SAS/SATA controller (PM8069) cannot RAID 4Kn device (SSD or HDD). Selecting a 4Kn HDD requires an LSI HBA to be chosen. SSDs must be formatted by customer to 512-byte sectors for RAID
Integrated SAS/SATA controller (PM8069) does not have SED feature, but can use unlocked SED drives.
Integrated Intel XL710 Quad Port 10GBase-T PCIe3.0 x8 UIO built-in LAN (one shared management port)
Dedicated 1 G IPMI port
Rear VGA
TPM2.0 Nuvoton NPCT650ABAWX via I2C (for secure boot and trusted boot
Integrated MicroSemi PM8069 SAS/SATA 16-port Internal Storage Controller PCIe3.0 x8 with RAID 0, 1, 5, and 10 support (no write cache)
Integrated SAS/SATA controller (PM8069) cannot RAID 4Kn device (SSD or HDD). Selecting a 4Kn HDD requires an LSI HBA to be chosen. SSDs must be formatted by customer to 512-byte sectors for RAID
Integrated SAS/SATA controller (PM8069) does not have SED feature, but can use unlocked SED drives.
Integrated Intel XL710 Quad Port 10GBase-T PCIe3.0 x8 UIO built-in LAN (one shared management port)
Dedicated 1 G IPMI port
Rear VGA
Power Requirements: Operating voltage: 1600 Watt @ 220 V AC, 1000 Watt @ 110 V AC
Physical Dimensions and Weights:
Width: 441.5 mm (17.4 in.)
Depth: 822 mm (32.4 in.)
Height: 89 mm (3.5 in.)
Weight: 17.69 kg (39 lb)
Rack: 2U for 19-inch rack mount chassis
Width: 441.5 mm (17.4 in.)
Depth: 822 mm (32.4 in.)
Height: 89 mm (3.5 in.)
Weight: 17.69 kg (39 lb)
Rack: 2U for 19-inch rack mount chassis
Internal Storage Adapter Options:
EKSL 2x SATA DOM: 64 GB or EKSK 128 GB capacities for OS and read-intensive usage only.
EKAA Broadcom (LSI) MegaRAID 9361-8i SAS3 Controller with 8 internal port (1 GB Cache) PCIe3.0 x8 LP with cables
EKEH Broadcom (LSI) MegaRAID 9361-8i SAS3 Controller w/ 8 internal ports (2GB Cache) PCIe3.0 x8 LP with cables
EKEB SMC AOC-K-S3008L-L8i 12Gbps SAS3/RAID 0,1 and 10 PCIe3.0 x8 LP with cables
EKEG SMC quad-port NVMe Host Bus Adapter (PEX9733) PCIe3.0 x8 LP with cables
EKSL 2x SATA DOM: 64 GB or EKSK 128 GB capacities for OS and read-intensive usage only.
EKAA Broadcom (LSI) MegaRAID 9361-8i SAS3 Controller with 8 internal port (1 GB Cache) PCIe3.0 x8 LP with cables
EKEH Broadcom (LSI) MegaRAID 9361-8i SAS3 Controller w/ 8 internal ports (2GB Cache) PCIe3.0 x8 LP with cables
EKEB SMC AOC-K-S3008L-L8i 12Gbps SAS3/RAID 0,1 and 10 PCIe3.0 x8 LP with cables
EKEG SMC quad-port NVMe Host Bus Adapter (PEX9733) PCIe3.0 x8 LP with cables
Network/IB Adapter Options:
EKAY Mellanox MCX556A-EDAT ConnectX-5 VPI EDR IB 100Gb/s and 100GbE dual-port QSFP28 PCIe4.0 x16 LP
EKFD Mellanox MCX555A-ECAT ConnectX-5 VPI EDR IB 100Gb/s and 100GbE single-port QSFP28 PCIe3.0 x16 LP
EKAM Mellanox MCX415A-CCAT ConnectX-4 EN 100GbE single-port QSFP28 PCIe3.0 x16 LP
EKAU Mellanox MCX4121A-ACAT ConnectX-4 Lx EN 25GbE dual-port SFP28 PCIe3.0 x8 LP
EKF1 Mellanox MCX414A-BCAT ConnectX-4 EN dual-port 40/56GbE QFSP28 PCIe3.0 x8 LP
EKFP Intel XL710/X557 10GBase-T Converged Network Adapter 4-port (10G/1G/100M speeds) PCIe3.0 x8 LP
EKA3 Intel 82575EB dual-port Gigabit Ethernet controller, PCI-e x4
EKFF Broadcom 5719 QP 1G (1G/100M/10M) Network Interface Card PCIe x4 LP
EKA1 Cavium (Qlogic) BCM57840 4-port SFP+ 10Gb Ethernet Adapter PCIe3.0 x8 LP
EKA2 Intel 82599ES Ethernet Converged Network Adapter x520-DA2 2-port 10G/1G SFP+ PCIe2.0 x8 LP
EKFH Intel XL710 Ethernet Converged Network Adapter 4-port 10G/1G SFP+ PCIe3.0 x8 LP
EKAY Mellanox MCX556A-EDAT ConnectX-5 VPI EDR IB 100Gb/s and 100GbE dual-port QSFP28 PCIe4.0 x16 LP
EKFD Mellanox MCX555A-ECAT ConnectX-5 VPI EDR IB 100Gb/s and 100GbE single-port QSFP28 PCIe3.0 x16 LP
EKAM Mellanox MCX415A-CCAT ConnectX-4 EN 100GbE single-port QSFP28 PCIe3.0 x16 LP
EKAU Mellanox MCX4121A-ACAT ConnectX-4 Lx EN 25GbE dual-port SFP28 PCIe3.0 x8 LP
EKF1 Mellanox MCX414A-BCAT ConnectX-4 EN dual-port 40/56GbE QFSP28 PCIe3.0 x8 LP
EKFP Intel XL710/X557 10GBase-T Converged Network Adapter 4-port (10G/1G/100M speeds) PCIe3.0 x8 LP
EKA3 Intel 82575EB dual-port Gigabit Ethernet controller, PCI-e x4
EKFF Broadcom 5719 QP 1G (1G/100M/10M) Network Interface Card PCIe x4 LP
EKA1 Cavium (Qlogic) BCM57840 4-port SFP+ 10Gb Ethernet Adapter PCIe3.0 x8 LP
EKA2 Intel 82599ES Ethernet Converged Network Adapter x520-DA2 2-port 10G/1G SFP+ PCIe2.0 x8 LP
EKFH Intel XL710 Ethernet Converged Network Adapter 4-port 10G/1G SFP+ PCIe3.0 x8 LP
External SAS Adapters Options:
EKGC Broadcom (LSI) 9305-16E SAS-3 HBA PCIe3.0 x8 LP
EKED Broadcom (LSI) 9300-8E SAS-3 HBA PCIe3.0 x8 LP
EKGC Broadcom (LSI) 9305-16E SAS-3 HBA PCIe3.0 x8 LP
EKED Broadcom (LSI) 9300-8E SAS-3 HBA PCIe3.0 x8 LP
Fibre Channel Adapter Options:
EKAQ Qlogic QLE2692SR 2-port 16Gb Fibre Channel adapter PCIe3 x8 LP
EKAF Emulex LPE16002B-M6-O 2-port 16Gb Fibre Channel card PCIe x8 LP
EKFE Qlogic QLE2742 32Gb Fibre Channel adapter PCIe3 x8 2-port LP
EKAQ Qlogic QLE2692SR 2-port 16Gb Fibre Channel adapter PCIe3 x8 LP
EKAF Emulex LPE16002B-M6-O 2-port 16Gb Fibre Channel card PCIe x8 LP
EKFE Qlogic QLE2742 32Gb Fibre Channel adapter PCIe3 x8 2-port LP
Other Power9 Linux Server Hardware Models and Specifications:
9008-22L S922 1 or 2 Processors, 8-12 Cores, 4TB Memory
9183-22X IC922 1 or 2 Processors, 12-20 Cores, 2TB Memory
9006-12P LC921 1 or 2 Processors, 16-40 Cores, 1TB Memory
9006-22P LC922 1 or 2 Processors, 16-44 Cores, 1TB Memory
8335-GTH AC922 2 Processors, 16-20 Cores, 2TB Memory
8335-GTX AC922 2 Processors, 16-22 Cores, 2TB Memory
9009-41A S914 1 Processor, 4-8 Cores, 1TB Memory
9009-42A S924 1 or 2 Processors, 8-12 Cores, 4TB Memory
9009-22A S922 1 or 2 Processors, 4-10 Cores, 4TB Memory
9040-MR9 E950 2 or 4 Processors, 32-48 Cores, 2 Sockets, 16TB Memory
9040-MR9 E950 2 or 4 Processors, 32-48 Cores, 4 Sockets, 16TB Memory
9080-M9S E980 (1 Node) 32-48 Processors, 4 Sockets, 16TB Memory
9080-M9S E980 (2 Node) 64-96 Processors, 8 Sockets, 16TB Memory
9080-M9S E980 (3 Node) 96-144 Processors, 12 Sockets, 16TB Memory
9080-M9S E980 (4 Node) 128-192 Processors, 16 Sockets, 16TB Memory
9006-12P LC921 1 or 2 Processors, 16-40 Cores, 1TB Memory
9006-22P LC922 1 or 2 Processors, 16-44 Cores, 1TB Memory
8335-GTH AC922 2 Processors, 16-20 Cores, 2TB Memory
8335-GTX AC922 2 Processors, 16-22 Cores, 2TB Memory
9009-41A S914 1 Processor, 4-8 Cores, 1TB Memory
9009-42A S924 1 or 2 Processors, 8-12 Cores, 4TB Memory
9009-22A S922 1 or 2 Processors, 4-10 Cores, 4TB Memory
9040-MR9 E950 2 or 4 Processors, 32-48 Cores, 2 Sockets, 16TB Memory
9040-MR9 E950 2 or 4 Processors, 32-48 Cores, 4 Sockets, 16TB Memory
9080-M9S E980 (1 Node) 32-48 Processors, 4 Sockets, 16TB Memory
9080-M9S E980 (2 Node) 64-96 Processors, 8 Sockets, 16TB Memory
9080-M9S E980 (3 Node) 96-144 Processors, 12 Sockets, 16TB Memory
9080-M9S E980 (4 Node) 128-192 Processors, 16 Sockets, 16TB Memory
