ESFB IBM iSeries 300GB 15K RPM SAS SFF-3 4K Block - 4224 Disk Drive
Brand:
Model Number:
8284-ESFB

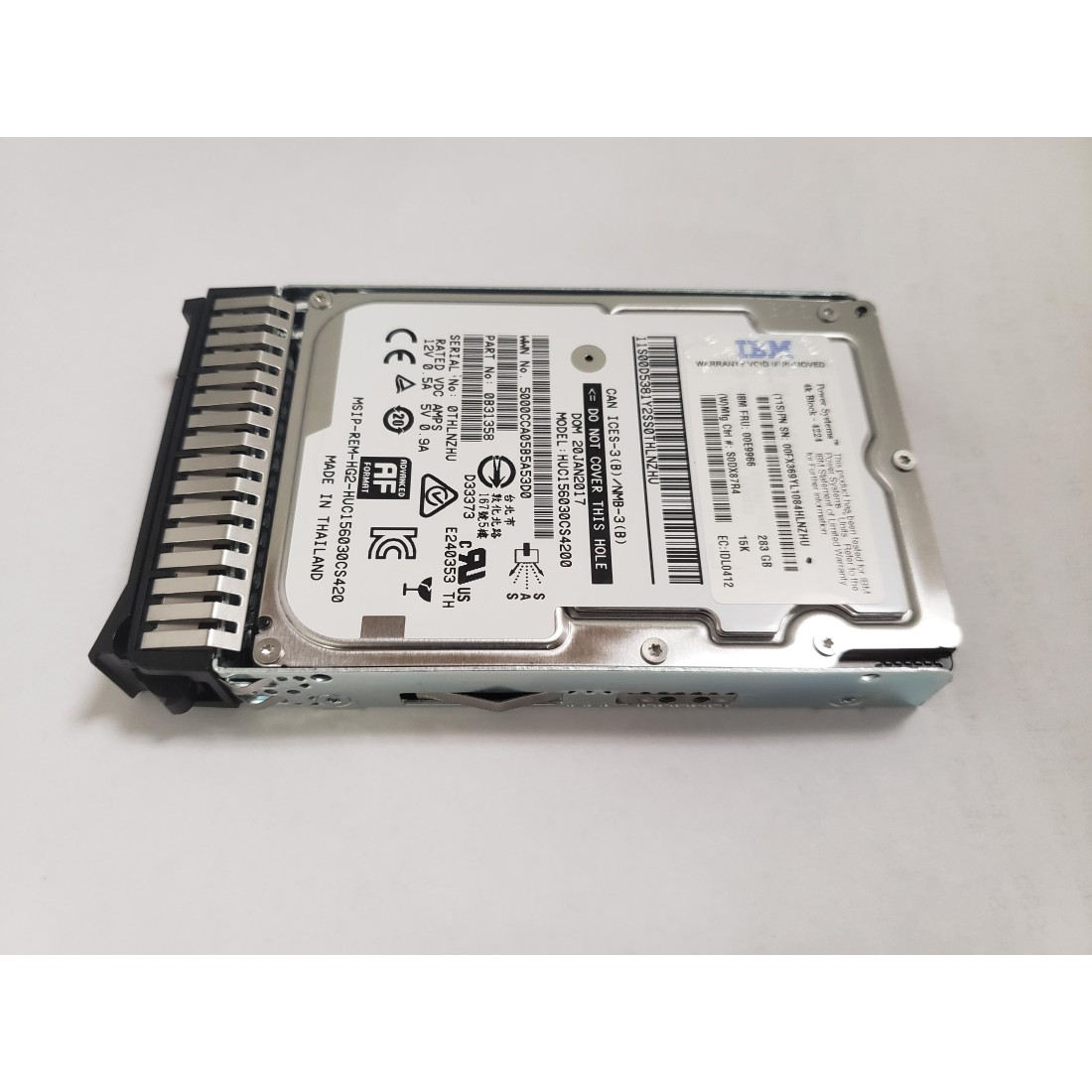

8284-ESFB IBM iSeries 300GB 15K RPM SAS SFF-3 4K Block - 4224 Disk Drive
300 GB 2.5-inch (Small Form Factor (SFF)) 15k rpm SAS disk drive on Gen-3 carrier/tray. Supported in SFF-3 SAS bays. Disk is formatted for 4096 byte sectors. If reformatted to 4224 byte sectors, capacity would be 300 GB.
CCIN is 59E1
Limitation: Cannot be used in EXP24S SFF Gen2-bay Drawer because of physical difference of carrier/tray.
Limitation: Can not be combined in the same array as a drive of the same capacity, but using different sector size.
- Attributes provided: 300 GB Disk Drive - SFF-3 4K block
- Attributes required: one SFF-3 drive bay
- For 8286-42A: (#ESFB)
- Minimum required: 0
- Maximum allowed: 18 (Initial order maximum: 18)
- OS level required:
- Red Hat Enterprise Linux
- SUSE Linux Enterprise Server
- AIX Version 7.1 with the 7100-03 Technology Level and Service Pack 3 - or-AIX Version 6.1 with the 6100-09 Technology Level and Service Pack 3 or later
- Refer to Software Requirements for specific O/S levels supported
- Initial Order/MES/Both/Supported: Both
- CSU: Yes
- Return parts MES: No
Note: Requires VIOS 2.2.3.3 or later when assigned to the VIOS.
