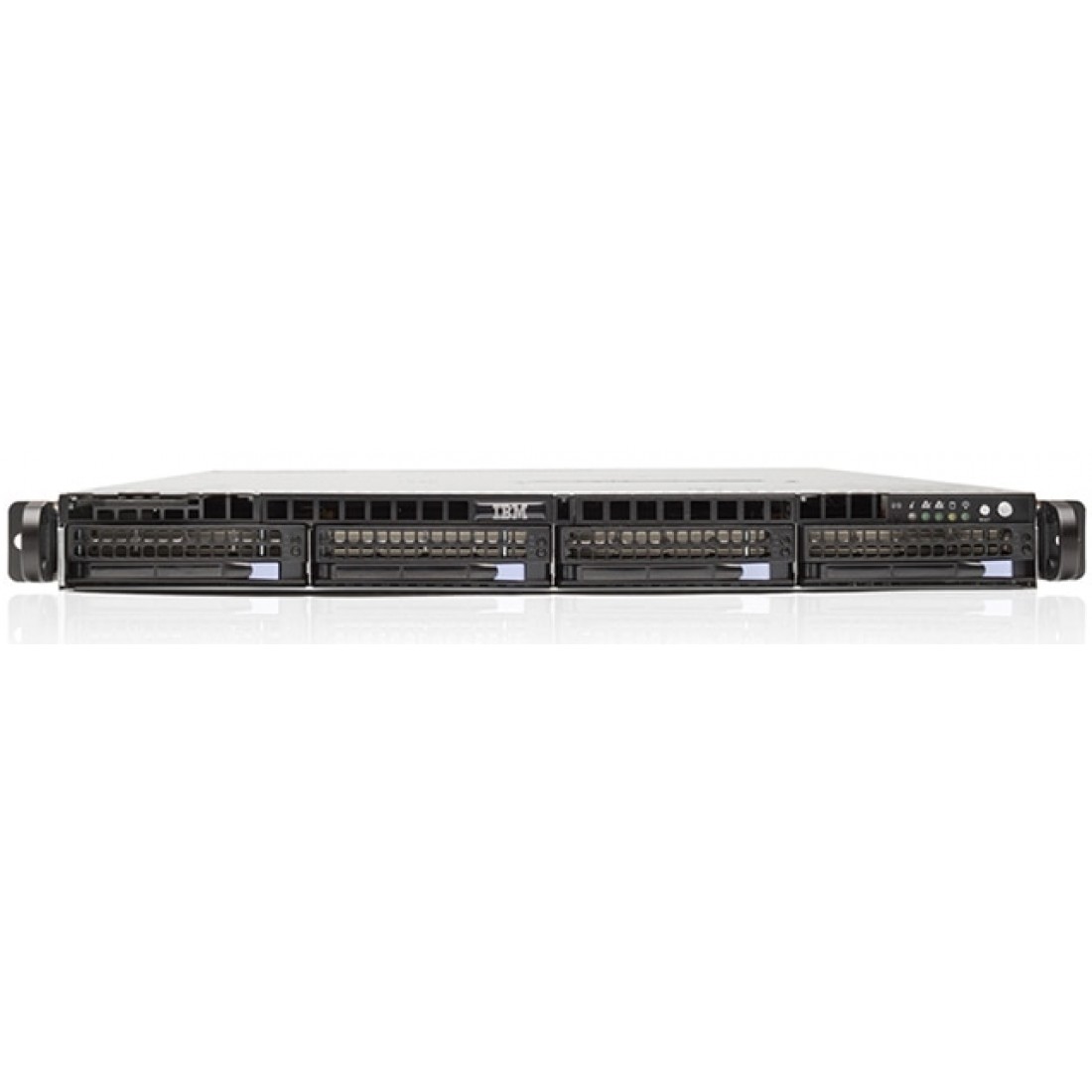

Linux Server Hardware 9006-12P EKP6 32-core IBM POWER9 LC921
Brand:
IBM Power9 Systems
Model Number:
9006-12P-EKP6-32-Core
IBM POWER9 LC921 9006-12P EKP6 32-core 2.2 GHz Linux server hardware can have up to two sockets for 24-cores, supports up to 1TB of DDR4 memory in 16 RDIMM main storage slots, up to 40 TB of HDD or 15.2 TB of SSD storage, includes four PCIe slots (including three CAPI 2.0), two redundant, hot swappable power supplies and many other features for a 1U 19-inch rack mount chassis. The IBM POWER9 9006-12P LC921 Linux servers were built for heavy IO, compute intensive workloads, can scale up efficiently and with a small price tag.
Other 9006-12P POWER9 Linux Server hardware models:
9006-12P EKP6 16-core 2.2 GHz
9006-12P EKP7 20-core 2.13 GHz
9006-12P EKP6 32-core 2.2 GHz Two Socket
9006-12P EKP7 40-core 2.13 GHz Two Socket
9006-12P EKP6 16-core 2.2 GHz
9006-12P EKP7 20-core 2.13 GHz
9006-12P EKP6 32-core 2.2 GHz Two Socket
9006-12P EKP7 40-core 2.13 GHz Two Socket
Linux server distribution requirements: IBM Red Hat Enterprise Linux RHEL 7.5 little endian (LE) or later, Red Hat Enterprise Linux 8 or later, Ubuntu Server 18.04 LTS or later, SUSE Linux Enterprise Server (SLES).
Memory
1 TB Maximum in 16 RDIMM Main Storage Slots. 2 socket servers reach maximum performance with up to 170 GB/s peak memory BW with 8x >=2R RDIMMs single drop and running at 2667 Mb/s (136 GB/s peak memory BW with all 16x RDIMMs populated, running 2133 Mb/s). Memory options:
EKMF 16GB DDR4 Memory
EKMG 32GB DDR4 Memory
EKMD 64GB DDR4 Memory
1 TB Maximum in 16 RDIMM Main Storage Slots. 2 socket servers reach maximum performance with up to 170 GB/s peak memory BW with 8x >=2R RDIMMs single drop and running at 2667 Mb/s (136 GB/s peak memory BW with all 16x RDIMMs populated, running 2133 Mb/s). Memory options:
EKMF 16GB DDR4 Memory
EKMG 32GB DDR4 Memory
EKMD 64GB DDR4 Memory
Storage bays
Four LFF/SFF bays for four SAS/SATA HDDs or SSDs or for NVMe Gen3
Four LFF/SFF bays for four SAS/SATA HDDs or SSDs or for NVMe Gen3
Drive options
LFF SATA HDD Options:
EKDA 2TB 3.5-inch 7200 RPM SATA 6Gb/s HDD 512e NONSED Write Cache
EKDB 4TB 3.5-inch 7200 RPM SATA 6Gb/s HDD 512e NONSED Write Cache
EKDD 8TB 3.5-inch 7200 RPM SATA 6Gb/s HDD 512e NONSED Write Cache
EKDG 10TB 3.5-inch 7200 RPM SATA 6Gb/s HDD 512e NONSED Write Cache
LFF SAS HDD Options:
EKD1 2TB 3.5-inch 7200 RPM SAS 12Gb/s HDD 512e NONSED Write Cache
EKD2 4TB 3.5-inch 7200 RPM SAS 12Gb/s HDD 512e NONSED Write Cache
EKD4 8TB 3.5-inch 7200 RPM SAS 12Gb/s HDD 512e NONSED Write Cache
EKD8 10TB 3.5-inch 7200 RPM SAS 12Gb/s HDD 512e NONSED Write Cache
EKD5 4TB 3.5-inch 7200 RPM SAS 12Gb/s HDD 512e SED Write Cache
EKD6 8TB 3.5-inch 7200 RPM SAS 12Gb/s HDD 512e SED Write Cache
SFF SAS HDD Options:
EKDQ 1.2TB 2.5-inch 10000 RPM SAS 12Gb/s HDD 512e NONSED Write Cache
EKDR 1.8TB 2.5-inch 10000 RPM SAS 12Gb/s HDD 512e NONSED Write Cache
SFF SATA SSD Options:
EKS1 240GB 2.5-inch SATA SSD 0.78-DWPD SED
EKS3 960GB 2.5-inch SATA SSD 0.6-DWPD NONSED
EKSG 1.92TB 2.5-inch SATA SSD 3.5-DWPD SED
SFF SAS SSD Options:
EKS6 3.8TB 2.5-inch SAS SSD 1-DWPD NONSED
EKSB 3.8TB 2.5-inch SAS SSD 1-DWPD SED
NVMe Gen3 SSD Options:
EKNR 960GB SSD; NVMe; 2.5-inch; PCIe3.0 x4; 0.8-DWPD
EKNL 1600GB SSD; NVMe; 2.5-inch; PCIe3.0 x4; 5-DWPD
EKNN 3200GB SSD; NVMe; 2.5-inch; PCIe3.0 x4; 5-DWPD
EKDA 2TB 3.5-inch 7200 RPM SATA 6Gb/s HDD 512e NONSED Write Cache
EKDB 4TB 3.5-inch 7200 RPM SATA 6Gb/s HDD 512e NONSED Write Cache
EKDD 8TB 3.5-inch 7200 RPM SATA 6Gb/s HDD 512e NONSED Write Cache
EKDG 10TB 3.5-inch 7200 RPM SATA 6Gb/s HDD 512e NONSED Write Cache
LFF SAS HDD Options:
EKD1 2TB 3.5-inch 7200 RPM SAS 12Gb/s HDD 512e NONSED Write Cache
EKD2 4TB 3.5-inch 7200 RPM SAS 12Gb/s HDD 512e NONSED Write Cache
EKD4 8TB 3.5-inch 7200 RPM SAS 12Gb/s HDD 512e NONSED Write Cache
EKD8 10TB 3.5-inch 7200 RPM SAS 12Gb/s HDD 512e NONSED Write Cache
EKD5 4TB 3.5-inch 7200 RPM SAS 12Gb/s HDD 512e SED Write Cache
EKD6 8TB 3.5-inch 7200 RPM SAS 12Gb/s HDD 512e SED Write Cache
SFF SAS HDD Options:
EKDQ 1.2TB 2.5-inch 10000 RPM SAS 12Gb/s HDD 512e NONSED Write Cache
EKDR 1.8TB 2.5-inch 10000 RPM SAS 12Gb/s HDD 512e NONSED Write Cache
SFF SATA SSD Options:
EKS1 240GB 2.5-inch SATA SSD 0.78-DWPD SED
EKS3 960GB 2.5-inch SATA SSD 0.6-DWPD NONSED
EKSG 1.92TB 2.5-inch SATA SSD 3.5-DWPD SED
SFF SAS SSD Options:
EKS6 3.8TB 2.5-inch SAS SSD 1-DWPD NONSED
EKSB 3.8TB 2.5-inch SAS SSD 1-DWPD SED
NVMe Gen3 SSD Options:
EKNR 960GB SSD; NVMe; 2.5-inch; PCIe3.0 x4; 0.8-DWPD
EKNL 1600GB SSD; NVMe; 2.5-inch; PCIe3.0 x4; 5-DWPD
EKNN 3200GB SSD; NVMe; 2.5-inch; PCIe3.0 x4; 5-DWPD
PCIe slots
Two PCIe G4 x16 FHFL slots, CAPI 2.0 enabled
One PCIe G4 x8 FHFL slots
One PCIe G4 x8 LP slot, CAPI 2.0 enabled (internal)
Two PCIe G4 x16 FHFL slots, CAPI 2.0 enabled
One PCIe G4 x8 FHFL slots
One PCIe G4 x8 LP slot, CAPI 2.0 enabled (internal)
Two hot-swap redundant power supplies
Integrated in POWER9 Server
Two rear USB 3.0 ports
TPM2.0 Nuvoton NPCT650ABAWX through I2C (for secure boot and trusted boot)
Integrated MicroSemi PM8069 SAS/SATA 16-port Internal Storage Controller PCIe3.0 x8 with RAID 0, 1, 5, and 10 support (no write cache)
Selecting a 4Kn HDD requires an LSI HBA to be chosen. SSDs must be formatted by the client to 512-byte sectors for RAID. The Integrated SAS/SATA controller (PM8069) does not support RAID 4Kn devices (SSD or HDD).
Integrated SAS/SATA controller (PM8069) does not have the SED feature, but can use unlocked SED drives.
Integrated Intel XL710 Quad Port 10GBase-T PCIe3.0 x8 UIO built-in LAN (one shared management port)
Dedicated 1 Gb IPMI port
Rear VGA port
Two rear USB 3.0 ports
TPM2.0 Nuvoton NPCT650ABAWX through I2C (for secure boot and trusted boot)
Integrated MicroSemi PM8069 SAS/SATA 16-port Internal Storage Controller PCIe3.0 x8 with RAID 0, 1, 5, and 10 support (no write cache)
Selecting a 4Kn HDD requires an LSI HBA to be chosen. SSDs must be formatted by the client to 512-byte sectors for RAID. The Integrated SAS/SATA controller (PM8069) does not support RAID 4Kn devices (SSD or HDD).
Integrated SAS/SATA controller (PM8069) does not have the SED feature, but can use unlocked SED drives.
Integrated Intel XL710 Quad Port 10GBase-T PCIe3.0 x8 UIO built-in LAN (one shared management port)
Dedicated 1 Gb IPMI port
Rear VGA port
19-inch rack-mount hardware (1U)
