IBM AS400 iSeries IBM 59DD 10K SFF SAS Disk Drive 1.7 or 1.8 TB  .. Product #: 59DD-00E9938-00E9946-00LY426

IBM 59DD 10K SFF SAS Disk Drive 00E9938 00E9946 00LY426

Brand: IBM AS400 iSeries
Model Number: 59DD-00E9938-00E9946-00LY426

IBM 59dd 00e9938 00e9946 00ly426 1.71 TB 1.8 TB 10K SFF SAS disk drive

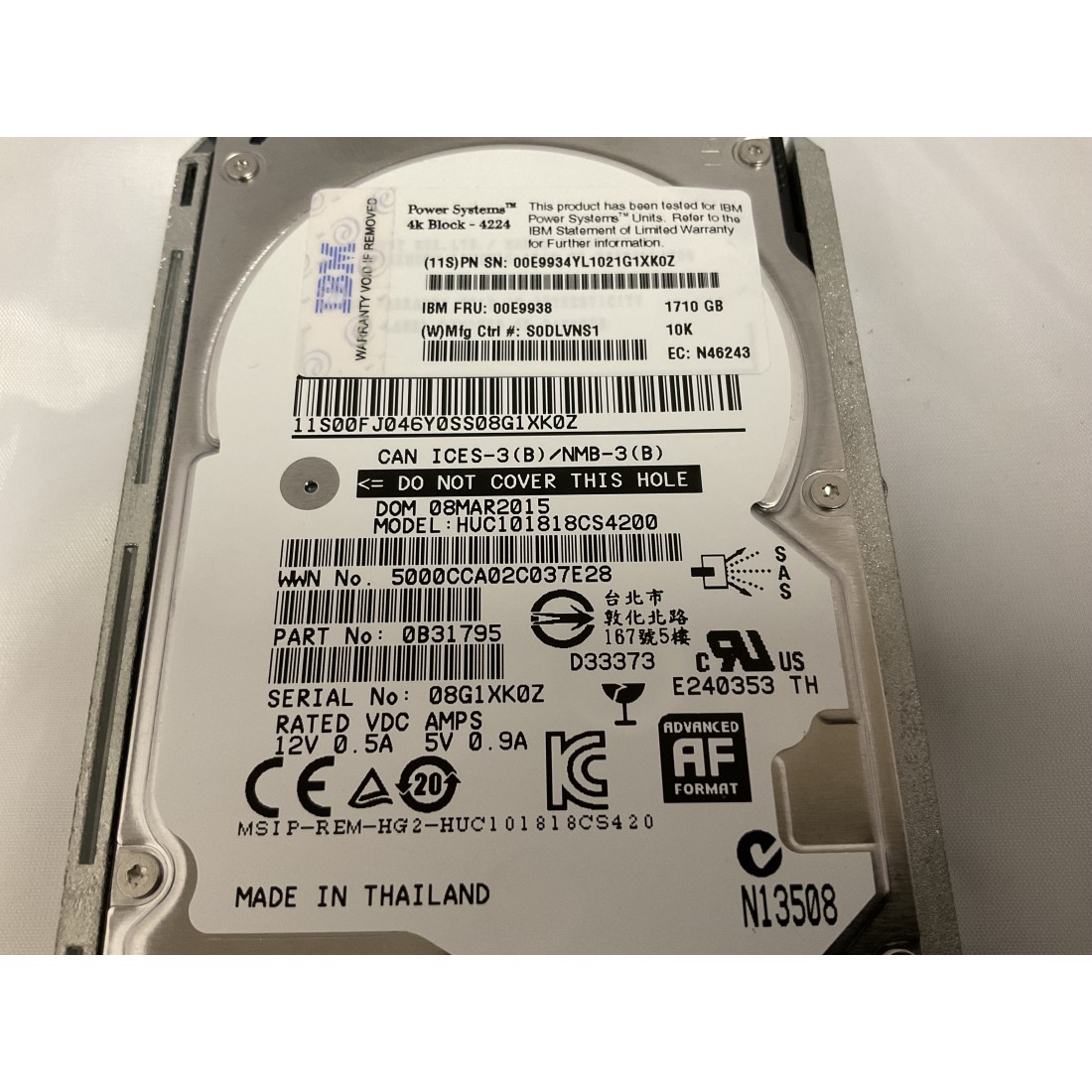

IBM 59DD is a 1.71 TB 10K small form factor SAS disk drive with 4K block size for IBM i Power Systems, and has 00E9938 part number. The IBM 59DD is also 1.8 TB 10K small form factor SAS disk drive with 4K block size for IBM AIX and Linux Power Servers, and has 00E9946 part number. The IBM 59DD is also a 1.8 TB 10K small form factor SAS disk drive with 4K block size for IBM Elastic Storage Server and has 00LY426 part number.

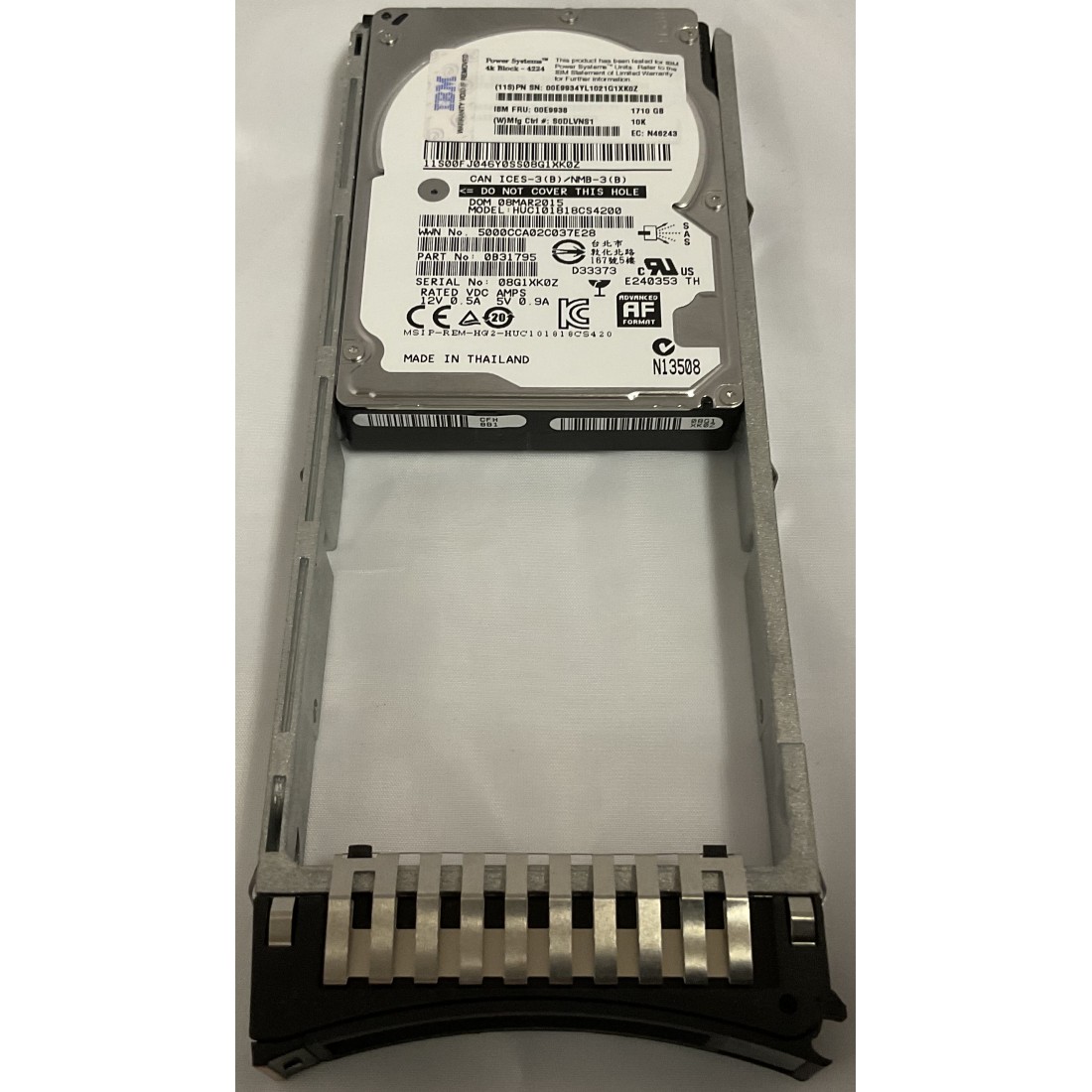

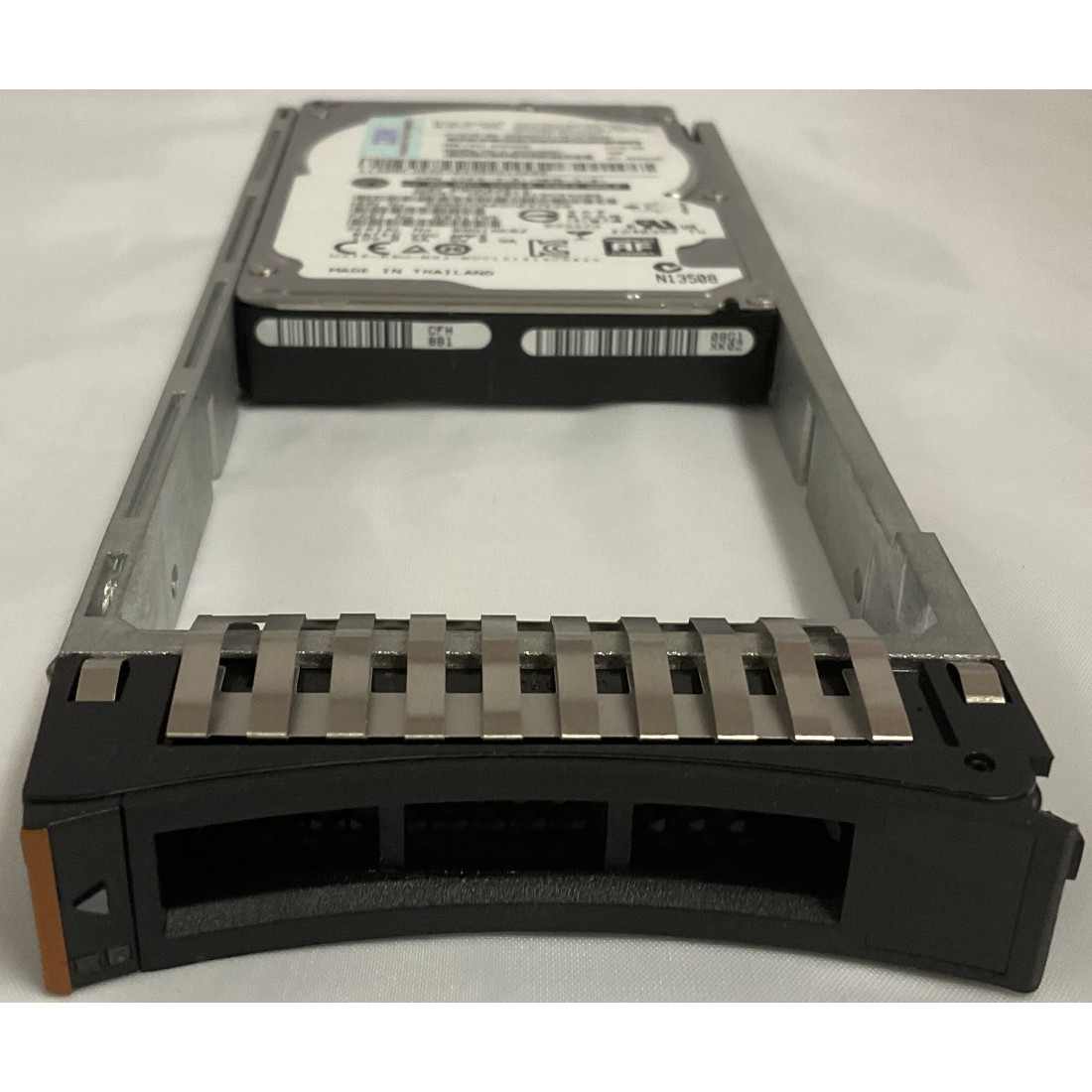

The IBM 59DD disk drive includes a Gen-2 carrier tray supported in SFF-2 SAS bays such as found in the IBM EXP24S storage drawer. The IBM 59DD disk drive is formatted for 4224 byte sectord, but can be reformatted to 4096 byte sectors for 1.8 TB capacity and would not have the 4224 byte additional data integrity protection.

The IBM 59DD disk drive has features ESFS and ESFT, which are physically identical drives with the same 59DD CCIN. The IBM 59DD SAS disk drive cannot be combined in the same array as a drive using a different sector size. The IBM 59DD disk drive physically does not fit in a SFF-1 or SFF-3 bay due to carrier tray differences.

00E9938 00E9946 00LY426 OS Requirements:
IBM i OS400 V7R2 TR2 or later supported
IBM AIX Version 6.1 with the 6100-09 Technology Level + SP 3 and APAR IV56366 or later
IBM AIX Version 7.1 with the 7100-03 Technology Level + SP 3 and APAR IV56367 or later
IBM Red Hat Enterprise Linux 6.5, or later
IBM Red Hat Enterprise Linux 7, big endian, or later
IBM Red Hat Enterprise Linux 7.1, little endian, or later
SUSE Linux Enterprise Server 11, Service Pack 3, or later
SUSE Linux Enterprise Server 12, or later
Ubuntu 15.04, or later

The IBM 59DD is a 1.71 TB 10K SFF-2 SAS disk drive is only available in refurbished or used condition as of April 29, 2022.
