00E8606 00E8614 IBM 59C8 1.2TB 10K SAS SFF-1 Disk Drive ESD0 ESD1
Brand:
IBM AS400 iSeries
Model Number:
00E8606-59C8-00E8614
Custom Field 1 (UPC):
00E8614
Custom Field 2 (EAN): 00E8606
Custom Field 3 (ISPN): 59C8
Custom Field 4 (MPN): ESD1
Custom Field 2 (EAN): 00E8606
Custom Field 3 (ISPN): 59C8
Custom Field 4 (MPN): ESD1

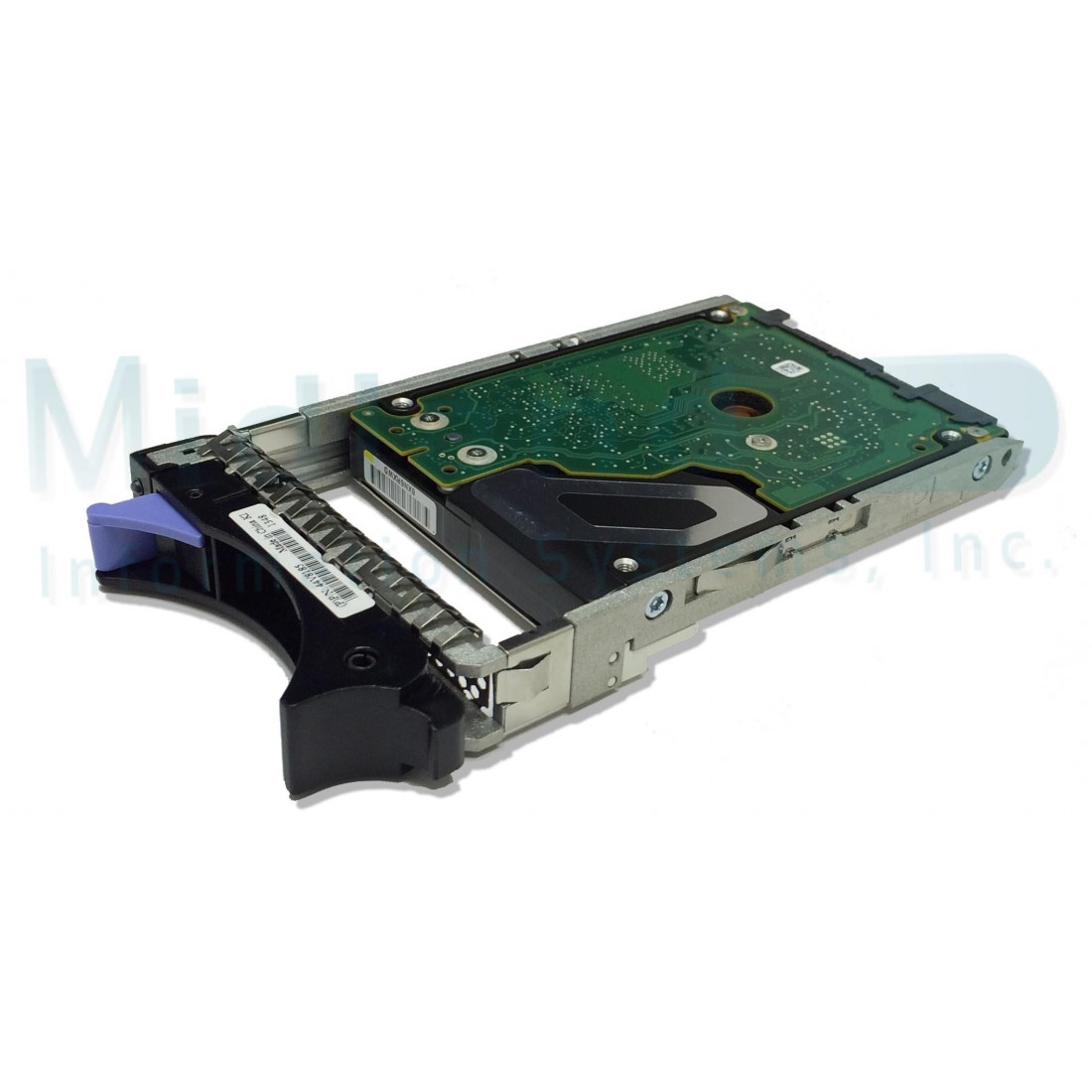

IBM 59C8 1.2TB 10K RPM SAS SFF-1 Disk Drive 00E8606 00E8614 ESD0 ESD1
The IBM 59C8 1.2TB 10K RPM SAS SFF-1 Disk Drive has a Gen1 carrier tray, installs in IBM Power system unit SFF-1 SAS bays or the 5802 and 5803 I/O drawers, and has 00E8606 00E8614 part numbers. The IBM 59C8 1.2TB 10K RPM SAS SFF-1 Disk Drive can be formatted to 528 byte sectors for IBM i, Power AIX, Linux Servers or VIOS systems with 1.2 TB capacity or 512 byte sectors for 1.1 TB capacity. The IBM ESD1 and ESD0 are identical disk drives but have differetn feature codes for IBM configuration tools to know which OS type, SAS disk bay and carrier tray will be used for the disk drive.
The IBM 59C8 1.2TB 10K RPM SAS SFF-1 Disk Drive is supported in the following IBM Power Systems: 8202-E4B, 8202-E4C, 8202-E4D, 8205-E6B, 8205-E6C, 8205-E6D, 8231-E1C, 8231-E1D, 8231-E2B, 8231-E2C, 8231-E2D, 8233-E8B, 8408-E8D, 9109-RMD, 9117-MMB, 9117-MMC, 9117-MMD, 9119-FHB, 9179-MHB, 9179-MHC, 9179-MHD
Note: The IBM ESD1 can not be used in 5887 EXP24S Gen2 I/O drawer due to physical difference in Gen1 and Gen2 carriers.
IBM 59C8 00E8606 00E8614 OS Requirements:
IBM i V7R1 or later
AIX Version 6.1 supported
AIX Version 7.1 supported
Red Hat Enterprise Linux 5.8 for Power, or later
Red Hat Enterprise Linux 6.2 for Power, or later
SUSE Linux Enterprise 10, Service Pack 4, or later
SUSE Linux Enterprise 11, Service Pack 2, or later
