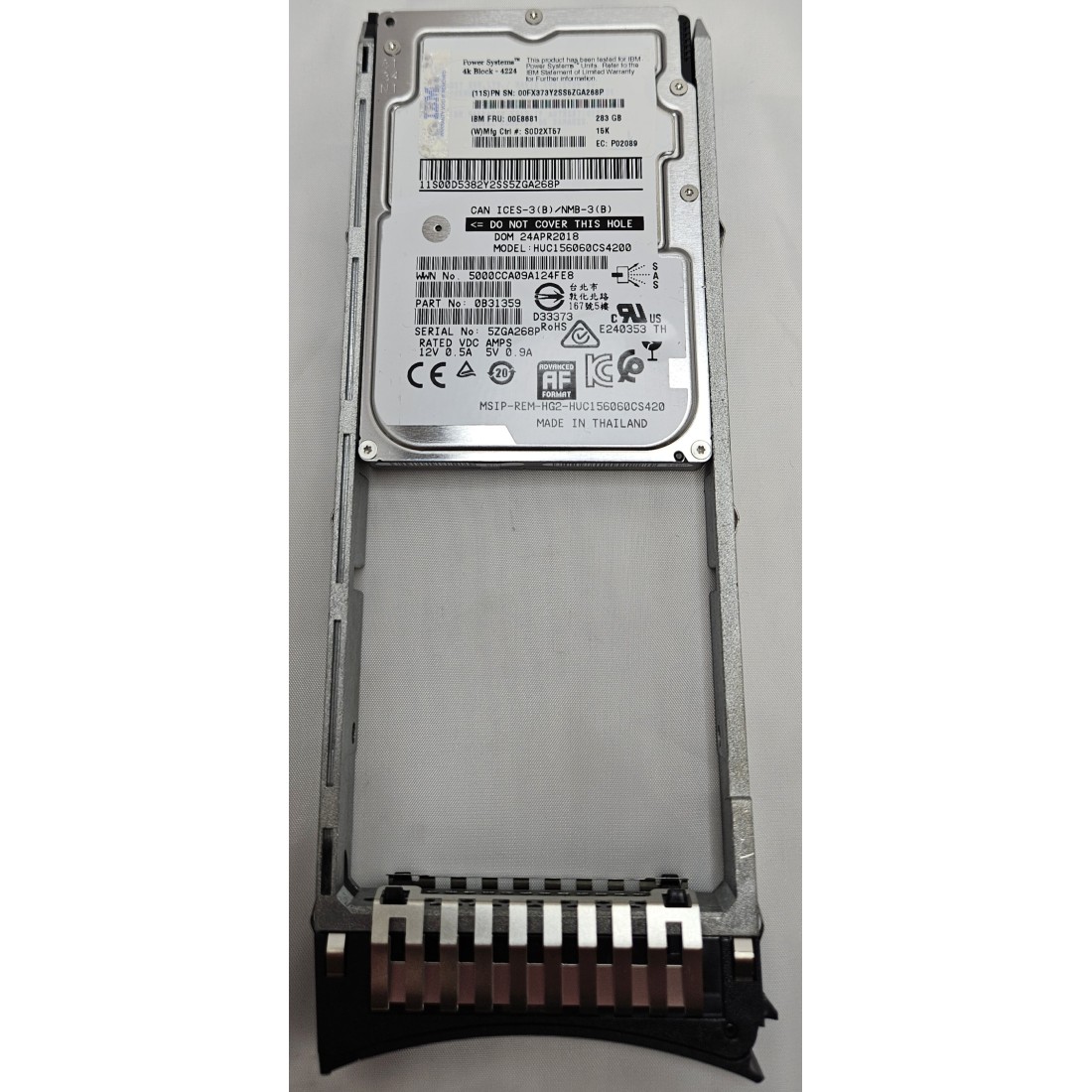

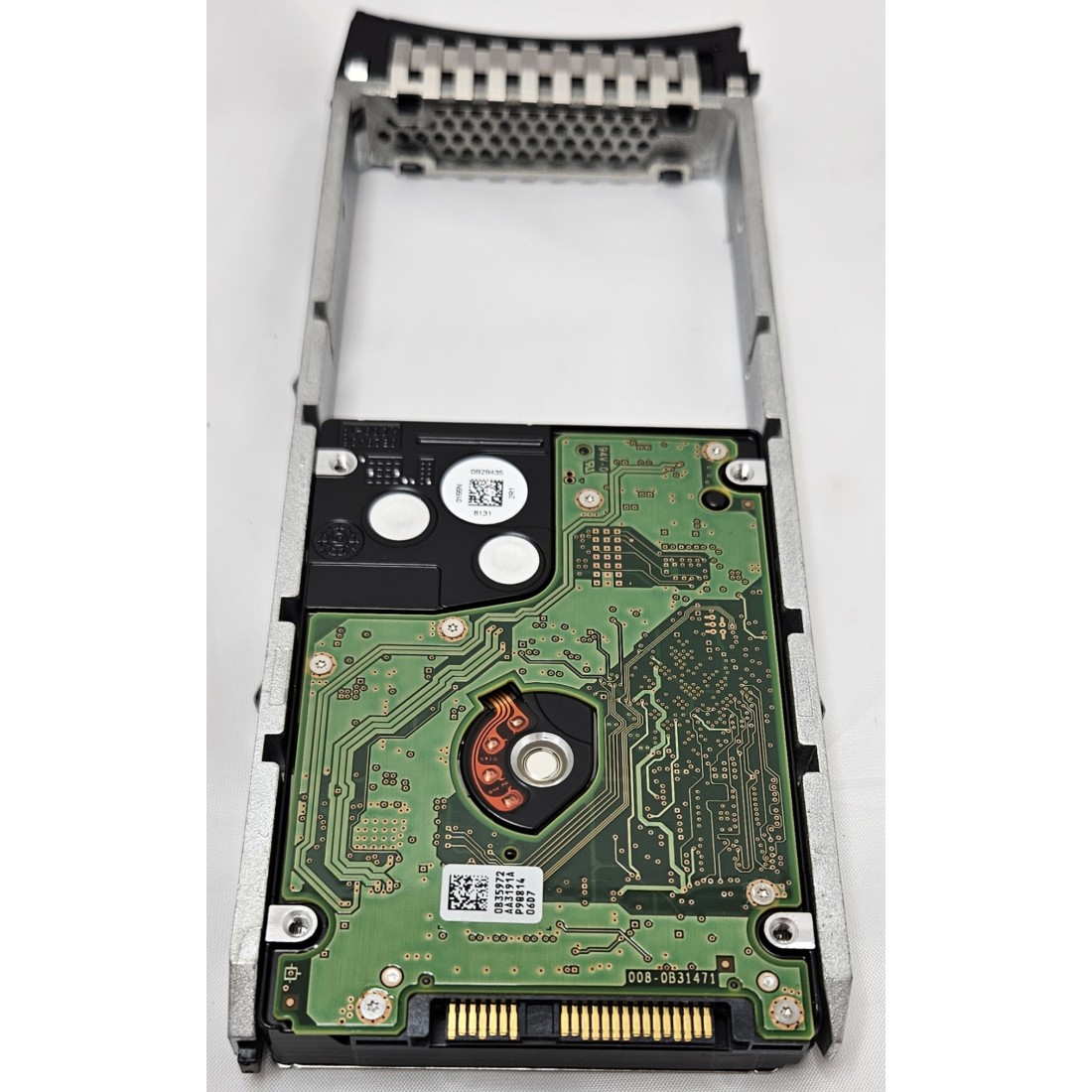

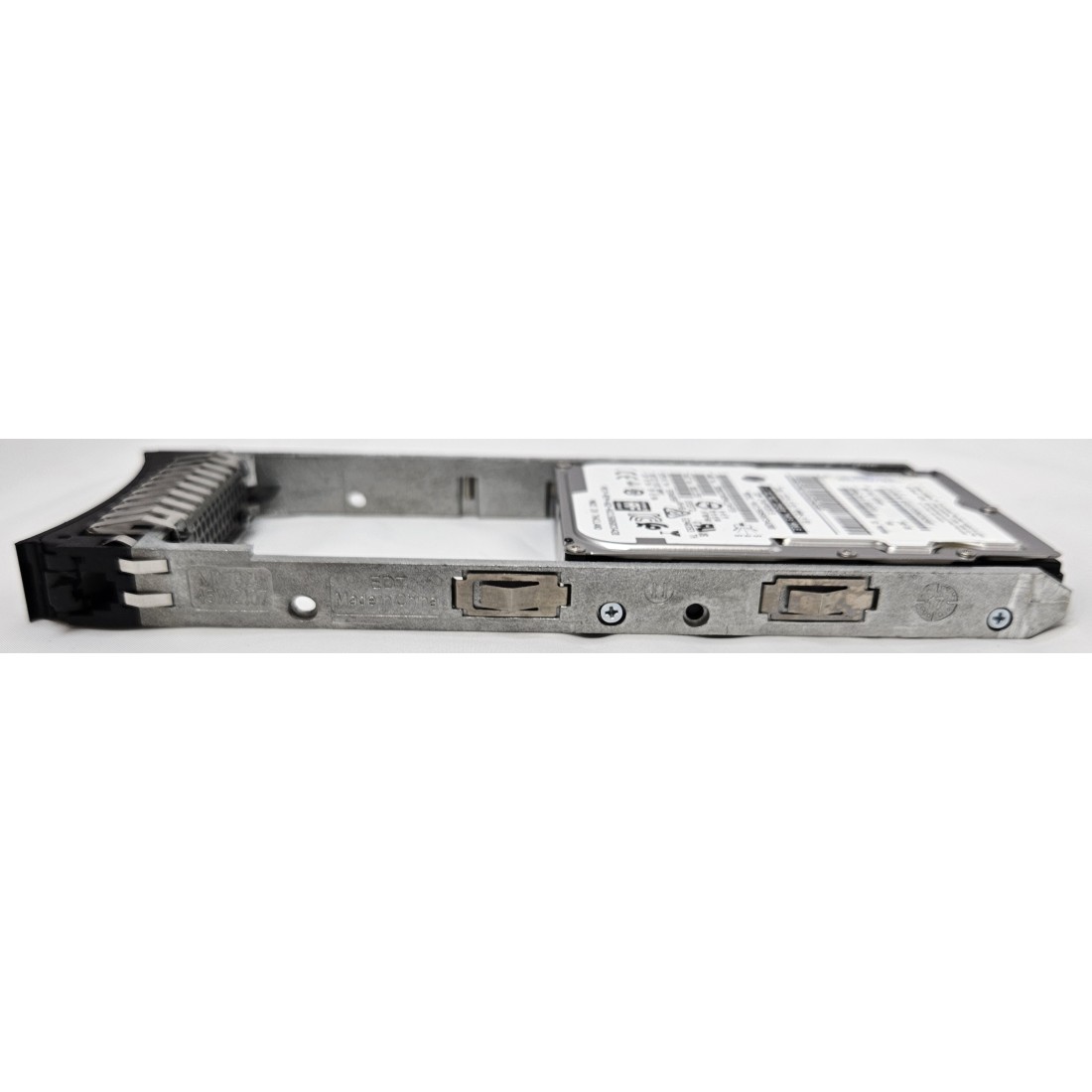

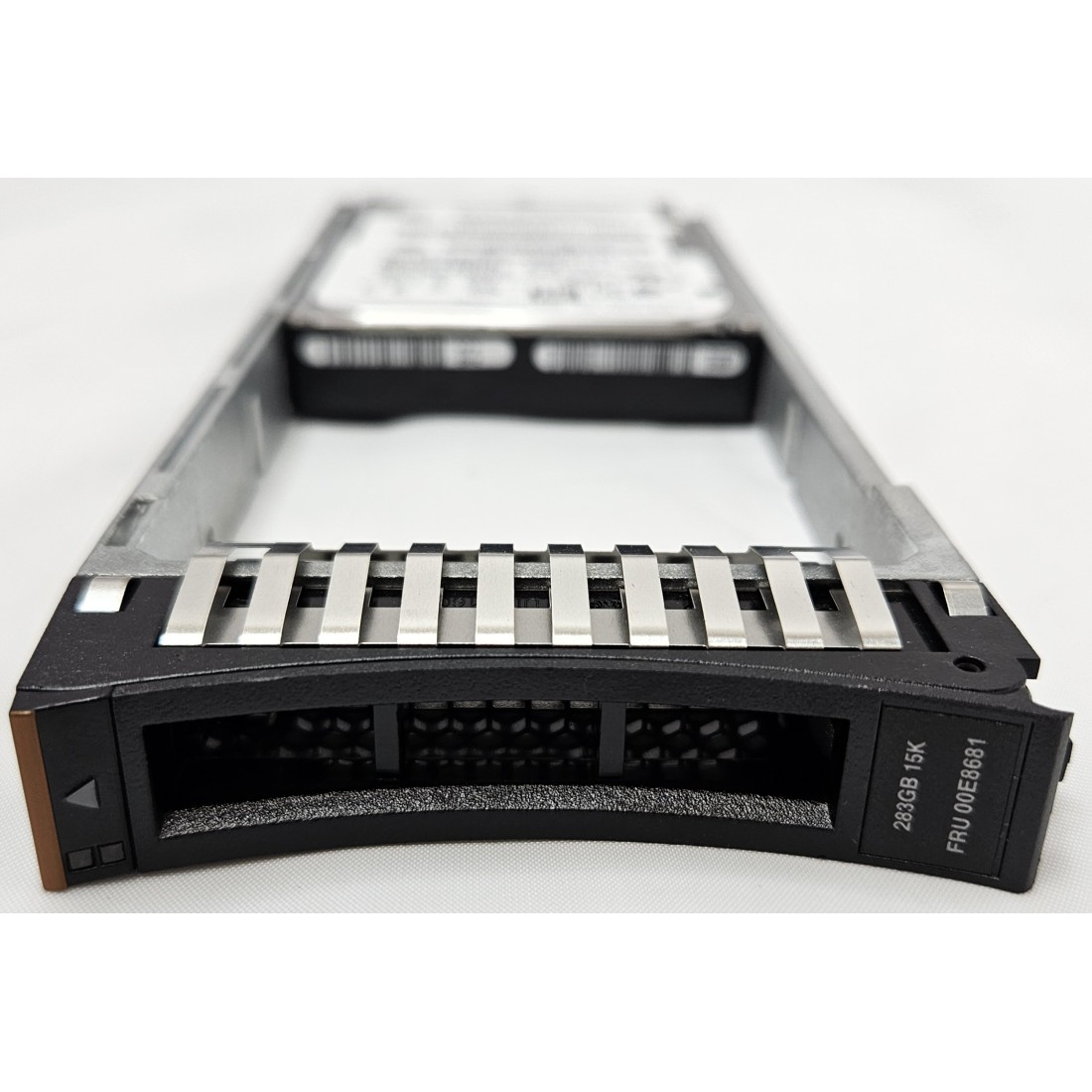

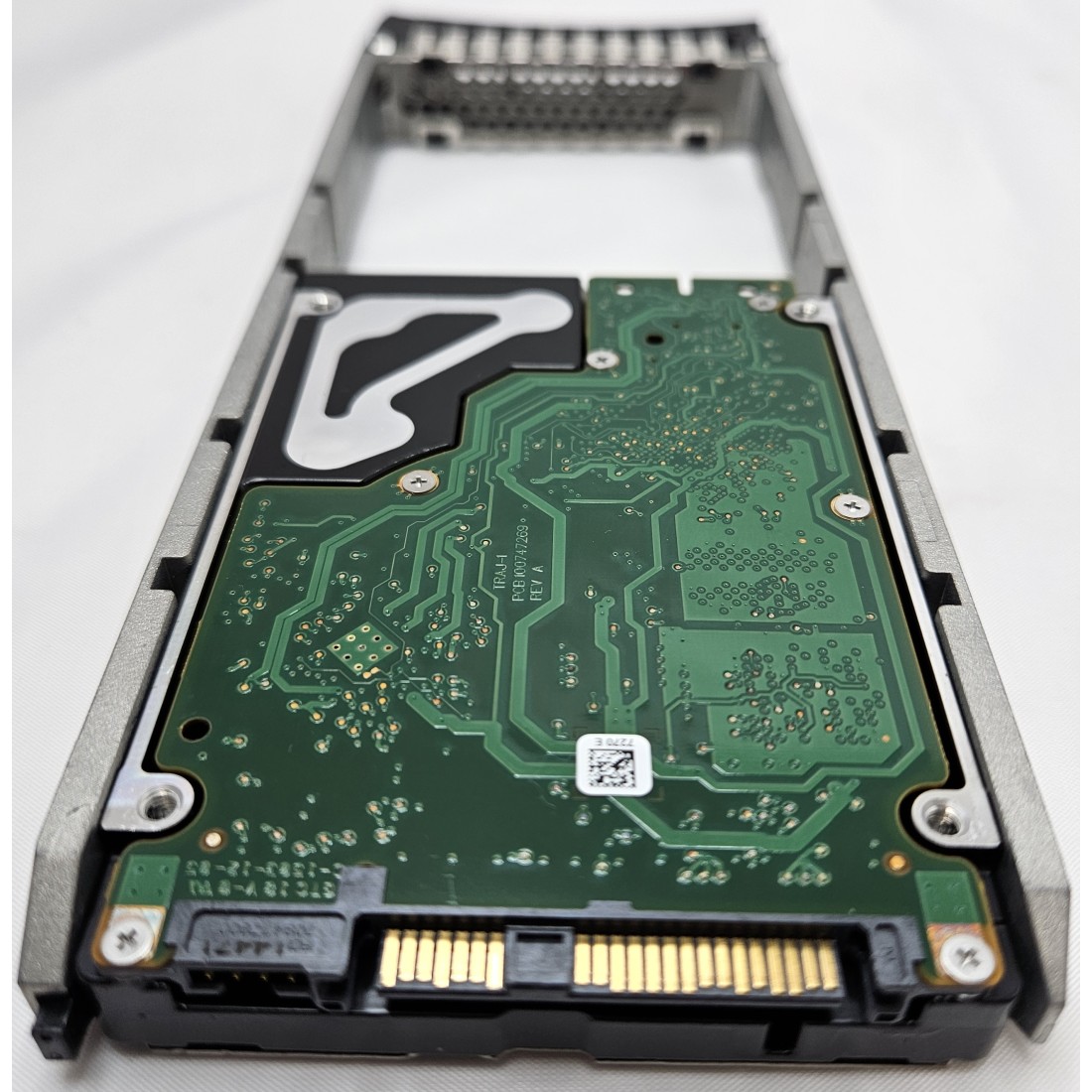

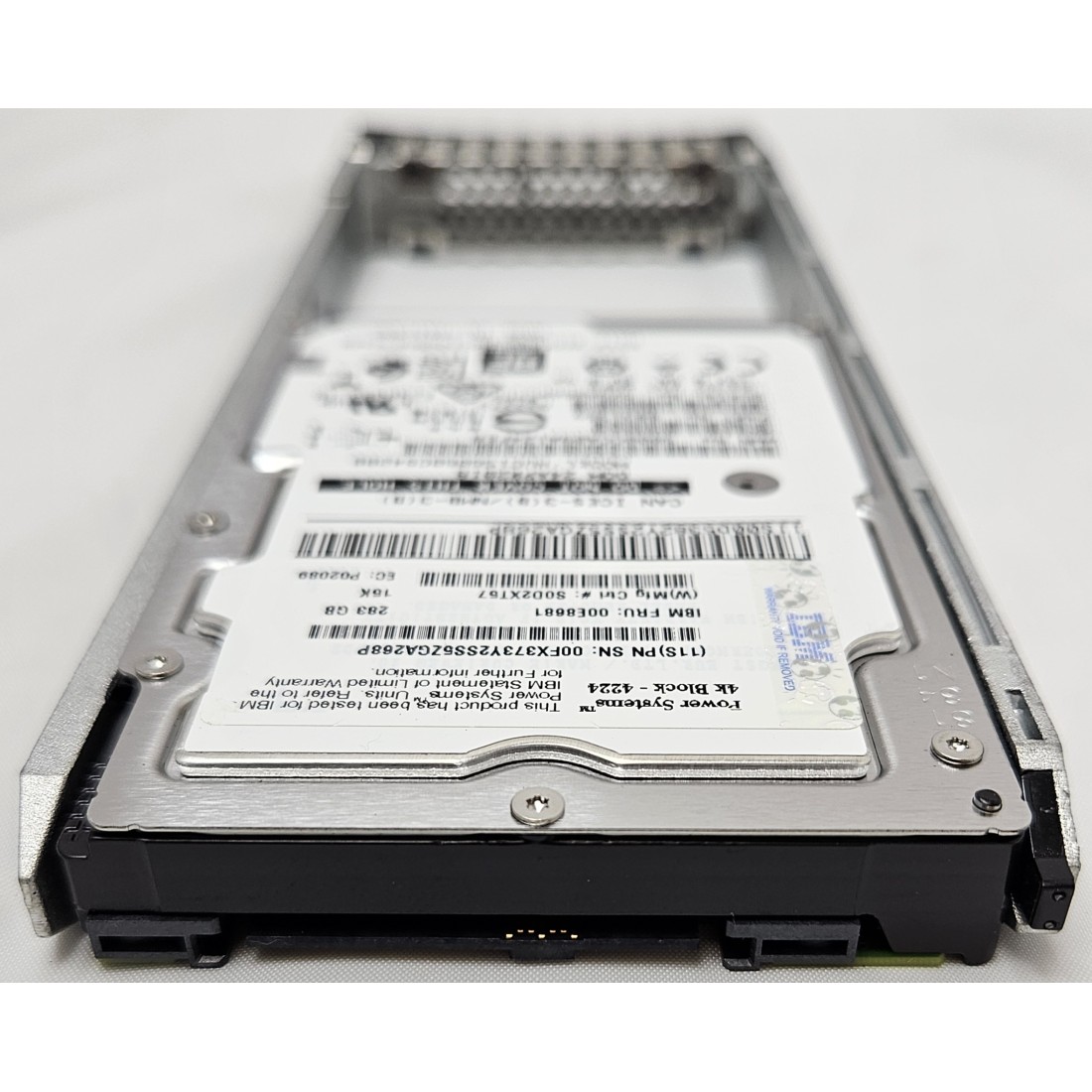

00E8681 IBM 59C9 283GB 15K RPM SAS SFF-2 4K Disk Drive iSeries ESEY

00E8681 00E8687 00FX373 00E8683 IBM 59C9 283GB 15K RPM SAS SFF-2 4K Disk Drive iSeries ESEY
The IBM ESEY 283GB 15K Disk Drive for iSeries IBM i Power Systems is a SAS SFF-2 4K Block on Gen-2 carrier tray. The IBM ESEY 283GB 15K Disk Drive is supported in SFF-2 SAS bays of a IBM EXP24S drawer and reports with CCIN 59C9 and has 00E8681 00E8687 00FX373 00E8683 part numbers. The IBM 59C9 Disk Drive is formatted for 4224 byte sectors for iSeries systems. The IBM 59C9 00E8681 feature is identical to the IBM ELEZ 300GB 15k RPM SAS SFF-2 4K Block (4096) Disk Drive for IBM Power Linux systems with 00E8687 part number and has the same 59C9 CCIN.If the ESEY was reformatted to 4096 byte sectors, capacity would be 300 GB. The IBM 59C9 may have ESEY ESEZ or ELEZ feature code depending the IBM Power Server Model, OS type and SAS bay placement when configured for purchase.

All IBM Hardware purchased by end users is eligible for both existing and new IBM maintenance and support agreements. IBM hardware purchases also includes warranty and free technical support during normal business hours. Onsite and remote professional services requried outside normal business hours are provided for an additional fee.

IBM 59C9 00E8681 cannot be used in Power8 System unit SFF Gen3-bay drawer because of physical difference of carrier/tray. The 59C9 cannot be combined in the same array as a drive of the same capacity that is using different sector size.
