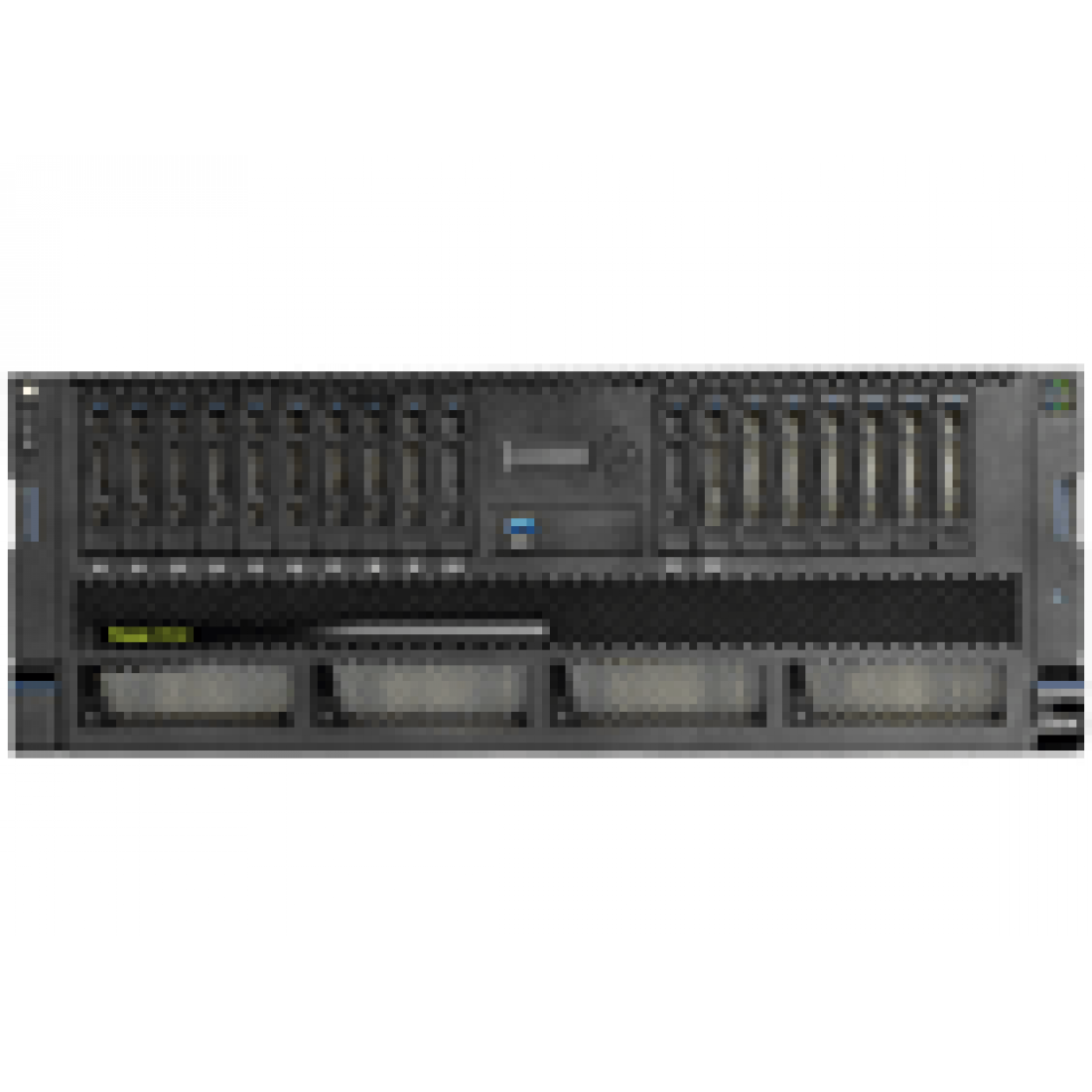

IBM 9009-42A EP1F 10-Core Power9 Processor IBM i AIX Linux VIOS
Brand:
IBM Power9 Systems
Model Number:
9009-42A-EP1F-10
IBM i 9009-42A EP1F Power9 Processor Systems with 17,450-174,500 CPW
IBM Power9 9009-42A with EP1F 10-core processor system is available in 1 or 2 sockets for 10 or 20-core processor configurations. The single socket 10-core configuration has maximum of 174,500 CPW with all Power9 processors active, and the two socket 20-core configuration has 318,000 CPW with all 20 Power9 processors active. The IBM S924 9009-42A with EP1F can have up to 4TB of memory, is in a P20 software tier and starts at $24,200. The IBM S924 9009-42A EP1F Power9 chip core speed has a range of 3.5 to 3.9 GHz. The 9009-42A EP1F Power9 processor has five Gen4 and six Gen3 slots. The IBM S924 model can have 12 or 16 internal slots for SSD and disk drives depending on configuration, and can attach up to 28 IBM EXP24SX I/O expansion drawers and IBM EMX0 PCIe3 expansion drawers can be attached (28 is the maximum combined quantity).
IBM 9009-42A EP1F 10 Core S924 CPW by Number of Processors Activated
10X=174500 | X9=157050 | X8=139600 | 7X=122150 | X6=104700 | X5=87250 | 4X=69800 | 3X=52350 | 2X=34900 | 1=17450
IBM Power9 S924 9009-42A Models CPW by Processors Activated
9009-42A EP1E 8-Core: 18,188-145,500 CPW
9009-42A EP1F 10-Core: 17,450-174,500 CPW
9009-42A EP1G 12-Core: 15,446-370,700 CPW
9009-42A EP1E 16-Core: 18,188-268,500 CPW
9009-42A EP1F 20-Core: 17,450-318,000 CPW
9009-42A EP1G 24-Core: 15,446 -370,700 CPW
See IBM S914 9009-41A processor models for systems in P05 and P10 software group. Detailed IBM i Power9 model specifications and comparisons can be viewed here.
IBM 9009-42A and other Power9 systems support PCIe Gen 4 and earlier PCIe generation feature cards. If I/O performance, response times and throughput are contributing factors for upgrading your IBM i, you should purchase new RAID Controllers and other SAS adapters, as the newer generation PCIe adapters provide significant performance gains. The 9009-42A Power9 systems support 220V power. IBM S924 Power9 models have three backplane options, a 12 SFF-3 Bays, a 18 SFF-3 bays with write cache or a 12 SFF-3 bays with dual IOA and write cache. IBM i workloads require 4k byte block hard disk drives or SSD. If you need to boot more than one Virtual IO server from internal disks, your Power9 system needs to the split backplane feature and a minimum of four disks (two per Virtual IO Server).
The Power System S924 model 9009-42A pricing depends on the configuration of the server. Each 9009-42A system comes custom configured to the exact specifications that the customer requests, including number of active cores and processers, memory, storage, operating system level and licsenses, and number of concurrent users.
