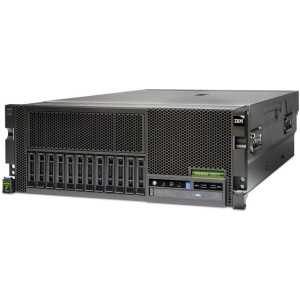

IBM Power8 IBM iSeries Power 8 8286 42A  .. Product #: 8286-42A-S824

IBM iSeries Power 8 8286 42A S824 Processor Upgrades

Brand: IBM Power8
Model Number: 8286-42A-S824
Tags: 8286-42a , s824 , Power8

8286 42A  IBM S824  IBM Power 8 processor upgrades for IBM i, AIX and Linux systems that offer up to 24-core dual processor configurations for up to 230,500 CPW or 421.9 rPerf, 16 memory slots for up to 4 TB of main storage and 18 disk slots for up to 35.4 TB of internal disk space. Go to 8286-42A iSeries or AIX product pages below for detailed S824 processor specifications and pricing:

8286-EPXE-6-Core 3.89 GHz Processor 72,000 CPW, P20
8286-EPXE 12-Core Two Socket 6-Core 3.89 GHz Processors 94,500 CPW, P20
8286-EPXF-8-Core 4.15 GHz Processor 130,000 CPW, P20
8286-EPXF-16-Core Two Socket 8-Core 4.15 GHz Processors 173,500 CPW, P20
8286-EPXH-24-Core Two Socket 3.52 Processors 230,500 CPW, P20
8286 42A EPXE 6-Core Single Socket Processor 120.8 AIX rPerf
8286 42A EPXF 8-Core Single Socket Processor 166 AIX rPerf
8286 42A EPXE 12-Core Two Socket Processor 235.6 AIX rPerf
8286 42A EPXF 16-Core Two Socket Processor 323.6 AIX rPerf
8286 42A EPXH 24-Core Two Socket Processor 421.9 AIX rPerf

Other IBM i Power 8 models include: 8286 41A, 8284 22A, 8284 21A. All IBM iSeries systems and parts are IBM Certified and eligible for IBM i Maintenance contracts and include warranty.

8286 42A S824 Data Sheet  |  8286 42A S824 Technical Overview

8286-42A System Specifications and Comparisons
L2 Cache per Processor Core: 512 KB
L3 Cache per Processor Core: 8 MB
L4 Cache per Processor Core: Up to 128 MB
EnergyScale: Yes
Chipkill memory: Yes
Service Processor: Yes
Hot-Swappable Disk: Yes
Dynamic Processor Deallocation: Yes
Processor Instruction Retry: Yes
Alternate Processor Recover: Yes
Hot-plug concurrent maintenance PCIe slots: Yes
Redundant hot-plug power: Yes
Redundant hot-plug cooling: Yes
Dual VIOS: Optional
PowerVM Standard Edition: Optional
PowerVM Enterprise Edition: Optional
Max logical partitions: 160
System unit PCIe Gen3 full high slots: 5 PCIe x8 & 2 PCIe x16
Max PCIe Gen3 I/O Drawer: 1
Max PCIe Gen 3 slots in System unit: 5
Max PCIe Gen 3 slots in PCIe I/O drawers: 12
Slimline DVD bay: 1
System unit disk/SSD bays with standard backplane: 12 SFF-3 or 6+6 SFF-3
System unit disk/SSD bays with expanded backplane and dual IOA with 7.2GB write cache: 18 SFF-3 plus 8 1.8-inch SSD bays plus optional EXP24S attachment for an additional 24 SFF-2 bays
System unit Disk/SSD bays:  35.4 TB using 18 SFF-3 or 6+6 SFF-3
EXP24S Expansion Drawers: 28 for a total of 672 SFF-2 SAS bays providing 1,209 TB with 1.8 TB disk drives

8286-42A Main Storage Options:

  • EM91 - IBM Power8 16 GB Memory CDIMM, 1600 Mbps, 4 Gb DDR4 DRAM
  • EM92 - IBM Power8 32 GB Memory CDIMM, 1600 Mbps, 4 Gb DDR4 DRAM
  • EM93 - IBM Power8 64 GB Memory CDIMM, 1600 Mbps, 4 Gb DDR4 DRAM
  • EM94 - IBM Power8 128 GB Memory CDIMM, 1600 Mbps, 4 Gb DDR4 DRAM
  • EM95 - IBM Power8 128 GB Memory CDIMM, 1600 Mbps, 4 Gb DDR4 DRAM

8286-42A SSD and HDD Options:

  • ES0C - IBM 387GB SFF-2 SSD for AIX/Linux with eMLC
  • ES0G - IBM 775GB SFF-2 SSD for AIX/Linux
  • ES0L - IBM 387GB SFF-3 SSD for AIX/Linux
  • ES0N - IBM 775GB SFF-3 SSD for AIX/Linux
  • ES0Q - IBM 387GB SFF-2 4K SSD for AIX/Linux
  • ES0S - IBM 775GB SFF-2 4k SSD for AIX/Linux
  • ES0U - IBM 387GB SFF-3 4k SSD AIX/Linux
  • ES0W - IBM 775GB SFF-3 4k SSD for AIX/Linux
  • ES0W - IBM 775GB SFF-3 4k SSD for AIX/Linux
  • ES19 - IBM 387GB SFF-2 SSD for AIX/Linux
  • ES62 - IBM 3.86-4.0 TB 7200 RPM 4K SAS LFF-1 Nearline Disk Drive for AIX/Linux
  • ES64 - IBM 7.72-8.0 TB 7200 RPM 4K SAS LFF-1 Nearline Disk Drive for AIX/Linux
  • ES78 - IBM 387GB SFF-2 SSD 5xx eMLC4 for AIX/Linux
  • ES0W - IBM 775GB SFF-3 4k SSD for AIX/Linux
  • ES7E - IBM 775GB SFF-2 SSD 5xx eMLC4 for AIX/Linux
  • ES7K - IBM 387GB SFF-3 SSD 5xx eMLC4 for AIX/Linux
  • ES7P - IBM 775GB SFF-3 SSD 5xx eMLC4 for AIX/Linux
  • ES80 - IBM 1.9TB Read Intensive SAS 4k SFF-2 SSD for AIX/Linux
  • ES83 - IBM 931GB Mainstream SAS 4k SFF-3 SSD for AIX/Linux
  • ES85 - IBM 387GB SFF-2 SSD 4k eMLC4 for AIX/Linux
  • ES8C - IBM 775GB SFF-2 SSD 4k eMLC4 for AIX/Linux
  • ES8F - IBM 1.55TB SFF-2 SSD 4k eMLC4 for AIX/Linux
  • ES8J - IBM 1.9TB Read Intensive SAS 4k SFF-3 SSD for AIX/Linux
  • ES8N - IBM 387GB SFF-3 SSD 4k eMLC4 for AIX/Linux
  • ES8Q - IBM 775GB SFF-3 SSD 4k eMLC4 for AIX/Linux
  • ES8V - IBM 1.55TB SFF-3 SSD 4k eMLC4 for AIX/Linux
  • ES8Y - IBM 931GB Mainstream SAS 4k SFF-2 SSD for AIX/Linux
  • ES92 - IBM 1.86TB Mainstream SAS 4k SFF-3 SSD for AIX/Linux
  • ES96 - IBM 1.86TB Mainstream SAS 4k SFF-2 SSD for AIX/Linux
  • ESD3 - IBM 1.2TB 10K RPM SAS SFF-2 Disk Drive for AIX/Linux
  • ESD5 - IBM 600GB 10K RPM SAS SFF-3 Disk Drive for AIX/Linux
  • ESD9 - IBM 1.2TB 10K RPM SAS SFF-3 Disk Drive for AIX/Linux
  • ESDB - IBM 300GB 15K RPM SAS SFF-3 Disk Drive for AIX/Linux
  • ESDR - IBM 300GB 10k RPM SAS SFF-3 Disk Drive for AIX/Linux
  • ESDT - IBM 146GB 15k RPM SAS SFF-3 Disk Drive for AIX/Linux
  • ESE1 - IBM 3.72TB Mainstream SAS 4k SFF-3 SSD for AIX/Linux
  • ESE7 - IBM 3.72TB Mainstream SAS 4k SFF-2 SSD for AIX/Linux
  • ESG5 - IBM 387GB Enterprise SAS 5xx SFF-2 SSD for AIX/Linux
  • ESG9 - IBM 387GB Enterprise SAS 5xx SFF-3 SSD for AIX/Linux
  • ESGB - IBM 387GB Enterprise SAS 4k SFF-2 SSD for AIX/Linux
  • ESGD - IBM 387GB Enterprise SAS 4k SFF-3 SSD for AIX/Linux
  • ESGF - IBM 775GB Enterprise SAS 5xx SFF-2 SSD for AIX/Linux
  • ESGH - IBM 775GB Enterprise SAS 5xx SFF-3 SSD for AIX/Linux
  • ESGK - IBM 775GB Enterprise SAS 4k SFF-2 SSD for AIX/Linux
  • ESGM - IBM 775GB Enterprise SAS 4k SFF-3 SSD for AIX/Linux
  • ESGP - IBM 1.55TB Enterprise SAS 4k SFF-2 SSD for AIX/Linux
  • ESHJ - IBM 931 GB Mainstream SAS 4k SFF-2 SSD for AIX/Linux
  • ESGR - IBM 1.55TB Enterprise SAS 4k SFF-3 SSD for AIX/Linux
  • ESHL - IBM 1.86 TB Mainstream SAS 4k SFF-2 SSD for AIX/Linux
  • ESHS - IBM 931 GB Mainstream SAS 4k SFF-3 SSD for AIX/Linux
  • ESHU - IBM 1.86 TB Mainstream SAS 4k SFF-3 SSD for AIX/Linux
  • ESM8 - IBM 3.72 TB Mainstream SAS 4k SFF-2 SSD for AIX/Linux
  • ESMQ - IBM 3.72 TB Mainstream SAS 4k SFF-3 SSD for AIX/Linux
  • ESNK - IBM 300GB 15K RPM SAS SFF-3 4k Block Cached Disk Drive for AIX/Linux
  • ESNM - IBM 300GB 15K RPM SAS SFF-2 4k Block Cached Disk Drive for AIX/Linux
  • ESNP - IBM 600GB 15K RPM SAS SFF-3 4k Block Cached Disk Drive for AIX/Linux
  • ESNR - IBM 600GB 15K RPM SAS SFF-2 4k Block Cached Disk Drive for AIX/Linux
  • ES0D - IBM i 387GB SFF-2 SSD for iSeries with eMLC
  • ES0H - IBM i 775GB SFF-2 SSD for iSeries
  • ES0M - IBM i 387GB SFF-3 SSD for iSeries
  • ES0P - IBM i 775GB SFF-3 SSD for iSeries
  • ES0R - IBM i 387GB SFF-2 4k SSD for iSeries
  • ES0T - IBM i 775GB SFF-2 4k SSD for iSeries
  • ES0V - IBM i 387GB SSF-3 4k SSD for iSeries
  • ES0X - IBM i 775GB SFF-3 4k SSD for iSeries
  • ES1A - IBM i 387GB SFF-2 SSD for iSeries
  • ES79 - IBM i 387GB SFF-2 SSD 5xx eMLC4 for iSeries
  • ES7F - IBM i 775GB SFF-2 SSD 5xx eMLC4 for iSeries
  • ES7L - IBM i 387GB SFF-3 SSD 5xx eMLC4 for iSeries
  • ES7Q - IBM i 775GB SFF-3 SSD 5xx eMLC4 for iSeries
  • ES81 - IBM i 1.9TB Read Intensive SAS 4k SFF-2 SSD for iSeries
  • ES84 - IBM i 931GB Mainstream SAS 4k SFF-3 SSD for iSeries
  • ES86 - IBM i 387GB SFF-2 SSD 4k eMLC4 for iSeries
  • ES8D - IBM i 775GB SFF-2 SSD 4k eMLC4 for iSeries
  • ES8G - IBM i 1.55TB SFF-2 SSD 4k eMLC4 for iSeries
  • ES8K - IBM i 1.9TB Read Intensive SAS 4k SFF-3 SSD for iSeries
  • ES8P - IBM i 387GB SFF-3 SSD 4k eMLC4 for iSeries
  • ES8R - IBM i 775GB SFF-3 SSD 4k eMLC4 for iSeries
  • ES8W - IBM i 1.55TB SFF-3 SSD 4k eMLC4 for iSeries
  • ES8Z - IBM i 931GB Mainstream SAS 4k SFF-2 SSD for iSeries
  • ES93 - IBM i 1.86TB Mainstream SAS 4k SFF-3 SSD for iSeries
  • ES97 - IBM i 1.86TB Mainstream SAS 4k SFF-2 SSD for iSeries
  • ESD2 - IBM i 1.1TB 10K RPM SAS SFF-2 Disk Drive (IBMi)
  • ESD4 - IBM i 571GB 10K RPM SAS SFF-3 Disk Drive iSeries
  • ESD8 - IBM i 1.1TB 10K RPM SAS SFF-3 DIsk Drive iSeries
  • ESDA - IBM i 283GB 15K RPM SAS SFF-3 Disk Drive iSeries
  • ESDE - IBM i 571GB 15k RPM SAS SFF-3 Disk Drive
  • ESDF - IBM i 600GB 15k RPM SAS SFF-3 Disk Drive
  • ESDN - IBM i 571GB 15K RPM SAS SFF-2 Disk Drive
  • ESDP - IBM i 600GB 15K RPM SAS SFF-2 Disk Drive
  • ESDS - IBM i 283GB 10k RPM SAS SFF-3 Disk Drive iSeries
  • ESDU - IBM i 139GB 15k RPM SAS SFF-3 Disk Drive iSeries
  • ESDV - IBM i 283GB 15K RPM SAS SFF-3 Disk 5xx Block
  • ESE2 - IBM i 3.72TB Mainstream SAS 4k SFF-3 SSD for iSeries
  • ESE8 - IBM i 3.72TB Mainstream SAS 4k SFF-2 SSD for iSeries
  • ESEU - IBM i 571GB 10K RPM SAS SFF-2 Disk Drive 4K Block
  • ESEV - IBM i 600GB 10K RPM SAS SFF-2 Disk Drive 4K Block
  • ESEY - IBM i 283GB 15K RPM SAS SFF-2 4K Block
  • ESEZ - IBM i 300GB 15K RPM SAS SFF-2 4K Block
  • ESF2 - IBM i 1.1TB 10K RPM SAS SFF-2 Disk Drive 4K Block
  • ESF3 - IBM i 1.2TB 10K RPM SAS SFF-2 Disk Drive 4K Block
  • ESF4 - IBM i 571GB 10K RPM SAS SFF-3 Disk Drive 4K Block
  • ESF5 - IBM i 600GB 10K RPM SAS SFF-3 Disk Drive 4K Block
  • ESF8 - IBM i 1.1TB 10K RPM SAS SFF-3 Disk Drive 4K Block
  • ESF9 - IBM i 1.2TB 10K RPM SAS SFF-3 Disk Drive 4K Block
  • ESFA - IBM i 283GB 15K RPM SAS SFF-3 4K Block
  • ESFB - IBM i 300GB 15K RPM SAS SFF-3 4K Block
  • ESFE - IBM i 571GB 15K RPM SAS SFF-3 4K Block
  • ESFF - IBM i 600GB 15K RPM SAS SFF-3 4K Block
  • ESFG - IBM i 283GB 15K RPM SAS SFF-3 Disk 4K Block
  • ESFN - IBM i 571GB 15K RPM SAS SFF-2 4K Block
  • ESFP - IBM i 600GB 15K RPM SAS SFF-2 4K Block
  • ESFS - IBM i 1.7TB 10K RPM SAS SFF-2 Disk Drive 4K Block
  • ESFT - IBM i 1.8TB 10K RPM SAS SFF-2 Disk Drive 4K Block
  • ESFU - IBM i 1.7TB 10K RPM SAS SFF-3 Disk Drive 4K Block
  • ESFV - IBM i 1.8TB 10K RPM SAS SFF-3 Disk Drive 4K Block
  • ESG6 - IBM i 387GB Enterprise SAS 5xx SFF-2 SSD for iSeries
  • ESGA - IBM i 387GB Enterprise SAS 5xx SFF-3 SSD for iSeries
  • ESGC - IBM i 387GB Enterprise SAS 4k SFF-2 SSD for iSeries
  • ESGE - IBM i 387GB Enterprise SAS 4k SFF-3 SSD for iSeries
  • ESGG - IBM i 775GB Enterprise SAS 5xx SFF-2 SSD for iSeries
  • ESGJ - IBM i 775GB Enterprise SAS 5xx SFF-3 SSD for iSeries
  • ESGL - IBM i 775GB Enterprise SAS 4k SFF-2 SSD for iSeries
  • ESGN - IBM i 775GB Enterprise SAS 4k SFF-3 SSD for iSeries
  • ESGQ - IBM i 1.55TB Enterprise SAS 4k SFF-2 SSD for iSeries
  • ESGS - IBM i 1.55TB Enterprise SAS 4k SFF-3 SSD for iSeries
  • ESHK - IBM i 931 GB Mainstream SAS 4k SFF-2 SSD for iSeries
  • ESHM - IBM i 1.86 TB Mainstream SAS 4k SFF-2 SSD for iSeries
  • ESHT - IBM i 931 GB Mainstream SAS 4k SFF-3 SSD for iSeries
  • ESHV - IBM i 1.86 TB Mainstream SAS 4k SFF-3 SSD for iSeries
  • ESM9 - IBM i 3.72 TB Mainstream SAS 4k SFF-2 SSD for iSeries
  • ESMR - IBM i 3.72 TB Mainstream SAS 4k SFF-3 SSD for iSeries
  • ESNJ - IBM i 283GB 15K RPM SAS SFF-3 4k Block Cached Disk Drive iSeries
  • ESNL - IBM i 283GB 15K RPM SAS SFF-2 4k Block Cached Disk Drive iSeries
  • ESNN - IBM i 571GB 15K RPM SAS SFF-3 4k Block Cached Disk Drive iSeries
  • ESNQ - IBM i 571GB 15K RPM SAS SFF-2 4k Block Cached Disk Drive iSeries
