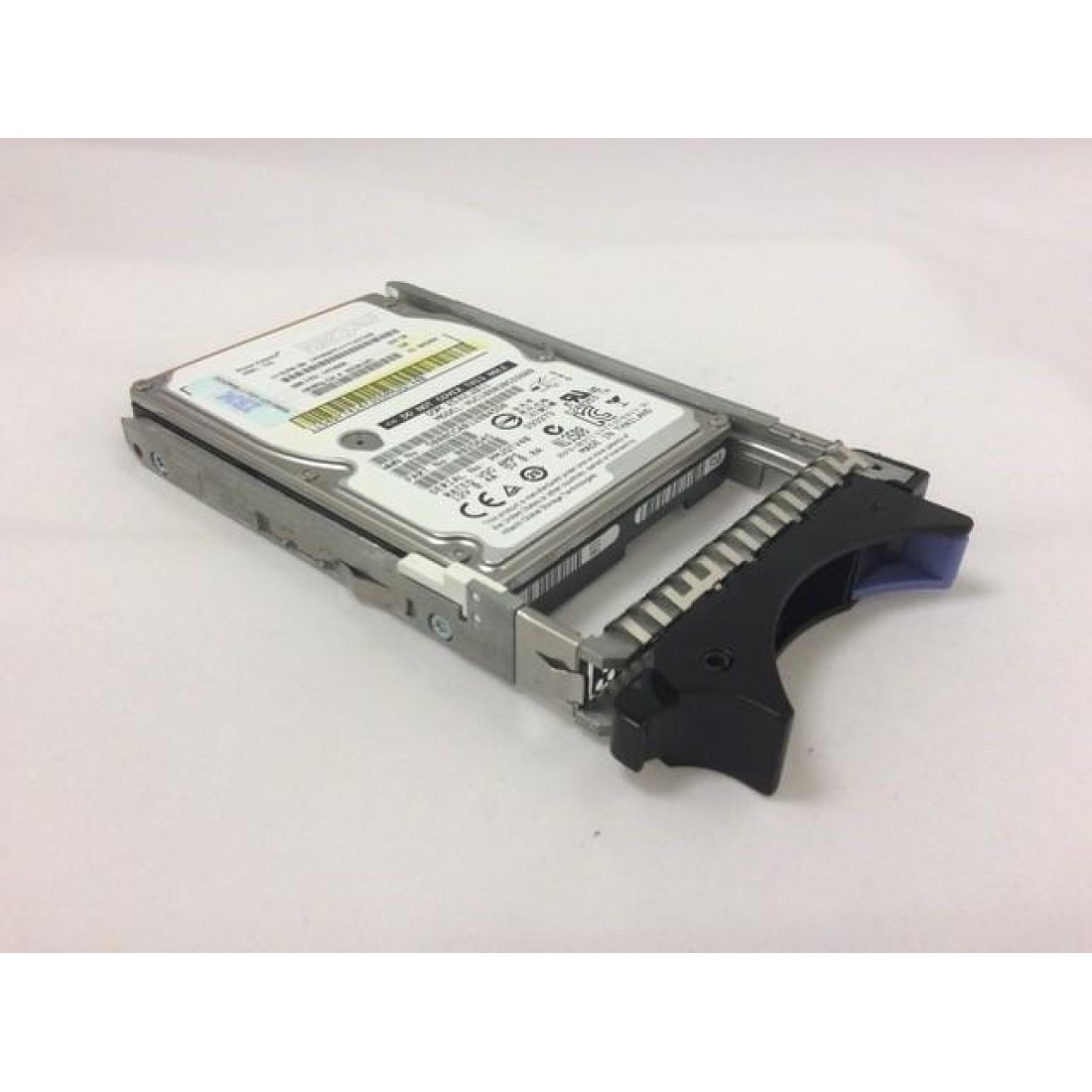

IBM ESF4 571GB 10K RPM SAS SFF-3 Disk Drive 4K

(#ESF4) - 571GB 10K RPM SAS SFF-3 Disk Drive 4K Block - 4224

571 GB 2.5-inch (Small Form Factor (SFF)) 10k rpm SAS disk drive on Gen-3 carrier/tray. Supported in SFF-3 SAS bays such as found in POWER8 servers. Disk is formatted for 4224 byte sectors. If reformatted to 4096 byte sectors, its capacity would be 600 GB and it would not have the 4224 byte additional data integrity protection.

Limitations: - Cannot be combined in the same array as a drive using different sector size - Physically does not fit in a SFF-1 or SFF-2 bay due to carrier/ tray differences

• Attributes provided: 571GB 10K RPM SFF-3 Disk 4K
• Attributes required: one SFF-3 SAS bay
• Minimum required: 0
• Maximum allowed: 18 (Initial order maximum: 18)
• OS level required:
  • IBM i 7.1 TR10 and 7.2 TR2 or later supported
• Initial Order/MES/Both/Supported: Both
• CSU: Yes
• Return parts MES: No
