IBM AS400 iSeries IBM ESDS 283GB 10k RPM SAS SFF-3 Disk Drive iSeries  .. Product #: ESDS

IBM ESDS 283GB 10k RPM SAS SFF-3 Disk Drive iSeries

Brand: IBM AS400 iSeries
Model Number: ESDS
Tags: esds , 8286 disk drive , 59FC , 00FX875

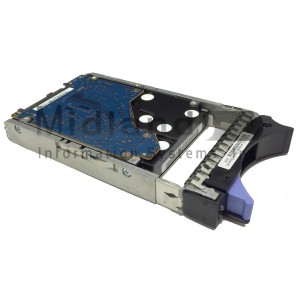

ESDS IBM iSeries 283GB 10k RPM SAS SFF-3 Disk Drive

IBM ESDS 283GB 10k RPM SAS Disk Drive for iSeries includes a Gen-3 carrier/tray and supported in Power8 SFF-3 SAS bays of 8286-41A S814 and 8286-42A S824. The IBM ESDS Disk Drive is formatted for 528 byte sectors, but can be reformatted to 512 byte sectors and would have 300 GB of disk space. Note: the IBM i does not support 512 byte sectors. IBM ESDS has 59FC CCIN and 00FX875 part number. IBM ESDR adn ESDS are identical disk drives, except have different feature codes to specify which OS the disk drive will be installed. ESDS is for IBM i and ESDR is for Power AIX and Linux.

The ESDS cannot be used in a IBM EXP24S 5887 SFF Gen2-bay Drawer because of physical difference of carrier/tray.

Limitation: Can not be combined in the same array as a drive of the same capacity, but using different sector size.

Attributes provided: 283 GB Disk Drive - SFF-3
Attributes required: one SFF-3 drive bay
OS level required: IBM i 7.1 TR8 and 7.2 or later supported

Other IBM Power8 Disk Drives include:
1738 or EQ38 - 856GB IBM i Disk Drive 10K RPM SAS HDD (Gen2-S)
1752 or EQ52 - 900GB AIX/Linux Disk Drive 10K RPM SAS HDD (Gen2-S)
1917 or 1866 - 146GB AIX/Linux Disk Drive 15K RPM SAS HDD (Gen2-S)
1925 or 1869 - 300GB AIX/Linux Disk Drive 10K RPM SAS HDD (Gen2-S)
1947 or 1868 - 139GB IBM i Disk Drive 15K RPM SAS HDD (Gen2-S)
1948 or 1927 - 283GB IBM i Disk Drive 15K RPM SAS HDD (Gen2-S)
1953 or 1929 - 300GB AIX/Linux Disk Drive 15K RPM SAS HDD (Gen2-S)
1956 or 1844 - 283GB IBM i Disk Drive 10K RPM SAS HDD (Gen2-S)
1962 or 1817 - 571GB IBM i Disk Drive 10K RPM SAS HDD (Gen2-S)
1964 or 1818 - 600GB AIX/Linux Disk Drive 10K RPM SAS HDD (Gen2-S)
ESD2 or EQD2 - 1.14 TB IBM i Disk Drive 10K RPM SAS HDD (Gen2-S)
ESD3 or EQD3 - 1.2 TB AIX/Linux Disk Drive 10K RPM SAS HDD (Gen2-S)
ESDU 139GB - IBM i Disk Drive 15K RPM SAS HDD (Gen3)
ESDT146GB - AIX/Linux Disk Drive 15K RPM SAS HDD (Gen3)
ESDA 283GB - IBM i Disk Drive 15K RPM SAS HDD (Gen3)
ESDB 300GB - AIX/Linux Disk Drive 15K RPM SAS HDD (Gen3)
ESDS 283GB - IBM i Disk Drive 10K RPM SAS HDD (Gen3)
ESDR 300GB - AIX/Linux Disk Drive 10K RPM SAS HDD (Gen3)
ESD4 571GB - IBM i Disk Drive 10K RPM SAS HDD (Gen3)
ESD5 600GB - AIX/Linux Disk Drive 10K RPM SAS HDD (Gen3)
ESD8 1.14TB - IBM i Disk Drive 10K RPM SAS HDD (Gen3)
ESD9 1.2TB - AIX/Linux Disk Drive 10K RPM SAS HDD (Gen3)
ESEY 283GB - IBM i Disk Drive 15K RPM 4KN SAS HDD (Gen2-S)
ESEZ 300GB - AIX/Linux Disk Drive 15K RPM 4KN SAS HDD (Gen2-S)
ESFA 283GB - IBM i Disk Drive 15K RPM 4KN SAS HDD (Gen3)
ESFB 300GB - AIX/Linux Disk Drive 15K RPM 4KN SAS HDD (Gen3)
ESFE 571GB - IBM i Disk Drive 15K RPM 4KN SAS HDD (Gen3)
ESFF 600GB - AIX/Linux Disk Drive 15K RPM 4KN SAS HDD (Gen3)
ESFN 571GB - IBM i Disk Drive 15K RPM 4KN SAS HDD (Gen2-S)
ESFP 600GB - AIX/Linux Disk Drive 15K RPM 4KN SAS HDD (Gen2-S)
ESDE 571GB - IBM i Disk Drive 15K RPM SAS HDD (Gen3)
ESDF 600GB - AIX/Linux Disk Drive 15K RPM SAS HDD (Gen3)
ESDN 571GB - IBM i Disk Drive 15K RPM SAS HDD (Gen2-S)
ESDP 600GB - AIX/Linux Disk Drive 15K RPM SAS HDD (Gen2-S)
