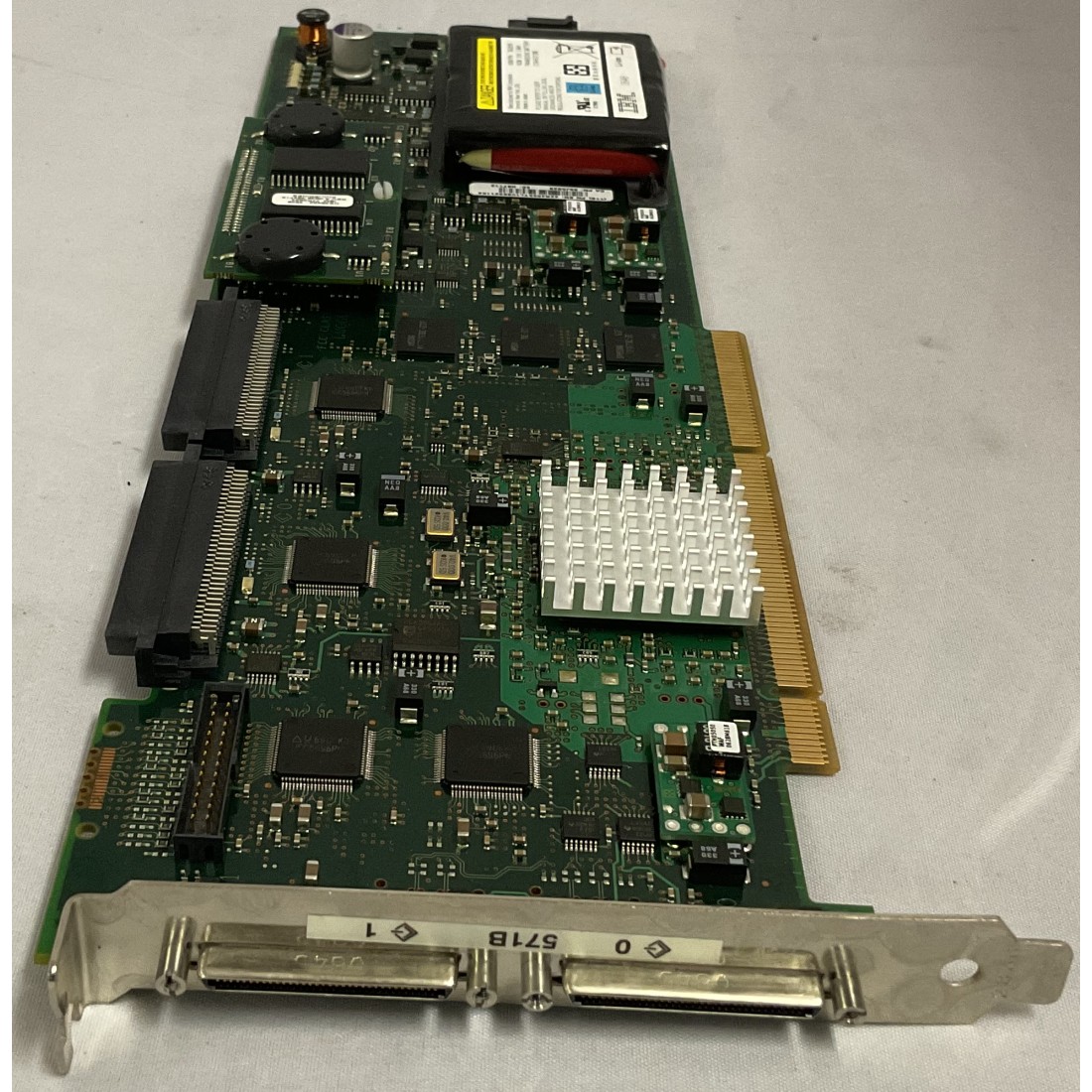

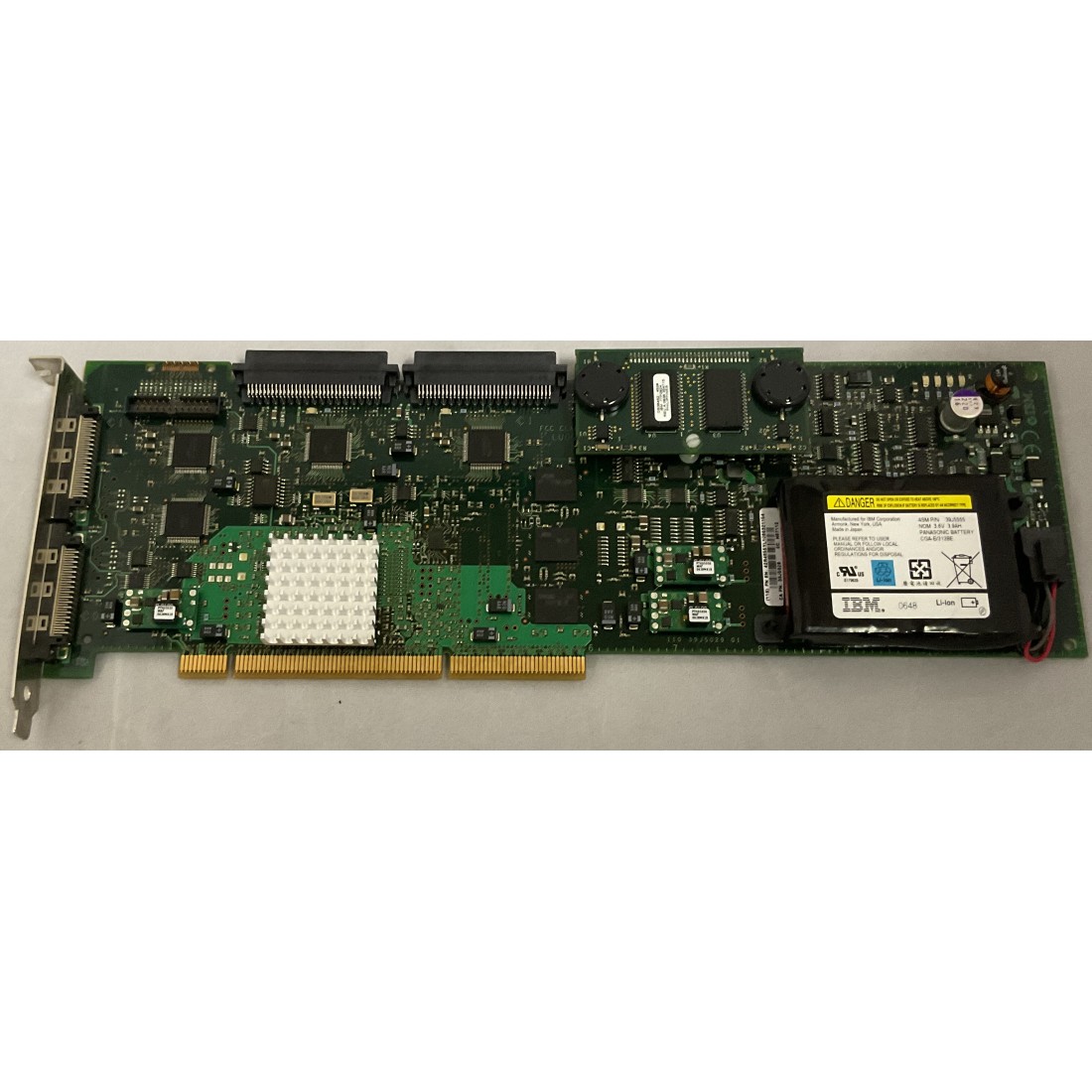

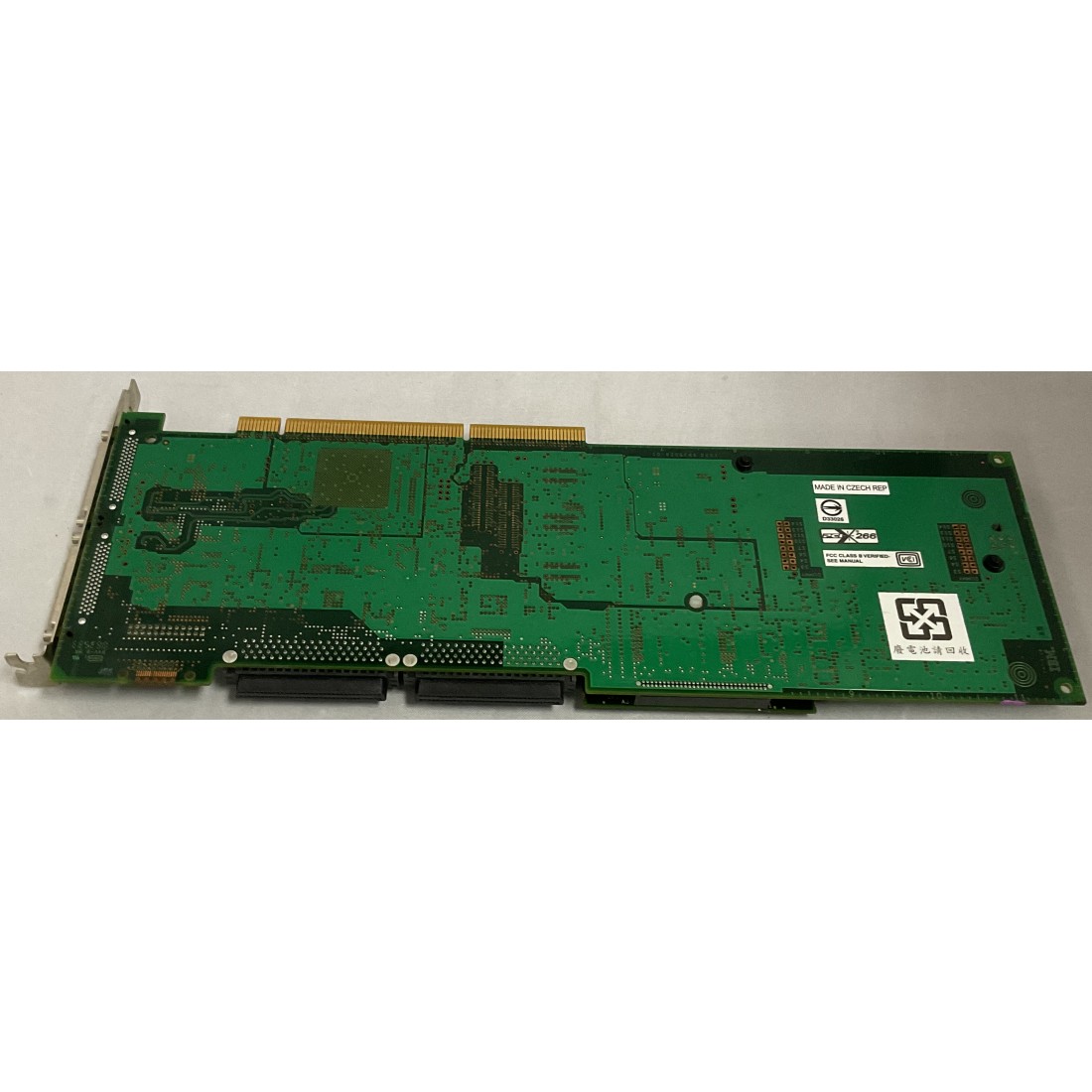

IBM 571B PCI-X DDR Dual-Channel Ultra320 SCSI RAID Adapter 42R4855 39J5024 5737 5776
Custom Field 2 (EAN): 74Y5665
Custom Field 4 (MPN): 42R3969
IBM 571B PCI-X DDR Dual-Channel Ultra320 SCSI RAID Adapter 42R4855 39J5024 5737 5776
The IBM 571B PCI-X DDR Dual-Channel Ultra320 SCSI RAID Adapter has various part numbers, including 42R4855, 39J5024, 39J5028, 39J3534, 39J5555, 42R8739 and 44V5587, and has feature codes 5737 and 5776. The IBM 571B PCI-X DDR Dual-Channel Ultra320 SCSI RAID Adapter is a high-performance SCSI adapter for Peripheral Component Interconnect-X PCI-X and PCI systems. The IBM 571B RAID Adapter provides RAID 0, 5, 6, or 10 capability, 90 MB of write cache, and can address up to 30 16-bit SCSI physical disk drives on two independent SCSI buses. The IBM 571B RAID Adapter uses and supports low voltage differential LVD drivers and receivers only. Each SCSI bus can either be internal (on systems that support internal SCSI devices or backplane attachments) or external, but not both. Internally attached Ultra320 devices run at a data rate of up to 320 MBps on systems that have internal backplanes that are capable of supporting Ultra320 speeds.
OS Requirements for IBM 571B 42R4855 39J5024:
IBM i AS400 OS400 V5R3 or later
IBM Power AIX Version 5.2 with the 5200-07 Technology Level or later
IBM Power AIX 5L Version 5.3 with the 5300-03 Technology Level or later
IBM Red Hat Enterprise Linux version 4, Update 2 or newer
SUSE Linux Enterprise Server 9 Service Pack 2 or newer
