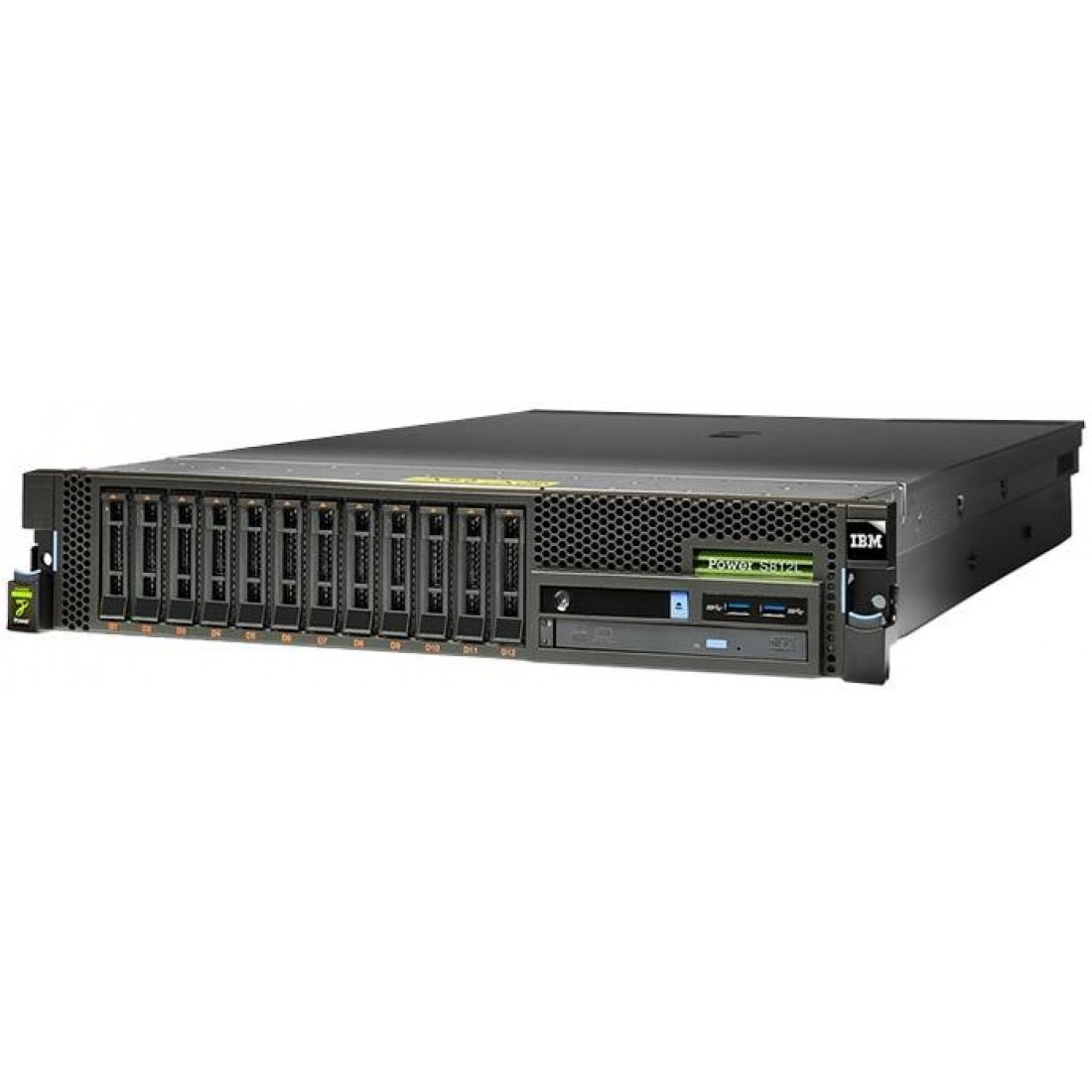

8247-21L ELP3 12-core 3.02 GHz IBM Power8 Processor Linux Server
Brand:
IBM AS400 iSeries
Model Number:
8247-21L-ELP3
The 8247-21L ELP3 is a 12-core 3.02 GHz dual chip Power8 processor Linux S812L server in 2U chasis, has 8 main storage slots for up to 512 GB of 1600 MHz DDR4 memory, hot-swap PCIe Gen 3 slots, two redundant hot-plug power supplies, supports up to 28 EXP24S HDD/SSD drawers (5887 or EL1S) for growing I/O requirements and many other flexible configuration options. The IBM 8247-21L ELP3 12-core Linux server is optimized for Big Data and Analytics workloads and ideal for cloud and like scale-out applications. View the 8247-21L ELPD 10-core Linux server specifications here.
Below are the flexible configuration options and specifications for the S812L 8247-21L ELP3 12-core Power8 Linux server. Send us your Linux server requirements for a fully configured system quote or to get upgrade prices. All IBM Power systems, upgrades and parts sold are IBM Certified, eligible for IBM Maintenance Contracts, include warranty and phone or email support.
Below are the flexible configuration options and specifications for the S812L 8247-21L ELP3 12-core Power8 Linux server. Send us your Linux server requirements for a fully configured system quote or to get upgrade prices. All IBM Power systems, upgrades and parts sold are IBM Certified, eligible for IBM Maintenance Contracts, include warranty and phone or email support.
8247-21L S812L ELP3 IBM Power8 Specifications, Configuration Options and Maximums:
Number of Processor Sockets: 1
Processor: 3.02 GHz Power8
Mainstorage: 512 GB (8 slots for 16, 32 or 64 GB increments using 1600 MHz DDR4 Chipkill advanced error checking and correcting (ECC) memory)
PCIe Gen 3 Slots: 6
SSD/Disk Slots in System Unit: 12 SFF-3 (standard) or 6+6 SFF-3 Split Backplane
Maximum Storage: 348 SSD and/or HDD for 417 TB (1.2TB are largest capacity)
Maximum Expansion Drawers: 24 EXP24S Storage Drawers
Maximum Partitions: 240
Redundant Hot Swap Fans & Blowers: Yes
Hot Swap SSD/HDD/Media Bays: Yes
Hot Swap PCI Adapters: Yes
Concurrent Firmware Update: Yes
Redundant Hot Swap Power Supplies: Yes
Alternate Processor Retry and Recovery: Yes
Processor: 3.02 GHz Power8
Mainstorage: 512 GB (8 slots for 16, 32 or 64 GB increments using 1600 MHz DDR4 Chipkill advanced error checking and correcting (ECC) memory)
PCIe Gen 3 Slots: 6
SSD/Disk Slots in System Unit: 12 SFF-3 (standard) or 6+6 SFF-3 Split Backplane
Maximum Storage: 348 SSD and/or HDD for 417 TB (1.2TB are largest capacity)
Maximum Expansion Drawers: 24 EXP24S Storage Drawers
Maximum Partitions: 240
Redundant Hot Swap Fans & Blowers: Yes
Hot Swap SSD/HDD/Media Bays: Yes
Hot Swap PCI Adapters: Yes
Concurrent Firmware Update: Yes
Redundant Hot Swap Power Supplies: Yes
Alternate Processor Retry and Recovery: Yes
