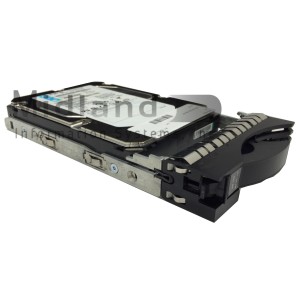

3658-8205 - IBM i Series E4B, 428GB 15K RPM SAS Disk Drive

IBM i Series 8205-E6B (#3658) - 428GB 15K RPM SAS Disk Drive

Attached SAS DASD device, in a carrier capable of providing Hot Swap support. Provides 428GB of storage capacity. Supports the industry standard SAS interface. Can be used only in a drawer/system designed to support the SAS interface.

Characteristics:

Form Factor: 3.5 inch Form Factor, 1 inch drive.

Cable included: No

External Interface: standard SAS Dual Port

Rotational Speed: 15,000 RPM

Interface Speed: 300 MB/sec.

Format: 528 Bytes/sector default, 512 B

Note: This drive is not supported as a load source drive for POWER5/POWER5+ systems.

Attributes provided: 428GB SAS disk storage mounted in a carrier.

Attributes required: one SAS disk drive bay

For 8202-E4B: (#3658)

Minimum required: 0

Maximum allowed: 336 (Initial order maximum: 250)

OS level required:

IBM i 6.1 supported

IBM i 7.1 supported

Refer to Software Requirements for specific O/S levels supported

Initial Order/MES/Both/Supported: Both

CSU: Yes

Return parts MES: No

Note:

Not supported in the CEC.

System maximum of 336 with 28 x #5886.
