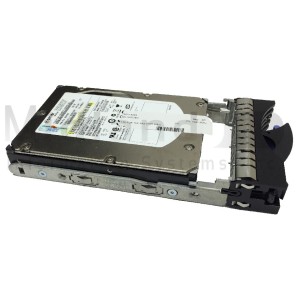

3648-8205 - IBM i Series E4B, 300GB 15K RPM SAS Disk Drive

IBM i Series 8205-E6B (#3648) - 300GB 15K RPM SAS Disk Drive

300GB Serial Attached SCSI (SAS) DASD device, in a carrier capable of providing Hot Swap support. Provides 300GB of storage capacity. Supports the industry standard SAS SCSI interface. Can be used only in a drawer/system designed to support the SAS SCSI interface.

Characteristics:

Form Factor: 3.5 inch Form Factor, 1 inch drive.

Cable included: No

External Interface: standard SAS Dual Port

Rotational Speed: 15,000 RPM

Interface Speed: 300 MB/sec.

Format: 512 Bytes/sector default, 528 Bytes/sector possible with reformat.

Attributes provided: 300GB of Disk Storage mounted in a carrier

Attributes required: one SAS Drive Slot

For 8202-E4B: (#3648)

Minimum required: 0

Maximum allowed: 336 (Initial order maximum: 250)

OS level required:

AIX Version 5.3 supported

AIX Version 6.1 supported

AIX Version 7.1 supported

SUSE Linux supported

Red Hat Linux supported

Refer to Software Requirements for specific O/S levels supported

Initial Order/MES/Both/Supported: Both

CSU: Yes

Return parts MES: No

Note:

Not supported in the CEC.

System maximum of 336 with 28 x #5886.
