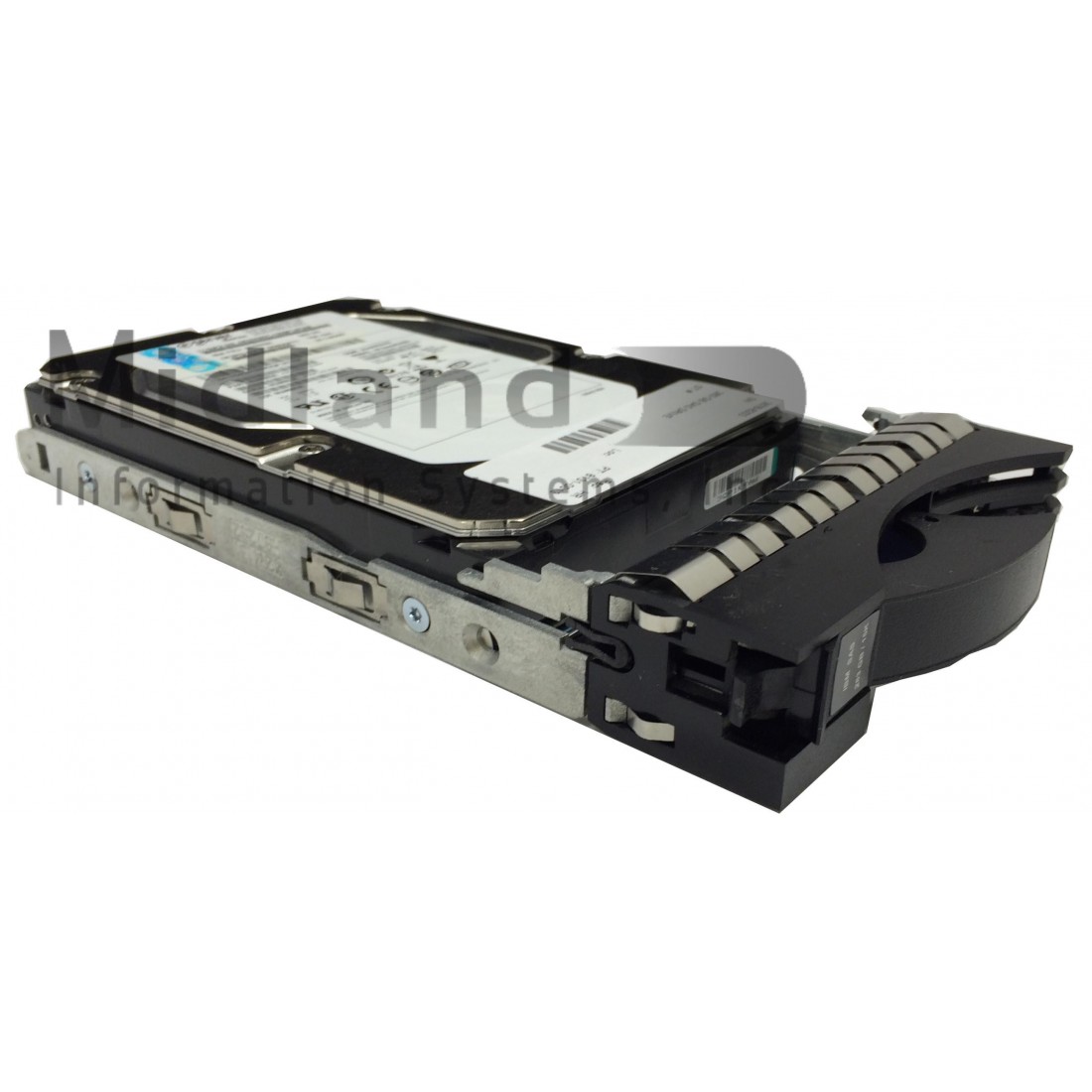

3647-8203 - IBM Power6 E4A 146 GB 15K RPM SAS Disk Drive

The IBM Power6 8203-E4A (#3647) 146 GB 15K RPM SAS Disk Drive

146.8 GB Serial Attached SCSI (SAS) DASD device, in a carrier capable of providing Hot Swap support. Provides 146.8 GB of storage capacity. Supports the industry standard SAS SCSI interface. Can be used only in a drawer/system designed to support the SAS SCSI interface.

Characteristics:

Form Factor: 3.5 inch Form Factor, 1 inch drive.

Cable included: No

External Interface: standard SAS Dual Port

Rotational Speed: 15,000 RPM

Interface Speed: 300 MB/sec.

Format: 512 Bytes/sector default, 528 Bytes/sector possible with reformat.

Attributes provided: 146.8 GB of Disk Storage mounted in a carrier

Attributes required: one SAS Drive Slot

For 8203-E4A: The IBM Power6 8203-E4A (#3647)

Minimum required: 0

Maximum allowed: 294 (Initial order maximum: 294)

OS level required: AIX 5.3 with the 5300-07 Technology Level or later. AIX 6.1 or later. SUSE LINUX Enterprise Server 10 SP1 for POWER Systems, or later. Red Hat Enterprise LInux for POWER, version 4.5, or later. Red Hat Enterprise Linux for POWER, version 5.1, or later.

Initial Order/MES/Both/Supported: Both

CSU: Yes

Return parts MES: No

Note: 294 is combined total for FC 3636, 3647, 3648, and 3649.
