1970-8204 - IBM i Model E8A 36.4 GB 15,000 RPM Ultra320 SCSI Dis

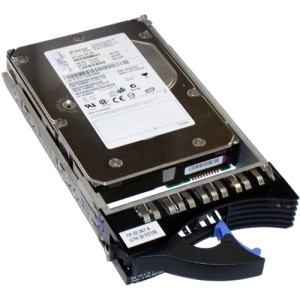

IBM i Power 6, 8204 (#1970) 36.4 GB 15,000 RPM Ultra320 SCSI Disk Drive Assembly

The 36.4 GB 15,000 RPM Ultra320 SCSI Disk Drive Assembly provides 36.4 GB of storage capacity and supports the industry standard Ultra3 SCSI interface speed of up to 320 MBps.

Characteristics:

Form Factor: 3.5-inch, 1-inch (25 mm) high

Cable included: No

External Interface: Ultra320 SCSI (16-bit, Low Voltage Differential)

Attachment Industry Spec: SCSI U320

Average Seek Time: 3.7 ms (based on four(4) READS to one(1) WRITE)

Average Latency: 2 ms

Rotational Speed: 15,000 RPM

Maximum Data Transfer Rate: 83 MBps

Limitation: This disk drive requires attachment to a supported Ultra320 SCSI Adapter in a system that supports an Ultra320 SCSI cable/ backplane in order for the drive to run at 320 MBps. Also, any and all other SCSI devices on the same SCSI bus must also be Ultra2, Ultra3, or Ultra320 SCSI device(s) in order for this disk drive to run at 320 MBps.

Attributes provided: 36.4 GB of disk storage mounted in a carrier.

Attributes required: One disk drive bay.

For 8204-E8A: IBM i Power 6, 8204 (#1970)

Minimum required: 0

Maximum allowed: 672 (Initial order maximum: 0)

OS level required: AIX 5.3 with the 5300-07 Technology Level or later. AIX 5.3 with the 5300-06 Technology Level with Service Pack 4 or later. AIX 6.1 or later SUSE LINUX Enterprise Server 10 SP1 for POWER Systems, or later. Red Hat Enterprise Linux for POWER, Version 4.5 or later. Red Hat Enterprise Linux for POWER, version 5.1 or later.

Initial Order/MES/Both/Supported: Supported

CSU: Yes

Return parts MES: Does not apply
