1964-8202 - IBM Power7 E4B, 600GB 10k RPM SAS SFF-2 Disk Drive (
IBM Power7 8202-E4B (#1964) - 600GB 10k RPM SAS SFF-2 Disk Drive (AIX/Linux)

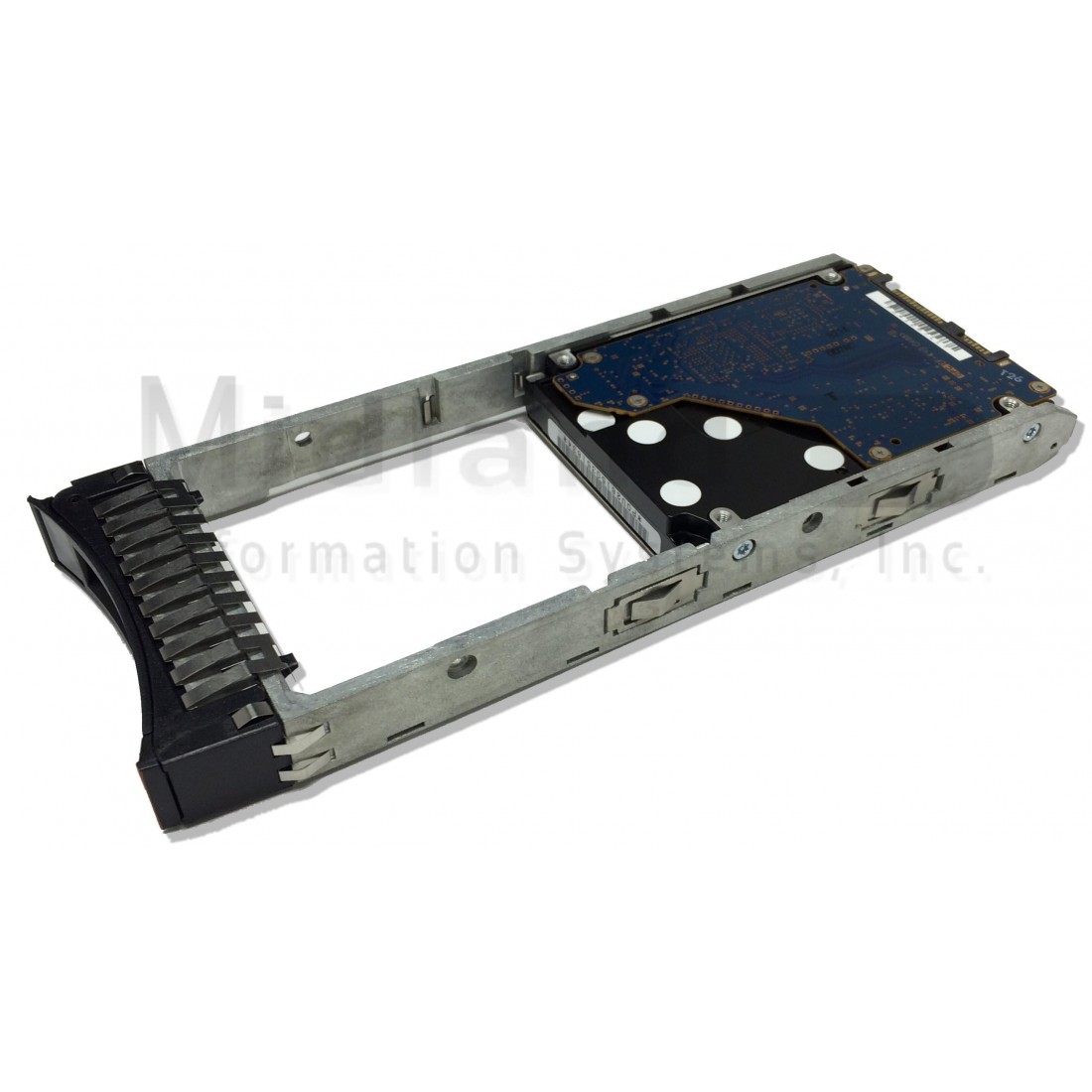

600GB SFF 10k rpm SAS drive in Gen-2 carrier. Supported in SFF SAS bays such as provided in #5887 EXP24S Gen2 I/O drawer. Disk is formatted for 512 byte sectors.
Limitation: can not be used in #5802/5803 I/O drawers or in CEC SFF bays due to physical difference in Gen1 and Gen2 carriers.
Attributes provided: 600GB of Disk Storage mounted in a Gen2 carrier
Attributes required: one SFF (SFF-2) SAS GEN2 drive bay
For 8202-E4B: (#1964)
Minimum required: 0
Maximum allowed: 336 (Initial order maximum: 250)
OS level required:
AIX Version 7.1, or later
AIX Version 6.1 with the 6100-06 Technology Level, or later
AIX Version 6.1 with the 6100-05 Technology Level and SP 3, or later
AIX Version 6.1 with the 6100-04 Technology Level and SP 7, or later
AIX Version 6.1 with the 6100-03 Technology Level and SP 7, or later
AIX Version 5.3 with the 5300-12 Technology Level and Service Pack 1, or later
AIX Version 5.3 with the 5300-11 Technology Level and Service Pack 5, or later
AIX Version 5.3 with the 5300-10 Technology Level and Service Pack 5, or later
IBM i - not supported (see VIOS)
SUSE Linux Enterprise 10 Service Pack 3, or later
SUSE Linux Enterprise 11 Service Pack 1, or later
Red Hat Enterprise Linux 5.6 for POWER, or later
Red Hat Enterprise Linux 6 for POWER, or later
Initial Order/MES/Both/Supported: Both
CSU: Yes
Return parts MES: No
Note: VIOS support requires VIOS 2.2.0.12-FP24 SP02, or later
