1888-8202 IBM Power7 E4B 139GB 15K RPM SFF SAS Disk Drive

IBM Power7 8202-E4B (#1888) - 139GB 15K RPM SFF SAS Disk Drive

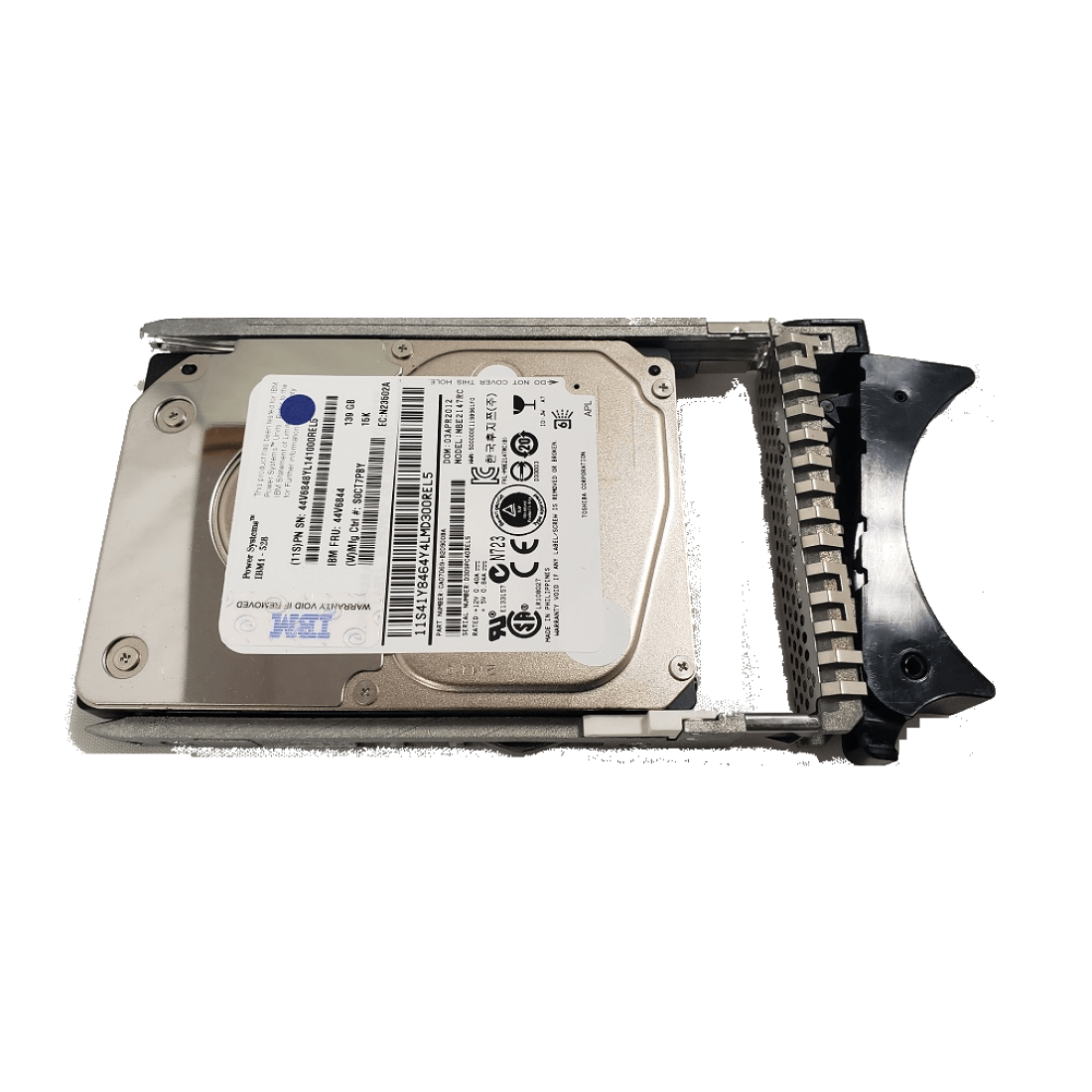

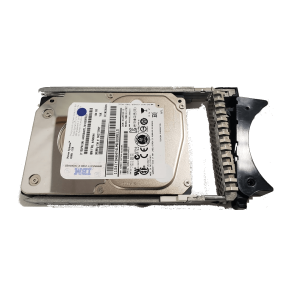

139 GB SFF SAS disk, in a carrier capable of providing Hot Swap support. Provides 139 GB of storage capacity. Supports the industry standard SAS interface. Can be used only in a system designed to support the SAS SFF disk drive in a carrier.

Characteristics:

Form Factor: SFF SAS compliant (2.5" x 15mm form factor)

Cable included: None

External Interface: standard SAS Dual Port

Rotational Speed: 15,000 RPM

Interface Speed: 3Gbs (300 MBs)

Format: 528 Bytes/sector

Attributes provided: 139 GB of disk storage mounted in a carrier.

Attributes required: One SFF SAS disk drive bay slot

For 8202-E4B: (#1888)

Minimum required: 0

Maximum allowed: 44 (Initial order maximum: 44)

OS level required:

IBM i 6.1 supported

IBM i 7.1 supported

Refer to Software Requirements for specific O/S levels supported

Initial Order/MES/Both/Supported: Both

CSU: Yes

Return parts MES: No

Note:

6 is the combined SFF SAS disk maximum in the CEC with #5618.

8 is the combined SFF SAS disk maximum in the CEC with #5630.

Up to 18 SFF SAS disks per #5802
