IBM S1122 9824-22A Power11 Systems and Upgrades

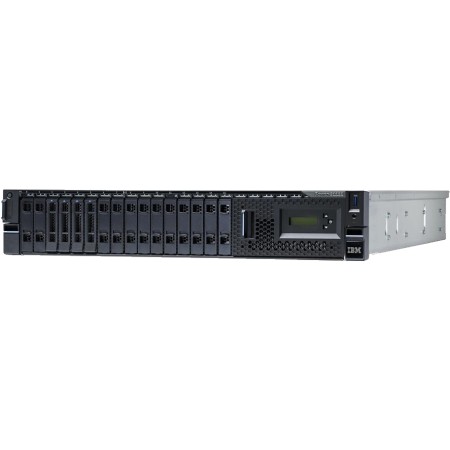

IBM S1122 Model 9824-22A Power11 system is a 2U scale-out server designed for small to midsized businesses to run a mix of IBM i, AIX and Linux server workloads. The IBM S1122 9824-22A Power11 server provides up to 20 more cores than its Power10 IBM S1022 predecessor, provides better system utilization and performance, with 37% more rPerf per watt. Read the IBM S1122 9824-22A data sheet here, or visit the desired IBM S1122 9824-22A Power11 Processor specific product page for more details, configuration, MES upgrade and pricing requests.

IBM S1122 Server Processor options:
9824-22A ERGR 4-Core 3.6-4 GHz Power11 eSCM Processor
9824-22A ERGR 8-Core 3.6-4 GHz Power11 eSCM Processor, 236,400 CPW
9824-22A ERGQ 10-Core 3.05-4 GHz Power11 eSCM Processor
9824-22A EBG8 16-Core 3-4.2 GHz Power11 DCM Processor
9824-22A EBG9 24-Core 2.65-4.15 GHz Power11 DCM Processor
9824-22A EBGA 30-Core 2.4-3.95 GHz Power11 DCM Processor
9824-22A ERGQ 20-Core 3.05-4 GHz Power11 eSCM Processor, 124,500 CPW
9824-22A EBG8 32-Core 3-4.2 GHz Power11 DCM Processor, 124,500 CPW
9824-22A EBG9 48-Core 2.65-4.15 GHz Power11 DCM Processor, 124,500 CPW
9824-22A EBGA 60-Core 2.4-3.95 GHz Power11 DCM Processor, 124,500 CPW

IBM i Software Tier: P10 Group
CPW per Core: 29,550
Maximum CPW per LPAR: 118,200 or 4 Cores MAX LPAR Size
rPerf 2 Sockets: 8-Core = 293, 20-Core = 627, 32-Core = 1,040, 48-Core = 1,358, 60-Core = 1,532
Memory: 64 GB – 4 TB, via 32 DDR5 DDIM slots
L2 Cache per Core: 2 MB
L3 Cache per Core: 8 MB
Internal Storage: 122.4 TB via 8x 15.3 TB Mainstream NVMe U.2 SSD 4K or 51.2 TB via 8x 6.4 TB Enterprise SSD PCIe4 NVMe U.2 modules
NED24 NVMe Drawer: 1 is the maximum, each drawer includes 24 U.2 NVMe bays
PCIe Slots: 4 Gen4 PCIe x16 or 4 Gen5 PCIe x8, 4 Gen5 PCIe x8 with x16 connectors, 2 Gen4 PCIe x8 with x16 connectors
PCIe Gen4 I/O Drawer: 1 is the maximum, each drawer includes 12 Gen4 PCIe slots
Chipkill Memory: Yes
Service processor eBMC: Yes
Hot-swappable NVMe SSD Disks:
Dynamic Processor Deallocation: Yes
Processor Instruction Retry: Yes
Hot-plug concurrent maintenance PCIe slots: Yes
Redundant hot-plug power: Yes
Redundant hot-plug cooling: Yes
Dual VIOS: Optional
Active Memory Mirroring: Yes
Capacity on Demand CoD: CUoD
Power Private Cloud EP2.0: Yes
PowerVM Enterprise Edition: Yes
Max logical partitions/micro-partitions: 1000

IBM S1122 Model 9824-22A Power11 Server Operating System Requirements:
IBM i V7R6 with Power11 GA PTF Group or later
IBM i V7R5 TR6 or later
IBM i V7R4 TR12 or later
AIX with any I/O configuration:
AIX Version 7.3 with 7300-03 Technology Level and Service Pack 7300-03-01-2520 or later
AIX Version 7.2 with 7200-05 Technology Level and Service Pack 7200-05-10-2520 or later
AIX Version 7.3 with 7300-02 Technology Level and Service Pack 7300-02-04-2520 or later
AIX Virtual I/O only LPAR:
AIX 7.3 with 7300-03 Technology Level and Service Pack 7300-03-00-2446 or later
AIX 7.3 with 7300-02 Technology Level and Service Pack 7300-02-02-2420 or later
AIX 7.2 with 7200-05 Technology Level and Service Pack 7200-05-08-2420, or later
VIOS 4.1.1.10 or later, VIOS 4.1.0.40 or later, VIOS 3.1.4.60 or later
IBM RHEL for SAP with RHEL 9 for Power LE version 9.6 or later
RHEL 8 for Power LE version 8.10 or later
RHEL 9 for Power LE version 9.4 or later
RHEL 10 for Power LE version 10.0 or later
Red Hat OpenShift Container Platform 4.19 or later
SUSE Linux Enterprise Server for SAP with SUSE Linux Enterprise Server 15 Service Pack 6 or later
SUSE Linux Enterprise Server 15 Service Pack 6 or later.

Other IBM Power11 Servers models include: IBM S1122 9824-22A, IBM S1124 9824-42A, IBM L1122 9856-22H, IBM L1124 9856-42H, IBM E1180 9080-HEU and IBM E1150 9043-MRU
