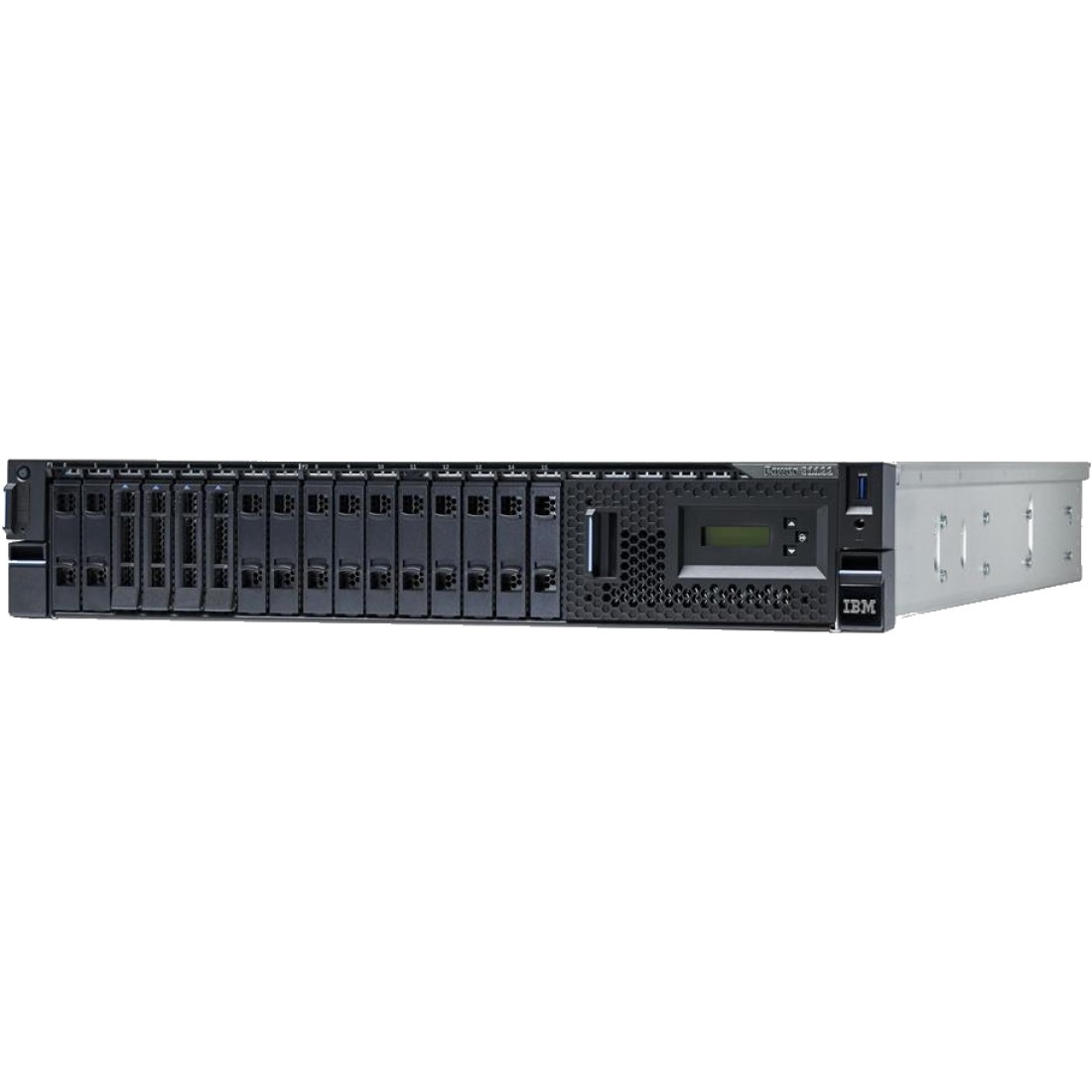

IBM S1122 9824-22A ERGR 4-Core Power11 Processor System
9824-22A ERGR 4-Core 3.6-4 GHz eSCM Processor is for an IBM S1122 Power11 system, and can have two IBM ERGR 4-Core 3.6-4 GHz eSCM Power11 Processors in a two socket configuration. The IBM S1122 9824-22A Power11 system with an ERGR 4-Core 3.6-4 GHz Power11 eSCM Processor supports IBM i, AIX and Linux Server operating systems, and is ideal for small workloads.
The IBM 9824-22A ERGR 4-Core 3.6-4 GHz Power11 eSCM Processor supports running IBM i natively, virtualized, or as a combination of both, and requires both sockets to have a ERGR processor populated, making the system an 8-Core system. The IBM S1122 with ERGR 4-Core 3.6-4 GHz Power11 eSCM Processor requires I/O to be virtualized through VIOS for OS400 workloads, and IBM i partitions must be set to restricted I/O.
All IBM S1122 9824-22A Power11 server processors limit LPARs to run at the 4-Core maximum of 118,200 CPW. The rPerf is 293 for a two socket 8-Core configuration with the ERGR 4-Core 3.6-4 GHz Power11 eSCM Processor in both sockets. The ERGR 4-Core 3.6-4 GHz Power11 eSCM Processor cannot be upgraded to a different processor feature. The IBM S1122 PCIe slots of an eSCM Processor run at Gen4 speeds. The IBM S1122 PCIe slots of a DCM Processor run at Gen5 speeds. View the IBM S1122 9824-22A Data Sheet here.
Price quotes for IBM Power11 Systems and MES upgrades for IBM i, AIX and Linux Server workloads, include configuration, and optional professional services for installation, OS upgrade, data migration, applying PTFs and ongoing maintenance and support. For an MES IBM Power11 system upgrade, you need to provide us with your current system model and serial number.
Other IBM S1122 9824-22A Power11 Processor options:
9824-22A ERGR 4-Core 3.6-4 GHz Power11 eSCM Processor
9824-22A ERGR 8-Core 3.6-4 GHz Power11 eSCM Processor
CPW: 236,400 – P10 SW Tier | rPerf ST: 79.9, SMT2: 159.8 SMT4: 221.4 SMT8: 292.9
9824-22A ERGQ 10-Core 3.05-4 GHz Power11 eSCM Processor
9824-22A EBG8 16-Core 3-4.2 GHz Power11 DCM Processor
9824-22A ERGQ 20-Core 3.05-4 GHz Power11 eSCM Processor
CPW: 123,400 – P10 SW Tier | rPerf ST: 173.2, SMT2: 338.1, SMT4: 482.8, SMT8: 626.7
9824-22A EBG9 24-Core 2.65-4.15 GHz Power11 DCM Processor
9824-22A EBGA 30-Core 2.4-3.95 GHz Power11 DCM Processor
9824-22A EBG8 32-Core 3-4.2 GHz Power11 DCM Processor
CPW: 123,800 – P10 SW Tier | rPerf ST: 294.2, SMT2: 567.2, SMT4: 806.9, SMT8: 1040.3
9824-22A EBG9 48-Core 2.65-4.15 GHz Power11 DCM Processor
CPW: 123,800 – P10 SW Tier | rPerf ST: 420.6, SMT2: 798.4, SMT4: 1060.8, SMT8: 1357.8
9824-22A EBGA 60-Core 2.4-3.95 GHz Power11 DCM Processor
CPW: 117,100 – P10 SW Tier | rPerf ST: 488.2, SMT2: 913.4, SMT4: 1191.8, SMT8: 1531.9
View other IBM Power11 Servers models: IBM S1122 9824-22A, IBM S1124 9824-42A, IBM L1122 9856-22H, IBM L1124 9856-42H, IBM E1180 9080-HEU and IBM E1150 9043-MRU
View the IBM Power11 System CPW and rPerf CPU Performance Benchmarks chart here.
IBM S1122 Model 9824-22A Specifications and Maximums
Memory: 64 GB – 4 TB, via 32 DDR5 DDIM slots
L2 Cache per Core: 2 MB
L3 Cache per Core: 8 MB
Internal Storage: 122.4 TB via 8x 15.3 TB Mainstream NVMe U.2 SSD 4K or 51.2 TB via 8x 6.4 TB Enterprise SSD PCIe4 NVMe U.2 modules
Max NED24 NVMe Drawer: 1, includes 24 U.2 NVMe bays
PCIe Slots in CEC: 4 Gen4 PCIe x16 or 4 Gen5 PCIe x8, 4 Gen5 PCIe x8 with x16 connectors, 2 Gen4 PCIe x8 with x16 connectors
PCIe Gen4 I/O Drawer: 1, includes 12 Gen4 PCIe slots
Chipkill Memory: Yes
Service processor eBMC: Yes
Hot-swappable NVMe SSD Disks:
Dynamic Processor Deallocation: Yes
Processor Instruction Retry: Yes
Hot-plug concurrent maintenance PCIe slots: Yes
Redundant hot-plug power: Yes
Redundant hot-plug cooling: Yes
Dual VIOS: Optional
Active Memory Mirroring: Yes
Capacity on Demand CoD: CUoD
Power Private Cloud EP2.0: Yes
PowerVM Enterprise Edition: Yes
Max logical partitions/micro-partitions: 1000
Physical specifications
Depth: 32 in. (813 mm)
Width: 18.97 in. (482 mm)
Height: 3.4 in. (86.5 mm)
Weight: 71 lbs (32.2 kg)
Hardware Management Console HMC Requirements for IBM Power11 Servers
All IBM Power11 systems require v11 Hardware Management Console HMC, which is supported on the IBM HMC 7063-CR2 HW appliance and the IBM vHMC SW appliance. The IBM Hardware Management Console HMC model 7063-CR1 does not support HMC v11 or management of IBM Power11 servers. The IBM HMC is a Linux based hardware appliance used to configure and manage one or more IBM Power servers, and performs the following functions: Power Server Hardware Management, Power Hypervisor & Virtualization Management, Service and Update Management, Monitoring, and enables integration for other IBM Power system solutions. The available IBM HMC product options include the HMC hardware appliance and a vHMC software appliance. Note: the IBM HMC 7063-CR1 HW appliance is not supported for Power11 server management.
IBM Power11 Server Operating System Requirements:
IBM i V7R6 with Power11 GA PTF Group or later
IBM i V7R5 TR6 or later
IBM i V7R4 TR12 or later
AIX with any I/O configuration:
AIX Version 7.3 with 7300-03 Technology Level and Service Pack 7300-03-01-2520 or later
AIX Version 7.2 with 7200-05 Technology Level and Service Pack 7200-05-10-2520 or later
AIX Version 7.3 with 7300-02 Technology Level and Service Pack 7300-02-04-2520 or later
AIX Virtual I/O only LPAR:
AIX 7.3 with 7300-03 Technology Level and Service Pack 7300-03-00-2446 or later
AIX 7.3 with 7300-02 Technology Level and Service Pack 7300-02-02-2420 or later
AIX 7.2 with 7200-05 Technology Level and Service Pack 7200-05-08-2420, or later
VIOS 4.1.1.10 or later, VIOS 4.1.0.40 or later, VIOS 3.1.4.60 or later
IBM RHEL for SAP with RHEL 9 for Power LE version 9.6 or later
RHEL 8 for Power LE version 8.10 or later
RHEL 9 for Power LE version 9.4 or later
RHEL 10 for Power LE version 10.0 or later
Red Hat OpenShift Container Platform 4.19 or later
SUSE Linux Enterprise Server for SAP with SUSE Linux Enterprise Server 15 Service Pack 6 or later
SUSE Linux Enterprise Server 15 Service Pack 6 or later.
