9028-21B EPG3 IBM S1012 Power10 1-Core Processor P05 System
The IBM S1012 9028-21B EPG3 is a 1-Core Power10 eSCM Processor in the P05 Software Tier, delivers 27,825 CPW, can have up to 64 GB of DDR4 memory in 4 DDIMM slots, 3.2 TB of NVMe flash storage, and only supports IBM i AS400 operating system. The 9028-21B EPG3 Single Core Processor is the only IBM S1012 model that supports IBM i OS400 only, and supports a maximum of 20 Users. The 4-Core and 8-Core IBM S1012 9028-21B processors support IBM i OS400, AIX, Linux Server and VIOS, and allow unlimited users. The IBM Power10 S1012 9028-21B system is a scale-out server designed for small and medium size business workloads, delivers an amazing 99.9999% or greater availability and offers tremendous security with its ability to encrypt all data without burdening management costs or impacting performance, while also delivering significant scaling and performance improvements compared to previous generations.
The IBM S1012 model 9028-21B is a one socket scale-out Power10 server, available in 1-core, 4-core or 8-core configurations, supports up to 256 GB memory with EPGZ 8-Core processor via 4 ISDIMM slots, supports up to 12.8 TB internal flash storage via 4 NVMe U.2 bays, has 4 PCIe HHL Gen5 slots and includes a 3 year warranty. Each IBM S1012 processor core has private access to 2 MB L2 cache and local access to 8 MB of L3 cache capacity. All IBM S1012 processor models 9028-21B supports externally attached Fibre Channel or Ethernet connected SAN, support attaching an RDX storage device via two USB 3.0 ports, but do not support any SAS or NVMe storage drawers. The 9028-21B EPGZ 8-core Processor is the only IBM S1012 that supports the maximum memory and internal storage. The 9028-21B EPG7 4-Core processor is the only IBM S1012 that can be purchased both as a tower or a 2U, half-wide chasis. The 9028-21B EPG3 1 Core Processor is the only IBM S1012 that can only be purchased as a Tower, has a 20 user maximum and requires IBM i AS400 OS400. The 9028-21B EPGZ 8 Core Processor is the only IBM S1012 that can only be purchased as 2U, half-wide chasis for rack.
IBM S1012 Brochure | 9105-41B Data Sheet | Power10 versus Power9 P05 Comparison
IBM S1012 9028-21B Power10 Model Summary
The IBM S1012 model 9028-21B is a one socket scale-out Power10 server, available in 1-core, 4-core or 8-core configurations, supports up to 256 GB memory via 4 ISDIMM slots, supports up to 12.8 TB internal flash storage via 4 NVMe U.2 bays, has 4 PCIe HHL Gen5 slots and includes a 3 year warranty. The 9028-21B IBM S1012 can be purchased as a tower or a 2U, half-wide chasis.
IBM S1012 Power10 Processor IBM i AS400 Software Tier - CPW | rPerf ST | SMT2 | SMT4 | SMT8
9028-21B EPGZ 8-core Processor: P10 - 222,600 | 75.8 | 146.4 | 191.5 | 234.1 (Rackmount only)
9028-21B EPG7 4-core Processor: P05 - 111,300 | 38.8 | 76.7 | 105.3 | 130.4 (Rackmount or Tower)
9028-21B EPG3 1-Core Processor: P05 - 27,825 (Tower only and IBM i AS400 OS400 only)
View the IBM S1012 model 9028-21B processor pages for detailed specifications and other system requirements.
Other IBM Power10 Systems and Server Models
IBM S1012 9028-21B: 1 socket, 8 Cores, 256 GB Memory, 12.8 TB NVMe flash storage (4 bays), 2U
IBM S1014 9105-41B: 1 socket, 8 Cores, 1 TB Memory, 102.4 TB NVMe flash storage (16 bays), 4U
IBM S1024 9105-42A: 2 socket, 48 Cores, 8 TB Memory, 102.4 TB of NVMe flash storage (16 bays), 4U
IBM S1022 9105-22A: 2 socket, 40 Cores, 4 TB Memory, 51.2 TB NVMe flash storage (8 bays), 2U
IBM S1022s 9105-22B: 2 socket, 16 Cores, 2 TB Memory, 51.2 TB NVMe flash storage (8 bays), 2U
IBM E1050 9043-MRX: 4 socket, 96 Cores, 16 TB Memory, 64 TB of NVMe flash storage (10 bays), 4U
IBM E1080 9080-HEX: 16 socket, 240 Cores, 34 TB Memory, 102.4 TB NVMe flash storage (16 bays), 6U
IBM L1022 9786-22H: 2 Socket, 40 Cores, 4 TB Memory, 51.2 TB NVMe flash storage (8 bays), 2U
IBM L1024 9786-42H: 2 Socket, 24 Cores, 8 TB Memory, 102.4 TB NVMe flash storage (16 bays), 4U
IBM Power10 Virtual Server: flexible, custom, secure virtual server on premises or in cloud.
IBM Power10 S1012 9028-21B Scale Out Server Configuration Options
IBM S1012 Power10 Processor: eSCM Single-Chip Processor Module
IBM EPGZ 8-core 3-3.9 GHz: 222,600 CPW, rPerf ST: 75.8, SMT2: 146.4, SMT4: 191.5, SMT8: 234.1
IBM EPG7 4-core 3-3.9 GHz: 111,300 CPW, rPerf ST: 38.8, SMT2: 76.7, SMT4: 105.3, SMT8: 130.4
IBM EPG3 1-core 3-3.9 GHz: 27,825 CPW
IBM Power10 Memory: 64 GB is the maximum main storage for the 9028-21B EPG3 1-Core Processor, installed in 4 ISDIMM slots, delivers 102 GBps peak memory bandwidth per socket and support the following memory card features:
IBM EMBN 32GB (2 x 16 GB) 3200 MHz DDR4 Memory DIMM
IBM EMBW 64GB (2 x 32 GB) 3200 MHz DDR4 Memory DIMM
IBM EMBY 128GB (2 x 64 GB) 3200 MHz DDR4 Memory DIMM
Note: Supports industry standard DIMMS.
IBM Power10 NVMe Flash Storage: 3.2 TB is the maximum internal storage for the 9028-21B EPG3 1-Core Processor, installed in 4 NVMe 15mm U.2 Slots that support concurrent maintenance for the following NVMe drives:
IBM 5B53 Enterprise 800GB SSD PCIe4 NVMe U.2 module ES3A ES5A ES5B EKF2
IBM 5B52 Enterprise 1.6 TB SSD PCIe4 NVMe U.2 module ES3C ES5C ES5D EKF3 EKF4
IBM 5B51 Enterprise 3.2 TB SSD PCIe4 NVMe U.2 module ES3D ES3E ES5E ES5F EKF5 EKF6
IBM ES5B Enterprise 800GB SSD PCIe4 NVMe U.2 module for IBM i
IBM ES5D Enterprise 1.6 TB SSD PCIe4 NVMe U.2 module for IBM i
IBM ES4C Enterprise 1.6 TB SSD PCIe4 NVMe U.2 module for IBM i
IBM ES4E Enterprise 3.2 TB SSD PCIe4 NVMe U.2 module for IBM i
IBM ES5F Enterprise 3.2 TB SSD PCIe4 NVMe U.2 module for IBM i
IBM ES4B Enterprise 1.6 TB SSD PCIe4 NVMe U.2 module for AIX/Linux
IBM ES5C Enterprise 1.6 TB SSD PCIe4 NVMe U.2 module for AIX/Linux
IBM ES4D Enterprise 3.2 TB SSD PCIe4 NVMe U.2 module for AIX/Linux
IBM ES5E Enterprise 3.2 TB SSD PCIe4 NVMe U.2 module for AIX/Linux
Note: The IBM S1012 model 9028-21B supports externally attached Fibre Channel or Ethernet connected SAN, but does not support any SAS or NVMe storage drawer, however there is an option to attached an RDX storage device via two USB 3.0 ports.
PCIe HHHL Slots:
Two x16 Gen4 or x8 Gen5 direct slots.
Two x8 Gen5 direct slots.
Integrated:
System management using an Enterprise Baseboard Management Controller (eBMC).
EnergyScale technology.
Redundant AC power supplies and cooling.
One HMC 1 GbE RJ45 port.
One front host USB 3.0 port.
One internal host USB 3.0 Port for RDX.
Optional Unit Enclosure and Nineteen-inch rack-mounting hardware (2U).
OS System Requirements:
IBM i OS400:
V7R5 TR4 or later
V7R4 TR10 or later
AIX operating system LPAR with any I/O configuration:
AIX Version 7.3 with the 7300-02 Technology Level and Service Pack 7300-02-02-2420, or later
AIX Version 7.2 with the 7200-05 Technology Level and Service Pack 7200-05-08-2420, or later
AIX Version 7.3 with the 7300-01 Technology Level and Service Pack 7300-01-04-2420, or later (planned availability - July 26, 2024)
AIX operating system Virtual I/O only LPAR:
AIX Version 7.3 with the 7300-02 Technology Level and Service Pack 7300-02-01-2346, or later
AIX Version 7.3 with the 7300-01 Technology Level and Service Pack 7300-01-01-2246, or later
AIX Version 7.2 with the 7200-05 Technology Level and service pack 7200-05-04-2220, or later
AIX Version 7.1 with the 7100-05 Technology Level and Service Pack 7100-05-10-2220, or later (AIX 7.1 service extension required)
SUSE Linux Enterprise Server 15 Service Pack 6, or later
SUSE Linux Enterprise Server for SAP with SUSE Linux Enterprise Server 15 Service Pack 6, or later
Red Hat Enterprise Linux 9.2, for Power LE, or later
Red Hat OpenShift Container Platform 4.15, or later
Please review the Linux alert page for any known Linux issues or limitations Linux on IBM - Readme first issues website.
VIOS:
VIOS 4.1.0.21
VIOS 3.1.4.41
IBM S1012 9028-21B Physical specifications and Dimensions (rack version):
Width: 8.75 Inches
Depth: 28.1 Inches
Height: 3.25 Inches
Weight: 45 lbs
EIA Units: 2 (half-wide)

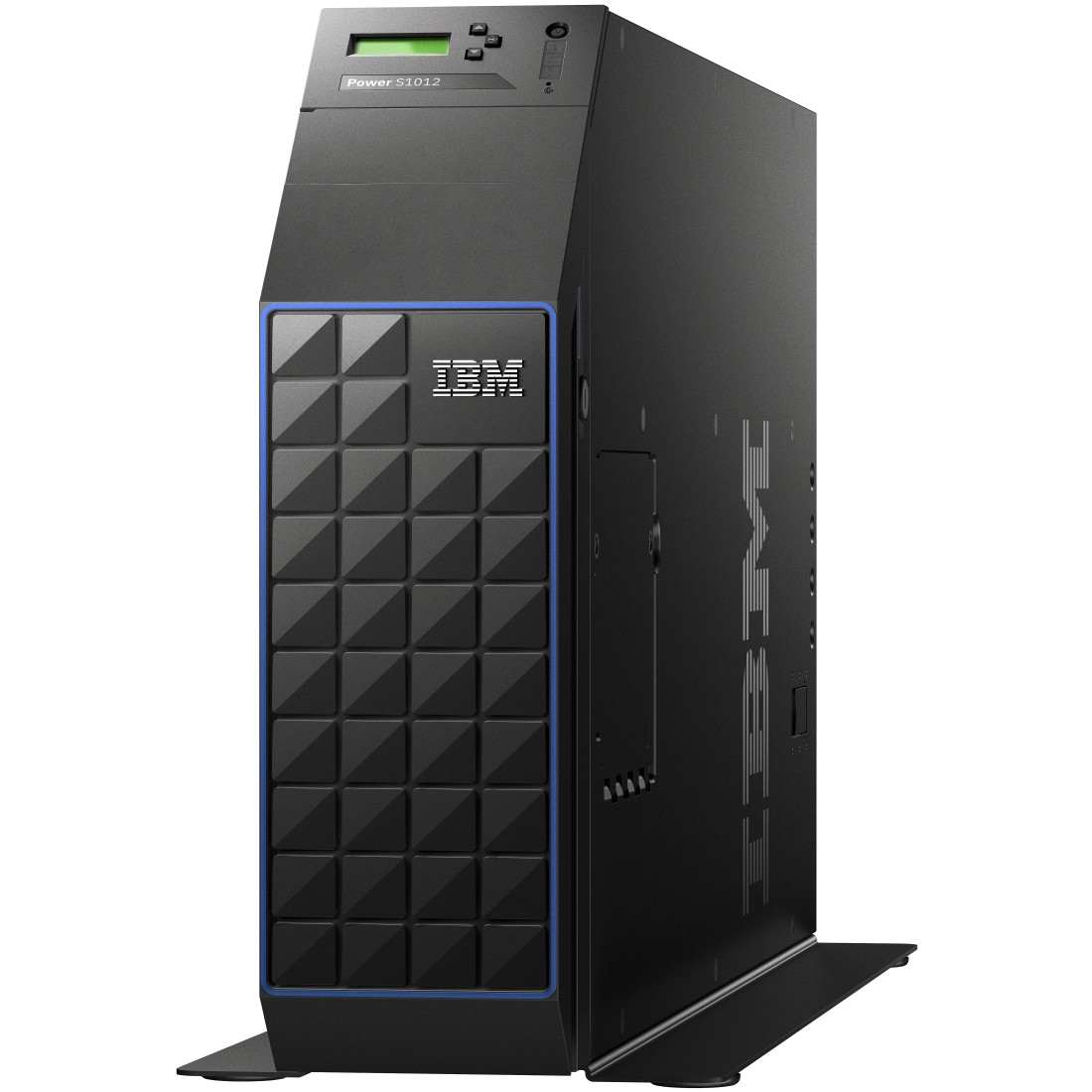

IBM S1012 9028-21B Physical specifications and Dimensions (tower version):
Width: 8.2 Inches
Depth: 31.5 Inches
Height: 16.2 Inches
Weight: 54 lbs
