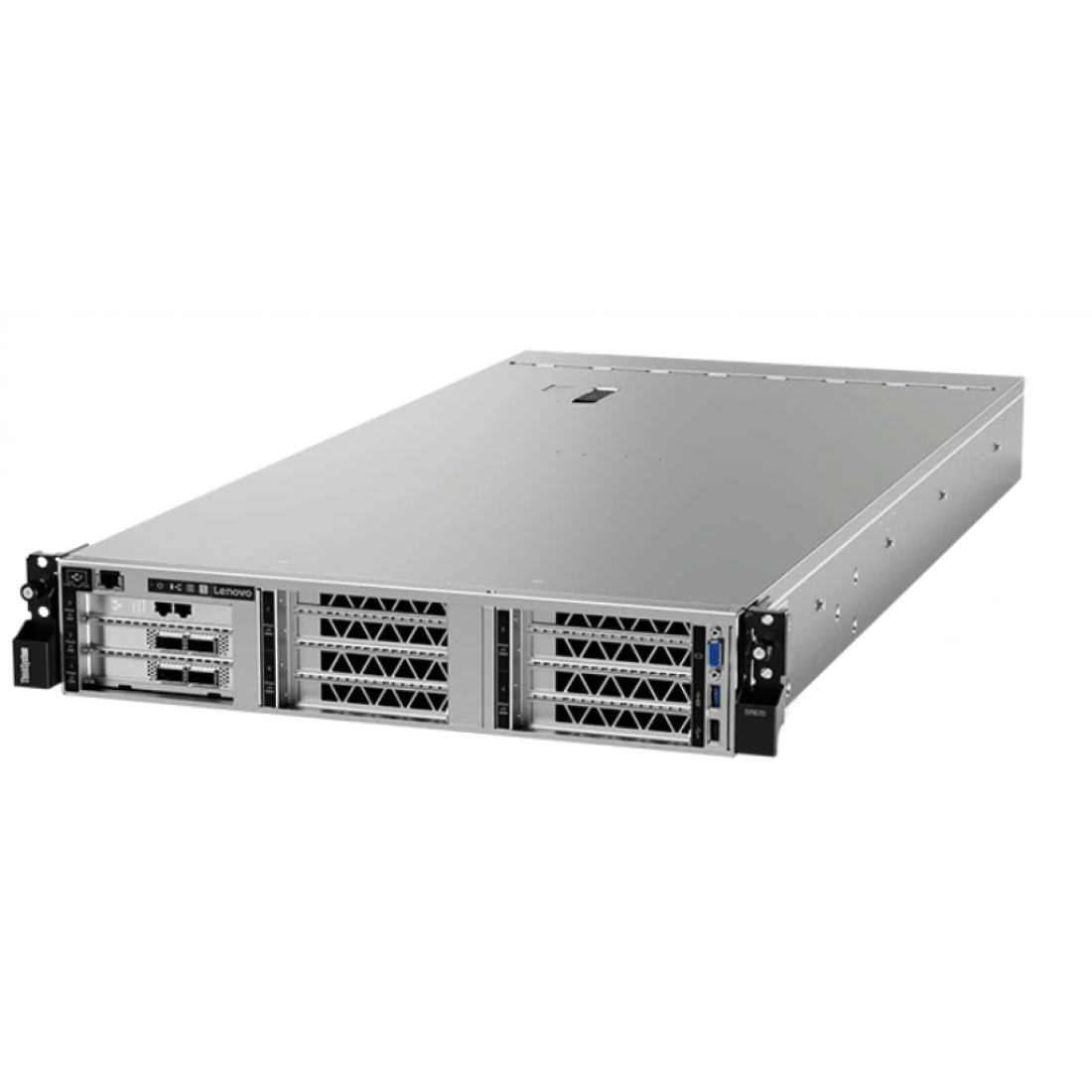

Lenovo ThinkSystem SR670 Rack Server
Brand:
Lenovo
Model Number:
SR670
The SR670 delivers scalable performance for HPC and AI workloads demanding best-of-breed GPU acceleration.
The Lenovo ThinkSystem SR670 is a 2U rack server that has been designed to support up to eight high-performance GPUs. Models of the SR670 are powered by two second-generation Intel Xeon Processor Scalable Family processors and the ratio of up to 1:4 for CPUs to GPUs means the server is an excellent choice for the emerging requirements for HPC and AI.
Suggested uses: The SR670 system is ideal for running Artificial Intelligence (AI), High Performance Computing (HPC), and Virtual Desktop Infrastructure (VDI) workloads.
The Lenovo ThinkSystem SR670 delivers optimal performance for Artificial Intelligence (AI) and high performance computing (HPC). Supporting up to either four large, or eight small GPUs per 2U node, it is suited for the computationally intensive workload requirements of both Machine Learning, Deep Learning, and Inference.
Did you know?
With support for eight single-width GPUs or four double-width GPUs per server, the SR670 is ideal for scale-out with both HPC and AI workloads. The server adheres to open industry standards, provides modularity for users, and avoids single points of failure.
Lenovo is the leading provider of supercomputers in the TOP500. Lenovo is trusted by 17 of the world's top 25 research universities to provide scalable, high-performance solutions. The SR670 provides performance and reliability with a scalable solution for enterprise and research.
.Tech Specs
| Form Factor | Full-width 2U enclosure |
| Processors | 2x second-generation Intel® Xeon® Scalable Processors (up to 205W) per node |
| Memory | Up to 768GB using 24x 2933MHz TruDDR4 DIMMs per node |
| I/O Expansion | Up to 3 PCIe adapters: 2x PCIe 3.0 x16 + 1x PCIe 3.0 x4 slots |
| Acceleration | Up to 4 double-wide, full-height, full-length GPUs (each PCIe 3.0 x16 slots), or up to 8 single-wide, fullheight, half-length GPUs (each PCIe 3.0 x8 slots) |
| Management Network Interface | 1x RJ-45 for dedicated 1GbE system management |
| Internal Storage |
|
| RAID Support | SW RAID standard; optional HBA or HW RAID with flash cache |
| Power Management | Rack-level power capping and management via Extreme Cloud Administration Toolkit (xCAT) |
| Systems Management | Remote management using Lenovo XClarity Controller; 1Gb dedicated management NIC |
| OS Support | Red Hat Enterprise Linux 7.5; Visit lenovopress.com/osig for more information. |
| Limited Warranty | 3-year customer replaceable unit and onsite limited warranty, next business day 9x5, service upgrades available |
