Lenovo ThinkSystem SR250 Rack Server
Lenovo ThinkSystem SR670 Rack Server
Lenovo Lenovo ThinkSystem SR570 Rack Server  .. Product #: SR570

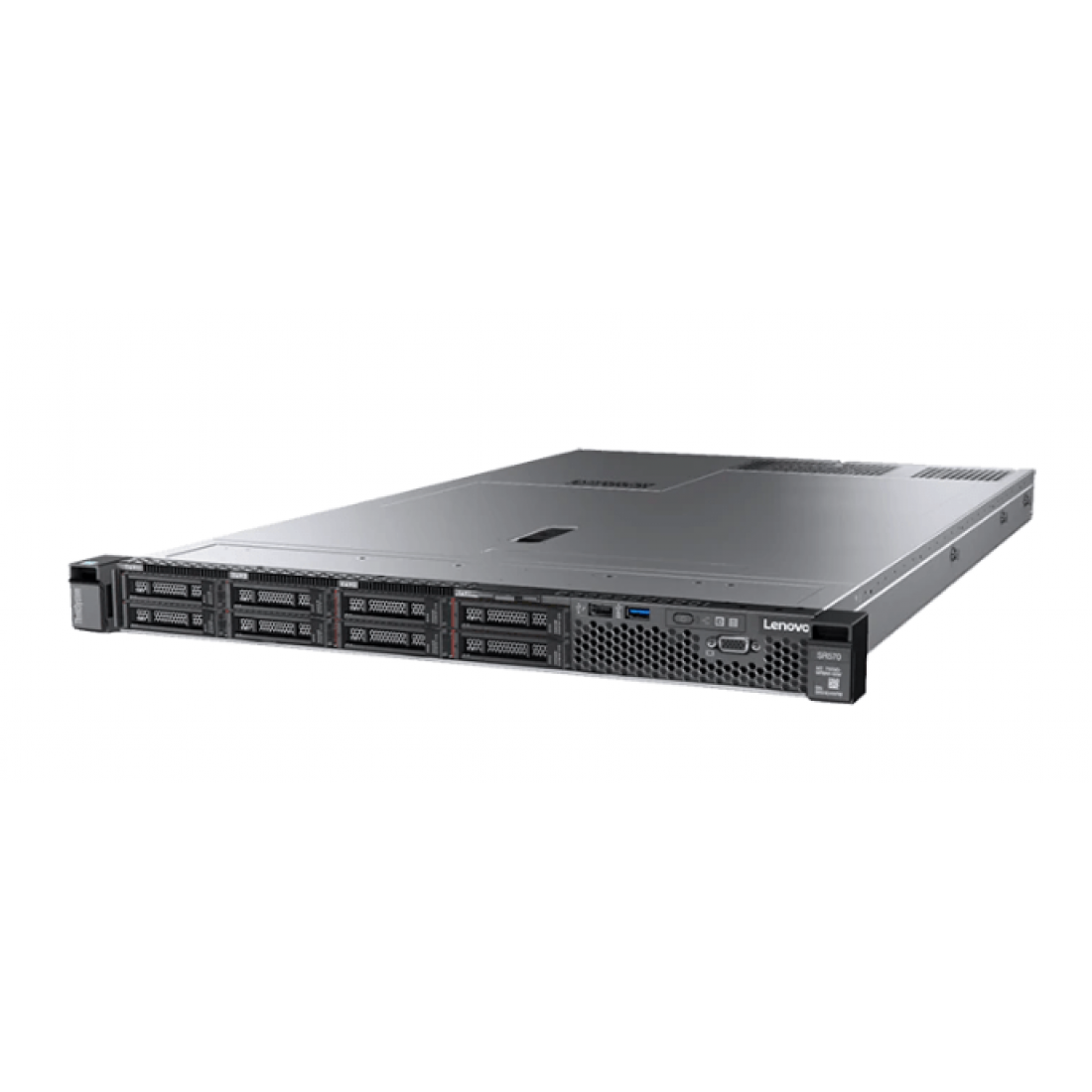

Lenovo ThinkSystem SR570 Rack Server

Brand: Lenovo
Model Number: SR570

Budget-friendly 1U rack server, offering high availability, high reliability, high performance, high security, easy management, and quick servicing

Featuring the second generation of the Intel Xeon Processor Scalable Family (Xeon SP Gen 2), the SR570 server offers balanced performance and storage capacity. The SR570 server supports up to two processors, up to 2933 MHz memory speed, up to 1 TB of memory capacity with TruDDR4 RDIMMs or up to 2.75 TB of memory capacity with a combination of TruDDR4 RDIMMs and Intel DC persistent memory modules (DCPMMs), up to 10x 2.5-inch or 4x 3.5-inch drive bays with an extensive choice of NVMe PCIe SSDs, SAS/SATA SSDs, and SAS/SATA HDDs, and flexible I/O expansion options with a LOM slot and up to 3x PCIe slots.


Did you know?

The SR570 server features a unique AnyBay design that allows a choice of drive interface types in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives.


The SR570 server offers onboard NVMe PCIe ports that allow direct connections to the U.2 NVMe PCIe SSDs, which frees up I/O slots and helps lower NVMe solution acquisition costs.


The SR570 server delivers impressive compute power per watt, featuring 80 PLUS Titanium and Platinum redundant power supplies that can deliver 96% (Titanium) or 94% (Platinum) efficiency at 50% load when connected to a 200 - 240 V AC power source.


Form Factor 1U
Processor Up to 2 second-generation Intel® Xeon® Platinum 150W, up to 26 cores per CPU
Memory Up to 1TB of 2933MHz TruDDR4 in 16 slots, Intel® Optane™ DC Persistent Memory
Expansion Slots Up to 3 PCIe 3.0
Drive Bays Up to 10x 2.5" (including optional 4x direct-connect AnyBay) or up to 4x 3.5"
Internal Storage Up to: 48TB (3.5" SAS/SATA HDD); 30.72TB (3.5" SATA SSD); 24TB (2.5" SAS/SATA HDD); 76.8TB (2.5" SSD); 30.72TB (2.5" NVMe); 1x or 2x M.2
Network Interface 2 GbE ports standard; LOM interface standard; optional ML2, PCIe
NIC Ports 2x GbE standard; 1x GbE dedicated management standard
Power Up to 2x hot-swap/redundant 550W/750W Platinum, 750W Titanium
High-Availability Features Hot-swap HDDs/SSDs/NVMe, hot-swap PSUs and fans, light path diagnostics, PFA for all major components, ASHRAE A4 support (with limits), optional XClarity Pro with Call Home feature
RAID Support HW RAID 0, 1, 5 standard on hot-swap models; SW RAID 0, 1, 5 on simple-swap 3.5" models
Security Lenovo ThinkShield, locking bezel; locking top cover; TPM 2.1 standard; optional TCM (China only)
Management XClarity Administrator; XClarity Controller (embedded hardware); optional XClarity Pro
OS Support
Microsoft, SUSE, Red Hat, VMware. Visit lenovopress.com/osig for details.
Limited Warranty 1- and 3-year customer replaceable unit and onsite service, next business day 9x5
