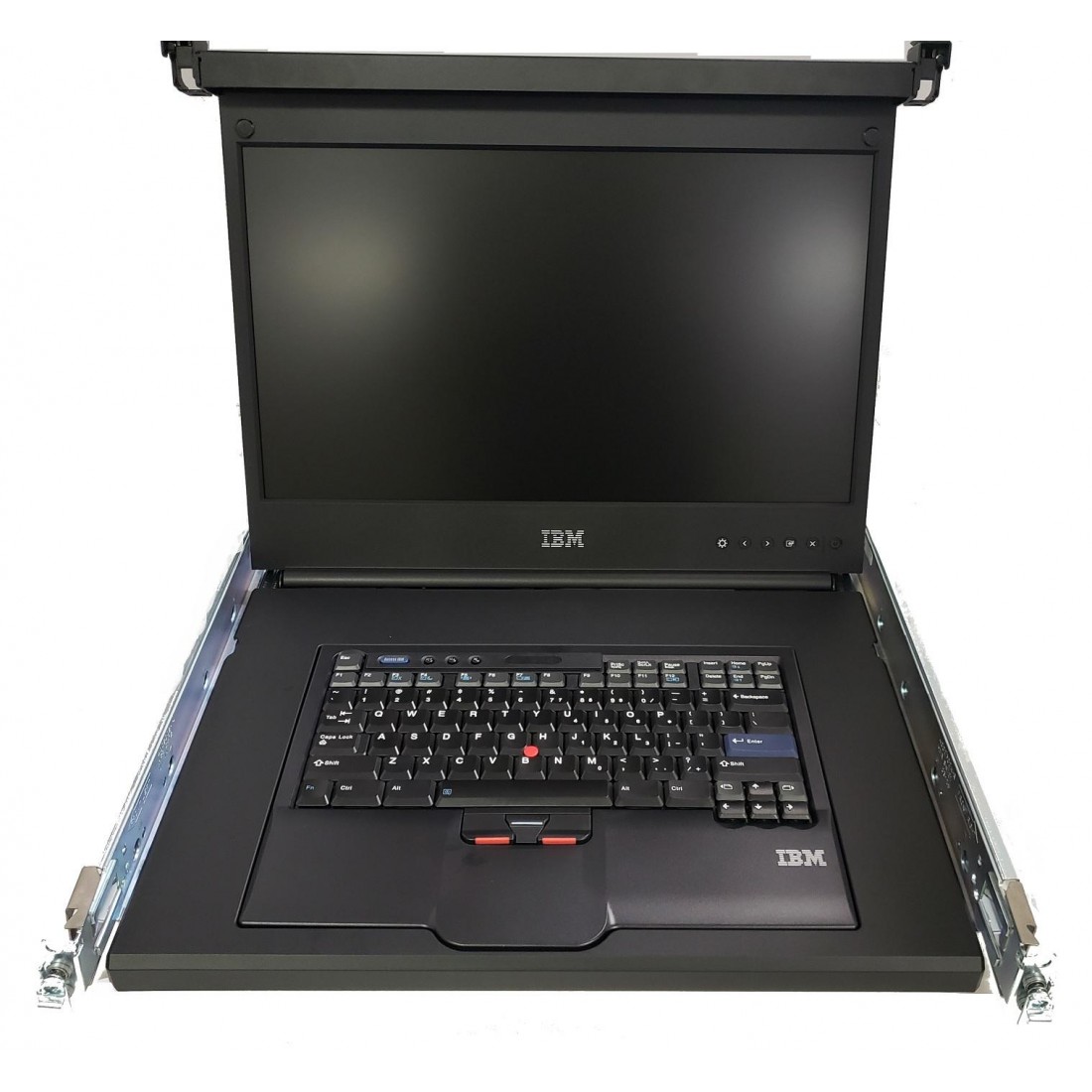

7316-TF4 18.5-Inch Flat Panel 1U Rack-Mounted Console
Brand:
IBM AS400 iSeries
Model Number:
7316-TF4
Description:
The IBM 7316 Model TF4 is a rack-mountable flat panel console kit consisting of an 18.5-inch 409.8 mm x 230.4 mm flat panel color monitor, rack keyboard tray, IBM Travel Keyboard, support for IBM Keyboard/Video/Mouse (KVM) switches, and language support. With the monitor folded down, it requires only 1U (1 EIA) of space in a 19-inch rack. It can also be configured with the tray pulled forward and the monitor folded up, providing full viewing and keying capability for the HMC operator.
Technical Specifications
• Width: 485 mm (19 in.)
• Depth: Approximately 635 mm to 730 mm (25.0 in. to 28.74 in.)
• Height: 43.0 mm (max) (1.7 in.)
• Height (opened): 410 mm (max) (16.1 in.)
• Weight: 12.8 kg (28.2 lbs.)
• Width: 485 mm (19 in.)
• Depth: Approximately 635 mm to 730 mm (25.0 in. to 28.74 in.)
• Height: 43.0 mm (max) (1.7 in.)
• Height (opened): 410 mm (max) (16.1 in.)
• Weight: 12.8 kg (28.2 lbs.)
LCD panel
• Size: 470.1 mm (18.51 in.) diagonal, 409.8 mm (H) x 230.4 mm (V) (16.1 in. x 9.1 in.)
• Type: a-Si TFT active matrix
• Pixel pitch: 0.300 mm (H) x 0.300 mm (V) (per one triad)
• Size: 470.1 mm (18.51 in.) diagonal, 409.8 mm (H) x 230.4 mm (V) (16.1 in. x 9.1 in.)
• Type: a-Si TFT active matrix
• Pixel pitch: 0.300 mm (H) x 0.300 mm (V) (per one triad)
Connector VGA
Power supply:
• 100 - 240 V ac, 47 - 63 Hz
• 12 V dc / 3.3 A max
• 100 - 240 V ac, 47 - 63 Hz
• 12 V dc / 3.3 A max
Power consumption
• Standard usage: 17 watts
• Maximum: 22 watts
• Power supply maximum: 40 watts
• Power saving: Less than 1 watt
• Standard usage: 17 watts
• Maximum: 22 watts
• Power supply maximum: 40 watts
• Power saving: Less than 1 watt
