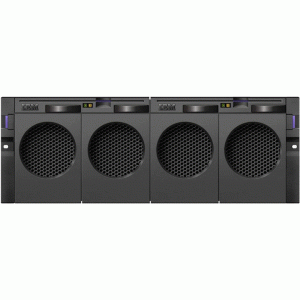

5796-8205 - IBM i Series E4B, PCI-DDR 12X Expansion Drawer

IBM i Series 8205-E6B (#5796) - PCI-DDR 12X Expansion Drawer

The #5796 is a four EIA unit I/O expansion drawer providing six full length, 64 bit, 3.3 volt, 266MHz PCI-X DDR slots. Blind swap cassettes are used to insert or remove the PCI-X cards. The #5796 is attached to a system using a GX Dual Port 12X Channel Attach adpater in a 12X loop. Either a 12X Short Run adapter (6446) or 12X Long Run adapter (6457) must be selected on each #5796. Up to four #5796 can be attached on the same 12X loop using a mixture of Short Run and Long Run adapters.

The #5796 includes redundant hot-swap power and cooling. The blind swap PCI mechanism allows for PCI card concurrent maintenance without removing the I/O expansion drawer. The #5796 mounts in a 19-inch rack using a #7314 I/O Drawer Mounting Enclosure. Two #5796 drawers can be mounted side by side in a single #7314 using a total of four EIA. The #5796 are not required to be attached to the same system. Each #5796 requires two power cords

When placed in an IBM i partition, these PCI-X DDR slots support only smart IOAs and do not support an IOP or an IOA which requires an IOP.

Attributes provided: 6 PCI-X DDR slots for blind swap I/O adapters

Attributes required: Rack space in a #7314 I/O Drawer Mounting Enclusure. 12X cable(s). 12X Short Run or Long Run card, and SPCN cable(s).

For 8202-E4B: (#5796)

Minimum required: 0

Maximum allowed: 4 (Initial order maximum: 4)

OS level required:

AIX Version 5.3 supported

AIX Version 6.1 supported

AIX Version 7.1 supported

IBM i 6.1 supported

IBM i 7.1 supported

SUSE Linux supported

Red Hat Linux supported

Refer to Software Requirements for specific O/S levels supported

Initial Order/MES/Both/Supported: Both

CSU: Yes

Return parts MES: No
