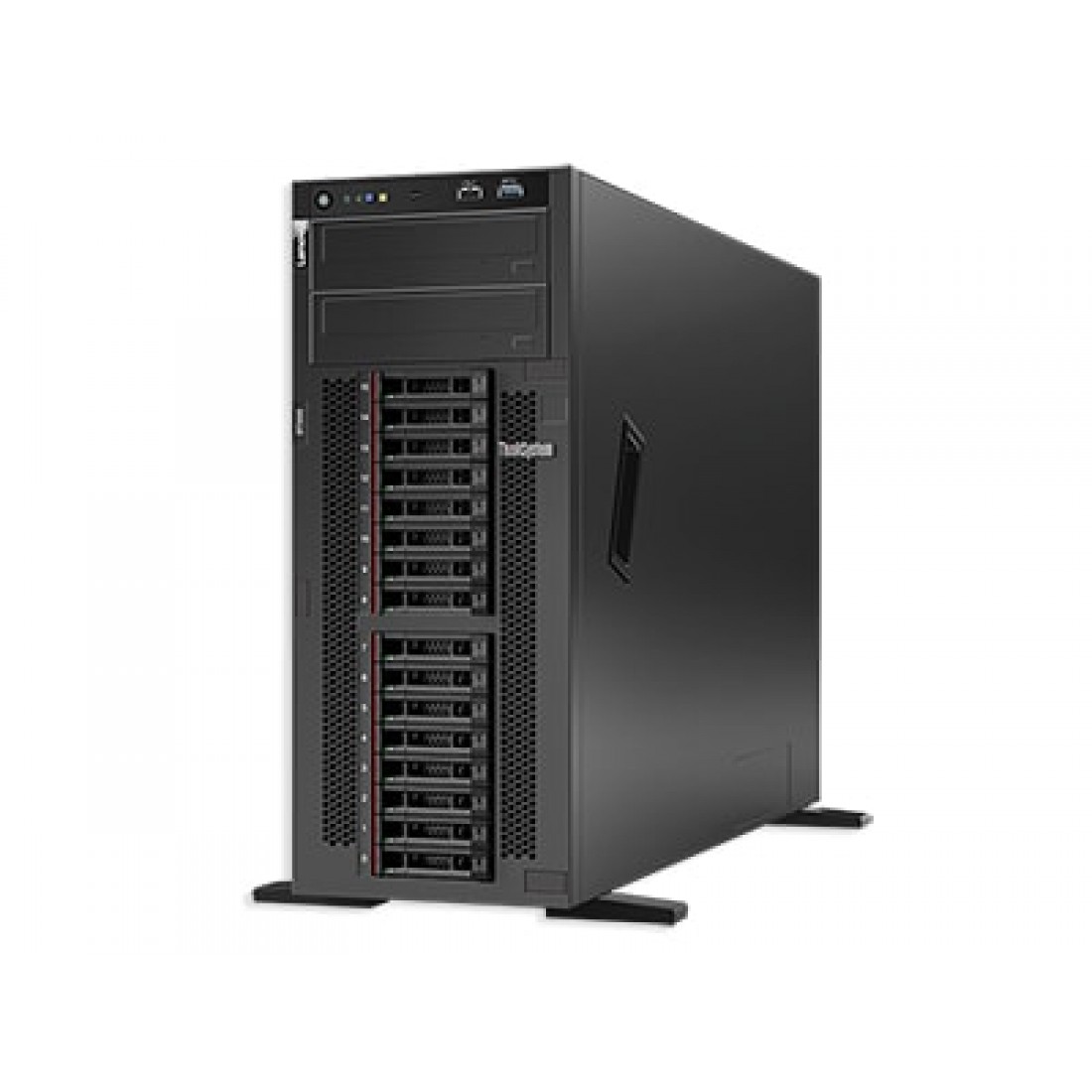

Lenovo ThinkSystem ST550 Tower Server

Get enterprise performance and flexibility in a compact footprint

ThinkSystem ST550 is a 4U tower server that provides the performance and reliability you expect from the data center, delivered in a package optimized for office environments.

ThinkSystem ST550

ThinkSystem ST550 offers Intel® Xeon® processors in a next-gen 4U tower design with both SW and HW RAID options. The server features the newest enterprise-class RAS technologies and XClarity centralized automated management.

Feature highlights

• Optimized system design to meet performance and cost points for almost any workload
• The latest processor and memory technologies, along with NVMe drives, offer tremendous performance
• AnyBay technology enables great flexibility in storage configurations
• Advanced security technologies, including lockable bezel, Kensington lock slot, chassis intrusion switch, and TPM 1.2/2.0
• Office-quiet acoustics and compact size make it ideal for under-desk, deskside, or data center rack-mount use

Enterprise enabled, ROBO ready

The Lenovo ThinkSystem ST550 is a scalable 4U tower server that features powerful Intel® Xeon® processor Scalable family CPUs. It provides the performance and reliability you expect from the data center but is optimized for office environments, with physical security and whisper-quiet operation. Its compact footprint uses 37% less space than its predecessor*, making it ideal for under-desk, deskside, or rack-mount use. ST550 is ideal for email/file/print and web serving, IT infrastructure, virtualization, VDI, and private cloud.

*Compared to Lenovo ThinkServer TD350

Compact, secure, flexible

ST550 supports up to 96.4TB of internal storage capacity, and Lenovo AnyBay technology enables the mixing and matching of storage types (U.2/SAS/SATA) in the same bays. Up to 6x PCIe adapter slots and multiple hardware and software RAID options offer the flexibility you need for NICs, GPUs, and other adapters. Physical and software security technologies, including lockable security bezel, Kensington lock slot, chassis intrusion switch, and TPM 1.2/2.0, are ideal for remote locations without the protection of a data center. ST550 also offers money-saving features, such as highly energy-efficient 80 PLUS Platinum and Titanium hot-swap PSUs, continuous operation up to 45°C, and easy centralized management via XClarity software.

High-performance, reliable, manageable

ST550 features more processor cores, memory, and I/O bandwidth than previous generations. It also provides more memory channels, 12Gb SAS interconnects, and support for HDD, SSD, NVMe, and M.2 drives as well as high-performance GPUs—all at a lower price than previous generations. Faster processors and memory, more cores, and support for NVMe and M.2 drives contribute to significantly better performance than the previous generation*. In addition, optional NVMe drives provide ultra-fast storage that can be tiered for greater application performance. Combining enterprise-class RAS features and shared components across the server portfolio increases reliability, promotes greater peace of mind, and reduces TCO.

*Compared to Lenovo ThinkServer TD350.

Tech specs

Form Factor/Height: 4U rackable tower

Processor: Up to 2x Intel® Xeon® Platinum processors, up to 125W

Memory: Up to 1.5TB^† in 12x DIMM slots using 128GB DIMMs; 2666MHz TruDDR4

^†768GB at GA; 128GB DIMMs available in the near future. Available prior to GA via special bid.

Expansion Slots: Up to 6x PCIe 3.0 (with 2x processors)

Drive Bays: Up to 16 SFF (including 4 NVMe) or 8 LFF bays; PLUS up to 4 SFF (in optical bay) and 2x internal M.2 boot

HBA/RAID Support: Software RAID (4x ports) std; opt. hardware RAID (up to 24x ports); up to 16-port HBAs

Security and Reliability Features: Lockable security bezel, Kensington lock slot, chassis intrusion switch, TPM 1.2/2.0, Predict Failure Analysis, HS/redundant drives, redundant PSUs, and 45°C continuous operation

Network Interface: 2x 1GbE ports std; optional 1GbE, 10GBASE-T, and 10Gb SFP+; 1x dedicated 1GbE management port

Power (Energy Star 2.1 compliant): Contained in the chassis

Systems Management: XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management

Operating Systems Supported: Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere. Visit lenovopress.com/osig for details.

Limited Warranty: 1- and 3-year customer replaceable unit and on-site service, next business day 9x5, opt. service upgrades

Specifications may vary depending upon region.
