Lenovo ThinkServer TS460 Tower Server

Choose a flexible, scalable, manageable, enterprise-quality server- for Robo.

The perfect server for a growing small or medium business, retail, or distributed environment: powerful, flexible, reliable, easily manageable, and environment-friendly.

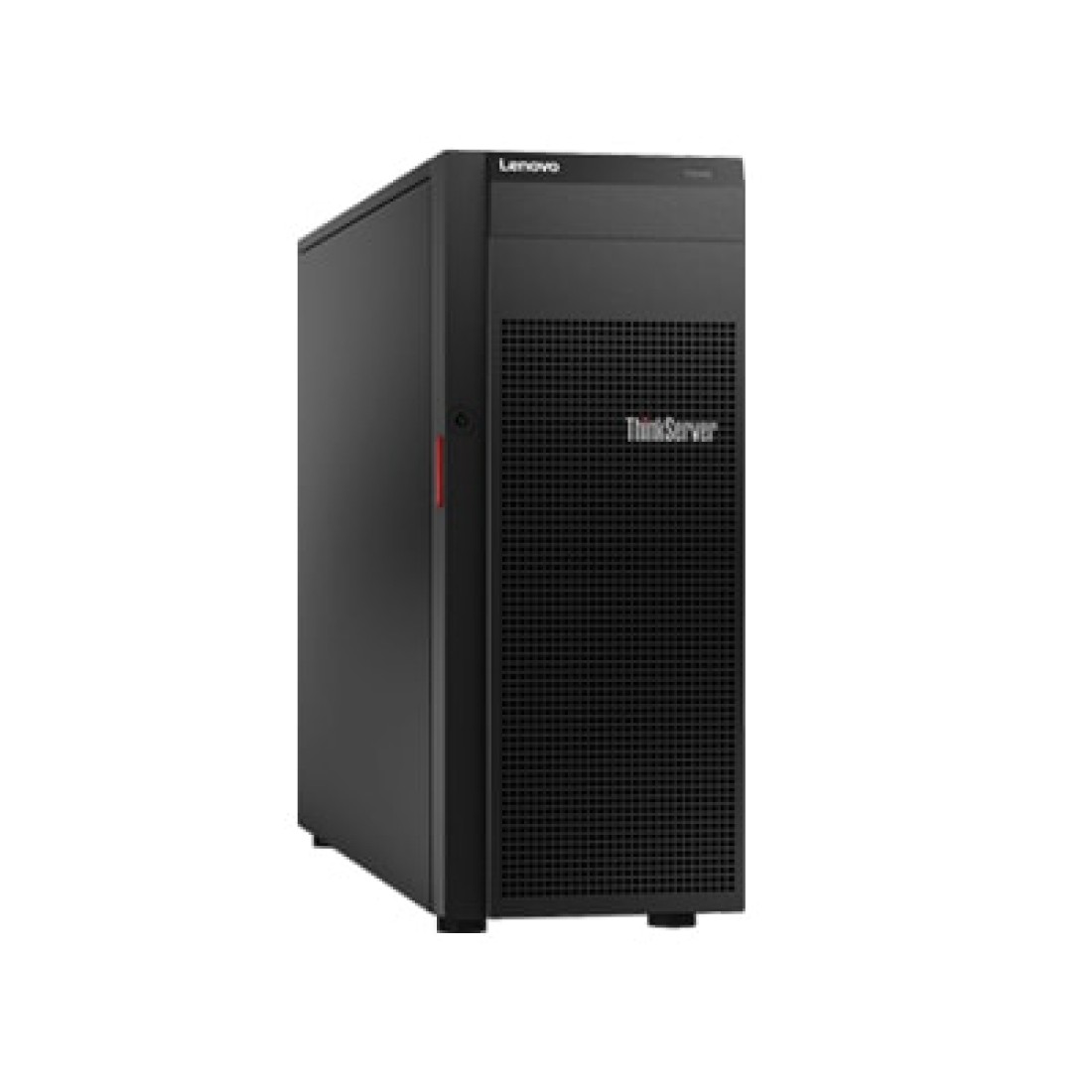

ThinkServer TS460

ThinkServer TS460 is ideal for office use, delivering office-quiet acoustics in a compact size for deskside or under-desk usage. The server also offers industry-leading storage capacity for 1P, featuring dual GbE, optional up to 2x 10GbE ports, and support for internal M.2 SSD. It delivers best-in-class physical security along with enterprise-class storage and RAID support and enterprise systems management features.

Feature highlights

• A choice of Intel® processor types, including Xeon® E3-1200 v6 family, Core® i3, and Pentium®
• Up to 64GB 2133MHz DDR4 memory
• Up to 8x 3.5-inch, or 16x 2.5-inch, or 4x 3.5-inch + 8x 2.5-inch bays
• Supports internal M.2 SSD
• Software RAID standard; optional hardware RAID
• 2x built-in 1GbE network interface ports, plus 1x dedicated management port
• Optional 2- or 4-port 1GbE NICs, and 1- or 2-port 10GbE NICs
• Choice of fixed or hot-swap/redundant drives and PSUs
• Support for several server and client operating systems
• Supports Lenovo XClarity for single-application systems management

Flexible and scalable

The Lenovo ThinkServer TS460 offers flexibility in configuration: a choice of processors, including enterprise-class Intel® Xeon® E3-1200 Processor v5 series as well as Core® i3 and Pentium® processors. Up to 64GB of ECC 2133MHz DDR4 UDIMM memory capacity enables you to run larger workloads, complete them faster, and virtualize for more efficient server usage.

Enterprise quality and manageability

Enterprise-quality features include an IPMI 2.0-compliant ThinkServer Management Module (TMM), WebUI support, Lenovo XClarity software for easy centralized management, and a dedicated Ethernet port for systems management.

Remote/branch office use

The TS460 is optimized for remote office/branch office (ROBO) use. Its office-quiet acoustics and compact size (suitable for deskside or under-desk deployment) are perfect for an office environment, and the combination of energy-efficient processors, 1.2V DDR4 memory, and 80 PLUS Gold (up to 92% efficient) power supplies saves you money and helps the environment.

Tech specs

Processor: Intel® Xeon® Processor E3-1200 v6 Series; Core® i3 and Pentium®; up to 8MB cache maximum

Operating Systems Supported:

• Microsoft Windows Server and Hypervisor 2012R2 and 2016
• Microsoft Windows Storage 2012R2 and 2016
• Client OS Windows 10 supported
• VMware Vsphere (ESXi)
• Red Hat Enterprise Linux Server
• SUSE

Form Factor: Single Socket Mainstream 4U Tower

Memory: Up to 64GB DDR4 (4x 16GB UDIMMs); 2400MHz ECC DIMMs

Storage Bays: 2x external fixed 5.25-inch bays: ODD/Tape (with kit); 4x fixed (non-hot-swap) 3.5-inch or 4/8 hot-swap 3.5-inch; 8/16 hot-swap 2.5-inch; 4x 3.5-inch + 8x 2.5-inch bays; 1x M.2 socket

Maximum Internal Storage: 80TB 3.5-inch 7,200rpm hot-swap SAS/SATA HDDs; 28.8TB 2.5-inch 10,000rpm hot-swap SAS HDDs; 15.36TB SATA SSDs; plus 128GB M.2 SATA SSD

RAID Support: ThinkServer RAID 121i software RAID; optional hardware PCIe RAID: ThinkServer RAID 520i 12Gb,ThinkServer RAID 720i 12Gb (optional cache and BBU), LSI 9300-8e 12Gb SAS (JBOD)

Power Supply (Std/Max): 1/1; 300W 80 PLUS Bronze (non-hot-swap); 1/2 450W 80 PLUS Gold (hot-swap/redundant)

Hot-Swap Components: HDDs (with RAID), PSUs

Network Interface: 2x on-board 1Gb Ethernet standard; 2 optional 2/4-port 1Gb and 1/2-port 10Gb Ethernet adapters

Expansion Slots: 4x PCIe 3.0 slots (4/x16GB UDIMMS)(x8 when slot 4 is used), x1/x1, x8/x8

Ports: 6x USB 3.0 (2x front; 4x rear), 2x RJ45 Ethernet, 1x dedicated management port, 1x serial (COM); 1x VGA

Systems Management: Lenovo XClarity; ThinkServer TMM (IPMI 2.0)

Security: Optional security bezel with intrusion detection; optional TPM 1.2 and 2.0; TCM

Dimensions (W x D x H): 173mm/6.81 inches (W) x 443.5mm/17.46 inches (H) x 582.65mm/22.94 inches (D) with foot and security door – 173mm/6.81 inches (W) x 430.5mm/16.96 inches (H) x 558mm/21.97 inches (D) without foot and security door

Limited Warranty: 1-3 year, next business day
