Lenovo ThinkSystem SD650
Brand:
Lenovo
Model Number:
SD-650
The SD650's direct water cooling design delivers maximum performance, extreme density, and leading energy efficiency in the data center.
The ThinkSystem SD650 direct water cooled server is an open, flexible, and simple data center solution for users of technical computing, grid deployments, analytics workloads, and large-scale cloud and virtualization infrastructures. The direct water cooled solution is designed to operate by using warm water, up to 50°C (122°F). Chillers are not needed for most customers, meaning even greater savings and a lower total cost of ownership.

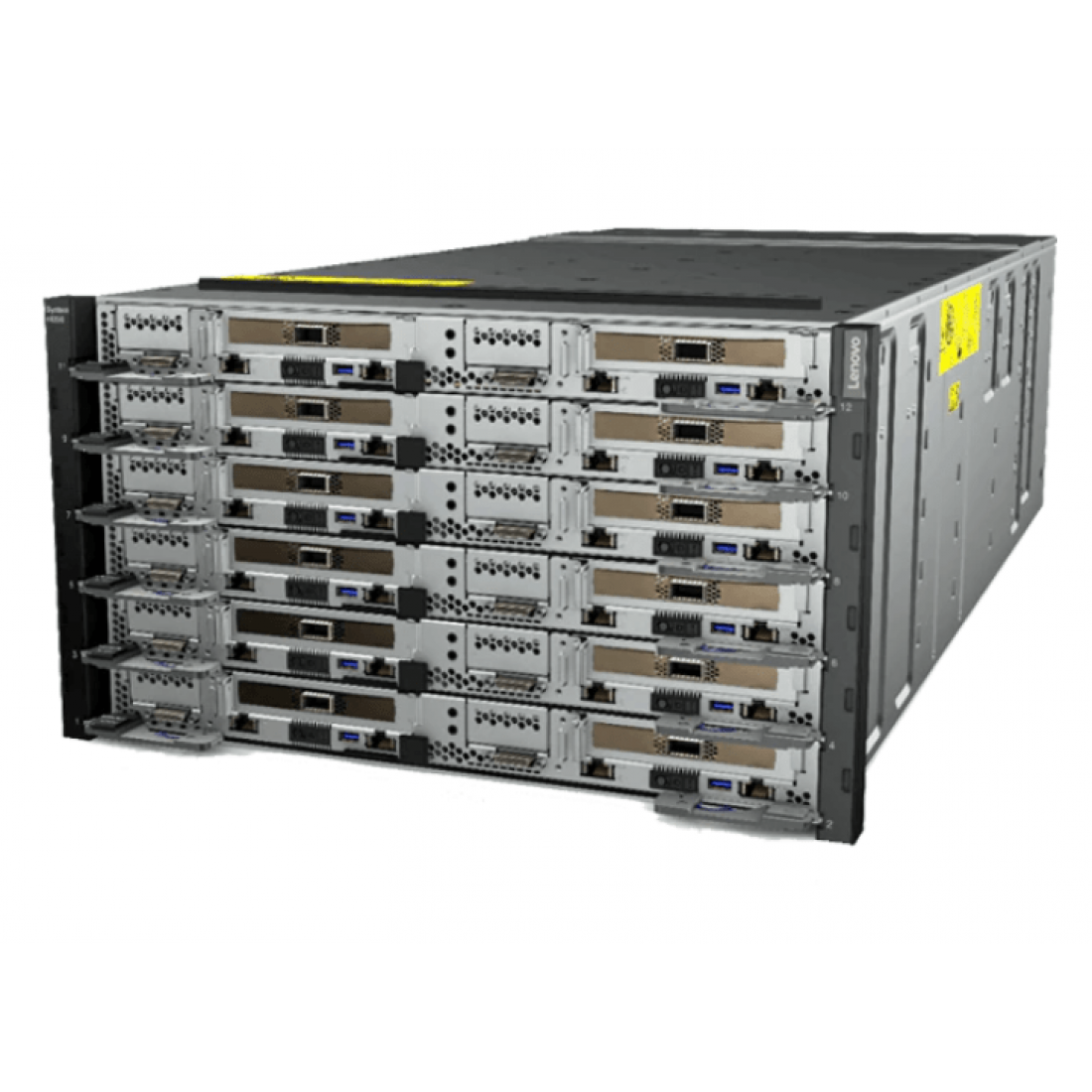

Now with second-generation Intel Xeon Scalable processors, the ThinkSystem SD650 server and the n1200 DWC enclosure are designed to optimize density and performance within typical data center infrastructure limits. The n1200 DWC enclosure is a 6U rack mount unit that fits in a standard 19-inch rack and houses up to 12 water-cooled servers in 6 trays.
The ThinkSystem SD650 with Lenovo Neptune Direct to Node (DTN) technology utilizes warm-water cooling (up to 50⁰C) to remove heat from the CPUs, memory, I/O, local storage, and voltage regulators.
Benefits of this solution include:
- Superior heat conducting efficiency of water versus air, so critical server components operate at lower temperatures compared to air-cooled systems.
- Running Intel Xeon Processor Scalable family CPUs up to 240W+ versus traditional air-cooled systems limited to 165W-205W.
- Delivering greater performance with 30-40% data center energy savings.
Did you know?
The ThinkSystem SD650 server and n1200 DWC enclosure with direct water cooling provide the ultimate in data center cooling efficiencies and performance. You can obtain upwards of 40% energy savings in data center expenses with the reduced need for air conditioning and air chillers. Direct water cooling means that the processors installed in the servers can enable the Intel Turbo Boost performance feature more often to further increase processor performance.
The ThinkSystem SD650 server and n1200 DWC enclosure with direct water cooling provide the ultimate in data center cooling efficiencies and performance. You can obtain upwards of 40% energy savings in data center expenses with the reduced need for air conditioning and air chillers. Direct water cooling means that the processors installed in the servers can enable the Intel Turbo Boost performance feature more often to further increase processor performance.
Tech Specs
| Form Factor |
Full-wide 1U tray (six per n1200 Enclosure)
|
| Chassis |
NeXtScale n1200 Enclosure (6U)
|
| Processors |
2 second-generation Intel® Xeon® Scalable Processor Scalable family CPUs per node; 2x nodes per 1U tray
|
| Memory | Up to 1.5TB using 12x 2933MHz TruDDR4 DIMMs per node or up to 2TB (512GB x4) using Intel® Optane™ DC Persistent Memory |
| I/O Expansion |
1x 50mm width ML2 slot and 1x PCIe x16 slot for EDR InfiniBand or Intel Omni Path, per server node
|
| Internal Storage | Up to 2x 2.5” SATA SSDs (7mm height) or 1x 2.5” NVMe SSDs (15mm height) per node; up to 2x M.2 SATA SSDs |
| RAID Support | Onboard SATA controller with SW RAID; optional Dual M.2 SSD adapter with HW RAID 1 |
| Network Interface | 2x 1GbE BaseT NIC per node; additional high-speed network adapters (InfiniBand or Omni Path) can be installed in available front-accessible PCIe x16 adapter slot |
| Power Management | Rack-level power capping and management via Extreme Cloud Administration Toolkit (xCAT) |
| Systems Management | Supported by LICO and XCC |
| OS Support | Red Hat, SUSE, CentOS (with LeSI support); Visit lenovopress.com/osig for more info. |
| Limited Warranty | 3-year customer replaceable unit and onsite limited warranty, next business day 9x5, service upgrades available |
