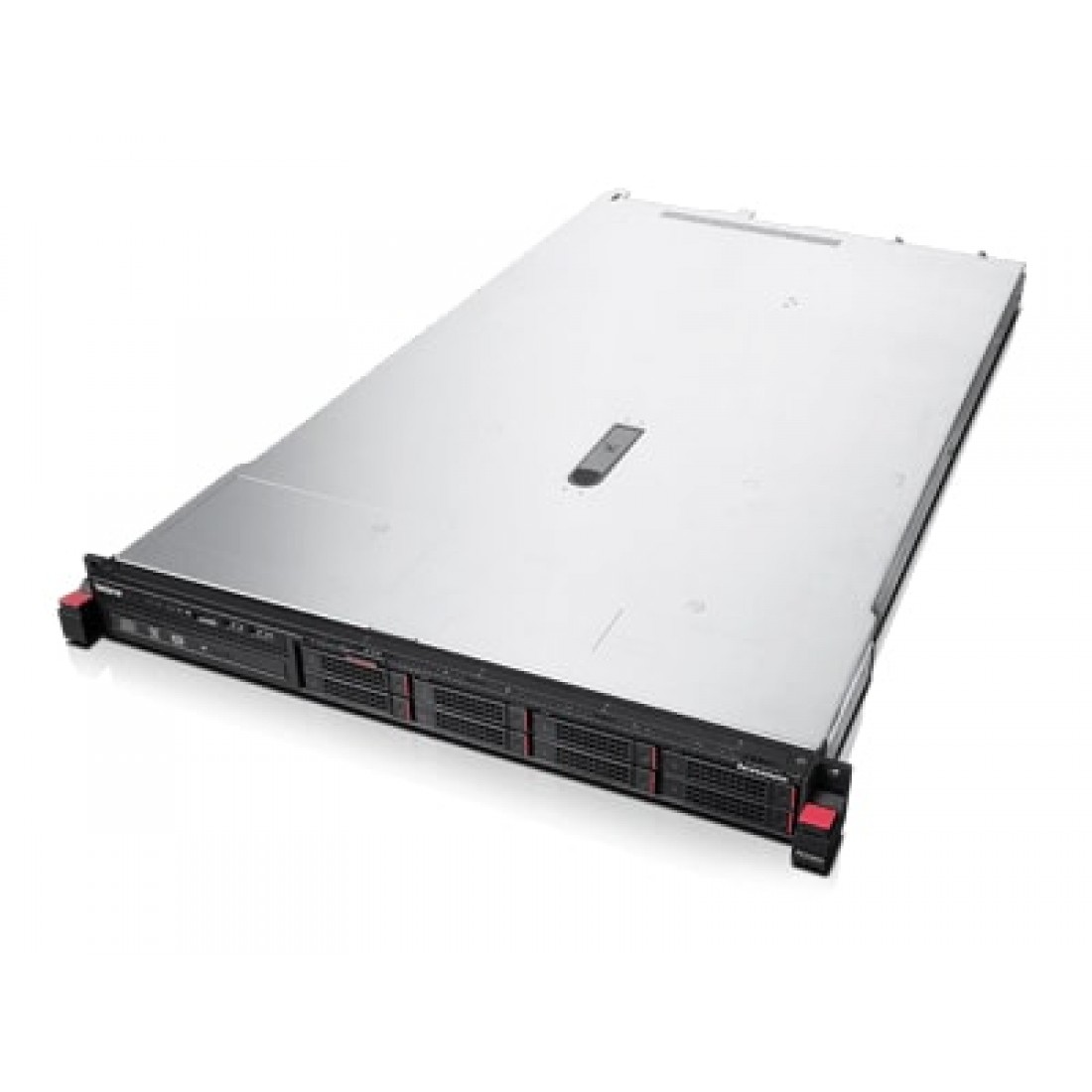

Lenovo ThinkServer RD350 Rack Server

Select this feature-rich server with built-in value.

Next-gen 1U design loaded with features you need, including outstanding performance, built-in value, and new intuitive management tools.

ThinkServer RD350

High-performance processing

• Next-gen design 1U rack server
• Double memory capacity of the previous generation
• Lenovo XClarity for centralized, automated management with mobile option

Feature highlights

Accelerate infrastructure workloads with double the memory capacity and 16% more cores than the previous generation

• Simplify server management with Lenovo XClarity
• Gain superior performance with Intel Xeon E5-2600 v4 processors (up to 28 cores per server) and double the memory capacity of the previous generation
• Reduce data center costs with smart energy-efficient features, 80 PLUS® Titanium power supplies (up to 96%), and optional Lenovo XClarity Energy Manager

Balanced performance

Lenovo ThinkServer RD350 is loaded with the features you need, and nothing you don’t—all in a slim, 1U design. Up to two Intel® Xeon® processors E5-2600 v4 series give you outstanding performance for your workloads. With high-reliability features such as hot-swap hard drives, embedded RAID, and hot-swap and redundant power, you get peace of mind that your data is safe and your system is available. This enterprise-class server has just the right amount of computing power for your infrastructure, collaboration, and line-of-business applications.

Built-in value

When you think of value in the server space, you expect a rich set of features for a great price. That's what you get with the ThinkServer RD350. Intel Xeon processors, along with DDR4 memory, provide performance advantages over the previous generations. With DDR4, you get up to a 50% boost in performance and can see up to 50% power savings over previous-generation memory. You'll also find generous storage capacity, with support for up to eight hot-swap hard drives. Enjoy enterprise-quality performance with the right built-in features in a scalable, 1U power-efficient solution—at a budget-friendly price.

Simplified management

Centrally automate discovery, inventory tracking, real-time monitoring, fault detection, and alert handling over the life cycle of your servers with Lenovo XClarity, a best-in-class enterprise management tool. A mobile option enables you to securely monitor your systems from Android and iOS devices. Additionally, the ThinkServer RD350 offers a suite of intuitive administration utilities for configuration and deployment. Lenovo XClarity Energy Manager is available for optimizing your server power consumption.

Tech specs

Form Factor/Height: 1U Rack

Processor (max)/Cache (max): Up to two 14-core Intel® Xeon® processors E5-2600 v4 series/Up to 35MB per processor (up to 105w TDP)

Memory: Up to 1TB DDR4 – 2400 MHz via 64GB x 16 DIMMs (RDIMM/LRDIMM)

Media Bays: 1 x slim optical

Disk Bays: Up to 4 x 3.5-inch or up to 8 x 2.5-inch

Maximum Internal Storage: Up to 40TB 3.5-inch chassis or up to 16TB 2.5-inch chassis

RAID Support:

• ThinkServer RAID 110i (0/1/10, optional 5)
• ThinkServer RAID 520i (0/1/10, optional 5/50)
• ThinkServer RAID 720i (0/1/10/5/50/6/60)

Power Supply:

• Redundant hot-swap
• 450W (80 PLUS Gold) 550W/750W (80 PLUS Platinum), 110V to 240V AC input
• 750W (80 PLUS Titanium), 200V to 240V AC input

Network Interface:

• 2 x Integrated Gb Ethernet
• 1 x Integrated Gb Ethernet (Dedicated to ThinkServer System Manager)

Expansion Slots 1 CPU:

• x PCIe 3.0: HL/FH: x16
• 1 x PCIe 3.0: LPx8

Expansion Slots 2 CPUs:

• 1 x PCIe 3.0: HL/FH: x16

• 1 x PCIe 3.0: LP x16

USB Ports/VGA Ports: 2x USB 2.0 front, 2x USB 3.0 rear, /1 front, 1 rear

Energy Efficiency: 4 Redundant fans with 1 processor or 6 redundant fans with 2 processors

Systems Management: Lenovo XClarity, ThinkServer System Manager
Optional ThinkServer System Manager Premium

Operating Systems Supported: Microsoft Windows Server (Including Hyper-V); SUSE Linux Enterprise Server; Red Hat Enterprise Linux Server; VMware ESXi

Dimensions (W x H x D): (482 mm x 43 mm x 803 mm) or (19.0 inches x 1.7 inches x 31.6 inches)

Weight: Starting at (13.0 kg) or (28.7 lbs)

Specifications may vary depending upon region.
